2012 Peugeot Boxer Benne Owner's Manual

167
9
TECHNI
CAL DATA

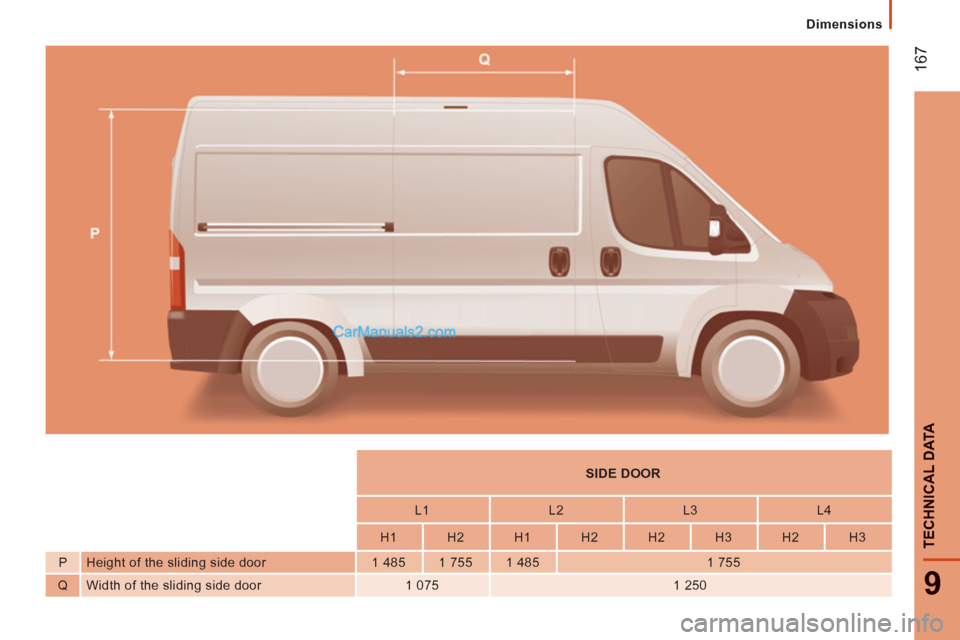

SIDE DOOR






L1
L2
L3
L4





H1
H2
H1
H2
H2
H3
H2
H3

P Height of the sliding side door
1 485
1 755
1 485
1 755

Q Width of the sliding side door
1 075
1 250

Dimensions

168


Dimensions

169
9
TECHNI
CAL DATA

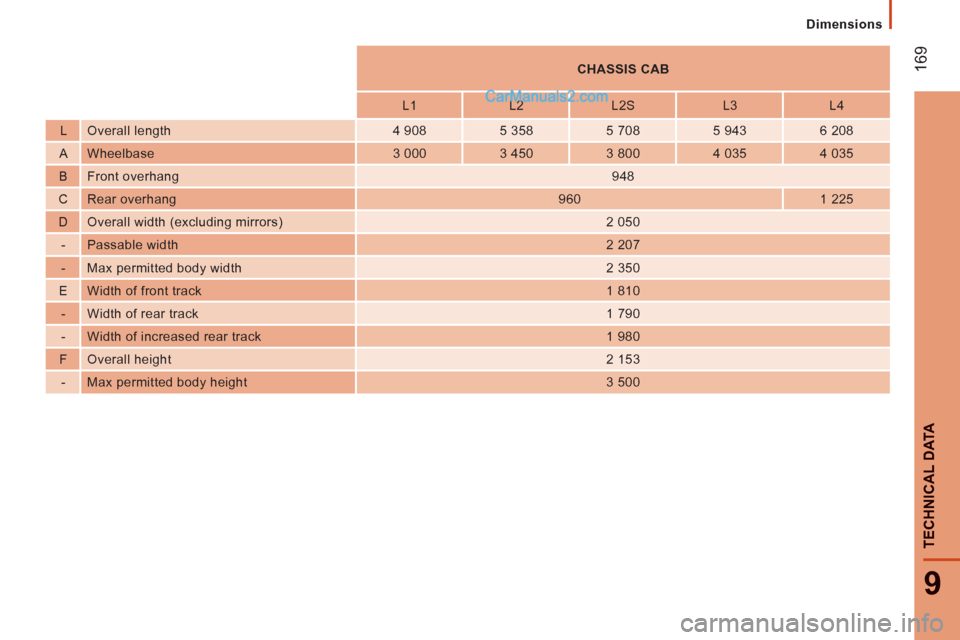

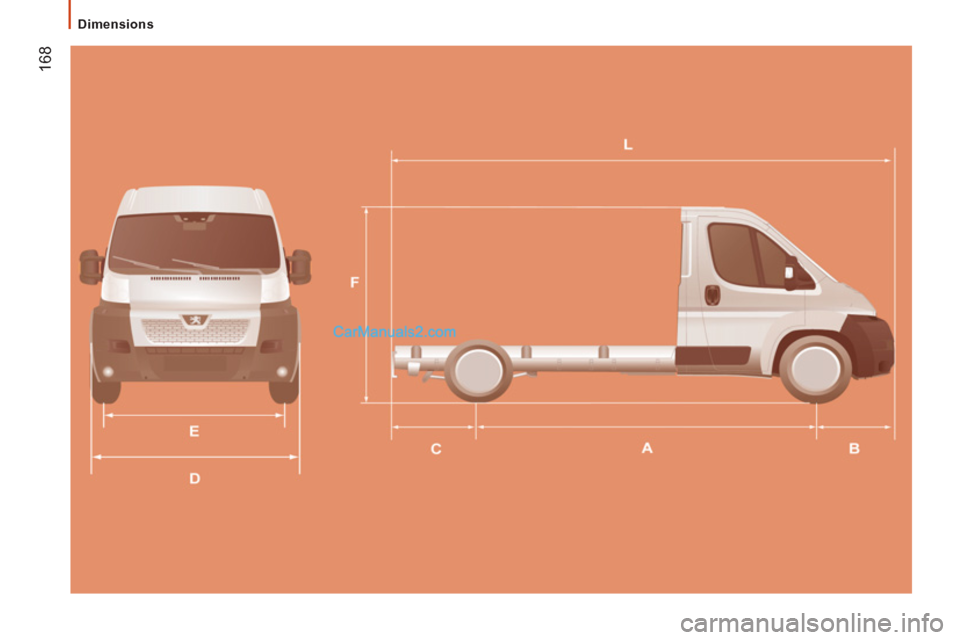

CHASSIS CAB






L1
L2
L2S
L3
L4

L Overall length
4 908
5 358
5 708
5 943
6 208

A Wheelbase
3 000
3 450
3 800
4 035
4 035

B Front overhang

948

C Rear overhang
960
1 225

D Overall width (excluding mirrors)
2 050

- Passable width

2 207

- Max permitted body width
2 350

E Width of front track
1 810

- Width of rear track
1 790

- Width of increased rear track
1 980

F Overall height

2 153

- Max permitted body height
3 500

Dimensions

17
0



L1H1


L2H2



A

751
872
1 201
1 322


B

1 201
1 743
1 651
2 193


C

-
860
-
860

Dimensions

17
1
9
TECHNI
CAL DATA


Diesel engines

Quality of the fuel used for Diesel engines


The Diesel engines are perfectly compatible with biofuels which conform to current and future European standards (Diesel fuel which
complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) available at the pumps (containing up to 7 %
Fatty Acid Methyl Ester).
The B30 biofuel can be used in certain Diesel engines; however, this use is subject to strict application of the special servicing conditions.
Consult a PEUGEOT dealer.
The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted, domestic fuel...) is strictly prohibited (risk of damage to the
engine and fuel system).


ENGINES and gearboxes - Diesel





2.2 litre HDi 110


2.2 litre HDi 130


2.2 litre
HDi 150


3 litre
HDi 155


3 litre
HDi 180


Gearbox

Manual
Gears
5
6
6
6
6
6
Maximum power (hp)
100
11 0
120
130
150
156
180
EU standard maximum power (kW)
74
81
88
96
11 0
11 5
130
Cubic capacity (cc)
2 198
2 198
2198
2 999
2 999
Bore x stroke (mm)
86 x 94.6
86 x 94.6
86 x 94.6
95.8 x 104
95.8 x 104
Max power engine speed (rpm)
2 900

3 500
3 500
3 500
3 500
3 600
EU standard max torque (daNm)
250
320
320
400
400
Max torque engine speed (rpm)
1 500
2 000
2 000
1 400
1 400
Fuel
Diesel
Diesel
Diesel
Diesel
Diesel
Catalytic converter
Ye s
Ye s
Ye s
Ye s
Ye s
Particle emissions filter
-
Ye s
-
Ye s
Ye s
Ye s
Ye s





Engine oil capacity (in litres) after
draining and oil filter replacement
6.4
6.2
6.4
6.2
6.2
9
9

172

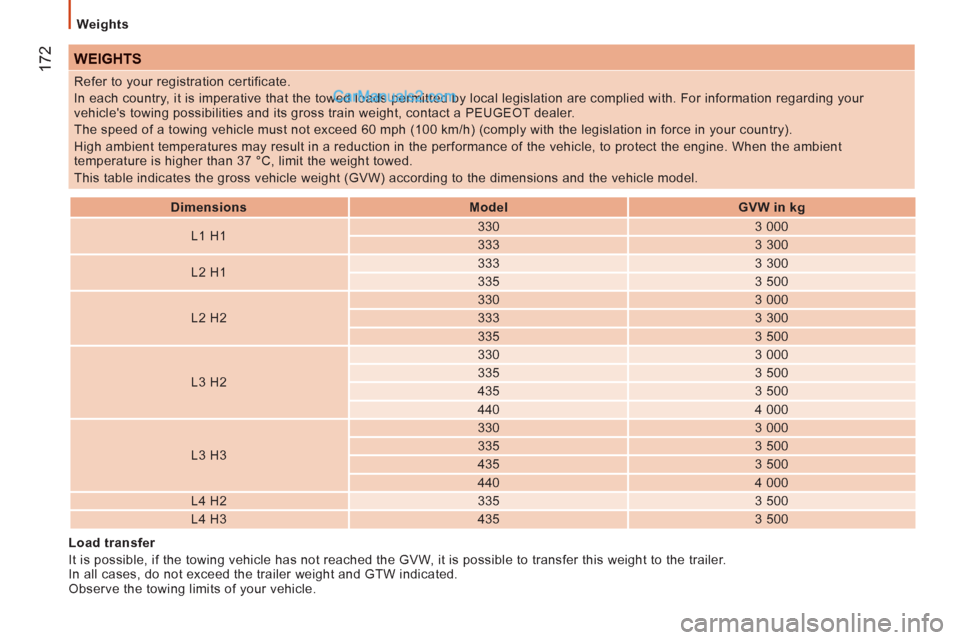

Weights

WEIGHTS



Dimensions


Model


GVW in kg


L1 H1
330
3 000

333
3 300

L2 H1
333
3 300

335
3 500

L2 H2
330
3 000

333
3 300

335
3 500

L3 H2
330
3 000

335
3 500

435
3 500

440
4 000

L3 H3
330
3 000

335
3 500

435
3 500

440
4 000

L4 H2
335
3 500

L4 H3
435
3 500 Refer to your registration certificate.
In each country, it is imperative that the towed loads permitted by local legislation are complied with. For information regarding your
vehicle's towing possibilities and its gross train weight, contact a PEUGEOT dealer.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle, to protect the engine. When the ambient
temperature is higher than 37 °C, limit the weight towed.
This table indicates the gross vehicle weight (GVW) according to the dimensions and the vehicle model.

Load transfer
It is possible, if the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight and GTW indicated.
Observe the towing limits of your vehicle.

17
3
9
TECHNI
CAL DATA

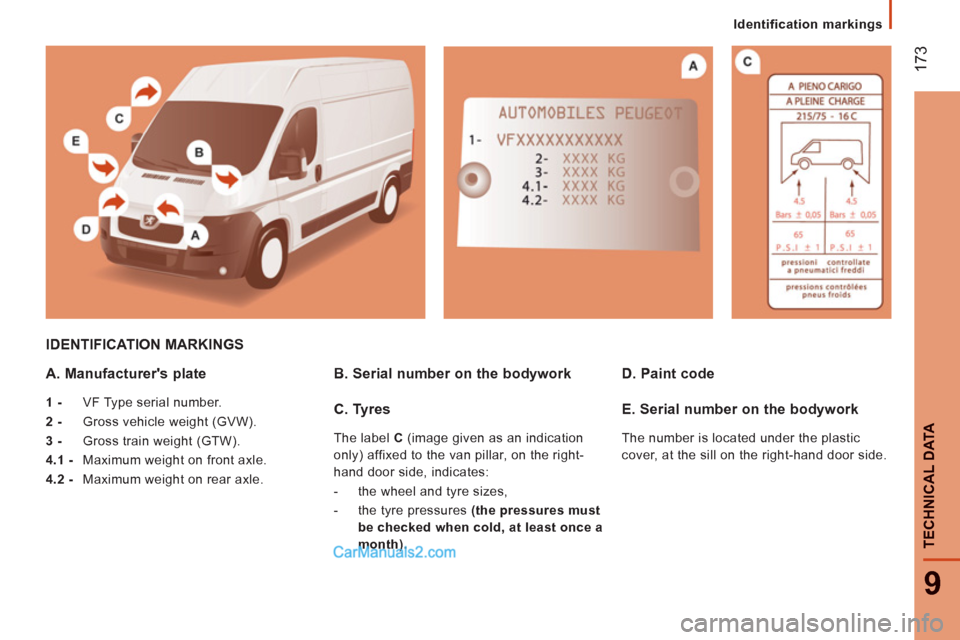

Identification markings
IDENTIFICATION MARKINGS
A. Manufacturer's plate

1 -
VF Type serial number.

2 -
Gross vehicle weight (GVW).

3 -
Gross train weight (GTW).

4.1 -
Maximum weight on front axle.

4.2 -
Maximum weight on rear axle.


B. Serial number on the bodywork D. Paint code

C. T
yres

The label C
(image given as an indication
only) affixed to the van pillar, on the right-
hand door side, indicates:


- the wheel and tyre sizes,

- the tyre pressures (the pressures must
be checked when cold, at least once a
month).


E. Serial number on the bodywork

The number is located under the plastic
cover, at the sill on the right-hand door side.

174

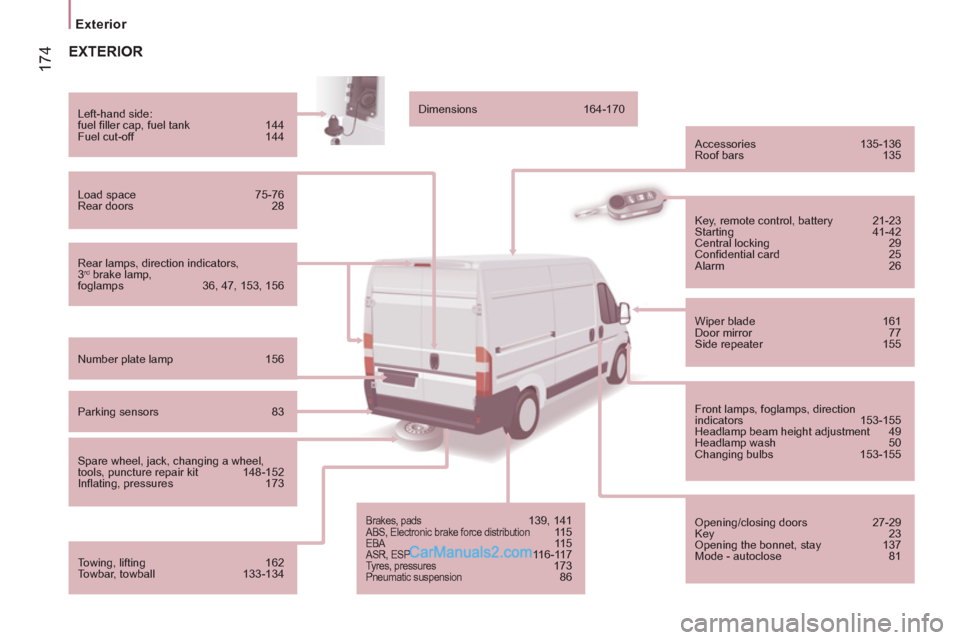

Exterior





EXTERIOR


Rear lamps, direction indicators,
3 rd
brake lamp,
foglamps 36, 47, 153, 156
Left-hand side:
fuel fi ller cap, fuel tank 144
Fuel cut-off 144

Load space 75-76
Rear doors 28

Number plate lamp 156

Parking sensors 83

Spare wheel, jack, changing a wheel,
tools, puncture repair kit 148-152
Infl ating, pressures 173

Towing, lifting 162
Towbar, towball 133-134
Dimensions 164-170

Accessories 135-136
Roof bars 135


Brakes, pads 139, 141
ABS, Electronic brake force distribution 11 5
EBA 11 5
ASR, ESP 116-117
Tyres, pressures 173
Pneumatic suspension 86



Key, remote control, battery 21-23
Starting 41-42
Central locking 29
Confi dential card 25
Alarm 26

Wiper blade 161
Door mirror 77
Side repeater 155

Front lamps, foglamps, direction
indicators 153-155
Headlamp beam height adjustment 49
Headlamp wash 50
Changing bulbs 153-155

Opening/closing doors 27-29
Key 23
Opening the bonnet, stay 137
Mode - autoclose 81
