2012 Peugeot Boxer Benne Owner's Manual

Audio equipment
95
4
TECHNOLOGY
on
BOAR
D

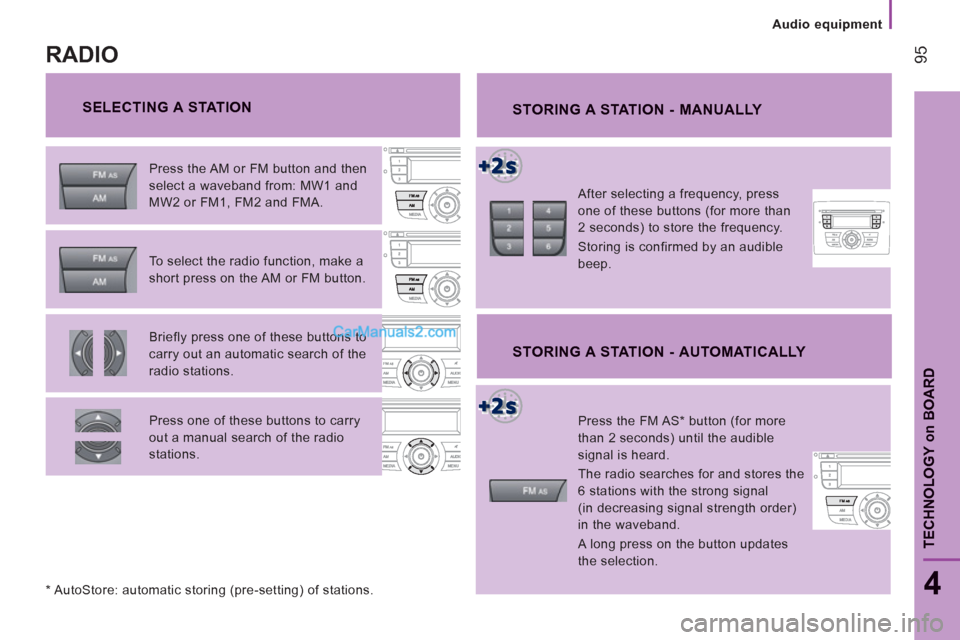

SELECTING A STATION

STORING A STATION - MANUALLY


After selecting a frequency, press
one of these buttons (for more than
2 seconds) to store the frequency.
Storing is confirmed by an audible
beep.

Press the AM or FM button and then
select a waveband from: MW1 and
MW2 or FM1, FM2 and FMA.

To select the radio function, make a
short press on the AM or FM button.

Briefly press one of these buttons to
carry out an automatic search of the
radio stations.

Press one of these buttons to carry
out a manual search of the radio
stations.

RADIO


Press the FM AS * button (for more
than 2 seconds) until the audible
signal is heard.
The radio searches for and stores the
6 stations with the strong signal
(in decreasing signal strength order)
in the waveband.
A long press on the button updates
the selection.





STORING A STATION - AUTOMATICALLY


* AutoStore: automatic storing (pre-setting) of stations.

22
11
33


Audio equipment

96


The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio
Layer 3, is an audio compression standard which permits the
recording of several tens of music files on a single disc.

MP3


In order to be able to play a recorded CDR or CDRW, when
recording it is preferable to select standards ISO 9660
level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played
correctly.

It is recommended that the same recording standard is
always used for an individual disc, with as low a speed as
possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet
standard is recommended.

The audio equipment will only play files with the extension
".mp3" with a sampling rate of 22.05 KHz or 44.1 KHz.No
other type of file (.wma, .mp4, m3u...) can be played.

It is advisable to restrict file names to 20 characters without
using special characters (e.g.: () " " ? ; , space ) to avoid any
playing or displaying problems.

PLAY A CD


Insert circular compact discs only.
Some anti-pirating systems, on original
discs or CDs copied using a personal
recorder, may cause faults which are no
reflection on the quality of the original
player.
Insert a CD or an MP3 CD in the player,
play begins automatically.

If the player already contains a disc,
switch on the audio equipment and
press the MEDIA source button briefl y.
The last track played begins.

Press one of the buttons to select a
track on the CD.
Press and hold one of the buttons for
fast forwards or backwards.

Press this button to pause play.
Press again to resume play.

97

Bluetooth hands-free system
4
TECHNOLOGY
on
BOARD

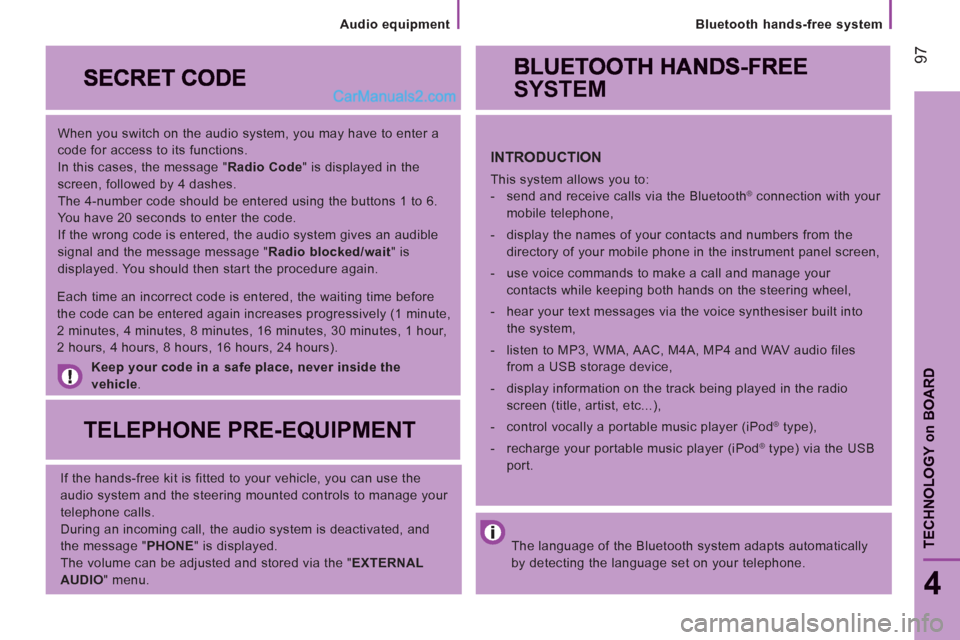

When you switch on the audio system, you may have to enter a
code for access to its functions.
In this cases, the message " Radio Code
" is displayed in the
screen, followed by 4 dashes.
The 4-number code should be entered using the buttons 1 to 6.
You have 20 seconds to enter the code.
If the wrong code is entered, the audio system gives an audible
signal and the message message " Radio blocked/wait
" is
displayed. You should then start the procedure again.


Keep your code in a safe place, never inside the
vehicle
.


TELEPHONE PRE-EQUIPMENT


If the hands-free kit is fitted to your vehicle, you can use the
audio system and the steering mounted controls to manage your
telephone calls.
During an incoming call, the audio system is deactivated, and
the message " PHONE
" is displayed.
The volume can be adjusted and stored via the " EXTERNAL
AUDIO
" menu.
Each time an incorrect code is entered, the waiting time before
the code can be entered again increases progressively (1 minute,
2 minutes, 4 minutes, 8 minutes, 16 minutes, 30 minutes, 1 hour,
2 hours, 4 hours, 8 hours, 16 hours, 24 hours).


The language of the Bluetooth system adapts automatically
by detecting the language set on your telephone.

SYSTEM


INTRODUCTION

This system allows you to:


- send and receive calls via the Bluetooth® connection with your
mobile telephone,

- display the names of your contacts and numbers from the
directory of your mobile phone in the instrument panel screen,

- use voice commands to make a call and manage your
contacts while keeping both hands on the steering wheel,

- hear your text messages via the voice synthesiser built into
the system,

- listen to MP3, WMA, AAC, M4A, MP4 and WAV audio files
from a USB storage device,

- display information on the track being played in the radio
screen (title, artist, etc...),

- control vocally a portable music player (iPod
® type),

- recharge your portable music player (iPod
® type) via the USB
port.


Audio equipment

98

Bluetooth hands-free system

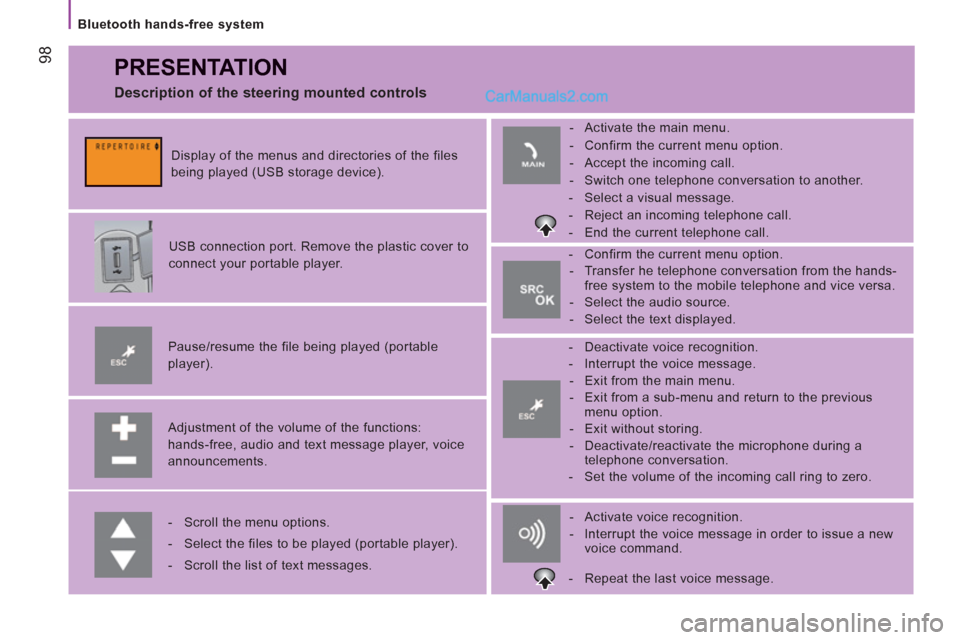

PRESENTATION


Adjustment of the volume of the functions:
hands-free, audio and text message player, voice
announcements.
Pause/resume the file being played (portable
player).
USB connection port. Remove the plastic cover to
connect your portable player.
Display of the menus and directories of the files
being played (USB storage device).



- Scroll the menu options.

- Select the files to be played (portable player).

- Scroll the list of text messages.



- Activate voice recognition.

- Interrupt the voice message in order to issue a new
voice command.


- Deactivate voice recognition.

- Interrupt the voice message.

- Exit from the main menu.

- Exit from a sub-menu and return to the previous
menu option.

- Exit without storing.

- Deactivate/reactivate the microphone during a
telephone conversation.

- Set the volume of the incoming call ring to zero.



- Confirm the current menu option.

- Transfer he telephone conversation from the hands-
free system to the mobile telephone and vice versa.

- Select the audio source.

- Select the text displayed.



- Activate the main menu.

- Confirm the current menu option.

- Accept the incoming call.

- Switch one telephone conversation to another.

- Select a visual message.

- Reject an incoming telephone call.

- End the current telephone call.



Description of the steering mounted controls


- Repeat the last voice message.

99

Bluetooth hands-free system
4
TECHNOLOGY
on
BOARD

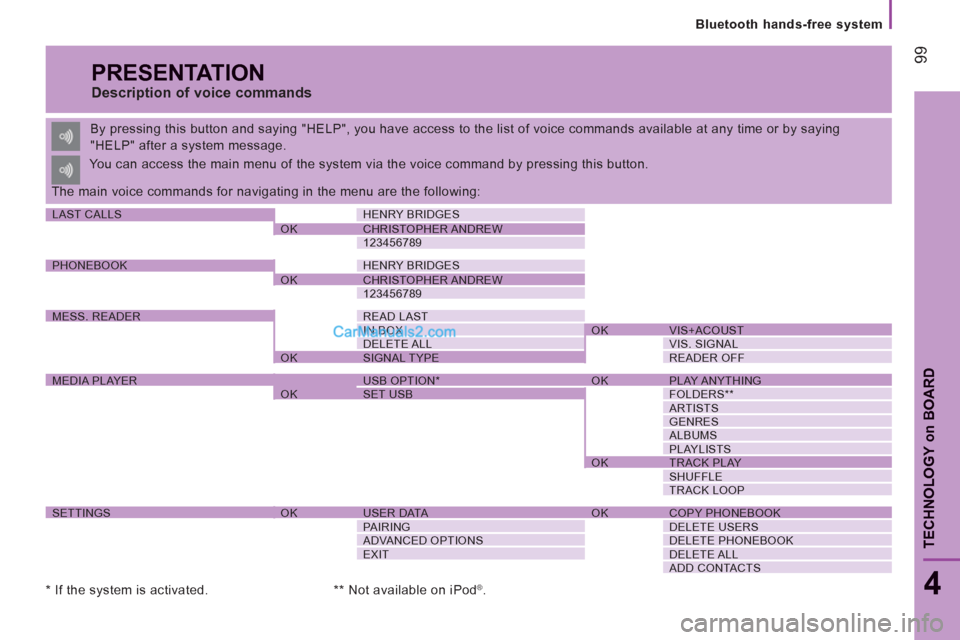

PRESENTATION


Description of voice commands

By pressing this button and saying "HELP", you have access to the list of voice commands available at any time or by saying
"HELP" after a system message.
The main voice commands for navigating in the menu are the following: You can access the main menu of the system via the voice command by pressing this button.

*
If the system is activated.
**
Not available on iPod
®.

LAST CALLS

HENRY BRIDGES
OK CHRISTOPHER ANDREW
123456789
PHONEBOOK HENRY BRIDGES
OK


CHRISTOPHER ANDREW
123456789
MESS. READER READ LAST
IN BOX OK VIS+ACOUST
DELETE ALL VIS. SIGNAL
OK SIGNAL TYPE READER OFF
MEDIA PLAYER USB OPTION * OK PLAY ANYTHING
OK SET USB FOLDERS **
ARTISTS
GENRES
ALBUMS
PLAYLISTS
OK TRACK PLAY
SHUFFLE
TRACK LOOP
SETTINGS OK USER DATA OK COPY PHONEBOOK
PAIRING DELETE USERS
ADVANCED OPTIONS DELETE PHONEBOOK
EXIT DELETE ALL
ADD CONTACTS

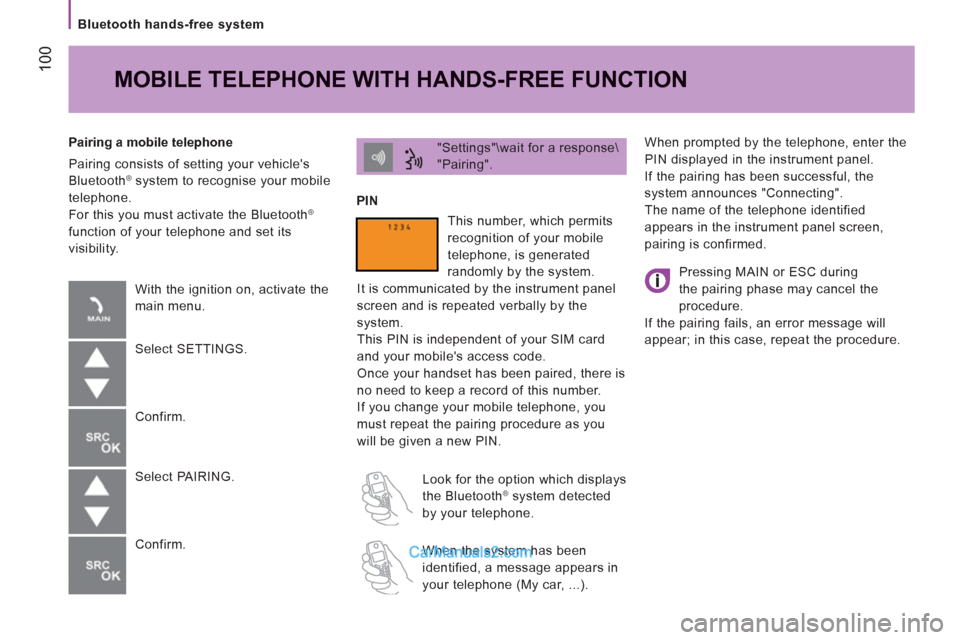

100

Bluetooth hands-free system
When prompted by the telephone, enter the
PIN displayed in the instrument panel.
If the pairing has been successful, the
system announces "Connecting".
The name of the telephone identified
appears in the instrument panel screen,
pairing is confirmed. "Settings"\wait for a response\
"Pairing".

PIN
Pairing a mobile telephone
Pairing consists of setting your vehicle's
Bluetooth
® system to recognise your mobile
telephone.
For this you must activate the Bluetooth
®
function of your telephone and set its
visibility.
MOBILE TELEPHONE WITH HANDS-FREE FUNCTION

With the ignition on, activate the
main menu.
Select SETTINGS.
Confirm.
Select PAIRING.
Confirm. This number, which permits
recognition of your mobile
telephone, is generated
randomly by the system.
It is communicated by the instrument panel
screen and is repeated verbally by the
system.
This PIN is independent of your SIM card
and your mobile's access code.
Once your handset has been paired, there is
no need to keep a record of this number.
If you change your mobile telephone, you
must repeat the pairing procedure as you
will be given a new PIN.
Look for the option which displays
the Bluetooth
® system detected
by your telephone.
When the system has been
identified, a message appears in
your telephone (My car, ...).

Pressing MAIN or ESC during
the pairing phase may cancel the
procedure.
If the pairing fails, an error message will
appear; in this case, repeat the procedure.

101

Bluetooth hands-free system
4
TECHNOLOGY
on
BOARD

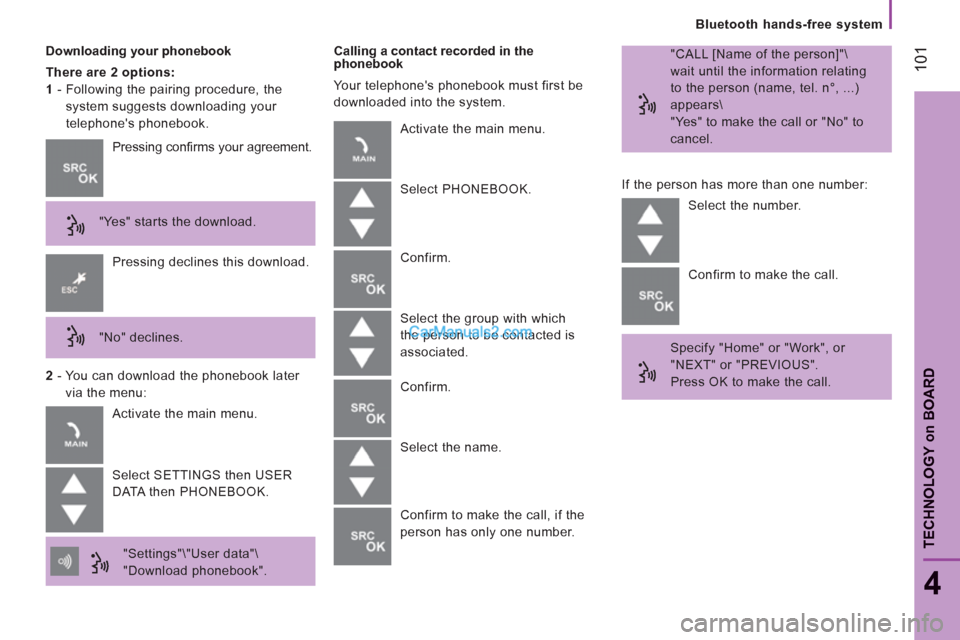

Downloading your phonebook

There are 2 options:

1
- Following the pairing procedure, the
system suggests downloading your
telephone's phonebook.
Calling a contact recorded in the
phonebook
Your telephone's phonebook must first be
downloaded into the system. "CALL [Name of the person]"\
wait until the information relating
to the person (name, tel. n°, ...)
appears\
"Yes" to make the call or "No" to
cancel.
Pressing confi rms your agreement.
"Yes" starts the download.
Pressing declines this download.
"No" declines.

2
- You can download the phonebook later
via the menu:
Activate the main menu.
Select SETTINGS then USER
DATA then PHONEBOOK.
"Settings"\"User data"\
"Download phonebook". Activate the main menu.
Select PHONEBOOK.
Confirm.
Select the group with which
the person to be contacted is
associated.
Confirm.
Select the name.
Confirm to make the call, if the
person has only one number. If the person has more than one number:
Select the number.
Confirm to make the call.
Specify "Home" or "Work", or
"NEXT" or "PREVIOUS".
Press OK to make the call.

102

Bluetooth hands-free system

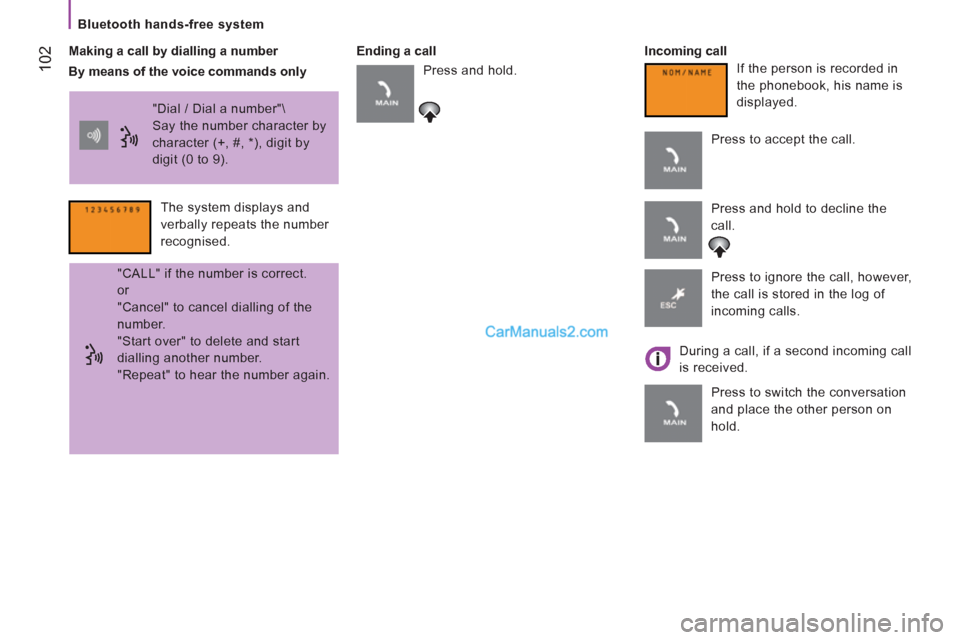

Making a call by dialling a number
Ending a call
Incoming call
"Dial / Dial a number"\
Say the number character by
character (+, #, *), digit by
digit (0 to 9).
The system displays and
verbally repeats the number
recognised.
"CALL" if the number is correct.
or
"Cancel" to cancel dialling of the
number.
"Start over" to delete and start
dialling another number.
"Repeat" to hear the number again. If the person is recorded in
the phonebook, his name is
displayed.
Press to accept the call.
Press and hold to decline the
call.
Press to ignore the call, however,
the call is stored in the log of
incoming calls.
During a call, if a second incoming call
is received.
By means of the voice commands only Press and hold.
Press to switch the conversation
and place the other person on
hold.
