Practical information
Push the repeater towards the rear to disengage it. )Disconnect the repeater connector.
)Change the repeater unit.
To reassemble, carry out these operations in reverse order.
Contact a PEUGEOT dealer or a qualified workshop to obtain replacement repeaters.

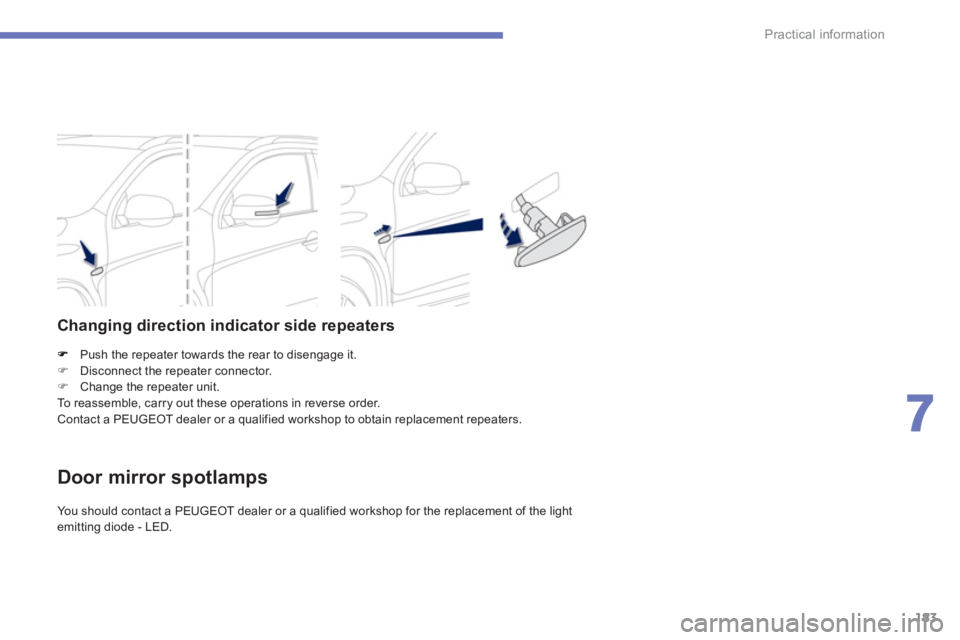

Changing direction indicator side repeaters
Door mirror spotlamps

You should contact a PEUGEOT dealer or a qualified workshop for the replacement of the light emitting diode - LED.

184
Practical information

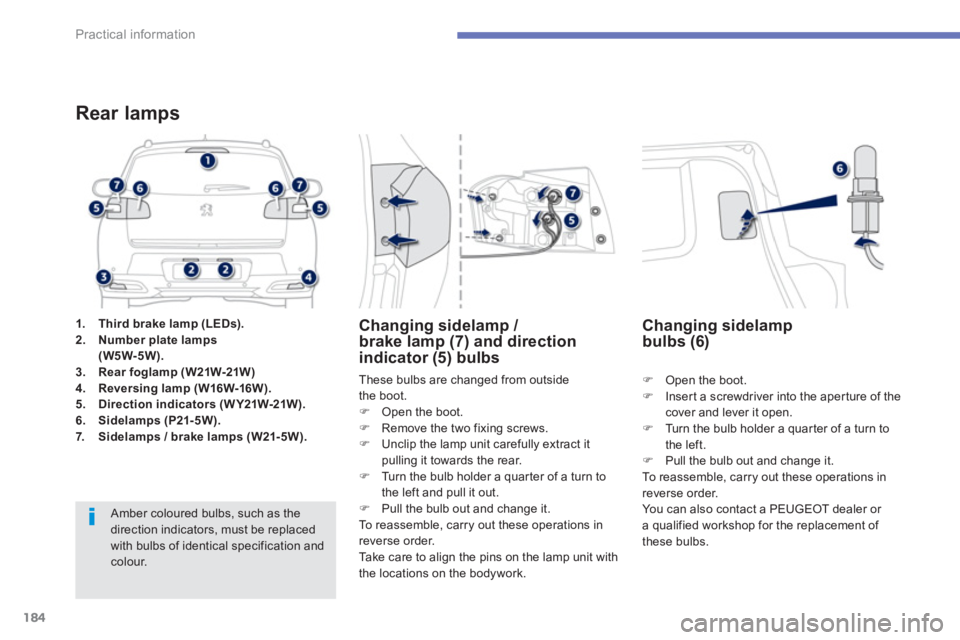

1.Third brake lamp (LEDs).2.Number plate lamps(W5W-5W).3.Rear foglamp (W21W-21W)4.Reversing lamp (W16W-16W).5.Direction indicators (W Y21W-21W).6.Sidelamps (P21-5W).7.Sidelamps / brake lamps (W21-5W).
Rear lamps
Amber coloured bulbs, such as the direction indicators, must be replaced with bulbs of identical specification andcolour. These bulbs are chan
ged from outside
the boot.) Open the boot. )
Remove the two fixing screws.
)
Unclip the lamp unit carefully extract it
pulling it towards the rear.) Turn the bulb holder a quar ter of a turn to
the left and pull it out.) Pull the bulb out and change it.
To reassemble, carry out these operations in reverse order.
Take care to align the pins on the lamp unit with
the locations on the bodywork.
Changing sidelamp /brake lamp (7) and direction
indicator (5) bulbs
)Open the boot.)Inser t a screwdriver into the aper ture of thecover and lever it open.)Turn the bulb holder a quarter of a turn to
th
e left.)Pull the bulb out and change it.
To r e a s s e m b l e , c a r ry out these operations in
reverse order.
You can also contact a PEUGEOT dealer or
a qualified workshop for the replacement of
these bulbs.












Changing sidelamp
bulbs (6)

185
7
Practical information

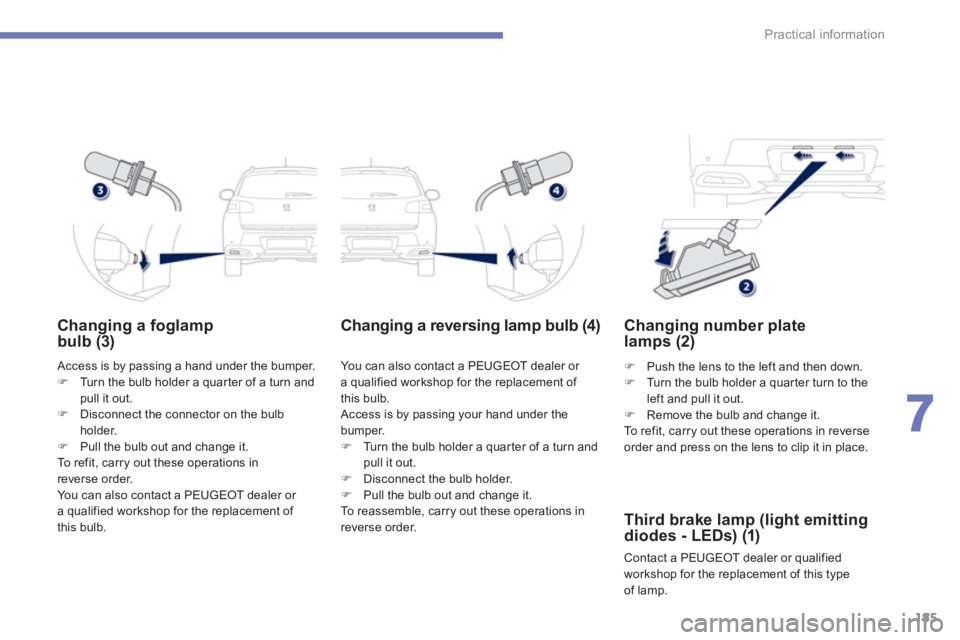

Changing a foglamp
bulb (3)
Access is by passing a hand under the bumper. )Turn the bulb holder a quar ter of a turn andpull it out.)Disconnect the connector on the bulb holder. )Pull the bulb out and change it.
To r efit, carry out these operations in
reverse order.
You can also contact a PEUGEOT dealer or
a qualified workshop for the replacement of
this bulb.

Changing a reversing lamp bulb (4)
You can also contact a PEUGEOT dealer or a qualified workshop for the replacement of
this bulb.
Access is by passing your hand under the
bumper.
) Turn the bulb holder a quar ter of a turn and
pull it out. ) Disconnect the bulb holder. )
Pull the bulb out and change it.
To reassemble, carry out these operations in
reverse order.
Changing number platelamps (2)
)
Push the lens to the left and then down. )
Turn the bulb holder a quar ter turn to the
left and pull it out.) Remove the bulb and change it.
To r e f i t , c a r ry out these operations in reverseorder and press on the lens to clip it in place.
Third brake lamp (light emitting diodes - LEDs) (1)

Contact a PEUGEOT dealer or qualified
workshop for the replacement of this type
of lamp.

186
Practical information

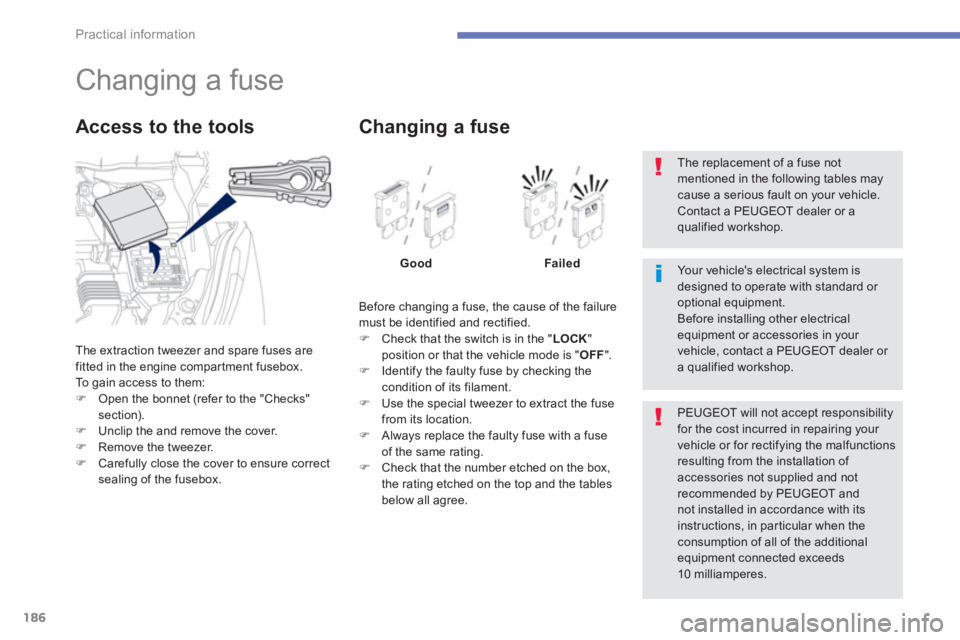

Changing a fuse
The extraction tweezer and spare fuses are
fitted in the engine compar tment fusebox.
To gain access to them: )Open the bonnet (refer to the "Checks"
section).
)Unclip the and remove the cover. )Remove the tweezer. )Carefully close the cover to ensure correct
sealing of the fusebox.
Access to the tools
Before changing a fuse, the cause of the failure
must be identified and rectified. ) Check that the switch is in the "LOCK"position or that the vehicle mode is "
OFF".)
Identify the faulty fuse by checking thecondition of its filament. )
Use the special tweezer to extract the fuse from its location. )
Always replace the faulty fuse with a fuse of the same rating.)
Check that the number etched on the box,
the rating etched on the top and the tablesbelow all agree.

Changing a fuse
Good Failed


PEUGEOT will not accept responsibilityfor the cost incurred in repairing your vehicle or for rectifying the malfunctionsresulting from the installation of accessories not supplied and notrecommended by PEUGEOT andnot installed in accordance with its instructions, in par ticular when theconsumption of all of the additionalequipment connected exceeds 10 milliamperes.

Your vehicle's electrical system isdesigned to operate with standard or optional equipment.
Before installing other electrical equipment or accessories in your vehicle, contact a PEUGEOT dealer or a qualified workshop.


The replacement of a fuse not mentioned in the following tables may cause a serious fault on your vehicle.Contact a PEUGEOT dealer or a
qualified workshop.

187
7
Practical information

Dashboard fuses

The fusebox is located in the lower dashboard(left-hand side).


Access to the fuses
)Open the cover and remove it completely
by pulling it towards you.
Fuse N°RatingFunctions
1*30 A Cabin fan.
2 15 A
Brake lam
ps, third brake lamp.
310 A
Rear foglamps.
430 A Windscreen wiper, screenwash.
620 A
Central locking, electric door mirrors.
7 15 A
Audio equipment, telematics, USB unit, Bluetooth s
ystem.
87. 5 A
Remote control key, air conditioning control unit, instrument
panel, electric windows, rain and sunshine sensors, alarm,
switch panel, steering mounted controls.
915 A
Instrument panel and interior lighting.
1015 A
Hazard warning lamps
1115 A Rear wiper.
12 7.5
A Instrument panel, multifunction screen, parking sensors, heated seats, heated rear screen, electric blind, automatic headlampadjustment.
1
315 A
Cigarette lighter, accessory socket.
1520 A
Electric blind.
1
610 A Door mirrors, audio equipment.

188
Practical information
* The maxi-fuses provide additional protection for the electrical systems. All work on themaxi-fuses must be carried out by a PEUGEOT dealer or a qualified workshop.

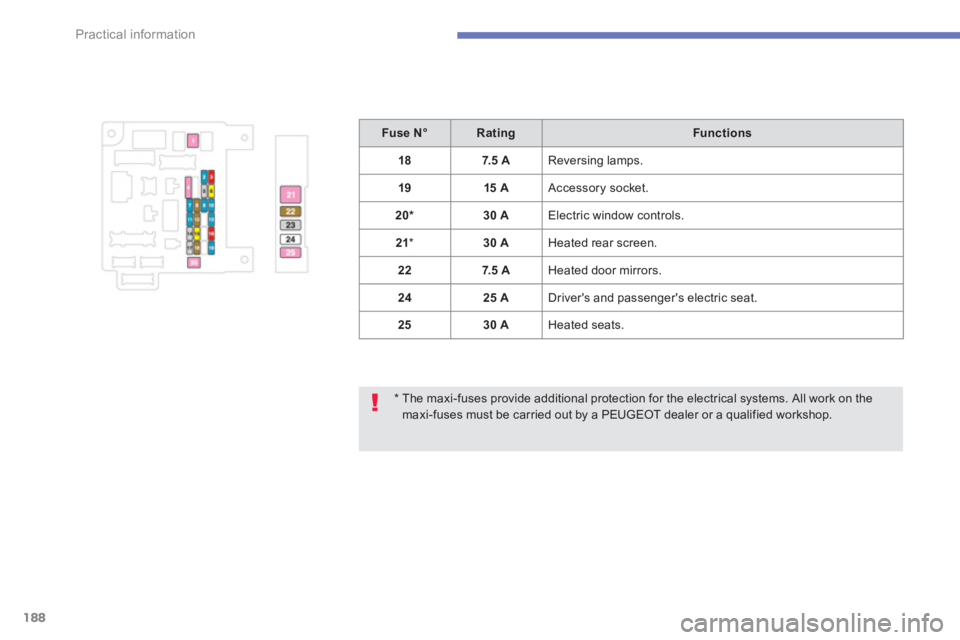

Fuse N°RatingFunctions
187.5 A
Reversing lamps.
1
915 A
Accessory socket.
20*30 A Electric window controls.
21*30 A Heated rear screen.
227.5 A
Heated door mirrors.
2
425 A
Driver's and passenger's electric seat.
2
530 A Heated seats.

189
7
Practical information

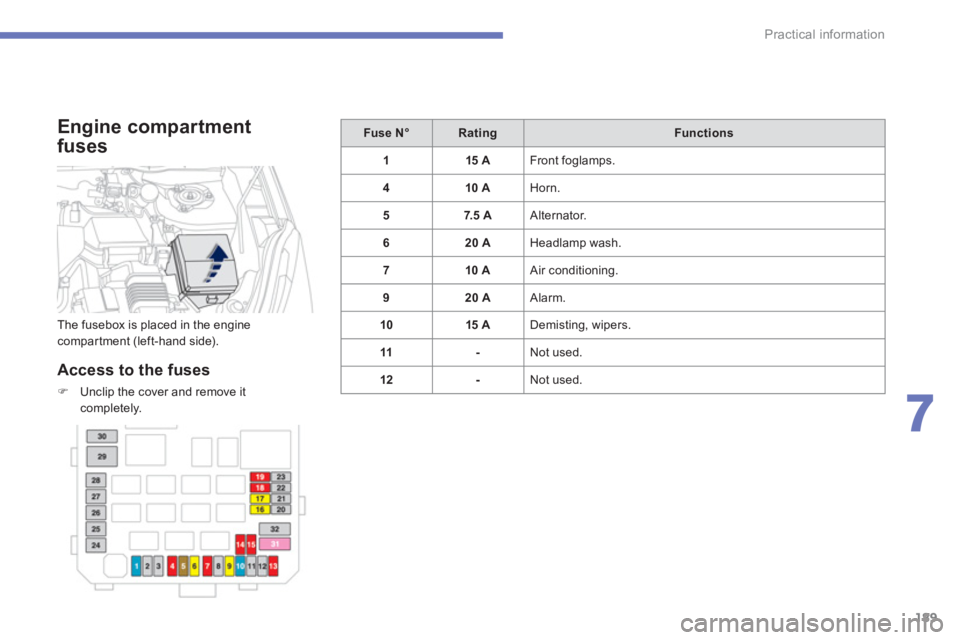

Engine compartment
fuses


Access to the fuses
)Unclip the cover and remove itcompletely.
Fuse N°RatingFunctions
115 A
Front foglamps.
410 A
Horn.
57.5
A Alternator.
620 A Headlamp wash.
7 10 A
Air conditionin
g.
920 A
Alarm.
1015 A
Demisting, wipers.
11- Not used.
12-
Not used. The fusebox is placed in the en
gine compartment (left-hand side).

190
Practical information

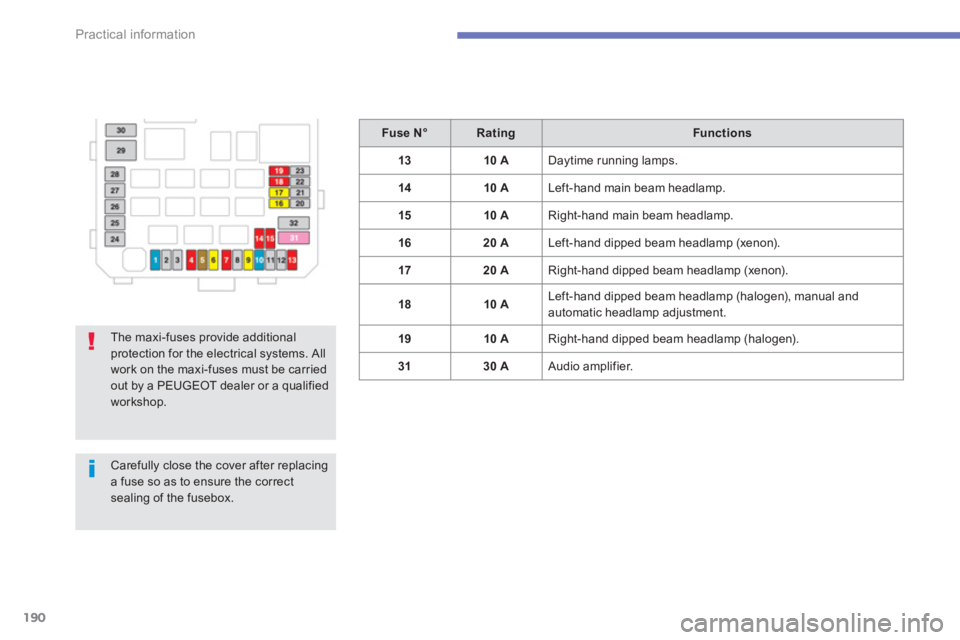

Fuse N°RatingFunctions
1
310 A
Daytime running lamps.
14 10 A
Left-hand main beam headlamp.
1510 A Right-hand main beam headlamp.
1
620 A Left-hand dipped beam headlamp (xenon).
1
720 A Right-hand dipped beam headlamp (xenon).
1810 A Left-hand dipped beam headlamp (halogen), manual and
automatic headlamp adjustment.
1
910 A
Right-hand dipped beam headlamp (halogen).
3130 A
Audio amplifier.


The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a PEUGEOT dealer or a qualified workshop.


Carefully close the cover after replacinga fuse so as to ensure the correctsealing of the fusebox.
