2012 PEUGEOT 4008 Owners Manual

199
7
Practical information





Towing a trailer, a caravan...
We recommend the use of genuinePEUGEOT towbars and their harnessesthat have been tested and approved from the design stage of your vehicleand that the fitting of the towbar is entrusted to a PEUGEOT dealer or a qualified workshop.If the towbar is not fitted by a PEUGEOT dealer, it is imperative that it is fitted following the manufacturer'sinstructions.
Your vehicle is primaril
y designed for
transporting people and luggage, but it mayalso be used for towing a trailer. Drivin
g with a trailer subjects the towing vehicle
to more significant stress and its driver must be
particularly careful.

200
Practical information
Driving advice
Distribution of loads
)Distribute the load in the trailer so that theheaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without
excee
ding it.
Air density decreases with altitude, thus reducing engine performance. Above
1 000 metres, the maximum towing load must
be reduced b
y 10 % of the GTW and so on for every 1 000 metres of altitude.
Refer to the "Technical Data" section for details
of the weights and towing loads which apply to your vehicle.
Side wind
)Take into account the increased sensitivity
to side wind.

Cooling

To w i ng a trailer on a slope increases the
temperature of the coolant.
As the fan is electricall
y controlled, its cooling capacity is not dependent on the engine speed.)
To lower the engine speed, reduce your speed.
The maximum towing load on a long slope
depends on the gradient and the outside
tem
perature.
In all cases, pay attention to the coolant
temperature.
) If this message is displayed, stop your vehicle as soon as it is safe to do so.


Braking

To w i ng a trailer increases the braking distance.


Tyres
)Check the tyre pressures of the towingvehicle and of the trailer, obser ving the recommended pressures.



Lighting
)Check the lighting and signalling on the
trailer.
I
f the message flashes slowly, wait for the engine to cool before topping up the level, if necessary.
If the messa
ge flashes rapidly, contact a PEUGEOT dealer or a qualified workshop
without delay.

201
7
Practical information





Fitting roof bars

The transverse roof bars are fitted to the longitudinal bars at the 8 fixing points masked by covers.
Using a small screwdriver, remove the 8 covers on the inner faces of the longitudinal bars.
The transverse bars are
fitted directly to the roof of the vehicle, at the 4 anchorage points masked by covers.
Slide the covers towards the front of the vehicle to remove them.
Retain the protective covers for refitting after removal of the roof bars.


The body sill finishers should not be used as a step when fitting roof bars.

Use accessories recommended byPEUGEOT and follow the accessorymanufacturer's fitting instructions.

Maximum authorised weight on the roof bars, for a loading height not exceeding40 cm (except bicycle carriers): 80 kg.
If the height exceeds 40 cm, adapt the speed of the vehicle to the condition of the road, to avoid damaging the roof bars and the fixings on the roof.
Please refer to national legislation tocomply with the regulations regardingthe transpor tation of objects which arelonger than the vehicle.
For reasons of safet
y and to avoid damaging the roof, it is essential to use transverse bars that are
approved for your vehicle.
Vehicles fitted with longitudinal bars

Vehicles not fitted with longitudinal bars

202
Practical information




Accessories
A wide range of accessories and genuine par ts is available from the PEUGEOT dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from PEUGEOT's recommendation and warranty.
"Comfort":
front and rear parking sensors, smoker'skit, coat hanger on head restraint, insulatedmodule, aluminium footrest, reading lamp, air
deflectors, sun blinds...
"Transports solutions":
towbar with quickly detachable ball, rear carrying platform (easy base), roof bars, boot
liner, boot spacers, bicycle carrier for roof bars, ski carrier, canoe carrier, rigid roof boxes, flexible roof boxes, boot net...

"Style":

16 inch alloy wheels, 18 inch alloy wheels, chromed door handle shells, chromed mirror
shells, brushed aluminium interior trim kit, gloss
black interior trim kit, parking brake lever trim,
aluminium gear knob, leather steering wheel...


"Security and safety":

anti-intrusion alarm, warning triangle, high
visibility vest, breathalyser, first aid kit, snowchains, anti-slip covers, wheel security bolts, child seats, fire extinguisher, foglamp kit, dog guard, stolen vehicle tracking system,
accessories for pets (seat belts, seat and boot
protectors, cage)...

"Protection":

mat *
, boot carpet, side protective mouldings, door sill protectors, boot sill protector, vehiclecover, front and rear bumper protectivemouldings...
Conversion kits
You can obtain an "Enterprise" kit to conver t a
trade vehicle to a private car and vice-versa.



If a towbar and its harness is fitted outside the PEUGEOT dealer network,this must be done in line with themanufacturer's instructions.

*
To prevent any risk of jamming of thepedals:
- ensure that the mat is positioned and
secured correctly,
- never fit one mat on top of another.

203
7
Practical information
The fitting of electrical equipment or accessories which are not recommended by PEUGEOT may resultin a failure of your vehicle's electronicsystem and excessive electrical consumption.
Please note this precaution. Youare advised to contact a PEUGEOTrepresentative to be shown the range of recommended equipment and accessories.
Installation of radiocommunicationtransmitters
Before installing any after-market radiocommunication transmitter, you cancontact a PEUGEOT dealer for thespecification of transmitters which can be fitted (frequency, maximum power,aerial position, specific installation requirements), in line with the Vehicle Electromagnetic Compatibility Directive (2004/104/EC).


Depending on the legislation in forcein the country, it may be compulsory to have a high visibility safety vest,warning triangle and spare bulbs andfuses available in the vehicle.

"Multimedia":

semi-integral satellite navigation systems, portable satellite navigation systems, audiosystems, speakers, rear shelf with speakers, hands-free kit, DVD player, mapping update
DVD, speed camera detector, Wi-Fi on board,
230V socket, head-up display, iPhone charger,
rear multimedia carrier...

204
Checks

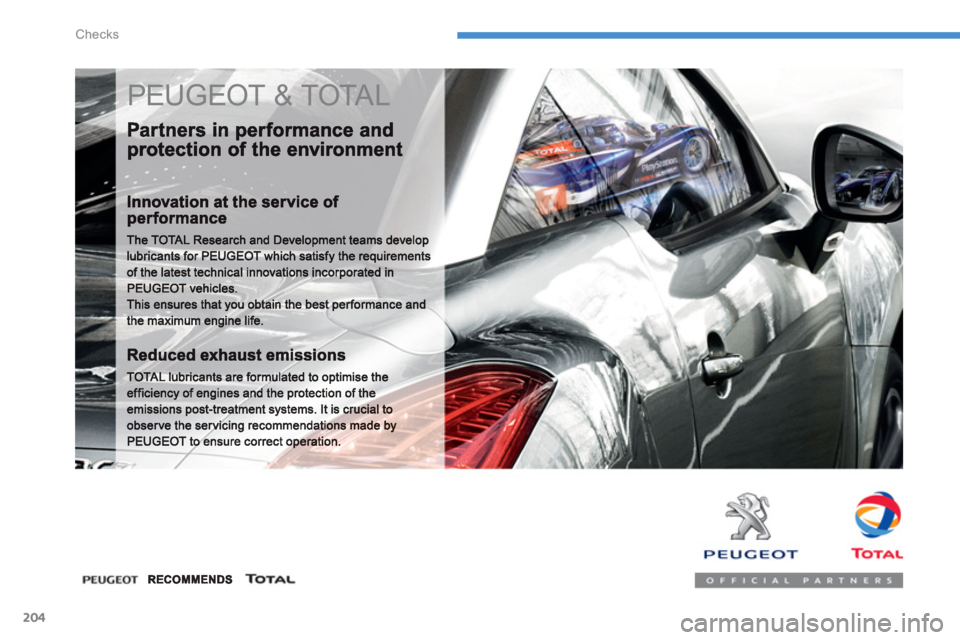

PEUGEOT & TOTAL

205
8
Checks

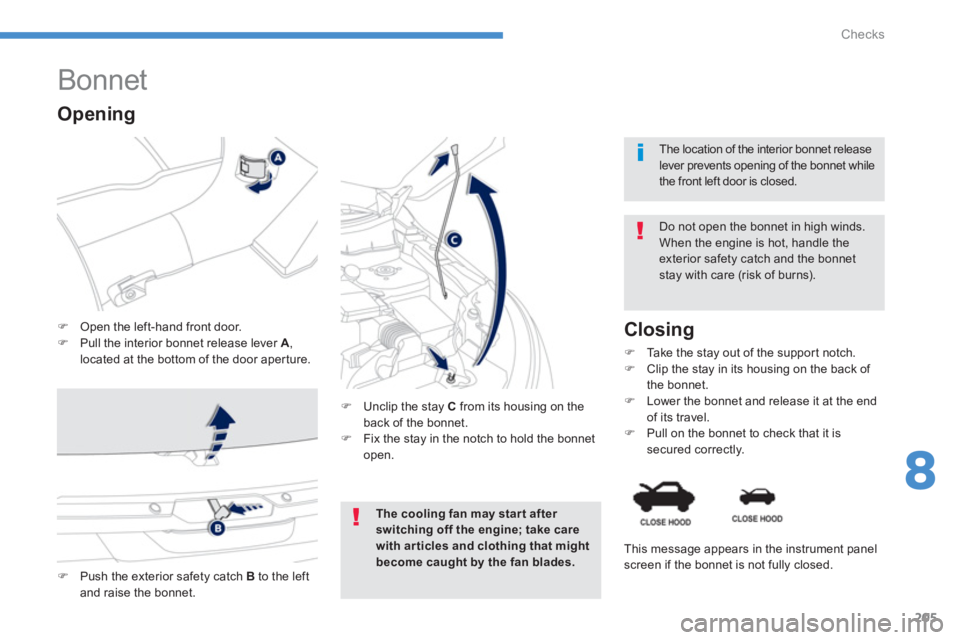

Bonnet
)Open the left-hand front door.)Pull the interior bonnet release lever A ,
located at the bottom of the door aper ture.
Do not open the bonnet in high winds. When the engine is hot, handle theexterior safety catch and the bonnetstay with care (risk of burns).
)
Unclip the stay C
from its housing on the back of the bonnet. )
Fix the stay in the notch to hold the bonnet open.


Closing
)
Take the stay out of the support notch. )
Clip the stay in its housing on the back of
the bonnet.) Lower the bonnet and release it at the endof its travel. )
Pull on the bonnet to check that it is secured correctly.


The location of the interior bonnet releaselever prevents opening of the bonnet whilethe front left door is closed.


Opening
)Push the exterior safety catch B
to the left and raise the bonnet.
This messa
ge appears in the instrument panelscreen if the bonnet is not fully closed.
The cooling fan may star t after switching off the engine; take care
with ar ticles and clothing that mightbecome caught by the fan blades.

206
Checks
fluids and the replacement of cer taincomponents.














Petrol engines
1.
Screenwash and headlamp wash fluidreservoir.2.
Coolant header tank.3.
Brake fluid reservoir.4.
Battery. 5.
Fusebox.
6.Air filter.
7. Engine oil dipstick. 8.Engine oil filler cap.
1.6 litre 115
2.0 litre 150
