2012 PEUGEOT 4008 Owners Manual

.
327

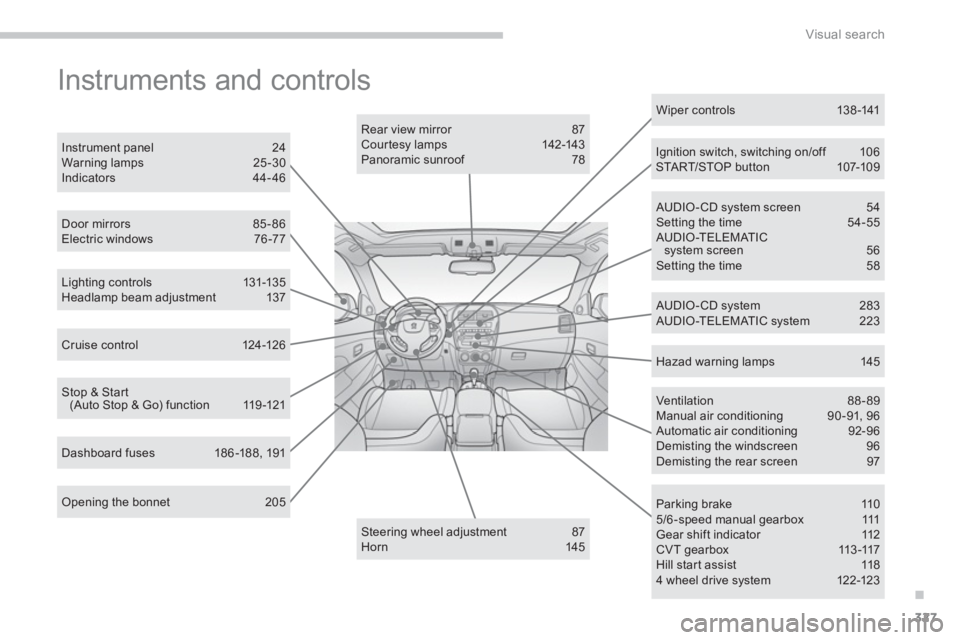

Visual search
Instruments and controls
Opening the bonnet 205
Lighting controls 131-135Headlamp beam adjustment 137
Door mirrors 85-86Electric windows 76-77
Rear view mirror 87 Cour tesy lamps 142-143 Panoramic sunroof 78

Dashboard fuses 18 6 -188, 191
Instrument panel 24Warning lamps 25 -30Indicators 44- 46

Cruise control 124-126

AUDIO - CD system screen 54 Setting the time 54-55 AUDIO-TELEMATICsystem screen 56 Setting the time 58
Steering wheel adjustment 87 Horn 145

Wiper controls 138-141
Parking brake 110 5/6-speed manual ge a r b o x 111 Gear shift indicator 112 CVT gearbox 113-117 Hill start assist 11 8 4 wheel drive system 12 2-123
Stop & Start(Auto Stop & Go) function 119-121

AUDIO-CD system 283 AUDIO-TELEMATIC system 223
Ventilation 88-89 Manual air conditioning 90-91, 96 Automatic air conditioning 92-96 Demisting the windscreen 96 Demisting the rear screen 97

Hazad warning lamps 145
Ignition switch, switching on/off 10 6 START/STOP but ton 107-109

328

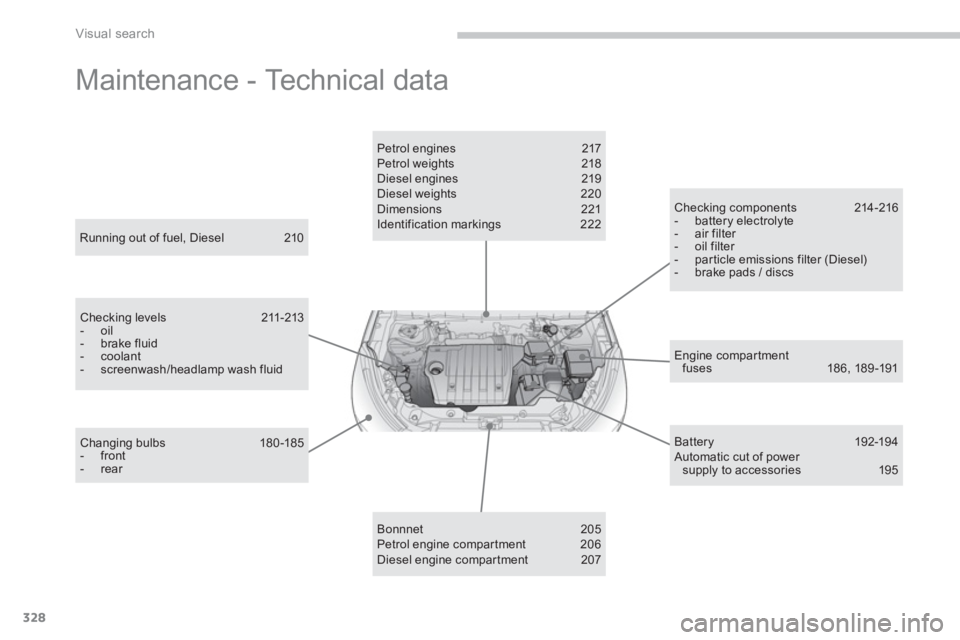

Visual search
Maintenance - Technical data
Engine compartmentfuses 18 6, 189 -191


Running out of fuel, Diesel 210
Checking levels 211-213 - oil - brake fluid - coolant - screenwash/headlamp wash fluid

Changing bulbs 180 -185 - front - rear




Petrol engines 217
Petrol weights 218
Diesel engines 219
Diesel weights 220
Dimensions 221
Identification markings 222


Bonnnet 205
Petrol engine compartment 206
Diesel engine compar tment 207
Battery 192-19 4
Automatic cut of powersupply to accessories 195
Checking components 214 -216 - battery electrolyte - air filter - oil filter - particle emissions filter (Diesel) - brake pads / discs

04-12
This handbook describes all of theequipment available in the whole range. This document is an integral part of your
vehicle. It should be passed on to the new
user in the event of sale or transfer. Reproduction or translation o
f all or part of
this handbook is prohibited without written
authorisation
from Automobiles PEUGEOT.
Printed in the E
U Y
our vehicle will be fitted with some of this
equipment described in this document,
depending on its trim level, version and thespecification for the country in which it issold.
Automobiles PEUGEOT declares, by
application of the provisions of the European
regulation (Directive 2000/53) relating
to End of Life Vehicles, that it achieves
the ob
jectives set by this regulation and
that recycled materials are used in the manufacture of the products that it sells. The descri
ptions and illustrations are given without any obligation. Automobiles
PEUGEOT reserves the right to modify the
technical specifications, equipment and accessories without having to update thecurrent handbook.

Anglais
For an
y work on your vehicle, use a qualified workshop that has the technical information,competence and equipment required, which
a PEUGEOT dealer is able to provide.

Anglais
AN. 12488.0041www.peugeot.com
