2012 NISSAN PATHFINDER 06IT Navigation Manual

BEFORE STARTING
To get the best recognition performance from
NISSAN Voice Recognition, observe the follow-
ing:. The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and
vibration sounds, etc.) , which may prevent
the system from correctly recognizing the
voice commands.
. Wait until the tone sounds before speaking a
command.
. Speak in a natural conversational voice
without pausing between words.
. If the air conditioner is set to “Auto”, the fan
speed is automatically lowered so that your
commands can be recognized more easily.

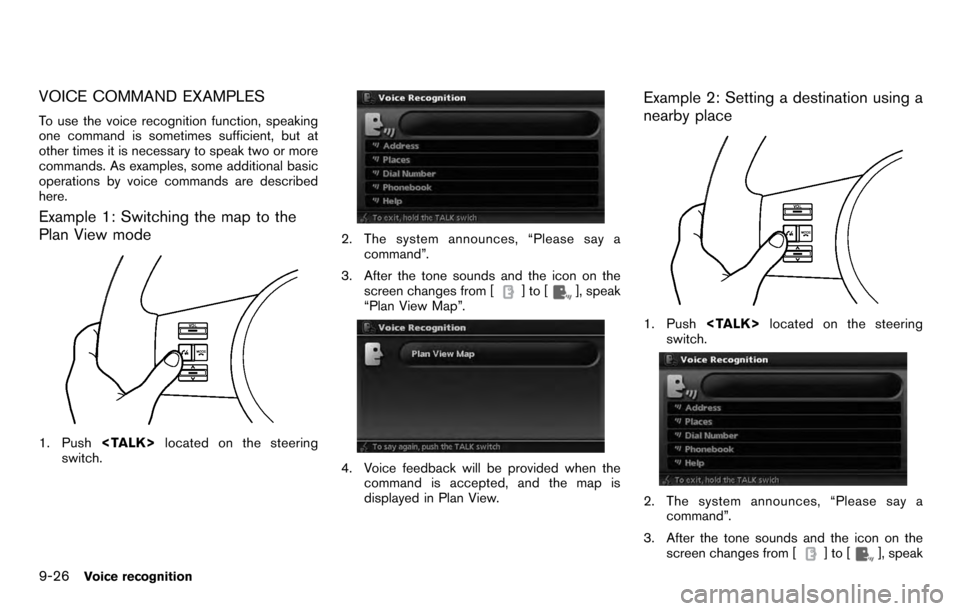

GIVING VOICE COMMANDS
1. Push located on the steering
switch.
2. A list of commands appears on the screen, and the system announces, “Please say a
command”.
3. After the tone sounds and the icon on the screen changes from [
]to[], speak a command.
Operating tips
.
If the command is not recognized, the
system announces, “Please say again”.
Repeat the command in a clear voice.
. Push once to return to the
previous screen.
. If you want to cancel the command, push
and hold . The message, “Voice
cancelled” will be announced.
. When you do not say a command, the
system pauses the operation. Push
to restart the operation.
. If you want to adjust the volume of the
system feedback, push the volume control
buttons [+] or [−] on the steering switch or
use the audio system volume knob while the
system is making an announcement.
How to speak numbers
NISSAN Voice Recognition requires a certain
way to speak numbers when giving voice
commands. Refer to the following examples.
General rule:
Only single digits 0 (zero) to 9 can be used. (For
example, if you would like to say 500, “five zero
zero” can be used, but “five hundred” cannot.
Voice recognition9-21

Examples:
1-800-662-6200
“One eight zero zero six six two six two zero
zero”
Improving Recognition of Phone numbers:
You can improve the recognition of phone
numbers by saying the phone number in 3
groups of numbers. For example, when you try to
call 800-662-6200, say “Eight Zero Zero” first,
and the system will then ask you for the next
three digits. Then, say “Six Six Two”. After
recognition, the system will then ask for the last
4 digits. Say, “Six Two Zero Zero”. Using this
method of phone digit entry can improve
recognition performance.
INFO:
When speaking a house number, speak the
number “0” as “zero”. If the letter “O” is included
in the house number, it will not be recognized as
the number “0” even if you speak “oh” instead of
“zero”. You can only say zero for “0”.
SYSTEM FEEDBACK ANNOUNCE-
MENT MODES
You can select two modes, long or short, for the
announcement by the system.
How to set
To minimize the voice feedback from the system,
perform the following steps.
1. Push .
2. Highlight [Others] and push .
3. Highlight [Voice Recognition] and push .
4. Highlight [Minimize Voice Feedback] and
push . The indicator illuminates,
and the system announcement mode
switches to the short mode.
5. Push to return to the previous
screen. Push

SETTING THE ALTERNATE COMMAND
MODE
This mode enables the operation of the display,
audio and climate control through Voice Re-
cognition. When this mode is active, an ex-
panded list of commands can be spoken after
pushing, and the voice command
menu prompts are turned off. Please note that
in this mode the recognition success rate may
be affected because the number of available
commands and ways of speaking each com-
mand are increased.
How to set
When Standard Mode is active, perform the
following steps to switch to Alternate Command
Mode.
1. Push .
2. Highlight [Others] and push .
3. Highlight [Voice Recognition] and push .
4. Highlight [Alternate Command Mode] and
push . The indicator illuminates,
and Alternate Command Mode switches to
ON.
INFO:
When the indicator turns off, Standard
Mode switches to ON.
5. Push to return to the previous
screen. Push

6. Select the voice command category to belearned by the system, and push .
The voice command category list is dis-
played.
7. Select the voice command to be learned by the system, and push . The voice
recognition system starts.
8. The system announces, “Please say a
command”.
9. After the tone sounds and the icon on the screen changes from [
]to[], speak
a command.
10. When the system has recognized the voice command, the voice of the user is learned.
Push once to return to the
previous screen.
INFO:
With [Continuous Learning] set to on, the
system does not go back to the command
list screen, allowing you to continue voice
command learning by the system.
11. If the system has learned the command correctly, the voice command indicator on
the screen illuminates.
Editing registered items
You can edit user names and select learning
function settings.
1. Push .
2. Highlight [Others] and push .
3. Highlight [Voice Recognition] and push .
9-24Voice recognition

4. Highlight [Speaker Adaptation] and push .
5. Select the user whose settings you desire to
edit, and push .
6. Highlight [Setting] and push .
7. Select the user whose settings you desire to
edit, and push .
Setting items
.Edit Name:
Allows you to edit the user name.
.Store Result:
With this set to on, the voice recognition
system can easily recognize the user’s
voice it has learned.
.Reset Result:
Allows you to reset the user voice that
thevoicerecognitionsystemhas
learned.
.Continuous Learning:
Allows you to have the system learn the
voice commands of the user in succes-
sion, without selecting commands one
by one.
Voice recognition9-25

VOICE COMMAND EXAMPLES
To use the voice recognition function, speaking
one command is sometimes sufficient, but at
other times it is necessary to speak two or more
commands. As examples, some additional basic
operations by voice commands are described
here.
Example 1: Switching the map to the
Plan View mode
1. Push located on the steering
switch.
2. The system announces, “Please say a
command”.
3. After the tone sounds and the icon on the screen changes from [
]to[], speak
“Plan View Map”.
4. Voice feedback will be provided when the command is accepted, and the map is
displayed in Plan View.

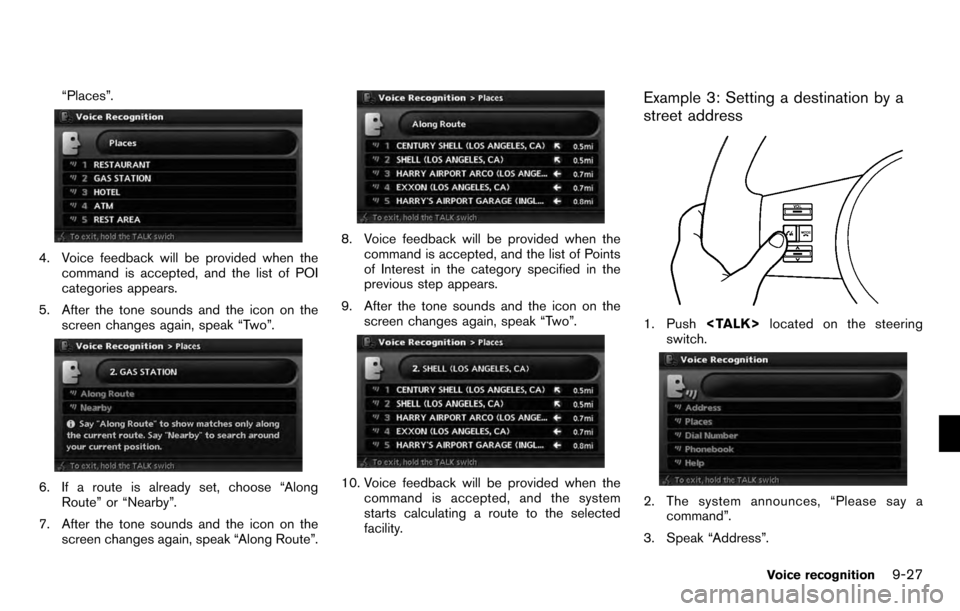

Example 2: Setting a destination using a
nearby place
1. Push located on the steering
switch.
2. The system announces, “Please say a command”.
3. After the tone sounds and the icon on the screen changes from [
]to[], speak
9-26Voice recognition

“Places”.
4. Voice feedback will be provided when thecommand is accepted, and the list of POI
categories appears.
5. After the tone sounds and the icon on the screen changes again, speak “Two”.
6. If a route is already set, choose “AlongRoute” or “Nearby”.
7. After the tone sounds and the icon on the screen changes again, speak “Along Route”.
8. Voice feedback will be provided when thecommand is accepted, and the list of Points
of Interest in the category specified in the
previous step appears.
9. After the tone sounds and the icon on the screen changes again, speak “Two”.
10. Voice feedback will be provided when thecommand is accepted, and the system
starts calculating a route to the selected
facility.

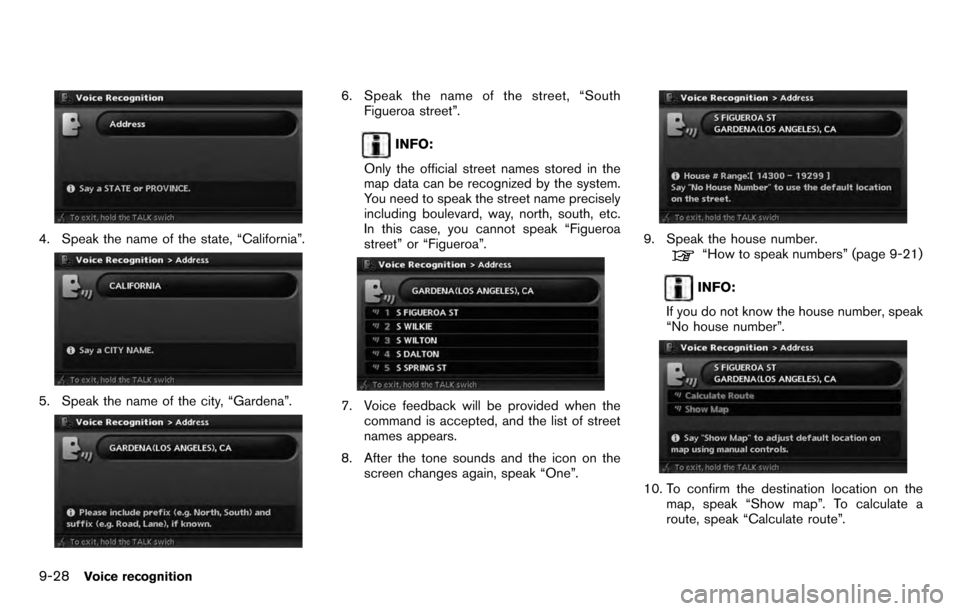

Example 3: Setting a destination by a
street address
1. Push located on the steering
switch.
2. The system announces, “Please say a command”.
3. Speak “Address”.
Voice recognition9-27

4. Speak the name of the state, “California”.
5. Speak the name of the city, “Gardena”.
6. Speak the name of the street, “SouthFigueroa street”.
INFO:
Only the official street names stored in the
map data can be recognized by the system.
You need to speak the street name precisely
including boulevard, way, north, south, etc.
In this case, you cannot speak “Figueroa
street” or “Figueroa”.
7. Voice feedback will be provided when the command is accepted, and the list of street
names appears.
8. After the tone sounds and the icon on the screen changes again, speak “One”.
9. Speak the house number.“How to speak numbers” (page 9-21)
INFO:
If you do not know the house number, speak
“No house number”.
10. To confirm the destination location on the map, speak “Show map”. To calculate a
route, speak “Calculate route”.
9-28Voice recognition
