2012 NISSAN PATHFINDER 06IT Navigation Manual

3. Highlight the preferred icon by scrolling thelist using the main directional buttons or the
center dial. Then push .
Storing a location/route6-11

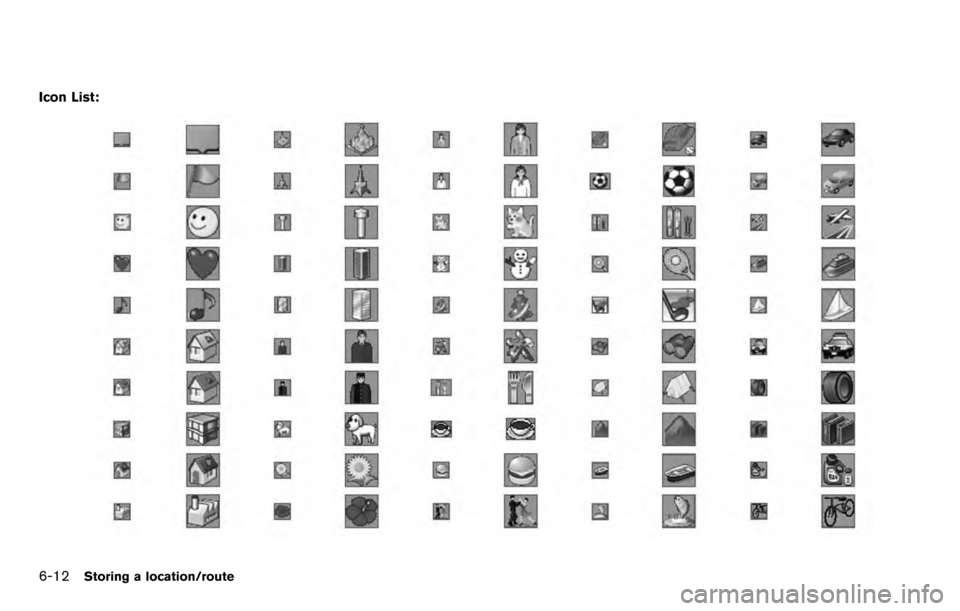

Icon List:
6-12Storing a location/route

Sound
Sets the tone of the arrival alarm that sounds
when the vehicle approaches the home or a
stored location.
1. Highlight [Edit] and push.
2. Highlight [Sound] and push .
A sound list is displayed.
3. Highlight the preferred alarm tone by scrol- ling the list using the main directional
buttons or the center dial. Then push
. The indicator of the selected
alarm tone illuminates.
Sound list:
None
Chime
Melody
Sound
Dog
Cat
Wave
Church bell
Music box 1
Music box 2
Marimba
Trumpet
Horn
Scratch
Direction
Sets the alarm to sound when approaching from
a specific direction.
1. Highlight [Edit] and push .
2. Highlight [Direction] and push .
The home or stored location is displayed at
the center of the map.
3. Set the direction that sounds the alarm using the center dial or the left or right
button of the main directional buttons. Then
push . The selected direction is
set.
Storing a location/route6-13

INFO:
. While setting the direction, you can change
the map scale.
. After the direction is set, if you highlight
[Direction] and push once again,
a confirmation message is displayed. Con-
firm the contents of the message, highlight
[Yes] and push . The set direction
is cancelled.
Distance
Sets the alarm to sound when reaching a
specific distance to the home or stored location.
1. Highlight [Edit] and push .
2. Highlight [Distance] and push .
3. Highlight the preferred distance option and
push . The indicator of the
selected distance illuminates.
Available distance options: . 150 feet (50 m)
. 300 feet (100 m)
. 1000 feet (300 m)
. 1500 feet (500 m)
INFO:
Once you set the direction and distance to
sound an alarm, the system will sound the alarm
when the vehicle icon passes a half circle outline
on the map, as shown in the figure.
Example: Set to 300 feet (100 m) distance,
upward direction
&1Stored location icon
&2Vehicle icon
&3Setting range
Phone No.
Stores the telephone number of the home or a
stored location.
1. Highlight [Edit] and push .
2. Highlight [Phone No.] and push .
The telephone number entry screen is
6-14Storing a location/route

displayed.
3. Enter the telephone number of the home orstored location.
“PHONE NUMBER INPUT SCREEN”
(page 2-22)
4. Highlight [OK] and push .
The telephone number is stored.
Group (only for stored locations)
This allows you to group the stored locations. By
grouping the stored locations, you can utilize the
[By Group] option of the sort function more
effectively.
1. Highlight [Edit] and push .
2. Highlight [Group] and push .
3. Highlight the preferred group and push
. When the indicator of the
selected group illuminates, the stored loca-
tion is classified into the applicable group.
Entry Number (only for stored locations)
Swaps the position numbers of any two stored
locations in the list.
1. Highlight [Edit] and push .
2. Highlight [Entry Number] and push . A list of stored locations is
displayed.
3. Highlight the stored locations you want to swap and push . The position
numbers of the selected stored locations are
swapped.
Storing a location/route6-15

EDITING THE STORED ROUTE
1. Highlight [Stored Routes] and push .
2. Highlight the preferred stored route and push .
3. Push the right button of the main directional
buttons to select the Edit screen. The
setting items are highlighted.
4. Highlight the preferred item and push . 5. After finishing the setting, highlight [OK] and
push .
INFO:
If you select [None (Add New)], the system
stores the current route.
Available setting items: . Rename:
Changes the name.
“CHARACTER (letter and number)
INPUT SCREEN” (page 2-21)
. Replace:
Overwrites the stored route to the current
route.
. Delete:
Deletes the stored route.
. OK:
Applies the settings.
EDITING THE STORED TRACKING
1. Highlight [Stored Tracking] and push
.
2. Highlight the preferred stored tracked route and push . When the [Show]
indicator is not illuminated, push .
The indicator illuminates, and the Edit
screen is displayed.
If you push when the [Show]
indicator is illuminated, the indicator is
turned off.
6-16Storing a location/route

3. Highlight the preferred item and push .
Available setting items (Current tracking): . Map Scroll:
Displays the tracked route up to the current
location.
. OK:
Applies the settings.
Available setting items (Stored tracked routes):
. Map Scroll:
Displays a stored tracked route on the map. .
Rename:
Changes the name.
“CHARACTER (letter and number)
INPUT SCREEN” (page 2-21)
. Replace:
Overwrites the stored tracked route to the
current tracked route.
. Delete:
Deletes the stored tracked route.
. OK:
Applies the settings.
Displaying a tracked route
The stored tracked route can be displayed on
the map as necessary.
1. Highlight [Stored Tracking] and push
.
2. Highlight the tracked route that you desire to display on the map screen, and push
. The [Show] indicator illumi- nates, and the Edit screen is displayed.
3. After you confirm the location to display the
tracked route, highlight [OK] and push
. The screen returns to the
previous screen.
4. Push

.Stored tracking is displayed up to 12
miles (20 km) .

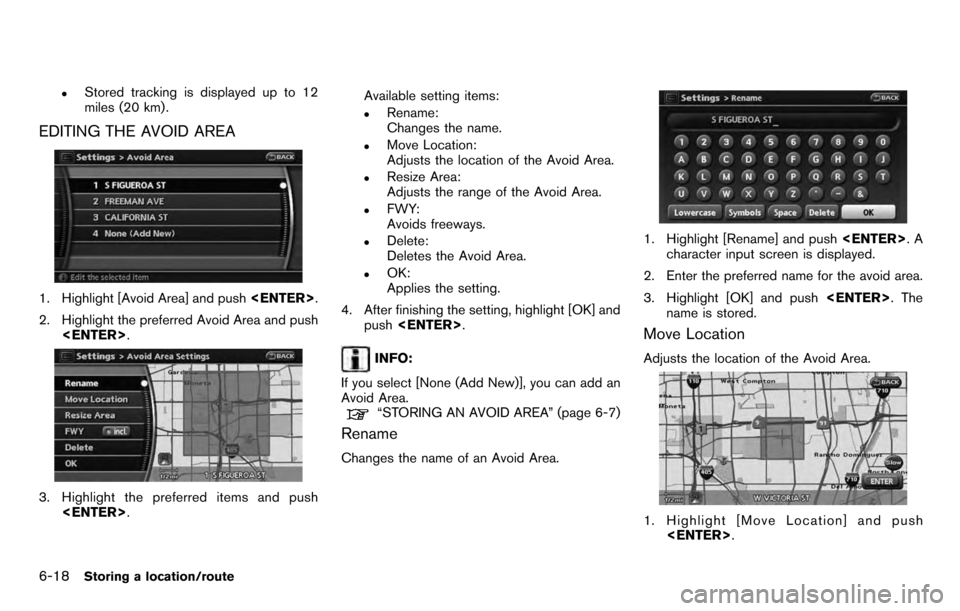

EDITING THE AVOID AREA
1. Highlight [Avoid Area] and push.
2. Highlight the preferred Avoid Area and push .
3. Highlight the preferred items and push
. Available setting items:
.Rename:
Changes the name.
.Move Location:
Adjusts the location of the Avoid Area.
.Resize Area:
Adjusts the range of the Avoid Area.
.FWY:
Avoids freeways.
.Delete:
Deletes the Avoid Area.
.OK:
Applies the setting.
4. After finishing the setting, highlight [OK] and push .
INFO:
If you select [None (Add New)], you can add an
Avoid Area.
“STORING AN AVOID AREA” (page 6-7)
Rename
Changes the name of an Avoid Area.
1. Highlight [Rename] and push .A
character input screen is displayed.
2. Enter the preferred name for the avoid area.
3. Highlight [OK] and push . The
name is stored.
Move Location
Adjusts the location of the Avoid Area.
1. Highlight [Move Location] and push .
6-18Storing a location/route
