To change the language of warning text (3)1. Turn the ignition switch to the “ON” position.
2. Put the selector lever in the “R” (REVERSE) position.
3. Press and hold down the switch (1) to enter language
selection mode (for 6 to 11 seconds).
In this mode, the image appears and the green indicator
(2) comes on.
4. Press the switch until the desired language appears on the
display.
Each time you press the switch, the language will change
to the next one. When the warning text flashes, setting is
completed.
Instrument cluster
N00519000359
CAUTION
!For safety reasons, do not perform the following
operations with the engine running.
1- Tachometer → P.3-163
2- Multi-information display → P.3-165
Information screen display list → P.3-198
3- Speedometer → P.3-162
4- Rheostat meter illumination button → P.3-163
BK0138000US.book 161 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 279 of 714
3-164 Features and controls
3

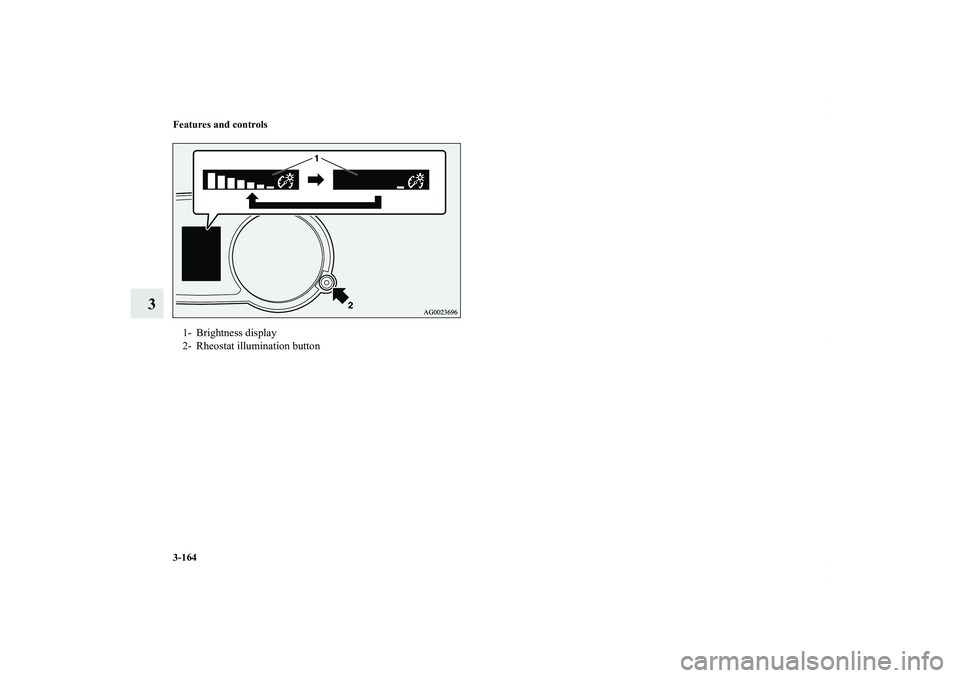

1- Brightness display
2- Rheostat illumination button
BK0138000US.book 164 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 280 of 714
Features and controls
3-165
3 Multi-information display
N00555000223
The multi-information display displays warnings, the odometer, trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, selector lever position, all-wheel drive operation status, average and momentary fuel consumption,
driving range, average speed, instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch in the “OFF” position With ignition switch in the “ON” position
Type 1 Type 2 Type 1 Type 2
1- “!” Warning display screen (With ignition switch in the
“OFF” position) →P. 3 - 1 6 7
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P.3-167
Interrupt display screen (With ignition switch in the “OFF”
position) → P.3-169
3- Door ajar warning display screen (With ignition switch in
the “OFF” position) → P.3-1714- Drive mode indicator display screen (if so equipped)
→ P. 3 - 1 7 2
S-AWC control mode display screen (if so equipped)
→ P. 3 - 1 7 2
5- “!” Warning display screen (With ignition switch in the
“ON” position) → P.3-172
6- Active stability control (ASC) OFF display screen (if so
equipped) → P. 3 - 1 7 3
7- Outside temperature display screen → P.3-179
8- ECO mode indicator (if so equipped) → P. 3 - 1 8 0
BK0138000US.book 165 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 281 of 714
3-166 Features and controls
3
NOTEThe fuel units, temperature units, display language, and
other settings can be changed.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-183.
The display screen is different depending on whether the
ignition switch in the “OFF” or “ON” position.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-167.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-199.
Refer to “Information screen (With ignition switch turned
from “OFF” to “ON”)” on page 3-171.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-173.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-202.Multi-information meter switch
N00555100152
The multi-information meter switch is a button marked
“INFO” on the left side of the dash.Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, odometer (Type1), trip
odometer, service reminder, engine coolant temperature (Type
1), average and momentary fuel consumption, driving range,
and average speed.
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.9- Information screen (With ignition switch in the “ON” posi-
tion) → P.3-173
Interrupt display screen (With ignition switch in the “ON”
position) → P.3-177
10- Fuel remaining display screen → P. 3 - 1 7 9
11- Selector lever position display screen → P.3-178
12- Engine coolant temperature display (if so equipped)
→ P. 3 - 1 7 3
BK0138000US.book 166 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 282 of 714
Features and controls
3-167
3
“!” Warning display screen (With ignition switch
in the “OFF” position)
N00555200166
If you press the multi-information meter switch and return
from the warning display screen to the previous screen, the “!”
warning is displayed.
Refer to “Returning to the display screen from before the warn-
ing display” on page 3-169.
This mark is also displayed if there is another warning other
than the one displayed. When the cause of the warning display
is eliminated, the “!” warning goes out automatically.NOTEWhen the “!” warning is displayed, the warning display
screen can be redisplayed on the information screen.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-167.
Refer to “Information screen (With ignition switch in the

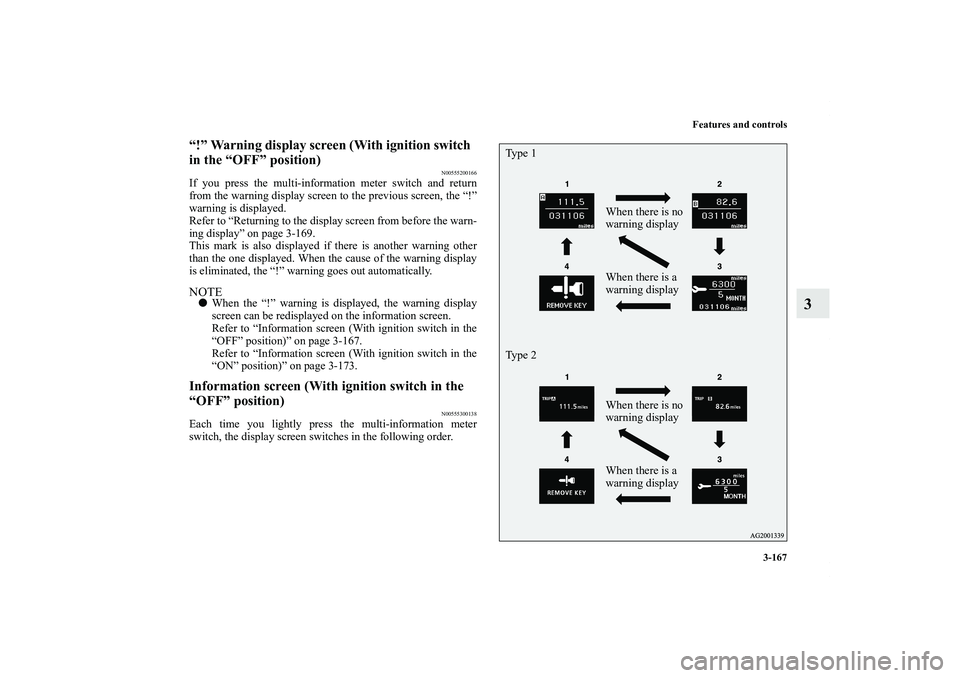

“ON” position)” on page 3-173.Information screen (With ignition switch in the
“OFF” position)
N00555300138
Each time you lightly press the multi-information meter
switch, the display screen switches in the following order.
When there is no
warning display
When there is a
warning display Ty p e 1
Ty p e 2
When there is no
warning display
When there is a
warning display
BK0138000US.book 167 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 283 of 714
3-168 Features and controls
3
Odometer/Trip odometer
N00555400126
Each time you lightly press the multi-information meter
switch, the display screen switches.
Odometer/Trip odometer → Odometer/Trip odometer
→ Service reminder → Redisplay of a warning display screen
→ Odometer/Trip odometer .
Odometer
Shows the total distance traveled.
Trip odometer
Shows the distance traveled between two points.
To reset the trip odometer
To return the display to 0, hold down the multi-information
meter switch for about 2 seconds or more. Only the currently
displayed value will be reset.
Example
If trip odometer is displayed, only trip odometer will
be reset.1-
Odometer (Type1)/Trip odometer
2-
Odometer (Type1)/Trip odometer
3- Service reminder
4- Redisplay of a warning display screen
Usage examples for trip odometer , trip odometer
It is possible to measure two currently traveled distances,
from home using trip odometer and from a particular
point on the way using trip odometer .
Ty p e 1
Ty p e 2
BK0138000US.book 168 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 284 of 714
Features and controls
3-169
3
NOTEIf there is no warning display, the switching sequence is:
odometer/trip odometer → odometer/trip odometer
→ service reminder → odometer/trip odometer .
Both trip odometers and can count up to 9999.9
miles/kilometers.
When a trip odometer goes past 9999.9 miles/kilometers,
it returns to 0.0 miles/kilometers.
When disconnecting the battery terminal, the memories of
trip odometer displays and are cleared, and their
displays return to “0.0 miles/kilometers”.Service reminder
N00555500013
Shows the distance and number of months until the next peri-
odic inspection.
Refer to “Service reminder” on page 3-180.

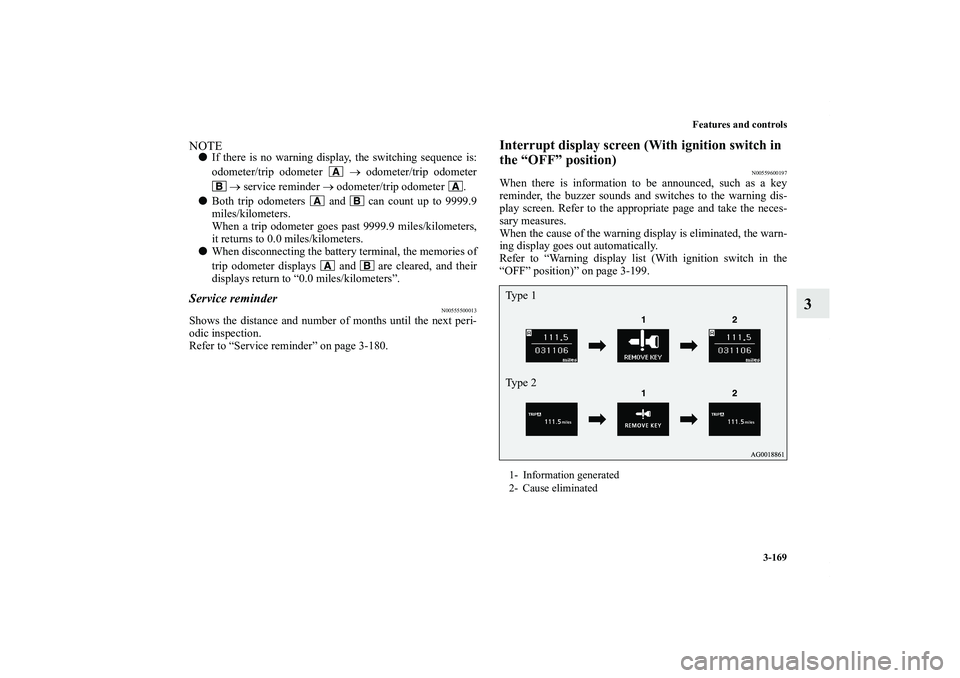

Interrupt display screen (With ignition switch in
the “OFF” position)
N00559600197
When there is information to be announced, such as a key
reminder, the buzzer sounds and switches to the warning dis-
play screen. Refer to the appropriate page and take the neces-
sary measures.
When the cause of the warning display is eliminated, the warn-
ing display goes out automatically.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-199.1- Information generated
2- Cause eliminatedTy p e 1
Ty p e 2
BK0138000US.book 169 ページ ２０１１年４月１３日 水曜日 午前１１時１７分
Page 285 of 714
3-170 Features and controls
3

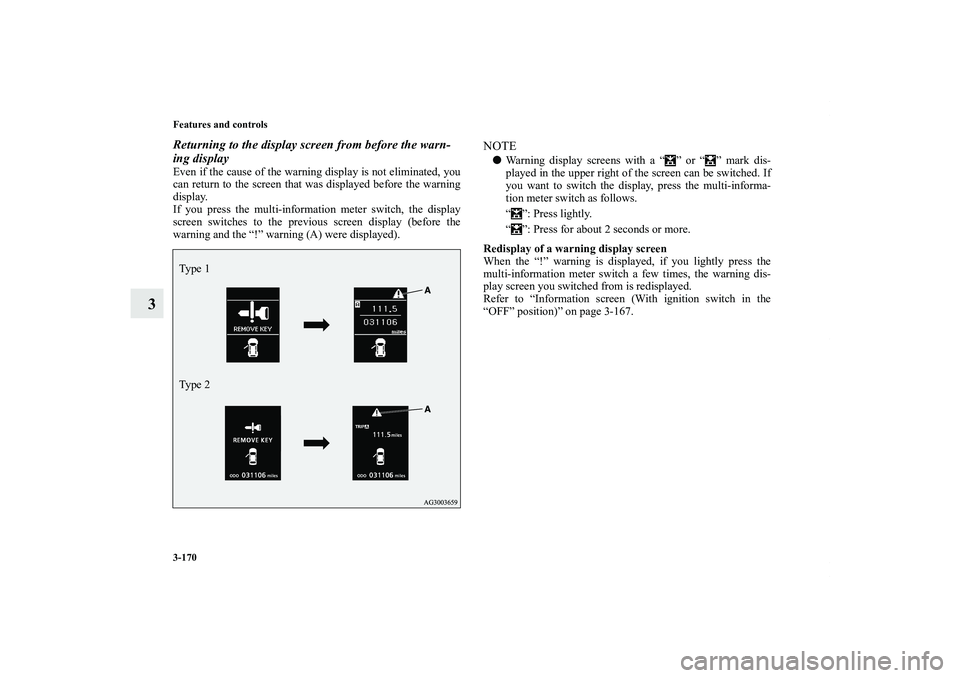

Returning to the display screen from before the warn-
