On snowy or icy roadsSet the drive mode-selector to “4WD AUTO”, “4WD LOCK”
or “SNOW” in accordance with the road conditions, and then
gradually depress the accelerator pedal for a smooth start.NOTE
The use of snow tires is recommended.

Maintain a safe distance between vehicles, avoid sudden
braking, and use engine braking (downshifting).Driving on sandy or muddy roadsSet the drive mode-selector to “4WD LOCK” or “LOCK” and
then gradually depress the accelerator pedal for a smooth start.
Keep the pressure on the accelerator pedal as constant as possi-
ble, and drive at low speed.
CAUTION
!
Avoid sudden braking, sudden acceleration and
sharp turning. Skidding occurs and control of the
vehicle could be lost.
CAUTION
!
Do not force the vehicle or drive recklessly on sandy
surfaces. In comparison with normal road surfaces,
the engine and other drive-system components are
put under excessive strain when driving on such a
surface. This could lead to accidents.

If any of the following conditions occur while the
vehicle is being driven, immediately park your vehi-
cle in a safe place and follow these procedures:
• If the engine coolant temperature display
flashes on the information screen in the multi-
information display or the engine power drops
suddenly.
Refer to “Engine overheating” on page 6-5.
• If the “ ” warning display and “SLOW DOWN”
or the “ ” warning display and “SERVICE
REQUIRED” appear on the information screen in
the multi-information display.
Refer to “Warning display” on page 3-98, 3-108.WA R N I N G
!
When attempting to rock your vehicle out of a stuck
position, be sure that the area around the vehicle is
clear of people and physical objects. The rocking
motion may cause the vehicle to suddenly launch
forward/backward, causing injury or damage to
nearby people or objects.
CAUTION
!
BK0138000US.book 124 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-129
3

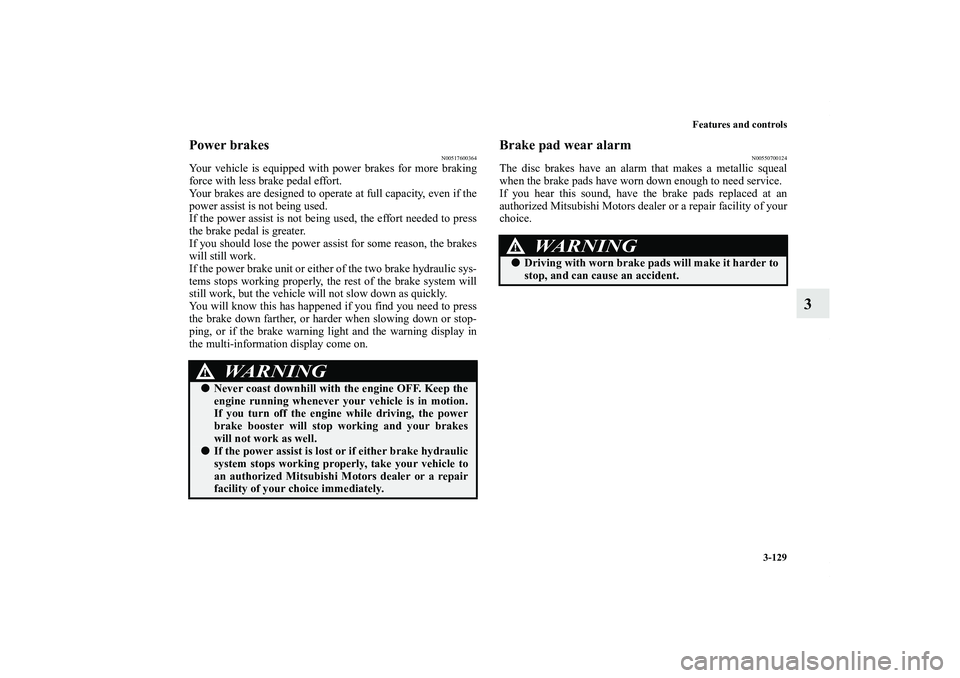

Power brakes
N00517600364
Your vehicle is equipped with power brakes for more braking
force with less brake pedal effort.
Your brakes are designed to operate at full capacity, even if the
power assist is not being used.
If the power assist is not being used, the effort needed to press
the brake pedal is greater.
If you should lose the power assist for some reason, the brakes
will still work.
If the power brake unit or either of the two brake hydraulic sys-
tems stops working properly, the rest of the brake system will
still work, but the vehicle will not slow down as quickly.
You will know this has happened if you find you need to press
the brake down farther, or harder when slowing down or stop-
ping, or if the brake warning light and the warning display in
the multi-information display come on.
Brake pad wear alarm
N00550700124
The disc brakes have an alarm that makes a metallic squeal
when the brake pads have worn down enough to need service.
If you hear this sound, have the brake pads replaced at an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
WA R N I N G
!
Never coast downhill with the engine OFF. Keep the
engine running whenever your vehicle is in motion.
If you turn off the engine while driving, the power
brake booster will stop working and your brakes
will not work as well.
If the power assist is lost or if either brake hydraulic
system stops working properly, take your vehicle to
an authorized Mitsubishi Motors dealer or a repair
facility of your choice immediately.
WA R N I N G
!
Driving with worn brake pads will make it harder to
stop, and can cause an accident.
BK0138000US.book 129 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-131
3

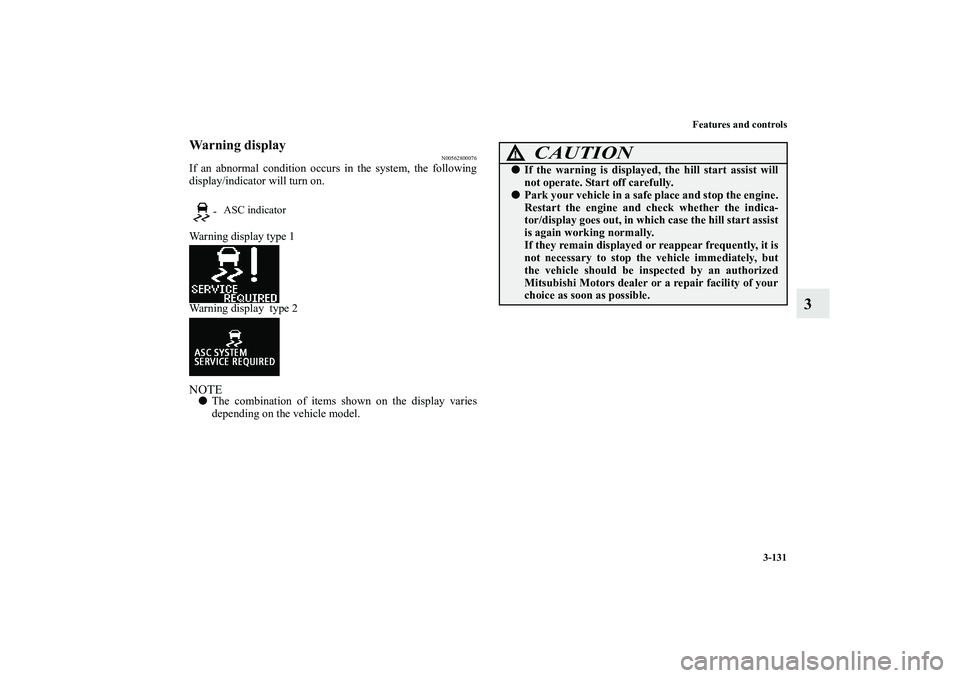

Warning display
N00562800076
If an abnormal condition occurs in the system, the following
display/indicator will turn on.
Warning display type 1
Warning display type 2NOTE
The combination of items shown on the display varies
depending on the vehicle model.
- ASC indicator
CAUTION
!
If the warning is displayed, the hill start assist will
not operate. Start off carefully.
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the indica-
tor/display goes out, in which case the hill start assist
is again working normally.
If they remain displayed or reappear frequently, it is
not necessary to stop the vehicle immediately, but
the vehicle should be inspected by an authorized
Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.
BK0138000US.book 131 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-134 Features and controls
3

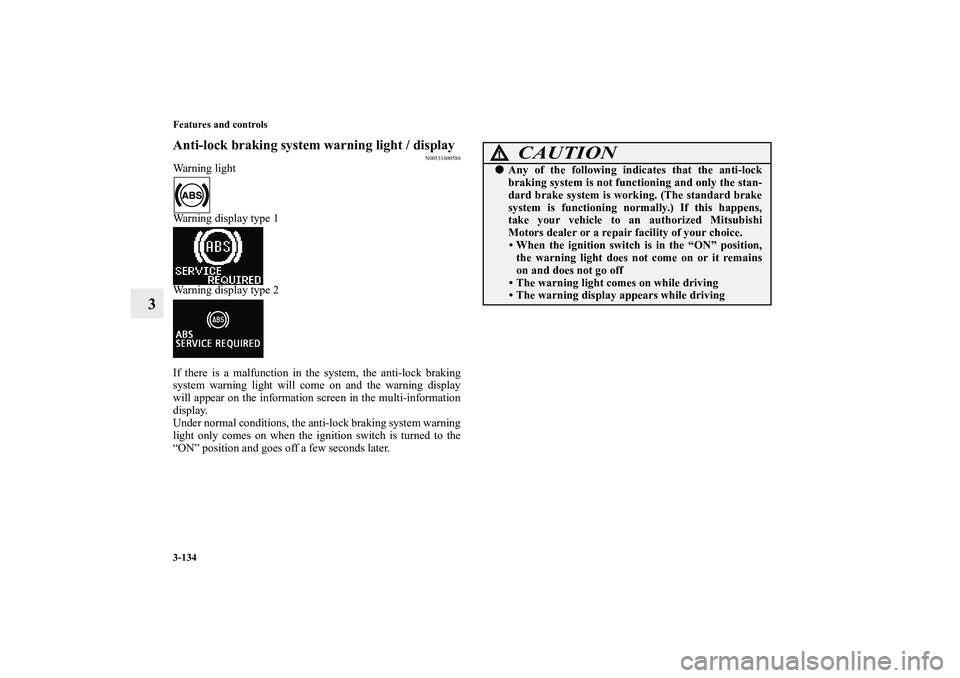

Anti-lock braking system warning light / display
N00531600586
Warning light
Warning display type 1
Warning display type 2
If there is a malfunction in the system, the anti-lock braking
system warning light will come on and the warning display
will appear on the information screen in the multi-information
display.
Under normal conditions, the anti-lock braking system warning
light only comes on when the ignition switch is turned to the
“ON” position and goes off a few seconds later.
CAUTION
!
Any of the following indicates that the anti-lock
braking system is not functioning and only the stan-
dard brake system is working. (The standard brake
system is functioning normally.) If this happens,
take your vehicle to an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
• When the ignition switch is in the “ON” position,
the warning light does not come on or it remains
on and does not go off
• The warning light comes on while driving
• The warning display appears while driving
BK0138000US.book 134 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-135
3

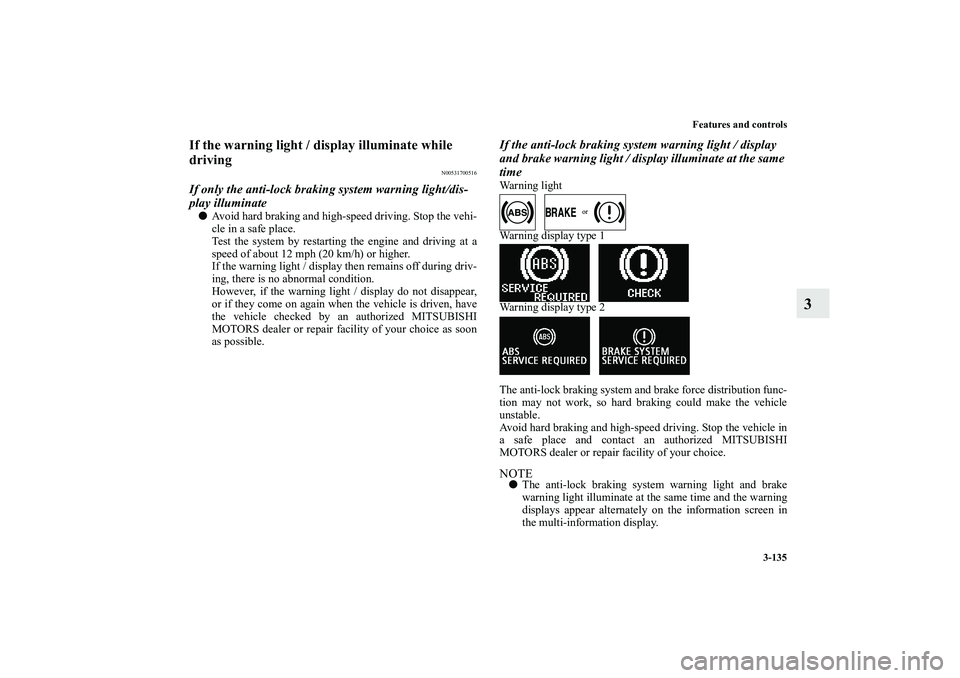

If the warning light / display illuminate while
driving
N00531700516
If only the anti-lock braking system warning light/dis-
play illuminate
Avoid hard braking and high-speed driving. Stop the vehi-
cle in a safe place.
Test the system by restarting the engine and driving at a
speed of about 12 mph (20 km/h) or higher.
If the warning light / display then remains off during driv-
ing, there is no abnormal condition.
However, if the warning light / display do not disappear,
or if they come on again when the vehicle is driven, have
the vehicle checked by an authorized MITSUBISHI
MOTORS dealer or repair facility of your choice as soon
as possible.
If the anti-lock braking system warning light / display
and brake warning light / display illuminate at the same
timeWarning light

Warning display type 1

Warning display type 2

The anti-lock braking system and brake force distribution func-
tion may not work, so hard braking could make the vehicle
unstable.
Avoid hard braking and high-speed driving. Stop the vehicle in
a safe place and contact an authorized MITSUBISHI
MOTORS dealer or repair facility of your choice.NOTE
The anti-lock braking system warning light and brake
warning light illuminate at the same time and the warning
displays appear alternately on the information screen in
the multi-information display.
BK0138000US.book 135 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-139
3

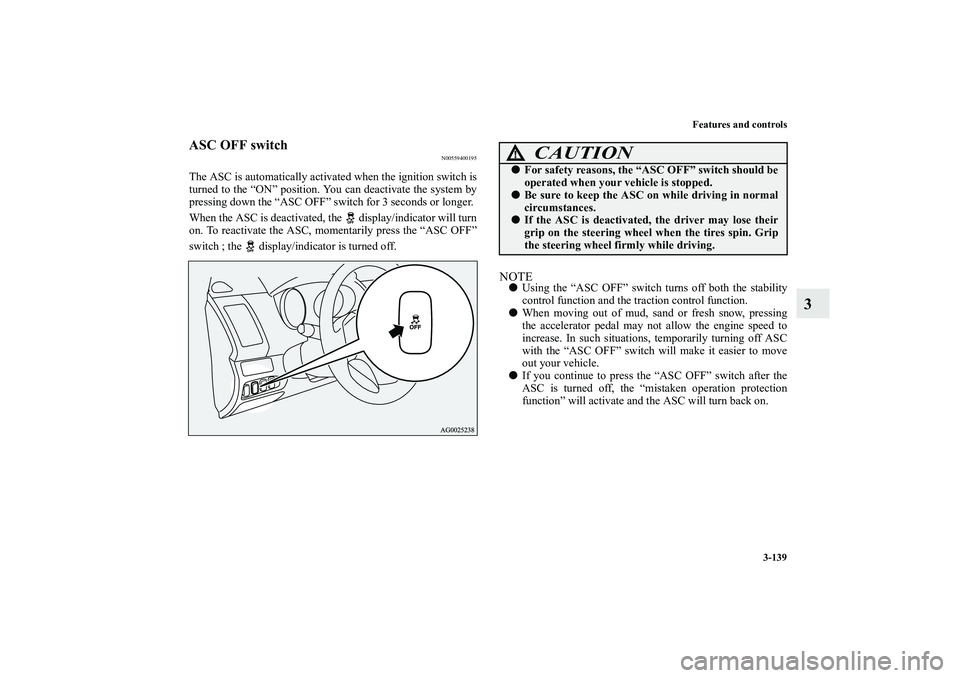

ASC OFF switch
N00559400195
The ASC is automatically activated when the ignition switch is
turned to the “ON” position. You can deactivate the system by
pressing down the “ASC OFF” switch for 3 seconds or longer.
When the ASC is deactivated, the display/indicator will turn
on. To reactivate the ASC, momentarily press the “ASC OFF”
switch ; the display/indicator is turned off.
NOTE
Using the “ASC OFF” switch turns off both the stability
control function and the traction control function.

When moving out of mud, sand or fresh snow, pressing
the accelerator pedal may not allow the engine speed to
increase. In such situations, temporarily turning off ASC
with the “ASC OFF” switch will make it easier to move
out your vehicle.

If you continue to press the “ASC OFF” switch after the
ASC is turned off, the “mistaken operation protection
function” will activate and the ASC will turn back on.
CAUTION
!
For safety reasons, the “ASC OFF” switch should be
operated when your vehicle is stopped.
Be sure to keep the ASC on while driving in normal
circumstances.
If the ASC is deactivated, the driver may lose their
grip on the steering wheel when the tires spin. Grip
the steering wheel firmly while driving.
BK0138000US.book 139 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-140 Features and controls
3
ASC operation display or ASC OFF display
N00559500213
NOTE
The combination of items shown on the display varies
depending on the vehicle model.
NOTE
The display/indicator may come on when you start the
engine. This means that the battery voltage momentarily
dropped when the engine was started. It does not indicate
a malfunction, provided that the display goes out immedi-
ately.

When a spare tire has been put on your vehicle, the grip-
ping ability of the tire will be lower, making it more likely
that the display/indicator will blink.
- ASC operation display/ASC indicator
The display/indicator will blink when the ASC is operat-
ing.
-ASC OFF display/ASC OFF indicator
This display/indicator will turn on when the ASC is
turned off with the “ASC OFF” switch.
CAUTION
!
When display/indicator blinks, ASC is operating,
which means that the road is slippery or that your
vehicle’s wheels are beginning to slip. If this hap-
pens, drive slower.
If the temperature in the braking system continues
to increase due to continuous brake control on a
slippery road surface, the display/indicator will
blink. To prevent the brake system from overheat-
ing, the brake control of the traction control func-
tion will be temporarily suspended. The engine
control of the traction control function and normal
brake operation will not be affected.
Park your vehicle in a safe place. When the temper-
ature in the braking system has come down, the
display/indicator will be turned off and the traction
control function will start operating again.
BK0138000US.book 140 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-141
3

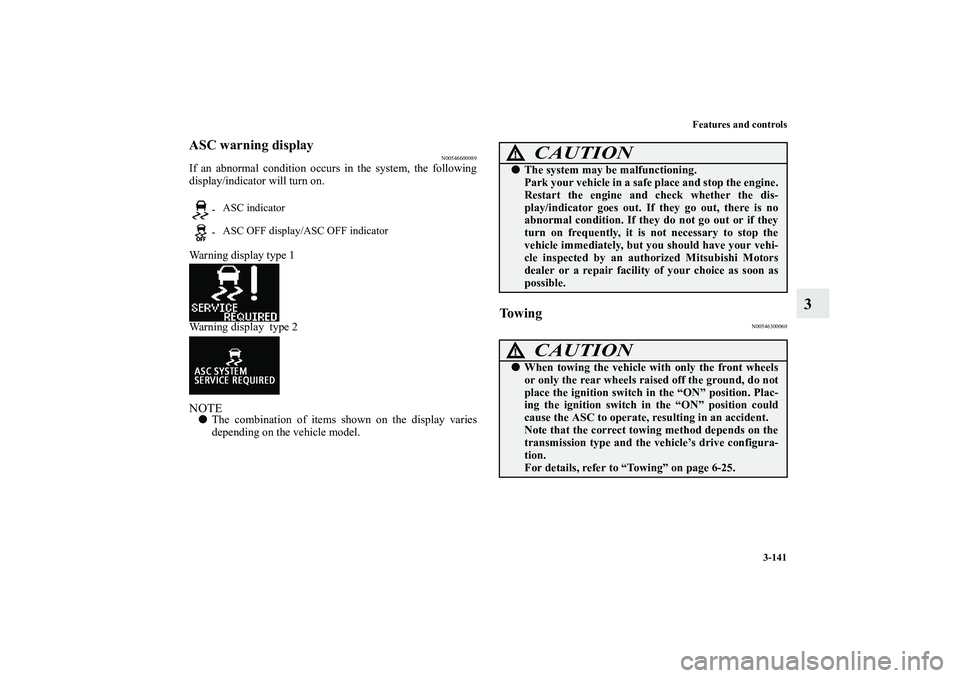

ASC warning display
N00546600089
If an abnormal condition occurs in the system, the following
display/indicator will turn on.
Warning display type 1
Warning display type 2NOTE
The combination of items shown on the display varies
depending on the vehicle model.
To w i n g
N00546300060
- ASC indicator
- ASC OFF display/ASC OFF indicator
CAUTION
!
The system may be malfunctioning.
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the dis-
play/indicator goes out. If they go out, there is no
abnormal condition. If they do not go out or if they
turn on frequently, it is not necessary to stop the
vehicle immediately, but you should have your vehi-
cle inspected by an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as
possible.
CAUTION
!
When towing the vehicle with only the front wheels
or only the rear wheels raised off the ground, do not
place the ignition switch in the “ON” position. Plac-
ing the ignition switch in the “ON” position could
cause the ASC to operate, resulting in an accident.
Note that the correct towing method depends on the
transmission type and the vehicle’s drive configura-
tion.
For details, refer to “Towing” on page 6-25.
BK0138000US.book 141 ページ ２０１１年４月１３日　水曜日　午前１１時１７分
