3-98 Features and controls
3

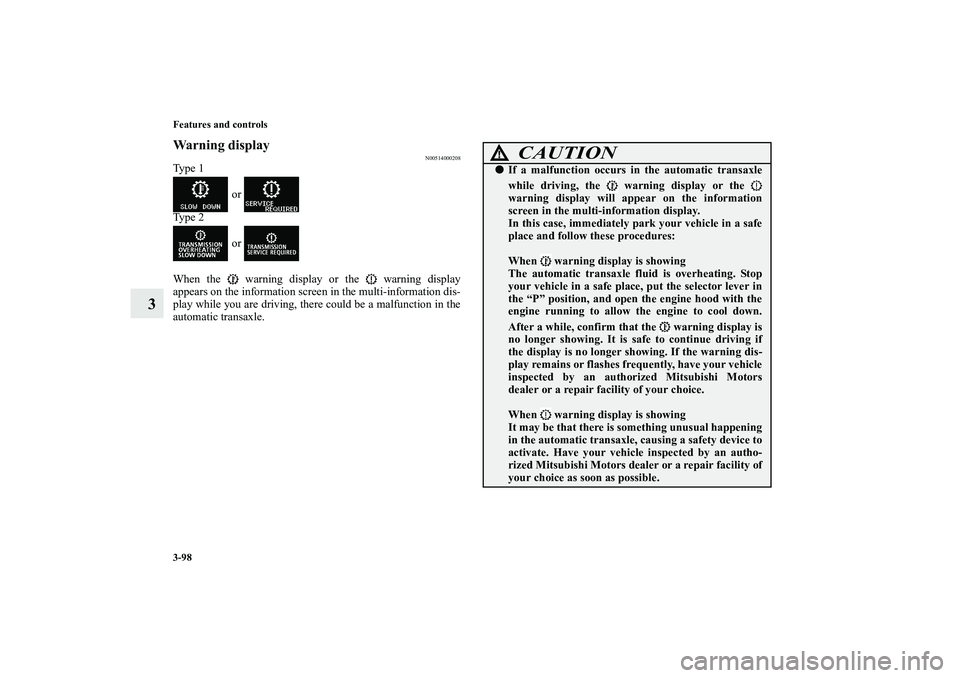

Warning display
N00514000208
Ty p e 1
or
Ty p e 2
or
When the warning display or the warning display
appears on the information screen in the multi-information dis-
play while you are driving, there could be a malfunction in the
automatic transaxle.
CAUTION
!If a malfunction occurs in the automatic transaxle
while driving, the warning display or the
warning display will appear on the information
screen in the multi-information display.
In this case, immediately park your vehicle in a safe
place and follow these procedures:
When warning display is showing
The automatic transaxle fluid is overheating. Stop
your vehicle in a safe place, put the selector lever in
the “P” position, and open the engine hood with the
engine running to allow the engine to cool down.
After a while, confirm that the warning display is
no longer showing. It is safe to continue driving if
the display is no longer showing. If the warning dis-
play remains or flashes frequently, have your vehicle
inspected by an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
When warning display is showing
It may be that there is something unusual happening
in the automatic transaxle, causing a safety device to
activate. Have your vehicle inspected by an autho-
rized Mitsubishi Motors dealer or a repair facility of
your choice as soon as possible.
BK0138000US.book 98 ページ 2011年4月13日 水曜日 午前11時17分
3-100 Features and controls
3
Sports mode
N00514400358
Whether the vehicle is stationary or in motion, sports mode is
selected by gently pushing the selector lever from the “D”
(DRIVE) position into the manual gate. To return to “D” opera-
tion, gently push the selector lever back into the main gate.
In sports mode, rapid gear shifting is possible simply by oper-
ating the selector lever or sportronic steering wheel paddle
shifter.
Unlike the manual transaxle, sports mode allows gear shifts
with the accelerator pedal depressed.NOTEFor vehicles equipped with the sportronic steering wheel
paddle shifter, sports mode can be selected by shifting
gears even when the selector lever is in the main gate (2).
Also, you can return to the “D” operation in any of fol-
lowing ways.
When returning to “D” operation, the selector lever posi-
tion display will change to “D” (DRIVE) position.
• Pull the + (SHIFT UP) side sportronic steering wheel
paddle shifter forward (toward the driver) for over 2 sec-
onds.
• Stop the vehicle
• Push the selector lever from the “D” (DRIVE) position
into the manual gate (A) and push the selector lever
back into the main gate (B).
+ (SHIFT UP)
The transaxle shifts up by one gear with each operation.
- (SHIFT DOWN)
The transaxle shifts down by one gear with each operation.
CAUTION
!Upward shifts do not take place automatically in
sports mode. The driver must make upward shifts in
accordance with prevailing road conditions, making
sure the engine revolutions remain below the red
zone on the tachometer.Repeated continuous operation of the selector lever
or the sportronic steering wheel paddle shifter will
continuously switch shift position.SHIFT
DOWNSHIFT
DOWN
SHIFT
UP SHIFT
UP
BK0138000US.book 100 ページ 2011年4月13日 水曜日 午前11時17分
Features and controls
3-101
3
NOTEGears can only be selected in a forward direction from 1st
gear to 6th gear. To reverse or park the vehicle, move the
selector lever to the “R” or “P” position.
To maintain good running performance, the transaxle may
refuse to perform an upshift when the selector lever is
moved to the “+ (SHIFT UP)” position at certain vehicle
speeds. Also, to prevent over-revving of the engine, the
transaxle may refuse to perform a downshift when the
lever is moved to the “- (SHIFT DOWN)” position at cer-
tain vehicle speeds. When this happens, a buzzer sounds
to indicate that a downshift is not going to take place.
When pulling away from a standstill on a slippery road,
push the selector lever forward to the + (SHIFT UP) posi-
tion to select 2nd gear. Push the selector lever to the -
(SHIFT DOWN) side to shift back to 1st gear.
Sports mode display
N00538800167
In sports mode, the currently selected gear is displayed on the
information screen in the multi-information display.NOTEWhile driving in sports mode, the sports mode display
may change to show “D” and shifting in sports mode may
no longer be possible.
This indicates that controls to drive in the “D” position are
operating normally in order to lower the temperature of
the automatic transaxle fluid; it does not indicate a mal-
function. Once the temperature of the automatic transaxle
fluid drops, shifting in the sports mode will be possible
again.
On vehicles with a sportronic steering wheel paddle
shifter, gears may not change when the lateral pad-
dle shifters are operated at the same time.
CAUTION
!
Type 1 Type 2
BK0138000US.book 101 ページ 2011年4月13日 水曜日 午前11時17分
Features and controls
3-103
3
Passing accelerationTo gain extra acceleration in “D” (DRIVE) position (when
passing another vehicle) push the accelerator to the floor. The
automatic transaxle will automatically downshift.NOTEIn sports mode, downshifts do not take place when the
accelerator is depressed all the way to the floor.WaitingFor short waiting periods, such as at traffic lights, the vehicle
can be left in gear and held stationary with the service brake.
For longer waiting periods with the engine running, place the
selector lever in the “N” (NEUTRAL) position and apply the
parking brake, while holding the vehicle stationary with the
service brake.
Prior to moving off after having stopped the vehicle, make sure
that the selector lever is in “D” (DRIVE) position or Sports
mode position.
ParkingTo park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the selector lever to
the “P” (PARK) position.When the automatic transaxle makes no gear changeIf the transaxle does not change gears while driving, or your
vehicle does not pick up enough speed when starting on an
uphill slope, it may be that there is something unusual happen-
ing in the transaxle, causing a safety device to activate. Have
your vehicle checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible.NOTEWhen the warning display and “SLOW DOWN” or the
warning display and “SERVICE REQUIRED” appear
on the information screen in the multi-information dis-
play, there could be a malfunction in the automatic tran-
saxle. Refer to “Automatic transaxle: Warning display”
on page 3-98.
CAUTION
!To avoid transaxle overheating, never try to keep
your vehicle stationary on a hill by using the acceler-
ator pedal. Always apply the parking brake and/or
service brake.Do not rev the engine unnecessarily while the vehicle
is stationary. Unexpected acceleration may occur if
the selector lever is in a position other than “P”
(PARK) or “N” (NEUTRAL).
BK0138000US.book 103 ページ 2011年4月13日 水曜日 午前11時17分
3-106 Features and controls
3
NOTETo prevent mistakes in operating the lever, make sure you
stop briefly at each position. After operating, check the
position in the multi-information display.
If the brake pedal is not depressed and held, the shift-lock
device activates to prevent the selector lever from being
moved from the “P” (PARK) position.
For a shift indicated by in the illustration, depress the
brake pedal before moving the selector lever. If you
attempt to move the selector lever before depressing the
brake pedal, the selector lever may be immovable.
When the selector lever cannot be shifted from the “P”
(PARK) position
N00563300010
When the selector lever cannot be shifted from the “P” (PARK)
position to another position while the brake pedal is pressed
and held down with the ignition switch at the “ON” position,
the battery may be flat or the shift-lock mechanism may be
malfunctioning.
Immediately have your vehicle checked by an authorized Mit-
subishi Motors dealer or a repair facility of your choice.
If you need to move the vehicle, shift the selector lever as fol-
lows.
1. Make sure the parking brake is fully applied.
2. Stop the engine if it is running.
3. Insert a screwdriver with a cloth over its tip into the notch
(A) of the cover. Pry gently as shown to remove the cover.
BK0138000US.book 106 ページ 2011年4月13日 水曜日 午前11時17分
Features and controls
3-107
3

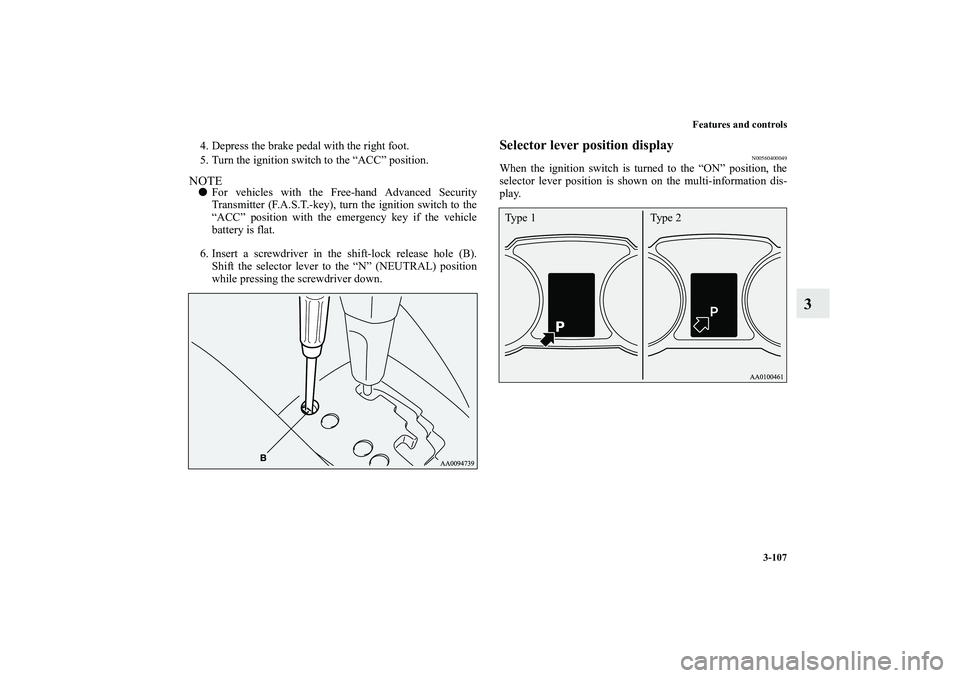

4. Depress the brake pedal with the right foot.
5. Turn the ignition switch to the “ACC” position.NOTEFor vehicles with the Free-hand Advanced Security
Transmitter (F.A.S.T.-key), turn the ignition switch to the
“ACC” position with the emergency key if the vehicle
battery is flat.
6. Insert a screwdriver in the shift-lock release hole (B).
Shift the selector lever to the “N” (NEUTRAL) position
while pressing the screwdriver down.
Selector lever position display
N00560400049
When the ignition switch is turned to the “ON” position, the
selector lever position is shown on the multi-information dis-
play.
Ty p e 2 Ty p e 1
BK0138000US.book 107 ページ 2011年4月13日 水曜日 午前11時17分
3-108 Features and controls
3

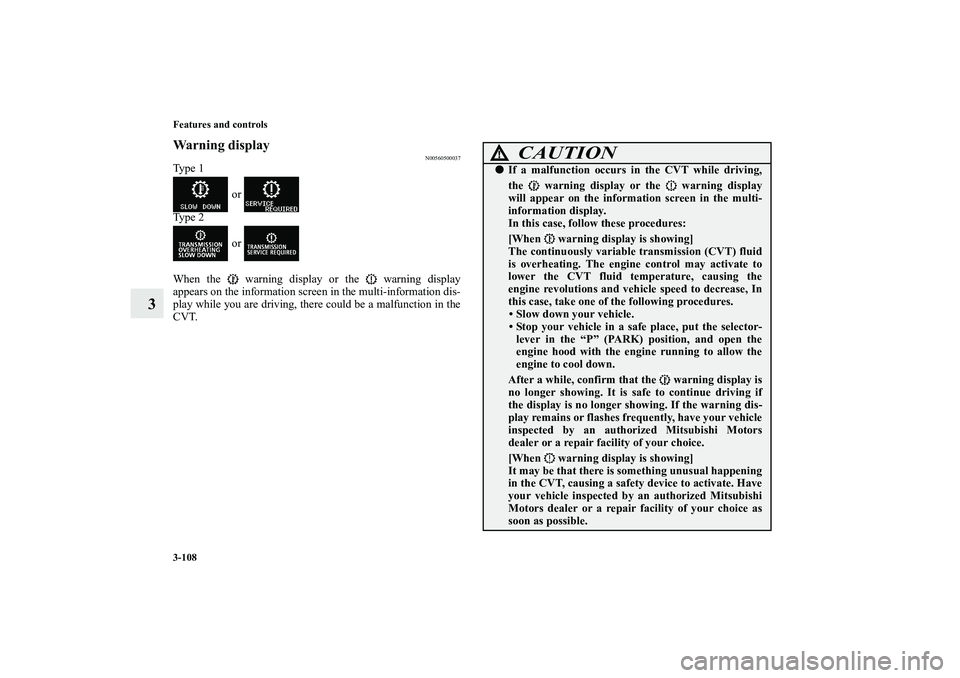

Warning display
N00560500037
Ty p e 1
or
Ty p e 2
or
When the warning display or the warning display
appears on the information screen in the multi-information dis-
play while you are driving, there could be a malfunction in the
CVT.
CAUTION
!If a malfunction occurs in the CVT while driving,
the warning display or the warning display
will appear on the information screen in the multi-
information display.
In this case, follow these procedures:
[When warning display is showing]
The continuously variable transmission (CVT) fluid
is overheating. The engine control may activate to
lower the CVT fluid temperature, causing the
engine revolutions and vehicle speed to decrease, In
this case, take one of the following procedures.
• Slow down your vehicle.
• Stop your vehicle in a safe place, put the selector-
lever in the “P” (PARK) position, and open the
engine hood with the engine running to allow the
engine to cool down.After a while, confirm that the warning display is
no longer showing. It is safe to continue driving if
the display is no longer showing. If the warning dis-
play remains or flashes frequently, have your vehicle
inspected by an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
[When warning display is showing]
It may be that there is something unusual happening
in the CVT, causing a safety device to activate. Have
your vehicle inspected by an authorized Mitsubishi
Motors dealer or a repair facility of your choice as
soon as possible.
BK0138000US.book 108 ページ 2011年4月13日 水曜日 午前11時17分
Features and controls
3-111
3
NOTEShift ranges can only be selected in a forward direction
from 1st to 6th. To reverse or park the vehicle, move the
selector lever to the “R” or “P” position.
To maintain good running performance, the transmission
may refuse to perform an upshift when the selector lever
or sportronic steering wheel paddle shifter is moved to the
“+ (SHIFT UP)” position at certain vehicle speeds. Also,
to prevent over-revving of the engine, the transmission
may refuse to perform a downshift when the shift lever or
sportronic steering wheel paddle shifter is moved to the “-
(SHIFT DOWN)” position at certain vehicle speeds.
When this happens, a buzzer sounds to indicate that a
downshift is not going to take place.
Sports mode display
N00560900044
In sports mode, the currently selected shift range is displayed
on the information screen in the multi-information display.
On vehicles with a sportronic steering wheel paddle
shifter, shift ranges may not change when the lateral
paddle shifters are operated at the same time.
CAUTION
!
Ty p e 2 Ty p e 1
BK0138000US.book 111 ページ 2011年4月13日 水曜日 午前11時17分
