2012 MITSUBISHI OUTLANDER XL display

2-70 Seat and restraint systems
2

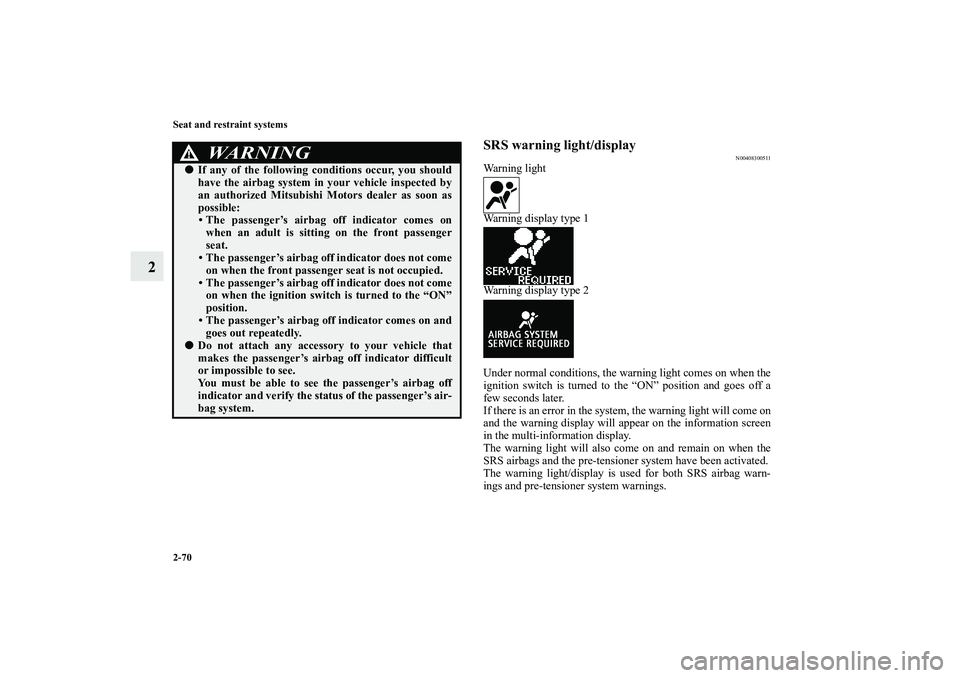

SRS warning light/display
N00408300511
Warning light
Warning display type 1
Warning display type 2
Under normal conditions, the warning light comes on when the
ignition switch is turned to the “ON” position and goes off a
few seconds later.
If there is an error in the system, the warning light will come on
and the warning display will appear on the information screen
in the multi-information display.
The warning light will also come on and remain on when the
SRS airbags and the pre-tensioner system have been activated.
The warning light/display is used for both SRS airbag warn-
ings and pre-tensioner system warnings.
WA R N I N G
!
If any of the following conditions occur, you should
have the airbag system in your vehicle inspected by
an authorized Mitsubishi Motors dealer as soon as
possible:
• The passenger’s airbag off indicator comes on
when an adult is sitting on the front passenger
seat.
• The passenger’s airbag off indicator does not come
on when the front passenger seat is not occupied.
• The passenger’s airbag off indicator does not come
on when the ignition switch is turned to the “ON”
position.
• The passenger’s airbag off indicator comes on and
goes out repeatedly.

Do not attach any accessory to your vehicle that
makes the passenger’s airbag off indicator difficult
or impossible to see.
You must be able to see the passenger’s airbag off
indicator and verify the status of the passenger’s air-
bag system.
BK0138000US.book 70 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Seat and restraint systems
2-71
2
Driver’s and passenger’s front airbag system
N00407900305
The driver’s airbag is located under the padded cover in the
middle of the steering wheel. The front passenger’s airbag is
contained in the instrument panel above the glove compart-
ment. The driver’s airbag and the front passenger’s airbag are
designed to deploy at the same time. However, the front pas-
senger’s airbag does not deploy when the front passenger seat
is not occupied or when the weight sensor in the front passen-
ger seat senses a weight on the seat of less than approximately
66 pounds (30 kg).
WA R N I N G
!
There may be a system error if the warning
light/display appears as indicated. In such cases, an
SRS airbag or a seat belt equipped with pre-ten-
sioner system may not function properly in a colli-
sion. Have your vehicle checked by an authorized
Mitsubishi Motors dealer:
• Even when the ignition switch is in the “ON” posi-
tion, the warning light does not come on or it
remains on a few seconds later
• When warning light comes on while driving
• When warning display appears while driving
Driver
Front passenger
BK0138000US.book 71 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . . . . .3- 5
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . .3- 9
Free-hand Advanced Security Transmitter (F.A.S.T.-key)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 53
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 57
Child safety locks for rear door . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 59
Flap-fold tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 60
Inside tailgate release. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 64
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 65
Power window control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 71
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 76
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 80
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 81
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 82
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 86
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 88
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 90
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 91
Automatic transaxle (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . .3- 93
Continuously variable transmission (CVT) (if so equipped). . . . . . . 3- 104
Electronically controlled 4WD system (if so equipped) . . . . . . . . . . 3- 114
S-AWC (Super-All Wheel Control) (if so equipped) . . . . . . . . . . . . 3- 117
4-wheel drive operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 122
Inspection and maintenance following rough road operation . . . . . . 3- 126
Cautions on the handling of 4-wheel drive vehicles . . . . . . . . . . . . . 3- 126
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 128
Hill start assist (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 130
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 132
Anti-lock braking system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 133
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 137Active stability control (ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 137
Cruise control (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 142
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 150
Rear-view camera (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 156
Instrument cluster. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 161
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 165
Indicator light, warning light, and
information screen display list . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 197
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 210
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 210
Information screen display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 213
Combination headlights and dimmer switch . . . . . . . . . . . . . . . . . . 3- 216
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . . . . 3- 223
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 224
Hazard warning flasher switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 225
Front fog light switch (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 3- 226
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 227
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . 3- 236
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 237
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 237
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 238
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 3- 263
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 269
12 V power outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 270
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 272
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 276
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 283
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 285
Cargo area cover (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 287
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 289
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 290
Luggage hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 290
BK0138000US.book 1 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-7
3

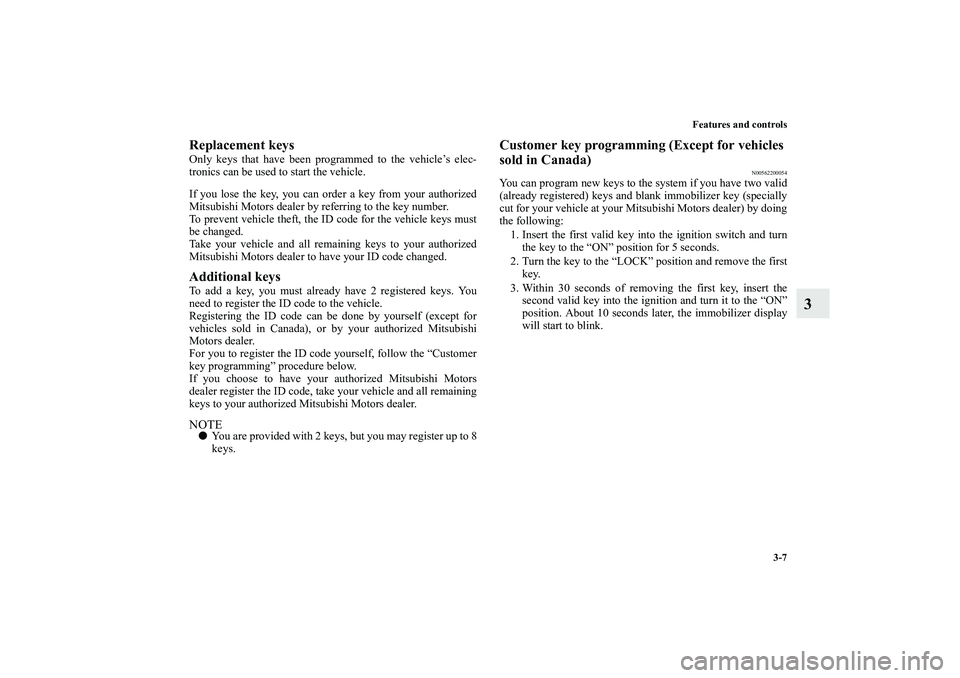

Replacement keysOnly keys that have been programmed to the vehicle’s elec-
tronics can be used to start the vehicle.
If you lose the key, you can order a key from your authorized
Mitsubishi Motors dealer by referring to the key number.
To prevent vehicle theft, the ID code for the vehicle keys must
be changed.
Take your vehicle and all remaining keys to your authorized
Mitsubishi Motors dealer to have your ID code changed.Additional keysTo add a key, you must already have 2 registered keys. You
need to register the ID code to the vehicle.
Registering the ID code can be done by yourself (except for
vehicles sold in Canada), or by your authorized Mitsubishi
Motors dealer.
For you to register the ID code yourself, follow the “Customer
key programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and all remaining
keys to your authorized Mitsubishi Motors dealer.NOTE
You are provided with 2 keys, but you may register up to 8
keys.
Customer key programming (Except for vehicles
sold in Canada)
N00562200054
You can program new keys to the system if you have two valid
(already registered) keys and blank immobilizer key (specially
cut for your vehicle at your Mitsubishi Motors dealer) by doing
the following:
1. Insert the first valid key into the ignition switch and turn
the key to the “ON” position for 5 seconds.
2. Turn the key to the “LOCK” position and remove the first
key.
3. Within 30 seconds of removing the first key, insert the
second valid key into the ignition and turn it to the “ON”
position. About 10 seconds later, the immobilizer display
will start to blink.
BK0138000US.book 7 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-8 Features and controls
3
4. When the immobilizer display starts blinking, turn the
second valid key to the “LOCK” position and remove it.
Within 30 seconds after doing so, insert a blank immobi-
lizer key into the ignition switch and turn it to the “ON”
position. Perform this operation no more than 30 seconds
after the immobilizer display starts blinking. When regis-
tration of the ID code is complete, the immobilizer display
will come on for 3 seconds then go off. If an error occurs,
the immobilizer display will go off during the procedure.NOTE
When the key registration is completed, the immobilizer
display will come on within 30 seconds of turning the
ignition switch to the “ON” position with the blank immo-
bilizer key (specially cut for your vehicle at your Mitsub-
ishi Motors dealer).
5. If you wish to register another key, perform the process
again from step 1.
NOTE
Perform the operation when the interrupt display screen is
not showing. The interrupt display screen may prevent
you from seeing the immobilizer display.

It is not possible to register a key if:
• the immobilizer display goes off during the procedure
• the immobilizer display does not come on within 30 sec-
onds after step 4.

The procedure will be terminated automatically if:
• a period of 30 seconds or longer elapses from the
moment when the first key is turned to the “LOCK”
position to the moment when the second key is turned to
the “ON” position
• a period of 30 seconds or longer elapses from the
moment when the second key is turned to the “LOCK”
position to the moment when the blank immobilizer key
is turned to the “ON” position

To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Keyless entry system: Customer remote
control transmitter programming” on page 3-13.
BK0138000US.book 8 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-28 Features and controls
3

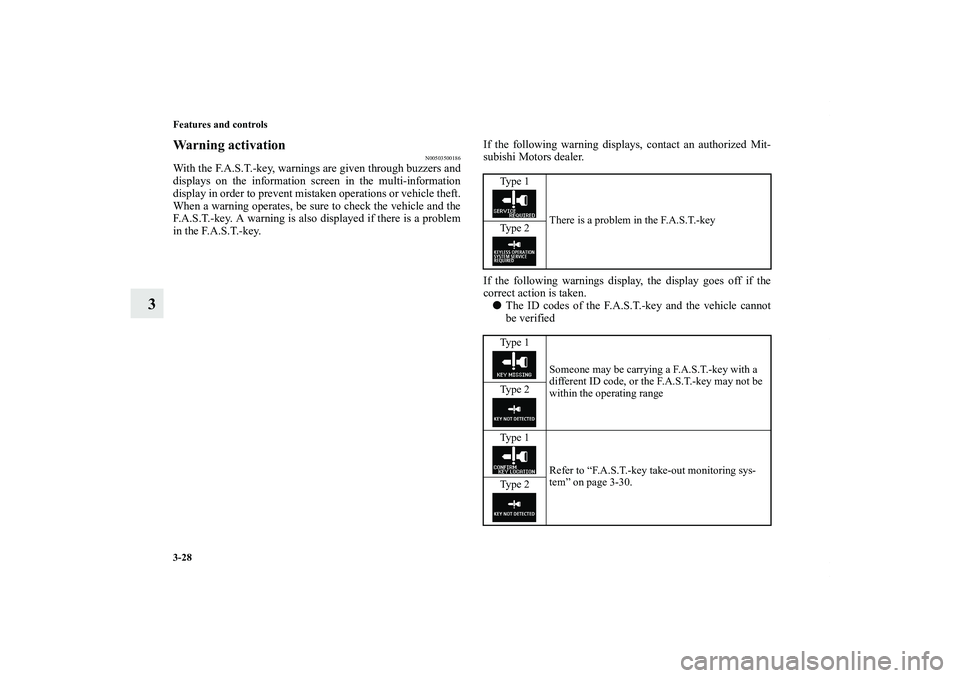

Warning activation
N00503500186
With the F.A.S.T.-key, warnings are given through buzzers and
displays on the information screen in the multi-information
display in order to prevent mistaken operations or vehicle theft.
When a warning operates, be sure to check the vehicle and the
F.A.S.T.-key. A warning is also displayed if there is a problem
in the F.A.S.T.-key.If the following warning displays, contact an authorized Mit-
subishi Motors dealer.
If the following warnings display, the display goes off if the
correct action is taken.

The ID codes of the F.A.S.T.-key and the vehicle cannot
be verified
Ty p e 1
There is a problem in the F.A.S.T.-key
Ty p e 2
Ty p e 1
Someone may be carrying a F.A.S.T.-key with a
different ID code, or the F.A.S.T.-key may not be
within the operating range Ty p e 2
Ty p e 1
Refer to “F.A.S.T.-key take-out monitoring sys-
tem” on page 3-30.
Ty p e 2
BK0138000US.book 28 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-30 Features and controls
3
F.A.S.T.-key take-out monitoring system
N00559800102
Ty p e 1
Ty p e 2
When the ignition switch is in a position other than “LOCK
(PUSH OFF)”, and a door is opened and the F.A.S.T.-key is
removed from the passenger compartment so that the ID codes
of the F.A.S.T.-key and the vehicle can no longer be verified,
the warning display is displayed and the buzzer sounds 4 times
as a warning.NOTE
The F.A.S.T.-key take-out monitoring system does not
function if the F.A.S.T.-key is removed through a window
without opening a door.
This setting can be changed.
See an authorized Mitsubishi Motors dealer for details.

The warning may display even if the F.A.S.T.-key is in the
operating range for starting the engine. The surrounding
environment or electromagnetic waves may make it
impossible to verify the ID codes of the F.A.S.T.-key and
vehicle.
Key lock-in prevention system
N00559900129
Ty p e 1
Ty p e 2
When the ignition switch is in the “LOCK (PUSH OFF)” posi-
tion, the F.A.S.T.-key is left in the passenger compartment, all
the doors and the tailgate are closed, and someone tries to lock
the vehicle by pressing the driver’s or front passenger’s door
lock/unlock switch, or the tailgate LOCK switch, the warning
display is displayed and the buzzer sounds for about 3 seconds
as a warning, and the doors and the tailgate cannot be locked.
BK0138000US.book 30 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-31
3

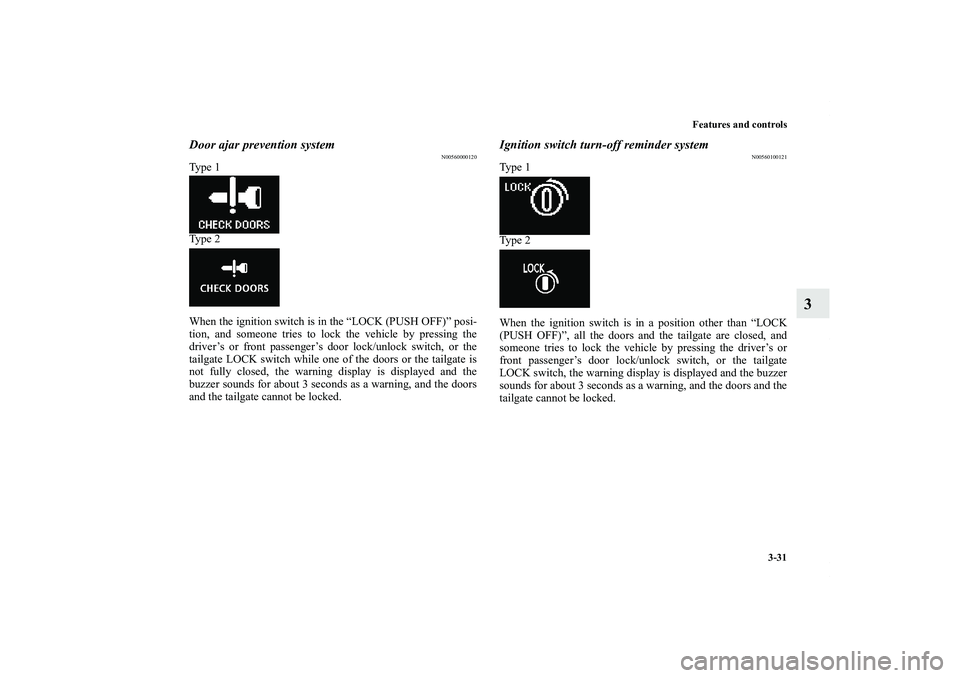

Door ajar prevention system
N00560000120
Ty p e 1
Ty p e 2
When the ignition switch is in the “LOCK (PUSH OFF)” posi-
tion, and someone tries to lock the vehicle by pressing the
driver’s or front passenger’s door lock/unlock switch, or the
tailgate LOCK switch while one of the doors or the tailgate is
not fully closed, the warning display is displayed and the
buzzer sounds for about 3 seconds as a warning, and the doors
and the tailgate cannot be locked.
Ignition switch turn-off reminder system
N00560100121
Ty p e 1
Ty p e 2
When the ignition switch is in a position other than “LOCK
(PUSH OFF)”, all the doors and the tailgate are closed, and
someone tries to lock the vehicle by pressing the driver’s or
front passenger’s door lock/unlock switch, or the tailgate
LOCK switch, the warning display is displayed and the buzzer
sounds for about 3 seconds as a warning, and the doors and the
tailgate cannot be locked.
BK0138000US.book 31 ページ ２０１１年４月１３日　水曜日　午前１１時１７分
