Overview
Instruments and controls
N00100201374
Cruise control switch
(if so equipped)
P. 3 - 1 4 2 Active stability control (ASC) OFF switch
P.3-139
Ignition switch P.3-25, 3-88Steering wheel tilt lock lever
P. 3 - 8 1 Wiper and washer switch P.3-227
Rear window wiper and washer
switch P.3-234 Instrument cluster P.3-161
Supplemental restraint system (SRS) - airbag (for driver’s seat) P.2-61, 2-71
Horn switch P.3-237Combination headlights and dimmer switch P.3-216
Turn signal lever P.3-224
Front fog light switch
(if so equipped) P.3-226
Sportronic steering wheel paddle
shifter (if so equipped)
P.3-100, 3-110
Steering wheel audio remote control
switches (if so equipped) P.5-120
Bluetooth
® 2.0 interface (if so equipped)
P. 3 - 2 3 8Headlight leveling switch
(if so equipped) P.3-223
BK0138000US.book 1 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Overview
Outside
N00100601264
Power window P.3-71
Front turn signal lights P.3-224, 7-49, 7-60Engine hood P.7-4Fuel tank filler P.1-4
Outside rearview mirrors P.3-86
Side turn-signal light (if so equipped)
P.3-224, 7-49, 7-62 Sunroof (if so equipped) P.3-76
Windshield wipers P.3-227
Front fog lights (if so equipped) P.3-226, 7-49, 7-62Side turn-signal light (if so equipped)
P.3-224, 7-49, 7-61
Daytime running light P.3-216, 7-49, 7-56 Headlights, low beam
P.3-220, 7-49, 7-52Headlights, low/high beam
P.3-220, 7-49, 7-58
Headlights, high beam P.3-220, 7-49, 7-54Front side-marker and parking
lights P.3-216, 7-49, 7-58 Front side-marker and
parking lights
P.3-216, 7-49, 7-58Front turn signal lights P.3-224, 7-49, 7-60 [Except for vehicles with high intensity discharge
headlights type][For vehicles with high intensity discharge headlights type]
BK0138000US.book 6 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

4 Quick indexThe windows are fogged up.
1. Set the mode selection dial to the “ ” or “ ” position.
2. Turn on the blower.P. 5-14, 5-23,
5-33, 5-43
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.Have the battery checked. Recharge or replace as needed.P. 6 - 2
P. 7 - 2 1
Problem
Do this
Ref. Page
BK0138000US.book 4 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . . . . .3- 5
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . .3- 9
Free-hand Advanced Security Transmitter (F.A.S.T.-key)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 53
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 57
Child safety locks for rear door . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 59
Flap-fold tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 60
Inside tailgate release. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 64
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 65
Power window control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 71
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 76
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 80
Steering wheel tilt lock lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 81
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 82
Outside rearview mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 86
Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 88
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 90
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 91
Automatic transaxle (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . .3- 93
Continuously variable transmission (CVT) (if so equipped). . . . . . . 3- 104
Electronically controlled 4WD system (if so equipped) . . . . . . . . . . 3- 114
S-AWC (Super-All Wheel Control) (if so equipped) . . . . . . . . . . . . 3- 117
4-wheel drive operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 122
Inspection and maintenance following rough road operation . . . . . . 3- 126
Cautions on the handling of 4-wheel drive vehicles . . . . . . . . . . . . . 3- 126
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 128
Hill start assist (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 130
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 132
Anti-lock braking system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 133
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3- 137Active stability control (ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 137
Cruise control (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 142
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 150
Rear-view camera (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 156
Instrument cluster. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 161
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 165
Indicator light, warning light, and
information screen display list . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 197
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 210
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 210
Information screen display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 213
Combination headlights and dimmer switch . . . . . . . . . . . . . . . . . . 3- 216
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . . . . 3- 223
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 224
Hazard warning flasher switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 225
Front fog light switch (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 3- 226
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 227
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . 3- 236
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 237
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 237
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 238
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 3- 263
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 269
12 V power outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 270
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 272
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 276
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 283
Bottle holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 285
Cargo area cover (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 287
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 289
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 290
Luggage hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 290
BK0138000US.book 1 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-87
3

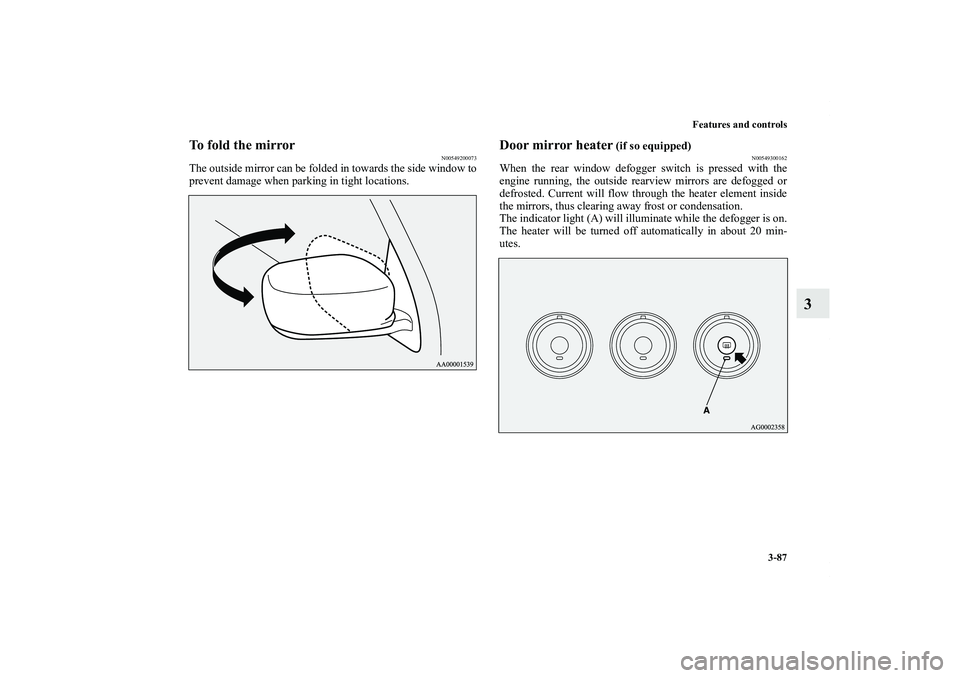

To fold the mirror
N00549200073
The outside mirror can be folded in towards the side window to
prevent damage when parking in tight locations.
Door mirror heater
(if so equipped)
N00549300162
When the rear window defogger switch is pressed with the
engine running, the outside rearview mirrors are defogged or
defrosted. Current will flow through the heater element inside
the mirrors, thus clearing away frost or condensation.
The indicator light (A) will illuminate while the defogger is on.
The heater will be turned off automatically in about 20 min-
utes.
BK0138000US.book 87 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-197
3 Indicator light, warning light, and information screen display list
N00557700019
Indicator and warning light list
N00557800225
Type A Type B1- Position indicator → P.3-210
2- High beam indicator → P.3-210
3- Charging system warning light → P.3-212
4- Turn signal indicator/hazard warning light → P.3-210
5- Front fog light indicator (if so equipped) → P.3-210
6- Anti-lock braking system warning light → P.3-134
7- The tire pressure monitoring system warning light → P. 3 -
151
8- Brake warning light → P.3-210
9- Cruise control indicator (if so equipped) → P.3-14310- Seat belt reminder/warning light → P.2-43
11- Supplemental Restraint System (SRS) warning light
→ P. 2 - 7 0
12- ECO mode indicator (if so equipped) → P. 3 - 2 1 0
13- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P. 3 - 2 1 1
14- Active stability control (ASC) OFF indicator (if so
equipped) → P. 3 - 1 4 0
15- Active stability control (ASC) indicator → P.3-140
16- Information screen display list → P.3-198
BK0138000US.book 197 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-210 Features and controls
3Indicators
N00519900127
Turn signal indicators/Hazard warning lights
N00520000216
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed.NOTE
If the indicator flashes faster than usual or if the indicator
stays on without flashing, check for a malfunctioning turn
signal light bulb or turn signal connection.High beam indicator
N00520100086
A blue light comes on when the headlights are on high beam.Front fog light indicator
(if so equipped)
N00520200175
This indicator comes on while the front fog lights are on.Position indicator
N00551300026
This indicator light illuminates while the position lights are on.ECO mode indicator
(if so equipped)
N00568800010
This indicator will be displayed when fuel-efficient driving is
achieved.
Warning lights
N00520300147
Brake warning light
N00520400395
This light comes on when the key is turned to the “ON” posi-
tion (engine off).
When the engine is started, the light should go off a few sec-
onds later. A warning is also displayed in the multi-information
display.
The warning light also illuminates after starting the engine
under the following conditions.

When the parking brake is still applied.

When the brake fluid level is low.

When the brake system circuit is not working properly.
Before driving, be sure that the parking brake is fully released
and brake warning light is off.
BK0138000US.book 210 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-216 Features and controls

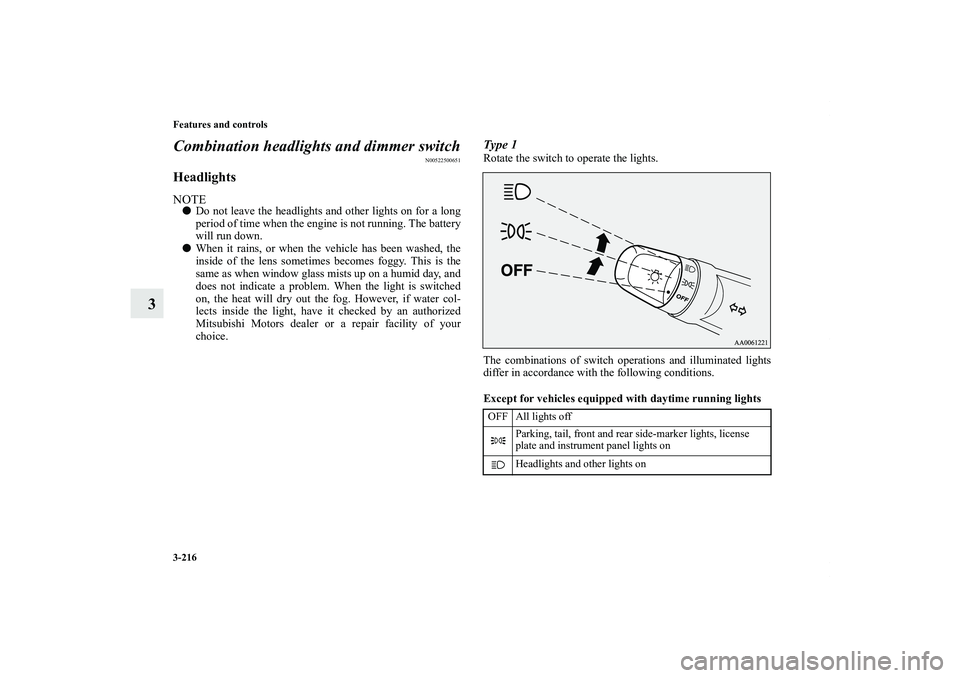

3Combination headlights and dimmer switch
