2012 MITSUBISHI OUTLANDER XL engine

3-272 Features and controls
3
Ty p e 2Accessories can be operated in all ignition switch positions.

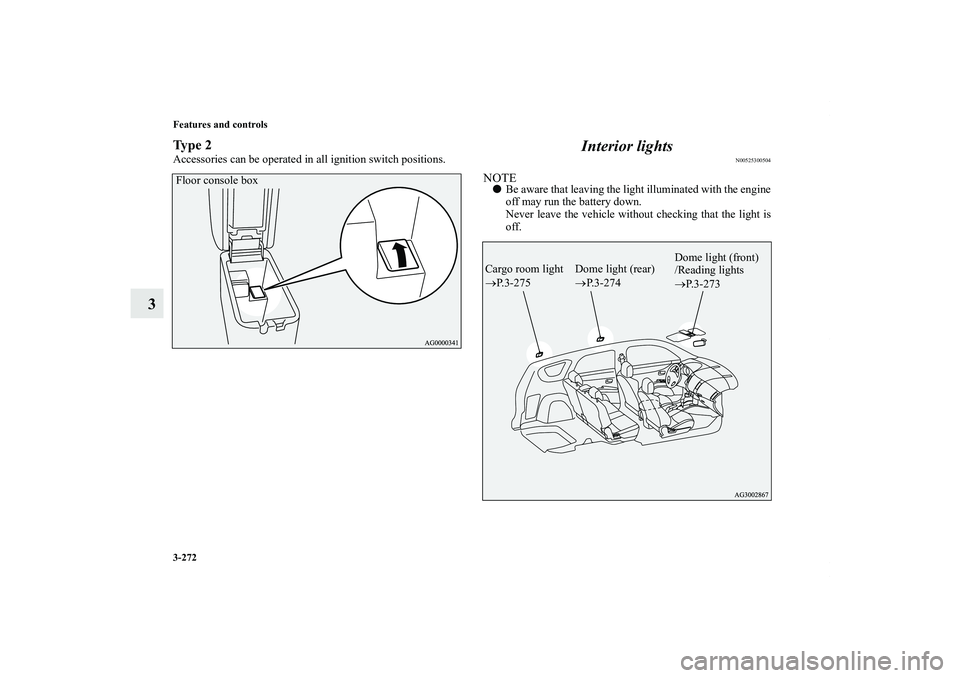

Interior lights
N00525300504
NOTE
Be aware that leaving the light illuminated with the engine
off may run the battery down.
Never leave the vehicle without checking that the light is
off.
Floor console box
Cargo room light
→P. 3 - 2 7 5Dome light (rear)
→P. 3 - 2 7 4Dome light (front)
/Reading lights
→P. 3 - 2 7 3
BK0138000US.book 272 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-273
3
Dome light (front)/Reading lights
N00525400404
Dome light (front)
1- (DOOR)
When any of the doors or the tailgate is opened, the dome
light illuminates; when any of them are closed, the dome
light goes off after approximately 30 seconds. However, the
light goes off immediately if:

The doors and the tailgate are closed while the ignition
switch is in the “ON” position.

The driver’s door is closed while the its lock knob is in
the lock position, after all the other doors are closed.

The doors and the tailgate are closed and the power
door lock function is used to lock the doors.

The keyless entry system remote control transmitter is
used to lock the doors.

In vehicles equipped with the F.A.S.T.-key, the doors
and the tailgate are locked using the F.A.S.T.-key.NOTE
When the engine is started using the key while the
doors and tailgate are closed, if you remove the key, the
dome light will illuminate for approximately 30 sec-
onds then go off.

When the engine is started using the F.A.S.T.-key while
the doors and tailgate are closed, if the ignition switch
is moved to the “LOCK” position, the dome light will
illuminate for approximately 30 seconds and then go
off.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
2- (OFF)
The dome light stays off regardless of any door or the tail-
gate being opened or closed.
BK0138000US.book 273 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-275
3
Cargo room light
N00526100121
1- (ON)
The cargo room light illuminates regardless of the tailgate
being opened or closed.
2- (
)
When the tailgate is opened, the cargo room light illumi-
nates; when it is closed, it goes out.
3- (OFF)
The cargo room light stays out regardless of the tailgate
being opened or closed.

The keyless entry system remote control transmitter is
used to lock the doors.

In vehicles equipped with the F.A.S.T.-key, the doors
and the tailgate are locked using the F.A.S.T.-key.NOTE
When the engine is started using the key while the
doors and tailgate are closed, if you remove the key, the
dome light will illuminate for approximately 30 sec-
onds then go off.

When the engine is started using the F.A.S.T.-key while
the doors and tailgate are closed, if the ignition switch
is moved to the “LOCK” position, the dome light will
illuminate for approximately 30 seconds and then go
off.

When the dome light switch is in the “ON” position,
the light will not go off, even when all the doors and
the tailgate are closed.

The time until the light goes off can be adjusted. See
your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Com-
munication System, adjustments can be made using
screen operations. For details, refer to the separate
owner’s manual.
3- (OFF)
The dome light stays off regardless of any door or the tail-
gate being opened or closed.
BK0138000US.book 275 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

4-2 Driving safety
4Driving precaution
N00629300053
Utility vehicles have higher ground clearance and a narrower
track, which enables them to perform in a wide variety of off-
road situations. Because of the higher ground clearance, these
vehicles have a higher center of gravity, which makes them
handle differently than ordinary vehicles when driving on
pavement. They are not designed to maneuver or corner at the
same speed on pavement as conventional 2-wheel drive pas-
senger cars any more than low-slung sports cars are designed
to perform satisfactorily in off-road conditions.
Always drive safely and steer the vehicle carefully. Avoid oper-
ating the vehicle in a manner that might require sharp turns or
abrupt maneuvers. As with other vehicles of this type, failure
to operate this vehicle correctly can result in loss of control or
vehicle rollover.
In a rollover crash, an unbelted person is significantly more
likely to die than a person wearing a seat belt. Before starting
the vehicle, always make certain that you and all your passen-
gers are properly wearing their seat belts (with children in the
rear seat, in appropriate restraints).
Fuel economy
N00628800149
Fuel economy is dependent on many factors. Your personal
driving habits can have a significant effect on your fuel use.
Several recommendations for achieving the greatest fuel econ-
omy are listed below.

Whenever accelerating from a stop, always accelerate
slowly and smoothly.

When parked for even a short period, do not idle the
engine. Shut it off.

Plan your trips to avoid unnecessary stops.

Keep your tires inflated to the recommended pressures.

When you drive on highways or dry improved roads, set
the drive mode-selector “2WD”, “4WD AUTO” or “TAR-
MAC” position (if so equipped).

For freeway driving, maintain a speed of approximately
50 mph (80 km/h) when traffic, roadway and weather con-
ditions safely permit.

Keep your air filter clean and your vehicle lubricated
according to the recommendations in this manual.

Always keep your vehicle well maintained. A poorly
maintained engine wastes fuel and costs money.

Never overload your vehicle.
WA R N I N G
!
Utility vehicles have a significantly higher rollover
rate than other types of vehicles. Avoid abrupt
maneuvers and excessive speed. Always buckle up.
BK0138000US.book 2 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

4-6 Driving safety
4Safe driving techniques
N00629200094
Even this vehicle’s safety equipment, and your safest driving,
cannot guarantee that you can avoid an accident or injury.
However, if you give extra attention to the following areas, you
can better protect yourself and your passengers:

Drive defensively. Be aware of traffic, road and weather
conditions. Leave plenty of stopping distance between
your vehicle and the vehicle ahead.

Before changing lanes, check your mirrors and use your
turn-signal light.

While driving, watch the behavior of other drivers, bicy-
clists, and pedestrians.

Always obey applicable laws and regulations. Be a polite
and alert driver. Always leave room for unexpected
events, such as sudden braking.

If you plan to drive in another country, obey their vehicle
registration laws and make sure you will be able to get the
right fuel.
Driving during cold weather
N00629400373

Check the battery. At the same time, check the terminals
and wiring. During extremely cold weather, the battery
will not be as strong. Also, the battery power level may
drop because more power is used for cold starting and
driving.
Before driving the vehicle, check to see if the engine runs
at the proper speed and if the headlights are as bright as
normally. Charge or replace the battery if necessary. Dur-
ing extreme cold weather, it is possible that a very low
battery could freeze.

Warm the engine sufficiently. After starting the engine,
allow a short warm-up time to distribute oil to all cylin-
ders. Then drive your vehicle slowly.
Stay at low speeds at first so that the transaxle, transfer
case and rear axle oil have time to spread to all lubrication
points.
WA R N I N G
!
The battery gives off explosive hydrogen gas. Any
spark or flame can cause the battery to explode,
which could cause serious injury or death.
Always wear protective clothes and a face mask
when working with your battery, or let a skilled
mechanic do it.
BK0138000US.book 6 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Driving safety
4-7
4

Check the engine antifreeze.
If there is not enough coolant because of a leak or from
engine overheating, add Dia Queen Super Long Life
Coolant Premium or equivalent.
Please read this section in conjunction with the “Engine
coolant” on page 7-12.
Braking
N00629500475
All the parts of the brake system are critical to safety. Have the
vehicle serviced by an authorized Mitsubishi Motors dealer or
a repair facility of your choice at regular intervals according to
the “WARRANTY AND MAINTENANCE MANUAL”.When brakes are wetCheck the brake system while driving at a low speed immedi-
ately after starting, especially when the brakes are wet, to con-
firm they work normally.
A film of water can be formed on the brake discs and prevent
normal braking after driving in heavy rain or through large
puddles, or after the vehicle is washed. If this occurs, dry the
brakes out by driving slowly while lightly depressing the brake
pedal.When driving in cold weatherOn snowy roads, ice can form on the braking system, making
the brakes less effective. While driving in such conditions, pay
close attention to preceding and following vehicles and to the
condition of the road surface. From time to time, lightly
depress the brake pedal and check how effective the brakes are.When driving downhillIt is important to take advantage of the engine braking by
downshifting while driving on steep downhill roads in order to
prevent the brakes from overheating.
WA R N I N G
!
Never open the radiator cap when the radiator is
hot. You could be seriously burned.
BK0138000US.book 7 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

4-8 Driving safety
4Parking
N00629600232
Parking on a hillWhen parking on a hill, set the parking brake, and turn the
front wheels toward the curb on a downhill, or away from the
curb on an uphill.
If necessary, apply chocks to wheels.
Be sure that the parking brake is firmly set when parked and
that the selector lever is in the “P” (PARK) position.
When parking on a hill, it is important to set the parking brake
before moving the selector lever to the “P” (PARK) position.
This prevents loading the parking brake against the transaxle.
When this happens, it is difficult to move the selector lever out
of the “P” (PARK) position.Parking with the engine runningNever leave the engine running while you take a short sleep or
rest. Also, never leave the engine running in a closed or poorly
ventilated place.
Where you parkYour front bumper can be damaged if you scrape it over curbs
or parking stop blocks. Be careful when traveling up or down
steep slopes where your bumper can scrape the road.When leaving the vehicleAlways remove the key from the ignition switch and lock all
doors and the flap-fold tailgate when leaving the vehicle unat-
tended.
Always try to park your vehicle in a well lit area.
WA R N I N G
!
Leaving the engine running risks injury or death
from accidentally moving the selector lever or the
accumulation of toxic exhaust fumes in the passen-
ger compartment.
WA R N I N G
!
Do not park your vehicle in areas where combustible
materials such as dry grass or leaves can come in
contact with a hot exhaust, since a fire could occur.
BK0138000US.book 8 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Driving safety
4-19
4

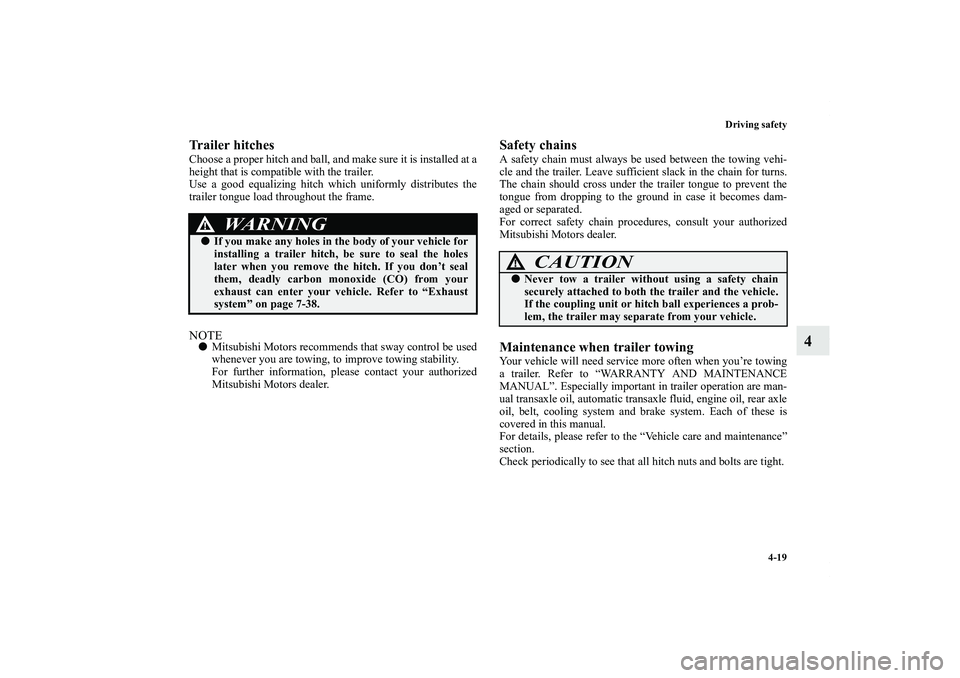

Trailer hitchesChoose a proper hitch and ball, and make sure it is installed at a
height that is compatible with the trailer.
Use a good equalizing hitch which uniformly distributes the
trailer tongue load throughout the frame.NOTE
Mitsubishi Motors recommends that sway control be used
whenever you are towing, to improve towing stability.
For further information, please contact your authorized
Mitsubishi Motors dealer.
Safety chainsA safety chain must always be used between the towing vehi-
cle and the trailer. Leave sufficient slack in the chain for turns.
The chain should cross under the trailer tongue to prevent the
tongue from dropping to the ground in case it becomes dam-
aged or separated.
For correct safety chain procedures, consult your authorized
Mitsubishi Motors dealer.Maintenance when trailer towingYour vehicle will need service more often when you’re towing
a trailer. Refer to “WARRANTY AND MAINTENANCE
MANUAL”. Especially important in trailer operation are man-
ual transaxle oil, automatic transaxle fluid, engine oil, rear axle
oil, belt, cooling system and brake system. Each of these is
covered in this manual.
For details, please refer to the “Vehicle care and maintenance”
section.
Check periodically to see that all hitch nuts and bolts are tight.
WA R N I N G
!
If you make any holes in the body of your vehicle for
installing a trailer hitch, be sure to seal the holes
later when you remove the hitch. If you don’t seal
them, deadly carbon monoxide (CO) from your
exhaust can enter your vehicle. Refer to “Exhaust
system” on page 7-38.
CAUTION
!
Never tow a trailer without using a safety chain
securely attached to both the trailer and the vehicle.
If the coupling unit or hitch ball experiences a prob-
lem, the trailer may separate from your vehicle.
BK0138000US.book 19 ページ ２０１１年４月１３日　水曜日　午前１１時１７分
