Features and controls
3-165
3 Multi-information display
N00555000223
The multi-information display displays warnings, the odometer, trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, selector lever position, all-wheel drive operation status, average and momentary fuel consumption,
driving range, average speed, instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch in the “OFF” position With ignition switch in the “ON” position
Type 1 Type 2 Type 1 Type 2
1- “!” Warning display screen (With ignition switch in the
“OFF” position) →P. 3 - 1 6 7
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P.3-167
Interrupt display screen (With ignition switch in the “OFF”
position) → P.3-169
3- Door ajar warning display screen (With ignition switch in
the “OFF” position) → P.3-1714- Drive mode indicator display screen (if so equipped)
→ P. 3 - 1 7 2
S-AWC control mode display screen (if so equipped)
→ P. 3 - 1 7 2
5- “!” Warning display screen (With ignition switch in the
“ON” position) → P.3-172
6- Active stability control (ASC) OFF display screen (if so
equipped) → P. 3 - 1 7 3
7- Outside temperature display screen → P.3-179
8- ECO mode indicator (if so equipped) → P. 3 - 1 8 0
BK0138000US.book 165 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-166 Features and controls
3
NOTE
The fuel units, temperature units, display language, and
other settings can be changed.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-183.

The display screen is different depending on whether the
ignition switch in the “OFF” or “ON” position.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-167.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-199.
Refer to “Information screen (With ignition switch turned
from “OFF” to “ON”)” on page 3-171.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-173.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-202.Multi-information meter switch
N00555100152
The multi-information meter switch is a button marked
“INFO” on the left side of the dash.Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, odometer (Type1), trip
odometer, service reminder, engine coolant temperature (Type
1), average and momentary fuel consumption, driving range,
and average speed.
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.9- Information screen (With ignition switch in the “ON” posi-
tion) → P.3-173
Interrupt display screen (With ignition switch in the “ON”
position) → P.3-177
10- Fuel remaining display screen → P. 3 - 1 7 9
11- Selector lever position display screen → P.3-178
12- Engine coolant temperature display (if so equipped)
→ P. 3 - 1 7 3
BK0138000US.book 166 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-174 Features and controls
3
NOTE
While driving, the function setting screen is not displayed
even if you operate the multi-information meter switch.
Always park the vehicle in a safe place before operating.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-183.

When there is information to be announced, such as a sys-
tem fault, the tone sounds and the screen display is
switched.
Refer to “Interrupt display screen (With ignition switch in
the “ON” position)” on page 3-177.
Odometer/Trip odometerThe operation method is the same as when the ignition switch
is in the “OFF” position.
For further details, refer to “Odometer/Trip odometer” on page
3-168.Service reminderShows the distance and number of months until the next peri-
odic inspection.
Refer to “Service reminder” on page 3-180.Engine coolant temperature displayShows the engine coolant temperature.
If the coolant becomes hot, “ ” will blink.
Pay careful attention to the engine coolant temperature display
while you are driving.
1-
Odometer (Type1)/Trip odometer
2-
Odometer (Type1)/Trip odometer
3- Service reminder
4- Engine coolant temperature display (Type 1)
5- Driving range display (Type 1)
6- Average speed display, average fuel consumption display,
momentary fuel consumption display (Type 1)
7- Driving range display, momentary fuel consumption display
(Type 2)
8- Average fuel consumption display, momentary fuel con-
sumption display (Type 2)
9- Average speed display, momentary fuel consumption display
(Type 2)
10- S-AWC operation display (Type 2 if so equipped) → P.3-120
11- Function setting screen
12- Redisplay of a warning display screen
CAUTION
!
If the engine is overheating, “ ” will blink. In this
case, the bar graph is on the red zone. Immediately
park the vehicle in a safe place and take the required
measures. Refer to “Engine overheating” on page 6-
5.
BK0138000US.book 174 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-197
3 Indicator light, warning light, and information screen display list
N00557700019
Indicator and warning light list
N00557800225
Type A Type B1- Position indicator → P.3-210
2- High beam indicator → P.3-210
3- Charging system warning light → P.3-212
4- Turn signal indicator/hazard warning light → P.3-210
5- Front fog light indicator (if so equipped) → P.3-210
6- Anti-lock braking system warning light → P.3-134
7- The tire pressure monitoring system warning light → P. 3 -
151
8- Brake warning light → P.3-210
9- Cruise control indicator (if so equipped) → P.3-14310- Seat belt reminder/warning light → P.2-43
11- Supplemental Restraint System (SRS) warning light
→ P. 2 - 7 0
12- ECO mode indicator (if so equipped) → P. 3 - 2 1 0
13- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P. 3 - 2 1 1
14- Active stability control (ASC) OFF indicator (if so
equipped) → P. 3 - 1 4 0
15- Active stability control (ASC) indicator → P.3-140
16- Information screen display list → P.3-198
BK0138000US.book 197 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

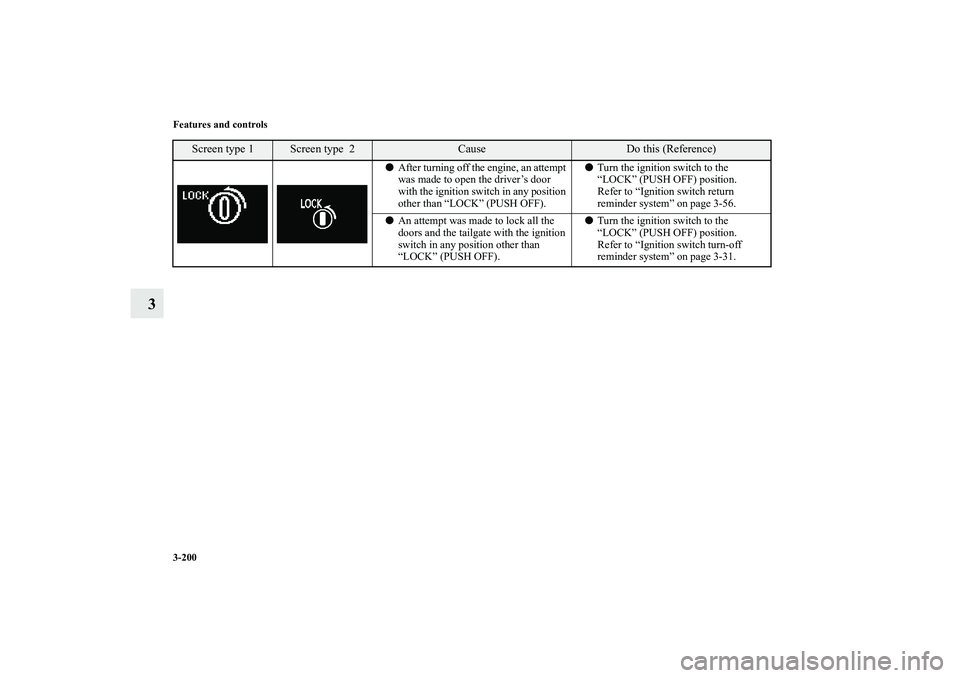

3-200 Features and controls
3

After turning off the engine, an attempt
was made to open the driver’s door
with the ignition switch in any position
other than “LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch return
reminder system” on page 3-56.

An attempt was made to lock all the
doors and the tailgate with the ignition
switch in any position other than
“LOCK” (PUSH OFF).
Turn the ignition switch to the
“LOCK” (PUSH OFF) position.
Refer to “Ignition switch turn-off
reminder system” on page 3-31.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0138000US.book 200 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

3-204 Features and controls
3

One of the doors or the tailgate is not
completely closed.
The open door is displayed.
Close the door or tailgate.
Refer to “Door ajar warning display
screen (With ignition switch in the
“ON” position)” on page 3-183.

The engine hood is open.
Close the engine hood.
Refer to “Engine hood” on page 7-4.

The engine is overheated.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Engine overheating” on page
6-5.

The automatic transaxle or CVT fluid
temperature is increased.
Park the vehicle in a safe place and
take corrective measures.
Refer to “Automatic transaxle” on
page 3-93.
Refer to “Continuously variable trans-
mission (CVT)” on page 3-104.

The seat belt is not fastened when the
ignition switch is in the “ON” position.
Wear your seat belt properly.
Refer to “Seat belt warning” on page
2-43.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0138000US.book 204 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-205
3

There is a fault in the fuel system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.

The vehicle is being driven with the
parking brake still applied.
Release the parking brake. Refer to
“Brake warning display” on page
3-213.

There is a fault in the engine oil circu-
lation system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice to have
the system checked.
Refer to “Oil pressure warning dis-
play” on page 3-215.

There is a fault in the charging system.
Park your vehicle in a safe place as
soon as possible and contact an autho-
rized Mitsubishi Motors dealer or a
repair facility of your choice for assis-
tance.
Refer to “Charging system warning
light” on page 3-212.

There is a fault in the SRS airbag or the
pre-tensioner system.
Contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice to have the system
checked.
Refer to “SRS airbag/Pre-tensioner
system warning” on page 2-70.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0138000US.book 205 ページ ２０１１年４月１３日　水曜日　午前１１時１７分

Features and controls
3-209
3
This informs you that a periodic inspection is due.
The rest time can be set.
Screen type 1
Screen type 2
Do this
Have an inspection made by an authorized Mitsubishi Motors dealer. For further details,
refer to “Service reminder” on page 3-180.
Screen type 1
Screen type 2
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest.
Use this display as rough guide for taking rests during a long drive.
The interval from the start of your trip until this message is displayed can be set.
Refer to “Changing the function settings (With ignition switch in the “ON” position)”
on page 3-183.
The display and buzzer alert the driver when the set time is reached. If you continue to
drive without having a rest, the buzzer sounds about every 5 minutes to encourage you
to take a rest.

In the following cases, the time driven is reset and the display returns to the previ-
ous display screen. After this, when the set time is reached again, the display and
buzzer encourage you to take a rest.
• The buzzer sounds 3 times.
• The ignition switch is turned to the “OFF” position.
• The multi-information meter switch is held (for about 2 seconds or more).
