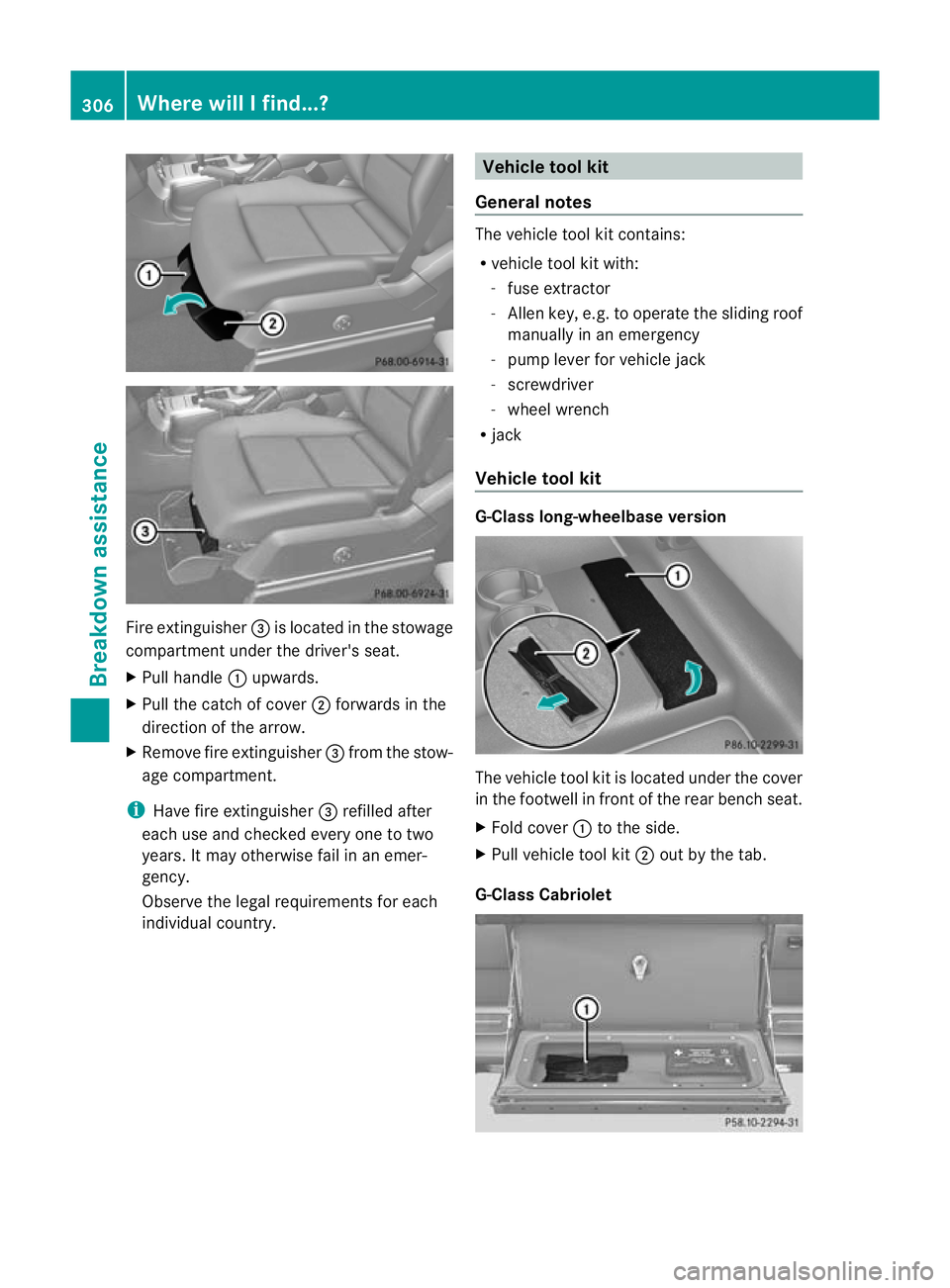

Fire extinguisher
=is located in the stowage
compartment under the driver's seat.
X Pull handle :upwards.
X Pull the catch of cover ;forwards in the
directio nofthe arrow.
X Remove fire extinguisher =from the stow-
age compartment.
i Have fire extinguisher =refilled after
each use and checked every one to two
years. It may otherwise fail in an emer-
gency.
Observe the legal requirements for each
individual country. Vehicle tool kit
General notes The vehicle tool kit contains:
R
vehicle tool kit with:
-fuse extractor
- Allen key, e.g. to operate the sliding roof
manually in an emergency
- pump lever for vehicle jack
- screwdriver
- wheel wrench
R jack
Vehicle tool kit G-Class long-wheelbase version
The vehicle tool kit is located under the cover
in the footwell in front of the rear bench seat.
X
Fold cover :to the side.
X Pull vehicle tool kit ;out by the tab.
G-Class Cabriolet 306
Where will I find...?Breakdown assistance

Vehicle tool kit
:is located in the tailgate
behind the cover
X Open the tailgate (Y page 76).
X Open the tailgate cover (Y page 304).
X Remove vehicle tool kit :.
Jack G-Class long-wheelbase version
!
Make sure that, while fitting the vehicle
jack, there are no cables on the holder, in
order to avoid them becoming trapped. Jack
;is located under the rear bench seat
on the right-hand side when viewed in the
direction of travel.
X Fold rear bench seat (Y page 270) for-
wards.
X Open cover :.
X Pull bar =upwards and detach from
tab ?.
X Remove jack ;.
G-Class Cabriolet
! Make sure that, while fitting the vehicle
jack, there are no cables on the holder, in
order to avoid them becoming trapped. The jack is located behind a cover in front of
the front-passenger seat.
X
Slide the seat back (Y page 92).
X Pull pins ;out of sleeves :.
X Pull sleeves :out of cover =.
X Remove cover =. X
Pull bar Aupwards and detach from
tab ?.
X Remove jack B. Exterior spare wheel bracket
General notes You must not exceed the maximum speed of
50 mph (80 km/h) when using spare wheels
of differing sizes.
i
When changing a wheel, you should also
observe the safety notes in the "Flat tyre"
section (Y page 329).
The spare wheel is on the outer side of the
rear door. Where will I find...?
307Breakdown assistance

engine components or the exhaust system it
could ignite. There is a risk of fire and injury.
Make sure that no windscreen washer con-
centrate is spilled next to the filler neck.
! Only use washer fluid that is suitable for
plastic lamp lenses, e.g. MB SummerFit or
MB WinterFit .Unsuitabl ewasher fluid
could damage the plastic lenses of the
headlamps.
! Do no tuse distilled or de-ionised water in
the washer fluid reservoir. Otherwise, the
level sensor may be damaged.
! Only the washer fluids SummerFit and
WinterFit can be mixed. Otherwise, the
spraying nozzles could become blocked.
At temperatures above freezing:
X Fill the washer fluid reservoir with a mixture
of water and washer fluid, e.g. MB Sum-
merFit.
X Mix 1 part MB SummerFit to 100 parts
water.
At temperatures below freezing:
X Fill the washer fluid reservoir with a mixture
of water and washer fluid, e.g. MB Winter-
Fit.
Adapt the mixing ratio to the outside temper-
ature.
X Down to Ò10 †: mix 1 part MB WinterFit to
2 parts water.
X Down to Ò20 †: mix 1 part MB WinterFit to
1 part water.
X Down to Ò29 †: mix 2 parts MB WinterFit
to 1 part water.
i Add washer fluid concentrate, e.g. MB
SummerFit or MB WinterFit, to the washer
fluid all year round. Vehicle data
General notes
Please note that for the specified vehicle
data:
R the heights specified may vary as a result
of:
-tyres
- load
- condition of the suspension
- optional equipment
R items of optional equipment increase the
unladen weight and reduce the maximum
payload. The unladen weight is specified in
accordance with EC directive and includes:
-driver (68 kg)
- luggage (7 kg)
- all fluids (fuel tank 90% full)
R vehicle-specific weight information can be
found on the vehicle identification plate
(Y page 340).
R Only for certain countries: you can find
vehicle-specific vehicle data in the COC
documents (CERTIFICATE OF CONFORM-
ITY). These documents are delivered with
your vehicle. Dimensions and weights
G-Class long-wheelbase version 348
Vehicle dataTechnical data

The missing values for the following models
were not available at the time of going to
print:
R G 63 AMG
R G 65 AMG All mod-
els
(except
AMG vehi- cles) AMG vehi-
cles :Upper-
edge clear-
ance 1905 mm –
2005 mm ;Lower-
edge clear-
ance 680 mm –
780 mm =Range of
movement 931 mm
All models (except AMG
vehicles)
Vehicle length (ECE)
4662 mm
Vehicle width including
exterior mirrors
2055 mm
Vehicle width excluding
exterior mirrors
1760 mm
Maximum vehicle height
1951 mm
Wheelbase
2850 mm
Minimum ground clear-
ance
205 mm
Unladen weight (vehicles
with
apetrol engine) 2642 kg
Unladen weight (vehicles
with
adiesel engine) 2682 kg
Maximum roof load
200 kg G-Class Cabriolet
G5
00 :Upper-edge clear-
ance (spare wheel
bracket) 1580 mm –
1680 mm ;Lower-edge clear-
ance (tailgate) 1050 mm –
1070 mm =Range of move-
ment (spare wheel
bracket) 750 mm
?Range of move-
ment (tailgate) 500 mm
G5
00 Vehicle length (ECE)
4257 mm
Vehicle width including
exterior mirrors
2055 mm
Vehicle width excluding
exterior mirrors
1760 mm
Maximum vehicle height
1951 mm
Wheelbase
2400 mm
Minimum ground clear-
ance
205 mm
Unladen weight
2492 kgVehicle data
349Technical data Z

Trailer tow hitch
Mounting dimensions
G
WARNING
Only have a trailer tow hitch retrofitted at a
qualified specialis tworkshop.
! If you have a trailer tow hitch retrofitted,
changes to the engine cooling system may
be necessary, depending on the vehicle
type.
If you have a trailer tow hitch retrofitted,
observe the anchorage points on the chas-
sis frame. Example: anchorage points for the trailer tow hitch
:
Anchorage points
; Overhang dimension
For trailer tow hitches fitted at the factory, the
overhang dimension including protective cov-
ering is 895 mm. Trailer loads
G-Class long-wheelbase
version (all models)
Permissible trailer load,
unbraked
750 kg
Permissible trailer load,
braked (at a minimum
gradient-climbing capa-
bility of 12% from
astand-
still) 3500 kg
Maximum drawbar nose-
weight (the drawbar
noseweight is no tinclu-
ded in the trailer load) 140 kg
Permissible rear axle
load when towing
atrailer 1900 kg
Maximum gross vehicle
weight when towing a
trailer
6700 kg
G-Class Cabriolet
Permissible trailer load,
unbraked
750 kg
Permissible trailer load,
braked (at a minimum
gradient-climbing capa-
bility of 12 %from astand-
still) 2850 kg
Maximum drawbar nose-
weight (the drawbar
noseweight is no tinclu-
ded in the trailer load) 115 kg
Permissible rear axle
load when towing a
trailer (the drawbar nose-
weight is not included in
the towing weight) 1800 kg
Maximum gross vehicle
weight when towing a
trailer 5700 kg350
Trailer tow hitchTechnical data
