2012 Lexus LFA display

134
2-2. Instrument cluster
Current fuel consumption
Displays the current rate of fuel
consumption.
Average fuel consumption
Displays the average fuel con-
sumption since the function was
reset.
This function can be reset from
the normal display. (P. 118)
Average vehicle speed
Displays the average vehicle
speed since the function was
reset.
This function can be reset from
the normal display. ( P. 1 1 9 )
Driving range
Displays the estimated maxi-
mum distance that can be
driven with the remaining fuel.
This distance is computed based
on your average fuel consump-
tion. As a result, the actual dis-
tance that can be driven may
differ from that displayed.
When only a small amount of
fuel is added to the tank, the dis-
play may not be updated.
STEP2

136
2-2. Instrument cluster
Measurement resultOnce measurement is complete,
the result will be displayed.
The oil amount between the maxi-
mum and minimum markings is
approximately 2.1 qt. (2.0 L, 1.8
Imp. qt.).
As the engine oil level in the oil
tank varies depending on the driv-
ing condition of the vehicle imme-
diately before measurement, the
results may vary even if the overall
oil amount is constant.
Perform the following actions as necessary according to the measure-
ment results:
● If the oil level is low, add engine oil as needed. ( P. 257)
Even if the measurement result shows th at the engine oil is below the maxi-
mum level, be careful not to add more oil than necessary. If unsure of how
much oil to add, contact your Lexus dealer.
● If “Engine oil level low Check oil le vel” is displayed on the meter, avoid
high load driving and add oil immediately.
Do not let the oil level reach or fall below the minimum marking, as doing so
may cause engine damage.
MAX
MIN

137
2-2. Instrument cluster
2
When driving
“Cannot measure” displayIf measurement cannot be per-
formed, the item with “No” dis-
played may be the cause. Check
the following items and then
attempt to perform the measure-
ment again:
If the measuring function does not work even after all the above condi-
tions have been met, have the vehicle inspected by your Lexus dealer.
ItemDetailsCorrection procedure
Engine Warm The engine oil has not
warmed sufficiently. Measure when the engine
oil temperature is between
203
F and 230 F (95 C
and 110 C).
Idling The engine speed is too low
or too high. Measure when the engine
speed is between 900 rpm
and 1100 rpm.
Stationary The vehicle is not com-
pletely stationary. Measure when the vehicle
is completely stopped with
Neutral selected and the
parking brake set.
Vehicle Level The vehicle is parked on an
incline. Measure when the vehicle
is on level ground with an
incline of 4 degrees or less.

139
2-2. Instrument cluster
2
When driving
“Complete” will be displayed when
the reset procedure has been
completed.
The system will start measuring the
distance to the next engine oil
replacement timing.
STEP3

140
2-2. Instrument cluster
■“Tire Pressure” (tire inflation pressure)
Select “Tire Pressure” and press
right on the control pad.
The tire inflation pressure for each
tire is displayed.
If bars instead of a numeric value
are displayed, the tire pressure
warning system is not receiving tire
inflation pressure data from a
transmitter. Follow the same proce-
dure again after waiting a few min-
utes.
If the bars are still displayed, there
may be a malfunction with the tire
pressure warning system. Have the
vehicle inspected by your Lexus
dealer.
STEP1
STEP2

141
2-2. Instrument cluster
2
When driving
If one or more tires are insufficiently inflatedIf a tire is insufficiently inflated, an
amber frame will be shown.
The display does not specify the
location of the insufficiently inflated
tire. Adjust all the tires to the speci-
fied inflation pressure.
(  P. 2 7 8 366)
If a tire is noticeably deflated, it may
be punctured. Temporarily repair
the tire using the emergency tire
puncture repair kit. ( P. 3 3 2 )

142
2-2. Instrument cluster
“Lap Timer”Measures lap time and displays previous lap times.
■ Lap time display
The following times can be dis-
played.
Stopwatch
The current measurement time is
shown.
Lap time list
During “Lap Times” display:
The 4 most recent lap times are
shown.
During “Past Times” display:
The 20 most recent lap times are
shown.
Fastest lap
Displays the fastest lap time
recorded since the last reset.
Total time
Displays the total lap time since the
last reset.

144
2-2. Instrument cluster

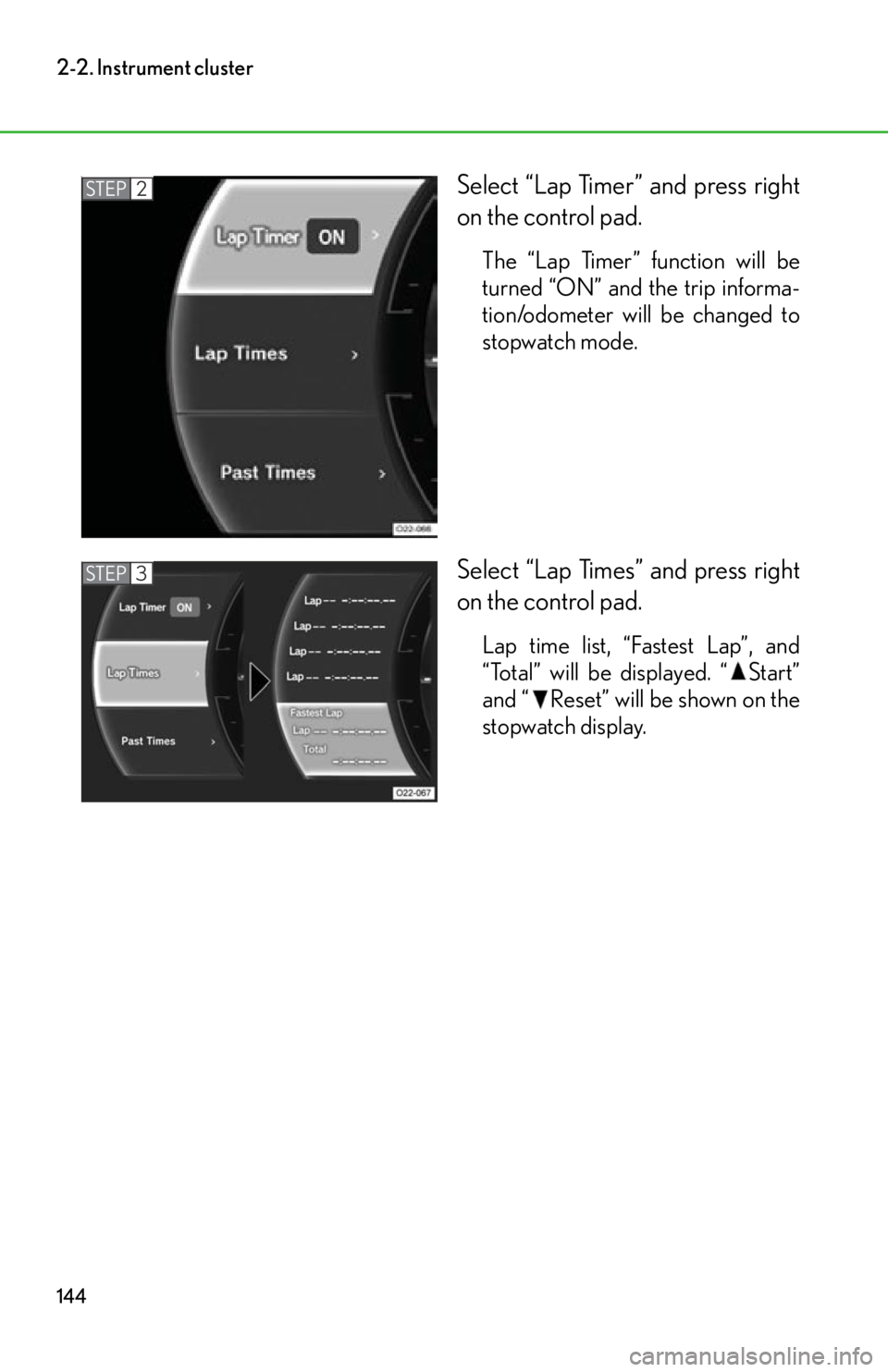

Select “Lap Timer” and press right
on the control pad.
The “Lap Timer” function will be
turned “ON” and the trip informa-
tion/odometer will be changed to
stopwatch mode.
Select “Lap Times” and press right
on the control pad.
Lap time list, “Fastest Lap”, and
“Total” will be displayed. “ Start”
and “ Reset” will be shown on the
stopwatch display.
STEP2
STEP3
