2012 Lexus LFA display

145
2-2. Instrument cluster
2

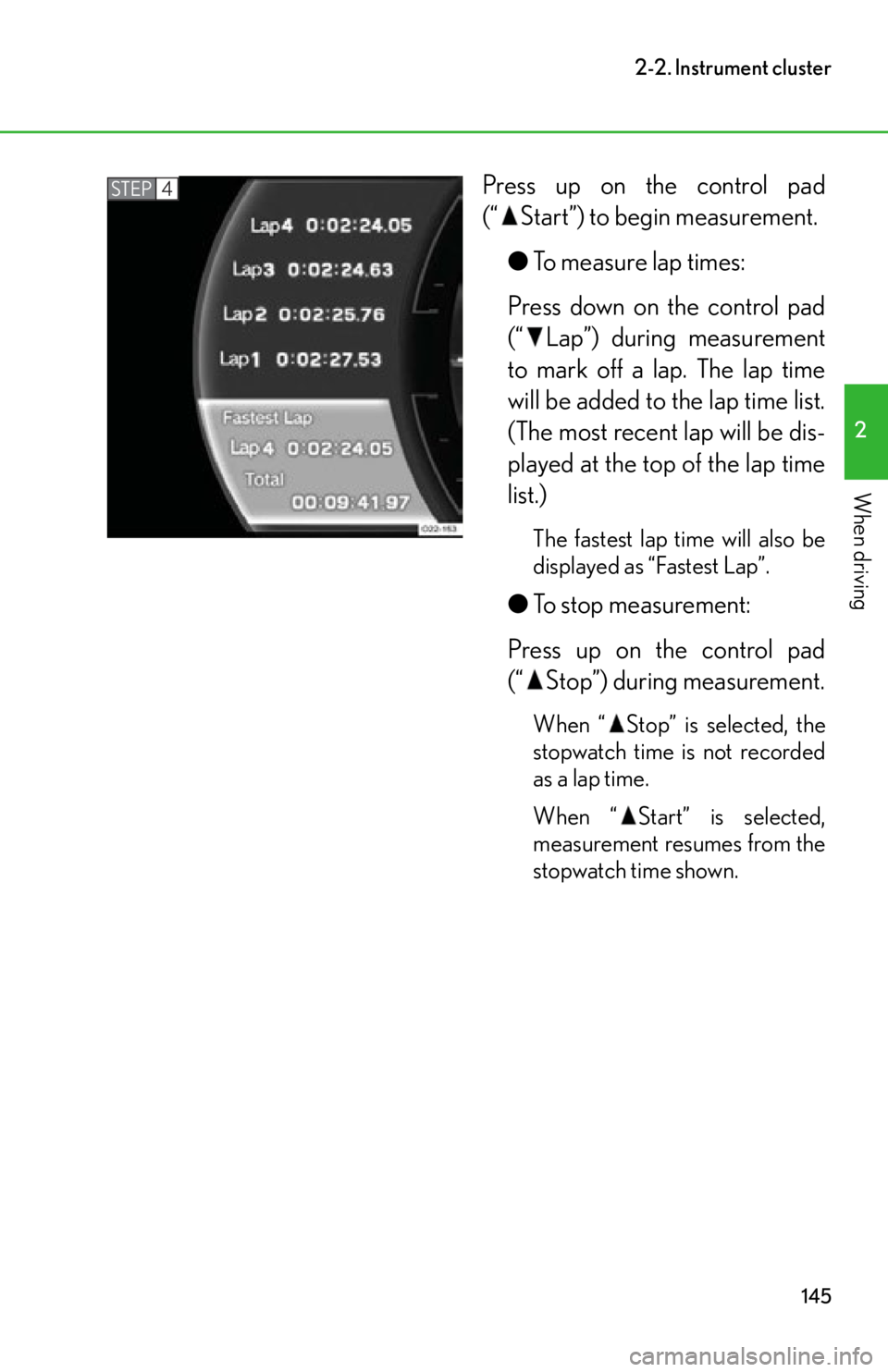

When driving
Press up on the control pad
(“ Start”) to begin measurement.●To measure lap times:
Press down on the control pad
(“ Lap”) during measurement
to mark off a lap. The lap time
will be added to the lap time list.
(The most recent lap will be dis-
played at the top of the lap time
list.)
The fastest lap time will also be
displayed as “Fastest Lap”.
● To stop measurement:
Press up on the control pad
(“ Stop”) during measurement.
When “ Stop” is selected, the
stopwatch time is not recorded
as a lap time.
When “ Start” is selected,
measurement resumes from the
stopwatch time shown.
STEP4

146
2-2. Instrument cluster

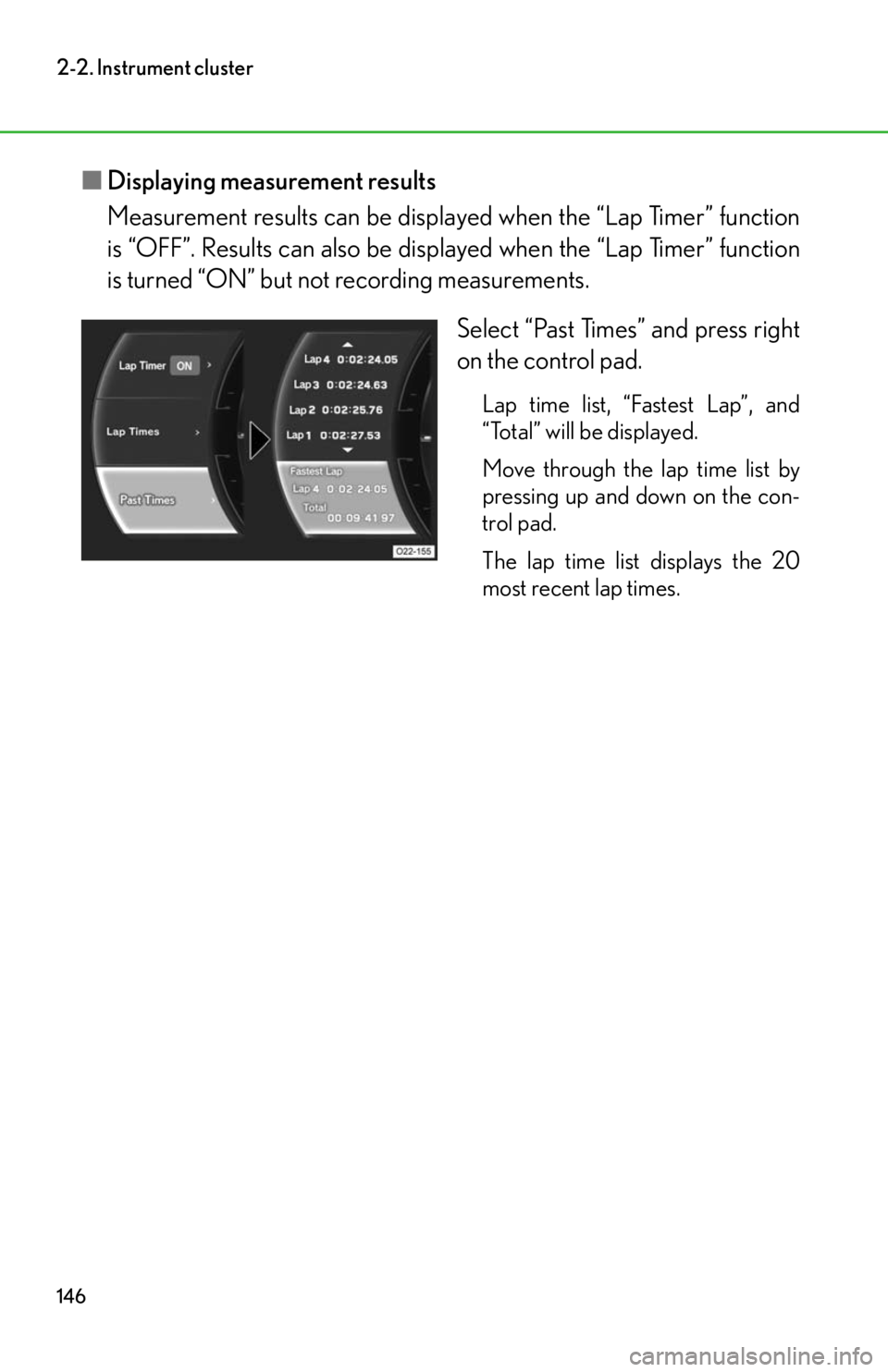

■Displaying measurement results
Measurement results can be displayed when the “Lap Timer” function
is “OFF”. Results can also be disp layed when the “Lap Timer” function
is turned “ON” but not recording measurements.
Select “Past Times” and press right
on the control pad.
Lap time list, “Fastest Lap”, and
“Total” will be displayed.
Move through the lap time list by
pressing up and down on the con-
trol pad.
The lap time list displays the 20
most recent lap times.

148
2-2. Instrument cluster

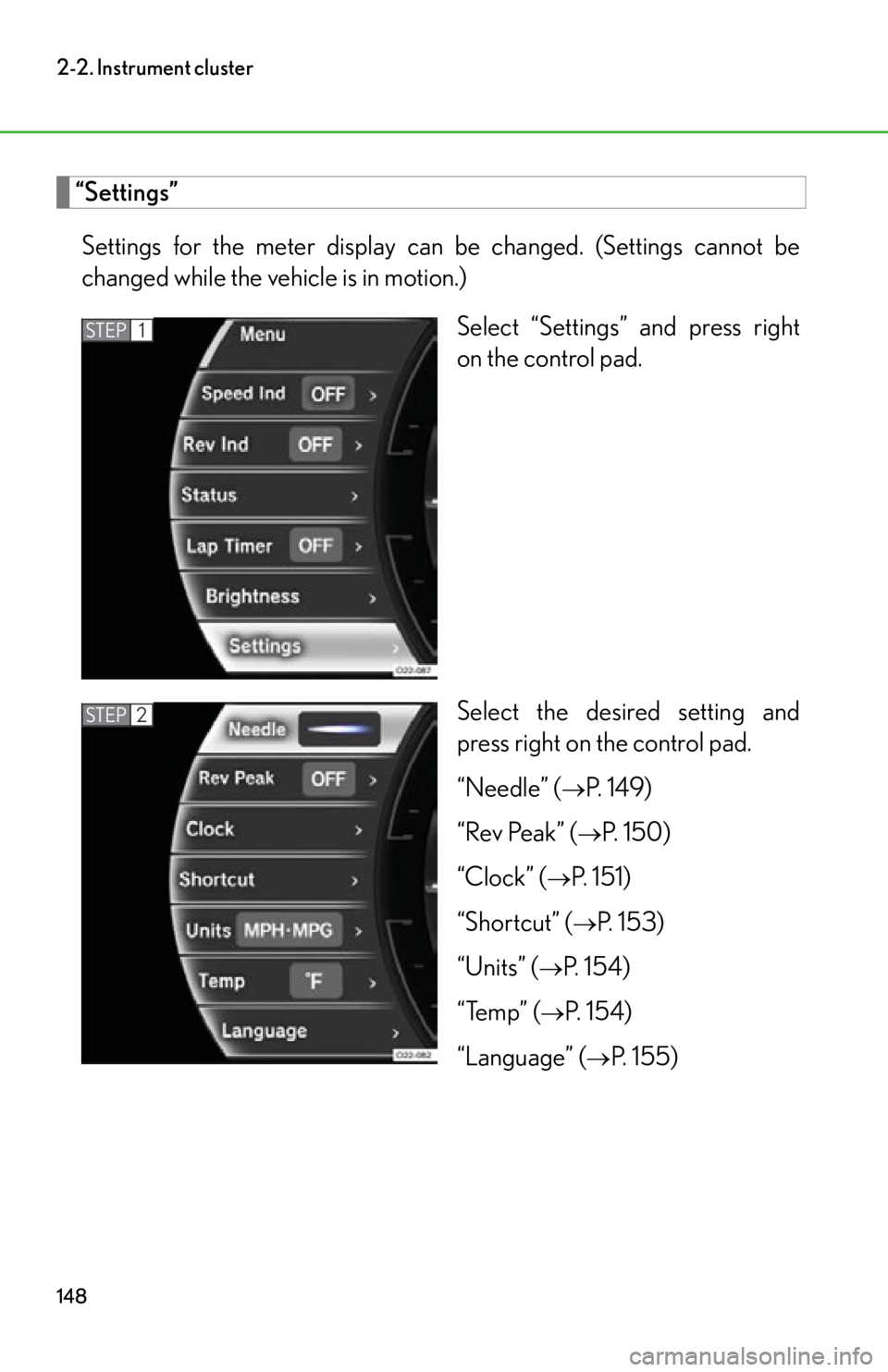

“Settings”Settings for the meter display can be changed. (Settings cannot be
changed while the vehicle is in motion.) Select “Settings” and press right
on the control pad.
Select the desired setting and
press right on the control pad.
“Needle” (
P. 1 4 9 )
“Rev Peak” (
P. 150)
“Clock” (
P. 151)
“Shortcut” (
P. 153)
“Units” (
P. 1 5 4 )
“Temp” (
P. 1 5 4 )
“Language” (
P. 155)
STEP1
STEP2

150
2-2. Instrument cluster
■“Rev Peak”
When the engine speed reaches
or exceeds 6000 rpm, an afterim-
age of the tachometer needle will
be displayed at the highest engine
speed for approximately 0.5 sec-
onds.
Set up procedure Press the right side of the control
pad to turn this function “ON” or
“OFF”
The afterimage color of the
tachometer needle changes as fol-
lows:
Tachometer
needle colorAfterimage color
Blue Red Red Blue
White Blue

151
2-2. Instrument cluster
2
When driving
■“Clock”
The displayed time can be adjusted and shown in 12-hour (12H) or 24-
hour (24H) mode.
Select “Clock” and press right on
the control pad.
Selecting 12H or 24H mode Press up or down on the control
pad to switch between 12H and
24H mode.
When 12H mode is selected, “AM”
or “PM” will be displayed.
Pressing right on the control pad
moves the cursor to the hour
adjustment menu.

153
2-2. Instrument cluster
2
When driving
■“Shortcut”
Enables a quick jump to a preset scr een when left on the control pad is
pressed in the normal display.
Select “Shortcut” and press right
on the control pad.
Select the desired item and press
left on the control pad.
The selected item will be set as a
shortcut.
STEP1
STEP2

154
2-2. Instrument cluster
■“Units”
The units of measurement used fo r the speedometer, odometer, and
trip information can be changed.
Each time right on the control pad
is pressed, the distance (miles,
km), the speed (MPH, km/h) and
the fuel consumption (MPG, km/l,
L/100km) measurement units will
be changed.
■ “Temp” (temperature)
The units of measurement used fo r the outside temperature, engine
coolant temperature, engine oil temperature and air conditioning tem-
perature displays can be changed.
Each time right on the control pad
is pressed, the temperature display
unit will be changed (Fahrenheit,
Celsius).

155
2-2. Instrument cluster
2
When driving
■“Language”
The display language can be changed.
Select “Language” and press right
on the control pad.
Select a language.
Pressing left on the control pad
sets the selected language. (The
display will return to the “Settings”
screen.)
STEP1
STEP2
