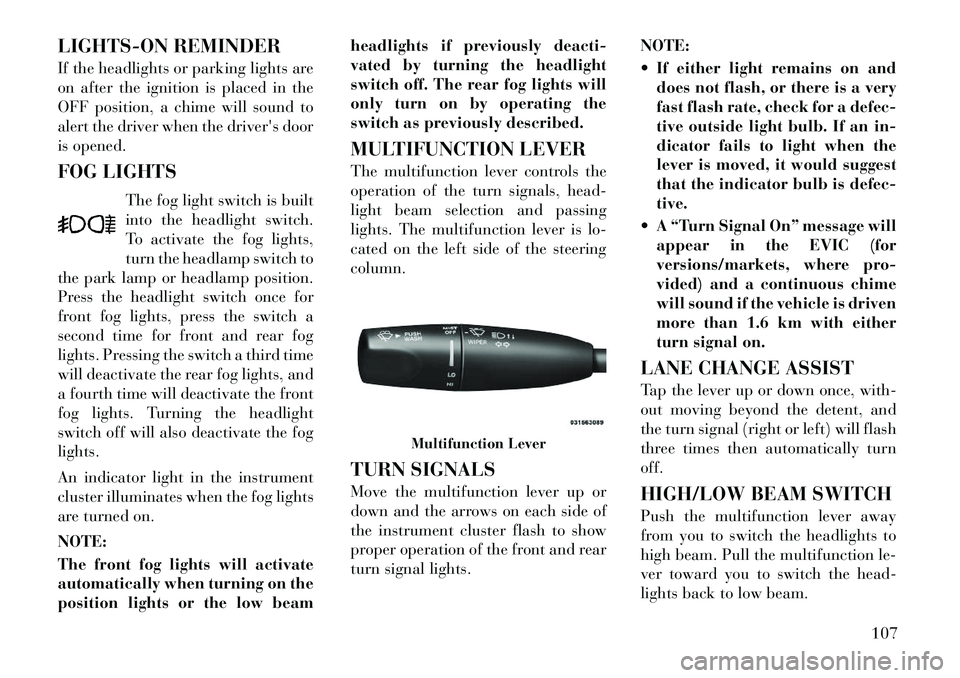

LIGHTS-ON REMINDER
If the headlights or parking lights are
on after the ignition is placed in the
OFF position, a chime will sound to
alert the driver when the driver's door
is opened.
FOG LIGHTSThe fog light switch is built
into the headlight switch.
To activate the fog lights,
turn the headlamp switch to
the park lamp or headlamp position.
Press the headlight switch once for
front fog lights, press the switch a
second time for front and rear fog
lights. Pressing the switch a third time
will deactivate the rear fog lights, and
a fourth time will deactivate the front
fog lights. Turning the headlight
switch off will also deactivate the fog
lights.
An indicator light in the instrument
cluster illuminates when the fog lights
are turned on.
NOTE:
The front fog lights will activate
automatically when turning on the
position lights or the low beam headlights if previously deacti-
vated by turning the headlight
switch off. The rear fog lights will
only turn on by operating the
switch as previously described.
MULTIFUNCTION LEVER
The multifunction lever controls the
operation of the turn signals, head-
light beam selection and passing
lights. The multifunction lever is lo-
cated on the left side of the steering
column.
TURN SIGNALS
Move the multifunction lever up or
down and the arrows on each side of
the instrument cluster flash to show
proper operation of the front and rear
turn signal lights.
NOTE:
 If either light remains on and
does not flash, or there is a very
fast flash rate, check for a defec-
tive outside light bulb. If an in-
dicator fails to light when the
lever is moved, it would suggest
that the indicator bulb is defec-
tive.
 A “Turn Signal On” message will appear in the EVIC (for
versions/markets, where pro-
vided) and a continuous chime
will sound if the vehicle is driven
more than 1.6 km with either
turn signal on.
LANE CHANGE ASSIST
Tap the lever up or down once, with-
out moving beyond the detent, and
the turn signal (right or left) will flash
three times then automatically turn
off.
HIGH/LOW BEAM SWITCH
Push the multifunction lever away
from you to switch the headlights to
high beam. Pull the multifunction le-
ver toward you to switch the head-
lights back to low beam.
Multifunction Lever
107

 EXHAUST SYSTEM . . . . . . . . . . . . . . . . . . . . 264
 COOLING SYSTEM . . . . . . . . . . . . . . . . . . . . 265
 BRAKE SYSTEM . . . . . . . . . . . . . . . . . . . . . . 268
 AUTOMATIC TRANSMISSION . . . . . . . . . . . . 270
 REAR AXLE . . . . . . . . . . . . . . . . . . . . . . . . . . 271
 APPEARANCE CARE AND PROTECTIONFROM CORROSION . . . . . . . . . . . . . . . . . . . . 271
 FUSES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274  Integrated Power Module . . . . . . . . . . . . . . . . 274
 Rear Power Distribution Center . . . . . . . . . . . 276
 VEHICLE STORAGE . . . . . . . . . . . . . . . . . . . . . 279
 REPLACEMENT BULBS . . . . . . . . . . . . . . . . . . 280
 BULB REPLACEMENT . . . . . . . . . . . . . . . . . . . 281  LOW BEAM HEADLAMP, HIGH BEAMHEADLAMP, PARK/TURN LAMP, INNER
PARK LAMP, AND OUTER PARK LAMP . . . . 281
 FRONT TURN SIGNAL LAMPS . . . . . . . . . . . 282
 REAR TURN SIGNAL AND BACKUP LAMPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
 LICENSE LAMP . . . . . . . . . . . . . . . . . . . . . . . 283
 FLUID CAPACITIES . . . . . . . . . . . . . . . . . . . . . . 283
 FLUIDS, LUBRICANTS, AND GENUINE PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
 ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284
 CHASSIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
254

Cavity Cartridge Fuse Mini-Fuse Description
1— —Spare
2 40 Amp Green — Radiator Fan #1
3 50 Amp Red — Power Steering #1
4 30 Amp Pink — Starter
5 40 Amp Green — Anti-Lock Brakes
6 — —Spare
7 50 Amp Red — Cabin Heater #1 — Diesel Only
8 50 Amp Red — Cabin Heater #2 — Diesel Only
9 — 20 Amp Yellow DTCM
10 — 5 Amp Tan Security
11 — 20 Amp Yellow Horns
12 — 10 Amp Red Air Conditioning Clutch
13 — —Spare
14 — 25 Amp Natural Anti-Lock Brakes
15 — —Spare
16 — —Spare
18 50 Amp Red — Radiator Fan #2
19 50 Amp Red — Power Steering #2
20 30 Amp Pink — Wiper Motor
21 30 Amp Pink — Headlamp Washers
22 50 Amp Red — Glow Plug Module — Diesel Only
23 30 Amp Pink — Fuel Pump Feed/Diesel Fuel Heater — Diesel Only
24 50 Amp Red — Cabin Heater #3 — Diesel Only
28 — 25 Amp Natural Fuel Pump
29 — 15 Amp Blue Transmission/Shifter (TCM Module)
30 — —Spare
31 — 25 Amp Natural Engine Module (PCM)
32 — —Spare
33 — —Spare
34 — 25 Amp Natural ASD Feed #1
35 — 20 Amp Yellow ASD Feed #2
275

2. Anytime you store your vehicle, or
keep it out of service (i.e., vacation)
for two weeks or more, run the air
conditioning system at idle for about
five minutes in the fresh air and high
blower setting. This will ensure ad-
equate system lubrication to minimize
the possibility of compressor damage
when the system is started again.
REPLACEMENT BULBS
Interior Bulb Number
Rear Courtesy/Reading
Lamps . . . . . . . . . . . . . . . . . W5W
Rear Compartment (Trunk)
Lamp . . . . . . . . . . . . . . . . . . . 562
Overhead Console Reading
Lamps . . . . . . . . . . . . . . . . . . 578
Visor Vanity Lamps . . . . . . . . . 194
Glove Box Lamp (for versions/
markets, where provided) . . . . . 194
Door Courtesy . . . . . . . . . . . . . 562
Shift Indicator Lamp . . JKLE14140
Optional Door Map Pocket/Cup-
holder . . . . . . . . . . . . . . . . . . LED(Serviced at Authorized Dealer) NOTE:
For lighted switches, see your au-
thorized dealer for replacement
instructions.
All of the interior bulbs are glass
wedge base or glass cartridge types.
Aluminum base bulbs are not ap-
proved and should not be used for
replacement.
Exterior
Bulb Number
Low Beam/High Beam (Bi-Xenon
Headlamp) . . . . . . . . . . . . . . . D3S
(Serviced at Authorized Dealer)
Front Turn Signal
Lamp . . . . . . . . . . . . . PSY24WSV
Front Park Lamp . . . . . . . . . . LED
(Serviced at Authorized Dealer)
Daytime Running Lamp . . . . . LED
(Serviced at Authorized Dealer)
Front Fog Lamp (for versions/
markets, where provided) . . . . H11
Front Position Lamp . . . . . . . LED
(Serviced at Authorized Dealer)
Front Side Marker Lamp . . . . LED
(Serviced at Authorized Dealer)
Side Repeater Lamps . . . . . . . LED
(Serviced at Authorized Dealer) Rear Tail/Stop/Side Marker
Lamp . . . . . . . . . . . . . . . . . . LED
(Serviced at Authorized Dealer)
Rear Turn Signal Lamp . . . WY21W
Rear Fog Lamps . . . . . . . . . . LED
(Serviced at Authorized Dealer)
Backup Lamp . . . . . . . . . . . W16W
Center High Mount Stop Lamp
(CHMSL) . . . . . . . . . . . . . . . LED
(Serviced at Authorized Dealer)
License . . . . . . . . . . . . . . . . W5W
280

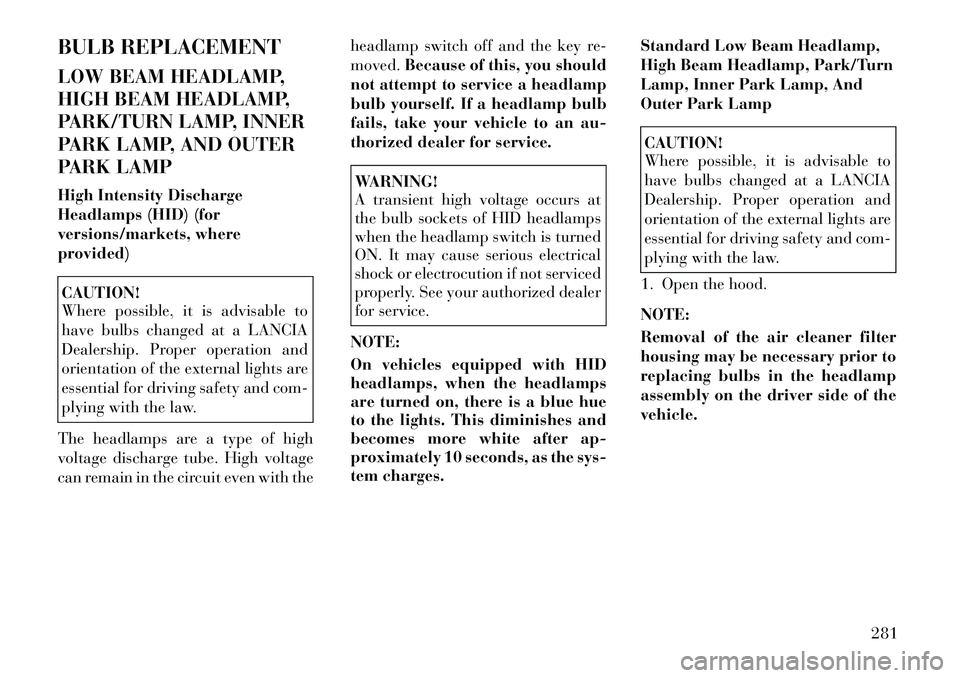

BULB REPLACEMENT
LOW BEAM HEADLAMP,
HIGH BEAM HEADLAMP,
PARK/TURN LAMP, INNER
PARK LAMP, AND OUTER
PARK LAMP
High Intensity Discharge
Headlamps (HID) (for
versions/markets, where
provided)CAUTION!
Where possible, it is advisable to
have bulbs changed at a LANCIA
Dealership. Proper operation and
orientation of the external lights are
essential for driving safety and com-
plying with the law.
The headlamps are a type of high
voltage discharge tube. High voltage
can remain in the circuit even with the headlamp switch off and the key re-
moved.
Because of this, you should
not attempt to service a headlamp
bulb yourself. If a headlamp bulb
fails, take your vehicle to an au-
thorized dealer for service.
WARNING!
A transient high voltage occurs at
the bulb sockets of HID headlamps
when the headlamp switch is turned
ON. It may cause serious electrical
shock or electrocution if not serviced
properly. See your authorized dealer
for service.
NOTE:
On vehicles equipped with HID
headlamps, when the headlamps
are turned on, there is a blue hue
to the lights. This diminishes and
becomes more white after ap-
proximately 10 seconds, as the sys-
tem charges. Standard Low Beam Headlamp,
High Beam Headlamp, Park/Turn
Lamp, Inner Park Lamp, And
Outer Park Lamp
CAUTION!
Where possible, it is advisable to
have bulbs changed at a LANCIA
Dealership. Proper operation and
orientation of the external lights are
essential for driving safety and com-
plying with the law.
1. Open the hood.
NOTE:
Removal of the air cleaner filter
housing may be necessary prior to
replacing bulbs in the headlamp
assembly on the driver side of the
vehicle.
281

2. Twist the appropriate bulb and
socket assembly counterclockwise,
and then pull it out of the headlamp
assembly.
3. Disconnect the bulb from the
socket assembly and install the re-
placement bulb.
4. Reinstall the bulb and socket as-
sembly into the headlamp assembly,
and then turn it clockwise.CAUTION!Do not touch the new bulb with your
fingers. Oil contamination will se-
verely shorten bulb life. If the bulb
comes in contact with an oily surface,
clean the bulb with rubbing alcohol.FRONT TURN SIGNAL
LAMPS
1. Open the hood.
NOTE:
Removal of the air cleaner filter
housing may be necessary prior toreplacing bulbs in the headlamp
assembly on the driver side of the
vehicle.
2. Remove plastic cap from the back
of the headlamp housing.
3. Squeeze the two tabs on the side of
the turn signal bulb socket and pull
straight out from the lamp.
4. Install replacement bulb and con-
nector assembly straight into the
lamp until it locks in place.
5. Reinstall plastic cap to headlamp
assembly housing.
REAR TURN SIGNAL AND
BACKUP LAMPS
1. Open the trunk.
2.
Remove the trunk trim by removing
the grocery hook (using a T-20 torx
driver or similar tool), remove the fas-
tener, and pull back the weather strip.
3. Pull back the trunk liner to gain
access to the tail lamp wing nuts.
4. Remove the three wing nuts from
the back of the tail lamp assembly. 5. Pull the tail lamp assembly away
from the vehicle enough to access the
electrical connector.
6. Push the electrical connector lock-
ing tab to the side.
7.
Disconnect the electrical connector.
8. Continue removing lamp from ve-
hicle in order to access the bulb(s).
9. Turn the appropriate bulb and
socket assembly counterclockwise to
remove it from the tail lamp assembly.
10. Disconnect the bulb from the
socket assembly and install the re-
placement bulb.
11. Reinstall the bulb and socket as-
sembly into the tail lamp assembly,
and then turn it clockwise.
12. Reinstall the tail lamp assembly,
fasteners, electrical connector, and
trunk trim.
13. Close the trunk.
282

Thousands Of Kilometers24 48 72 96 120 144 168 192
Months 12 24 36 48 60 72 84 96
Check tire condition/wear and adjust pressure, if neces-
sary.
Check operation of lighting system (headlamps, direction
indicators, hazard warning lights, luggage compartment,
passenger compartment, glove compartment, instrument
panel warning lights, etc.).
Check operation of windscreen washer system and adjust
jets if necessary.
Check windshield/rear window wiper blade position/
wear.
Check cleanliness of hood and tailgate locks and cleanli-
ness and lubrication of linkages.
Visually inspect condition of: exterior bodywork, under-
body protection, pipes and hoses (exhaust - fuel system -
brakes), rubber elements (boots, sleeves, bushes, etc.).
Check conditions and wear of front disc brake pads.
Check conditions and wear of rear disc brake pads.
Check and, if necessary, top up fluid levels (brakes, wind-
shield washer, battery, engine coolant, etc.).
Visually inspect the condition of accessory drive belt/s.
Adjust parking brake shoes as necessary.
Check exhaust gas emissions.
Check engine management system operation (via diag-
nostic socket).
Change the automatic transmission fluid and filter (*)
291

 check and, if necessary, replace pol-len filter;
 check and, if necessary, replace air cleaner filter.
MAINTENANCE
SCHEDULE – DIESEL
ENGINE
To help you have the best driving
experience possible, the manufacturer
has identified the specific vehicle
maintenance service intervals that are
required to keep your vehicle operat-
ing properly and safely. The manufacturer recommends that
these maintenance intervals be per-
formed at your selling dealer. The
technicians at your dealership know
your vehicle best, and have access to
factory trained information, genuine
LANCIA parts, and specially designed
electronic and mechanical tools that
can help prevent future costly repairs.
The maintenance intervals shown
should be performed as indicated in
this section.
NOTE:
Under no circumstances should oil
change intervals exceed 20 000 km
or 12 months, whichever comes
first.
CAUTION!
Failure to perform the required
maintenance items may result in
damage to the vehicle.
Required Maintenance Intervals
Refer to the Maintenance Schedules on the following pages for the required maintenance intervals.
Thousands Of Kilometers 20 40 60 80 100 120 140 160
Months 12 24 36 48 60 72 84 96
Flush and replace the engine coolant (or at 60 months).
Check battery charge status and possibly recharge.
Check tire condition/wear and adjust pressure, if neces-
sary.
Check operation of lighting system (headlamps, direction
indicators, hazard warning lights, luggage compartment,
passenger compartment, glove compartment, instrument
panel warning lights, etc.).
293
