2012 HONDA CR-V Owners Manual

336
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle. ■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■ Wheel lift equipment
The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.1Emergency Towing
NOTICETrying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.All models
2WD models

337
Handling the Unexpected
When You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure.1.Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.
2. To open the tailgate, push the tailgate
while sliding the lever to the side using a flat-tip screwdriver.
■What to Do When Unable to Open the Tailgate1What to Do When Unable to Open the Tailgate
What to do-Following up
After taking these steps, contact a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever

338

339

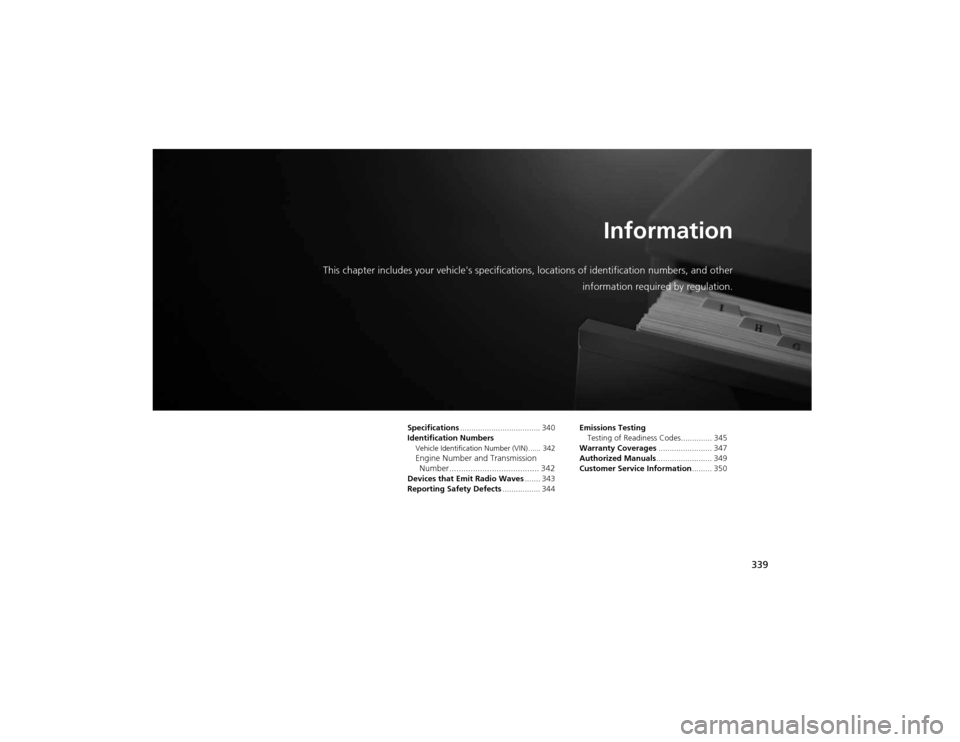

Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other information required by regulation.
Specifications.................................... 340
Identification Numbers
Vehicle Identification Nu mber (VIN) ...... 342
Engine Number and Transmission
Number...................................... 342
Devices that Emit Radio Waves ....... 343
Reporting Safety Defects ................. 344Emissions Testing
Testing of Readiness Codes.............. 345
Warranty Coverages ........................ 347
Authorized Manuals ......................... 349
Customer Service Information ......... 350

340
Information
Specifications
■Vehicle Specifications
*1: LX models with 2WD
*2: LX models with AWD, EX and EX-L models with 2WD
*3: EX, EX-L models with AWD and TOUR modelsModelHonda CR-V
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 4,332 lbs (1,965 kg) *1
4,464 lbs (2,025 kg) *2
4,564 lbs (2,070 kg) *3
Canada: 1,965 kg *1
2,025 kg *2
2,070 kg *3
Gross Axle Weight
Rating (Front)U.S.: 2,227 lbs (1,010 kg) *1
2,271 lbs (1,030 kg) *2
2,326 lbs (1,055 kg) *3
Canada: 1,010 kg *1
1,030 kg *2
1,055 kg *3
Gross Axle Weight
Rating (Rear)U.S.: 2,150 lbs (975 kg)
*1
2,238 lbs (1,015 kg) *2
2,282 lbs (1,035 kg) *3
Canada: 975 kg *1
1,015 kg *2
1,035 kg *3
Air Conditioning:Refrigerant Type HFC-134a (R-134a)Charge Quantity13.6 – 15.4 oz (385 – 435 g)Lubricant TypeSP-10
■Engine Specifications
■Fuel
■Battery
■Washer Fluid
Displacement144 cu-in (2,354 cm 3
)
Spark Plugs NGK ILZKR7B-11S
DENSO SXU22HCR11S
Fuel: TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 15.3 US gal (58 )
Capacity/Type36AH(5)/45AH(20)
36AH(5)/47AH(20)
38AH(5)/47AH(20)
Tank CapacityU.S.: 2.6 US qt (2.5 )
Canada: 4.8 US qt (4.5 )
■Light Bulbs
*1: Not available on all modelsHeadlights (High/Low Beams)60/55W (H4/HB2)
Fog Lights 55W (H11)
Front Turn Signal/Parking Lights24/2.2CP
Side Marker Lights 3CP
Upper Rear Side Marker/Taillights3CP
Lower Rear Side Marker/Brake/
Taillights 21/5W
Back-Up Lights21W
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake LightLED
Rear License Plate Light 3CP
Cargo Area Light8W
Vanity Mirror Lights *1
2W
Interior LightsMap Lights8WCeiling Light8W

341
uuSpecificationsu
Information
■Brake Fluid
■Automatic Transmission Fluid
*1: 2WD models
*2: AWD models
■Rear Differential Fluid *
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
(automatic transmission fluid)
Capacity Change 2.3 US qt (2.2 )
*1
2.7 US qt (2.6 ) *2
SpecifiedHonda Dual Pump Fluid II
Capacity Change 1.32 US qt (1.247 )
Total 1.57 US qt (1.488 )
■Engine Oil
■Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.0 US qt (3.8 )
Change
including
filter
4.2 US qt (4.0 )
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.64 US gal (6.2 )
(change including the remaining
0.16 US gal (0.62 ) in the reserve tank)
■Tire
*1: LX
*2: EX, EX-L, TOUR
RegularSize215/70R16 100S *1
225/65R17 102T *2
Pressure
psi(kPa[kgf/cm
2
])32 (220 [2.2]) *1
31 (210 [2.1]) *2
Compact
Spare Size
T155/90D17 101M
T165/80D17 104M
Pressure
psi(kPa[kgf/cm 2
]) 60 (420 [4.2])
Wheel SizeRegular16 x 6.5J
*1
17 x 6.5J *2
Compact Spare17 x 4T
* Not available on all models

342
Information
Identification Numbers
Vehicle Identification Number (VIN)
Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle. See the
image below for the VIN locations.
Engine Number and Transmission Number
See the image below for the locations of your vehicle's engine number and
transmission number.
1Vehicle Identification Number (VIN)
The interior vehicle identification number (VIN) is
located under the cover.
Cover
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification Number
Automatic Transmission
Number

343
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below: As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.
This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Audio SystemBluetooth ® AudioBluetooth ® HandsFreeLink ®Immobilizer SystemRemote TransmitterTire Pressure Monitoring System (TPMS)
Rear Entertainment System Remote ControlModels with Rear Entertainment System
