2012 HONDA CR-V Owners Manual

72
uuIndicatorsu
Instrument Panel
IndicatorNameOn/BlinkingExplanation
VSA® (Vehicle
Stability Assist)
System Indicator
● Comes on for a few seconds when you turn
the ignition switch to ON
(w , then goes off.
● Blinks when VSA ® is active.
● Comes on if there is a problem with the VSA ® system.
● Comes on if there is a problem with the hill
start assist system.
● Stays on constantly - Have the vehicle checked by a
dealer. 2VSA ® (Vehicle Stability Assist), aka ESC
(Electronic Stability Control), System P. 248
VSA® (Vehicle
Stability Assist)
OFF Indicator● Comes on for a few seconds when you turn
the ignition switch to ON
(w , then goes off.
● Comes on when you deactivate VSA ®.2 VSA ® On and Off P. 249
Door Open
Indicator
●
Comes on for a few seconds if you turn the
ignition switch to ON
(w , then goes off.
● Comes on if any door is not completely
closed.
● The beeper sounds and the indicator comes
on if any door is opened while driving.
●
Goes off when all doors are closed.
Tailgate Open
Indicator
●Comes on for a few seconds if you turn the
ignition switch to ON
(w , then goes off.
● Comes on if the tailgate is not completely
closed.
● Goes off when the tailgate is closed.

73
uuIndicatorsu
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
EPS (Electric
Power Steering)
System Indicator
●Comes on when you turn the ignition switch to ON
(w , and goes off when the engine
starts.
● Comes on if there is a problem with the EPS
(Electric Power Steering) System.
● Stays on constantly or does not come on at all -
Have the vehicle checked by a dealer. 2If the EPS System Indicator Comes On P. 331
TPMS Indicator
●
Comes on for a few seconds when you turn
the ignition switch to ON
(w , then goes off.
● Comes on if there is a problem with the
TPMS, or when a compact spare tire is
temporarily installed.
● Stays on constantly or does not come on at all -
Have the vehicle checked by a dealer. If the vehicle is
fitted with a compact spare, get your regular tire
repaired or replaced and put back on your vehicle as
soon as you can.
Low Tire Pressure
Indicator
● Comes on for a few seconds when you turn
the ignition switch to ON
(w , then goes off.
● Comes on if the tire pressure of any of the
tires becomes significantly low.
● Comes on for a while and then goes off
when a compact spare tire is temporarily
installed.
● Comes on while driving - Stop in a safe place,
check tire pressures, and inflate the tire(s) if
necessary.

74
uuIndicatorsu
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Turn Signal Indicators
●The turn signal indicators blink when you
operate the turn signal lever.
● If you press the hazard warning button, both
indicators and all turn signals blink at the
same time.● Does not blink or blinks rapidly - A turn signal
light bulb has blown. Change the bulb immediately. 2Replacing Light Bulbs
P. 288
High Beam
Indicator●
Comes on when the high beam headlights are on.—
Lights On
Indicator●
Comes on whenever the light switch is on, or
in AUTO *
when the exterior lights are on.● If you remove the key from the ignition switch while
the lights are on, a chime sounds when the driver's
door is opened.
Fog Light
Indicator *●
Comes on when the fog lights are on.—
Side Airbag Off
Indicator
●Comes on for a few seconds when you turn
the ignition switch to ON
(w , then goes off.
● Comes on when the passenger side airbag
system is automatically shut off.
● It does not mean there is a problem with your side airbags.
● Comes on when nobody is sitting in the
passenger seat - Have the vehicle checked by a
dealer.
● Comes on when someone is sitting in the seat -
Have the passenger sit properly.U.S.
Canada
* Not available on all models

75
uuIndicatorsu
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Immobilizer
System Indicator
●Comes on briefly when you turn the ignition
switch to ON
(w , then goes off.
● Comes on if the immobilizer system cannot
recognize the key information.
● Blinks - You cannot start the engine. Turn the ignition
switch to LOCK
(0 , pull the key out, and then insert
the key and turn it to ON (w again.
● Repeatedly blinks - The system may be
malfunctioning. Have the vehicle checked by a dealer.
● Do not attempt to alter this system or add other
devices to it. Electrical problems can occur.
Security System Alarm Indicator *●
Blinks when the security system alarm has
been set.
2 Security System Alarm *
P. 106
ECON Mode
Indicator● Comes on when you turn the ignition
switch to ON
(w , then goes off.
● Comes on when the ECON mode is on.2 ECON Button P. 119
Indicator
* Not available on all models

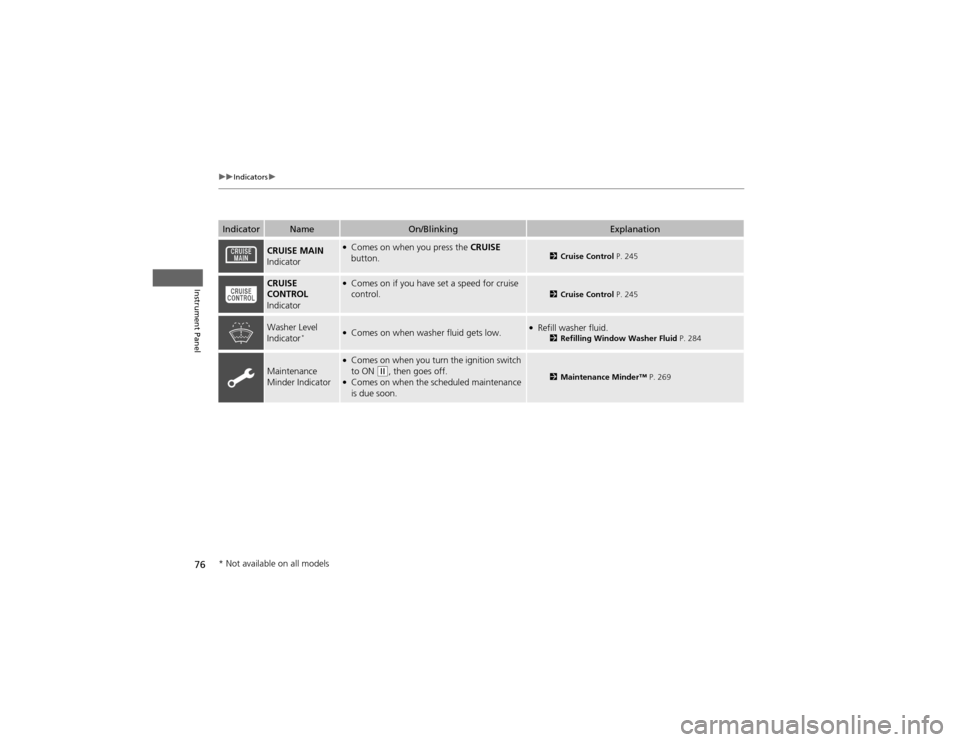

76
uuIndicatorsu
Instrument Panel
IndicatorNameOn/BlinkingExplanation
CRUISE MAIN
Indicator● Comes on when you press the CRUISE
button.2 Cruise Control P. 245
CRUISE
CONTROL
Indicator● Comes on if you have set a speed for cruise control.
2 Cruise Control P. 245
Washer Level
Indicator*●
Comes on when washer fluid gets low.● Refill washer fluid.
2Refilling Window Washer Fluid P. 284
Maintenance
Minder Indicator
●
Comes on when you turn the ignition switch to ON
(w , then goes off.
● Comes on when the scheduled maintenance
is due soon.2 Maintenance Minder

77
Instrument Panel
Gauges and Displays
Gauges
Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the ignition switch is in ON
(w.
Displays your driving speed in mph (U.S.) or km/h (Canada).
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
■Speedometer
■Tachometer
■Fuel Gauge
■Temperature Gauge
1Fuel Gauge
NOTICEYou should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the catalytic converter.
The actual amount of remaining fuel may differ from
the fuel gauge reading.E
1Temperature Gauge
NOTICEDriving with the temperature gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of the road and allow engine
temperature to return to normal. 2 Overheating P. 327

78
uuGauges and DisplaysuInformation Display
Instrument Panel
Information Display
The information display shows the odometer, trip meter, engine oil life and
maintenance service item codes, and other gauges.
Press the (SEL/RESET) knob to change the display.
Shows the total number of miles or kilometers that your vehicle has accumulated.
■Switching the Display
1Switching the Display
Each time you press the knob, the information
display changes as follows:
Some of the items on the information display also
appear on the multi-information display. They also
change along with the information display changes
while the fuel consumption is shown.
Instant Fuel Economy,
Average Fuel A, Trip Meter
A, Outside Temperature
Engine Oil Life
Instant Fuel Economy,
Average Fuel B, Trip Meter
B, Outside Temperature
Instant Fuel Economy,
Odometer, Trip Meter A,
Outside Temperature
Instant Fuel Economy,
Range, Trip Meter A,
Outside Temperature
■Odometer

Continued79
uuGauges and DisplaysuInformation Display
Instrument Panel
Shows the total number of miles or kilometers driven since the last reset. Meters A
and B can be used to measure two separate trips. ■Resetting a trip meter
To reset a trip meter, display it, then press and hold the knob. The trip meter is
reset to 0.0.
Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
Shows the remaining oil life and Maintenance Minder TM
.
2 Maintenance Minder
