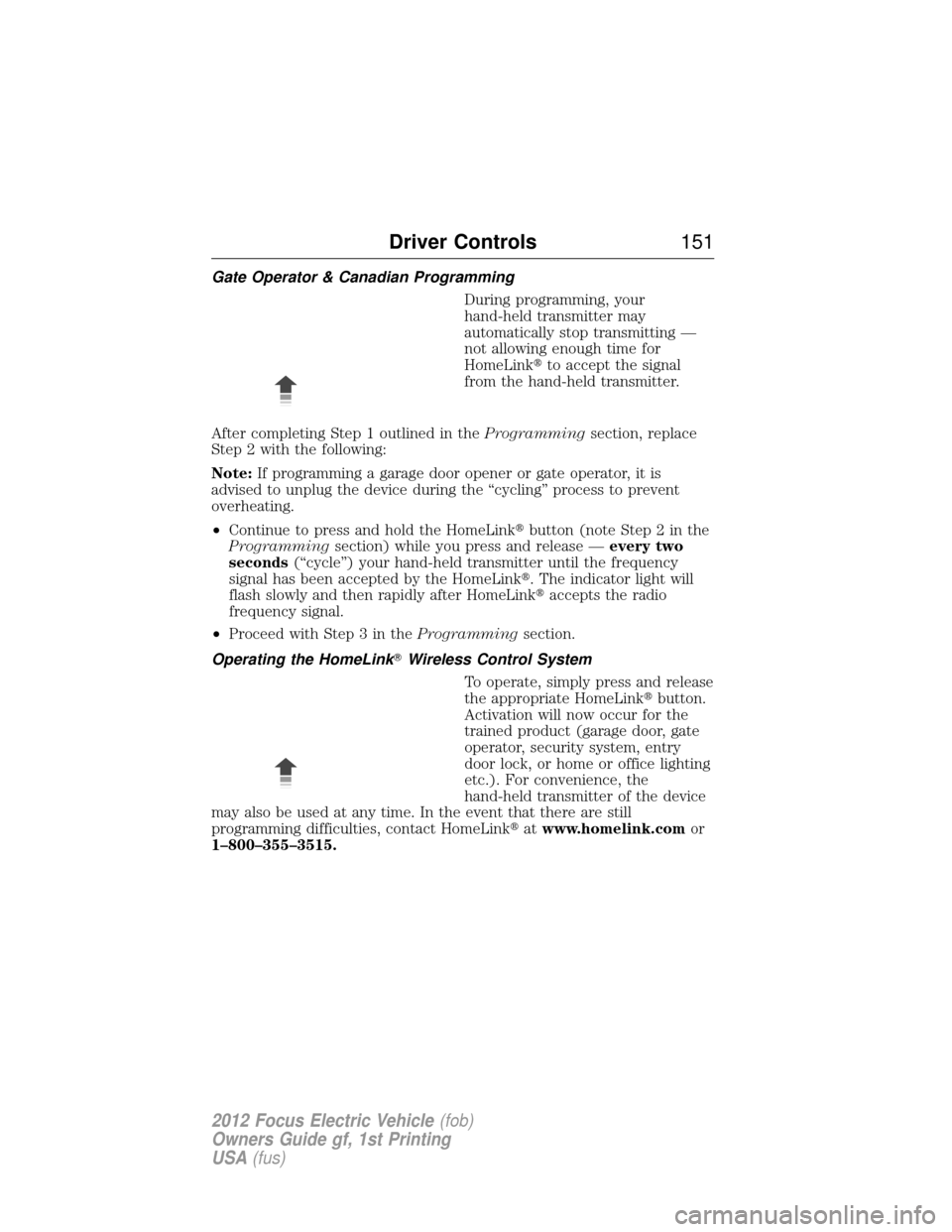

Gate Operator & Canadian ProgrammingDuring programming, your
hand-held transmitter may
automatically stop transmitting —
not allowing enough time for
HomeLinkto accept the signal
from the hand-held transmitter.
After completing Step 1 outlined in the Programmingsection, replace
Step 2 with the following:
Note: If programming a garage door opener or gate operator, it is
advised to unplug the device during the “cycling” process to prevent
overheating.
• Continue to press and hold the HomeLink button (note Step 2 in the
Programming section) while you press and release — every two
seconds (“cycle”) your hand-held transmitter until the frequency
signal has been accepted by the HomeLink. The indicator light will
flash slowly and then rapidly after HomeLink accepts the radio
frequency signal.
• Proceed with Step 3 in the Programmingsection.
Operating the HomeLink Wireless Control System
To operate, simply press and release
the appropriate HomeLink button.
Activation will now occur for the
trained product (garage door, gate
operator, security system, entry
door lock, or home or office lighting
etc.). For convenience, the
hand-held transmitter of the device
may also be used at any time. In the event that there are still
programming difficulties, contact HomeLink atwww.homelink.com or
1–800–355–3515.
Driver Controls 151
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)
Setting your wallpaper .............101
Side air curtain .........................204
SIRIUSsatellite radio ...............69
SIRIUS satellite radio voice
commands ...................................71
SIRIUS Travel Link .....................93
SIRIUS Travel Link voice
commands ...................................95
SOS Post Crash Alert ...............207
Specification chart,
lubricants ...................................337
Speed control ............................146
Starting your vehicle ................252 jump starting ..........................299
push button start system .......253
Steering wheel controls ....................................148
tilting .......................................140
Supported media file types ........80
Supported player, media
formats and metadata
information ..................................80
SYNC Services ...........................90
System settings .........................103
T
Temperature control
(see Climate control) ...............109
Temporary mobility kit .............289
Text messaging ...........................86
Tilt steering wheel ....................140
Tire Pressure Monitoring
System (TPMS) Tires, Wheels and Loading ....240 Tires ...........................225–227, 287
alignment ................................234
care ..........................................230
changing ..................................287
checking the pressure ............230
inflating ...................................228
label .........................................239
replacing ..................................232
rotating ....................................234
safety practices .......................233
sidewall information ...............235
snow tires and chains ............244
spare tire .................................287
Temporary mobility kit ..........289
terminology .............................227
tire grades ...............................226
treadwear ........................226, 230
Touchscreen features
(climate) ....................................109
Towing .......................................250 recreational towing .................251
trailer towing ..........................250
wrecker ....................................302
Traffic preferences ...................116
Transmission brake-shift interlock (BSI) ....262
fluid, checking and adding
(automatic) .............................334
fluid, refill capacities ..............337
lubricant specifications ..........337
Trunk .........................................154 remote release ........................166
Turn signal ................................132
U
Universal garage door opener ..148
USB port ................................42, 75
Index 379
