2012 FORD FOCUS ELECTRIC audio

ACCESSING AND ADJUSTING MODES THROUGH YOUR
INFOTAINMENT DISPLAY
The infotainment display (A) is located on the right side of your
instrument cluster. It allows you to view and make minor adjustments to
active modes without taking your hands off the wheel. For example:
•In entertainment mode, you can view what is now playing, change the
audio source, select presets and make some adjustments.
• In phone mode, you can accept or reject an incoming call.
• In navigation mode (if equipped), you can view the current route or
activate a route.
• In surplus mode, surplus (or status) is represented by either
butterflies or a gauge. The number of butterflies matches the current
surplus or status distance up to a maximum of sixteen butterflies. The
more efficiently you drive, the more butterflies (or higher status)
display, and vice versa. See Message centerin theInstrument Cluster
chapter for more information.
When you enter or turn off the vehicle, you have the opportunity to view
charging status, charge start and end times as well as the charging mode.
You can also switch your charging mode between Value Charge and
Charge Now. See Convenience charging with MyFord mobile in the
High Voltage Battery chapter.
A
54MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

To Access a List of Available Commands
•Press the Menu icon > Help > Voice Command List, OR
• Press the voice icon; after the tone, speak your command clearly:
Voice command list
“Audio list of commands”
“Bluetooth audio list of commands” “Browse list of commands”“CD list of commands”
“Climate control list of commands” “List of commands”
“Navigation list of commands”
*
“Phone list of commands” “Radio list of commands”
“SD card list of commands”
“Sirius satellite list of commands”
*
“Travel link list of commands”*
“USB list of commands”
“Voice instructions list of commands” “Voice settings list of commands” “Help”
*If equipped.
Helpful Hints
• Make sure the interior of the vehicle is as quiet as possible. Wind
noise from open windows and road vibrations may prevent the system
from correctly recognizing spoken commands.
• After pressing the voice icon, wait until after the tone sounds and
“Listening” appears before saying a command. Any command spoken
prior to this does not register with the system.
• Speak naturally, without long pauses between words.
• At any time you can interrupt the system while it is speaking by
pressing the voice icon.
MyFord Touch 57
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

“INTERSECTION”“Enter city”
“Change city” “Enter state”
“Change state”
The dual mode feature is also available when the voice system displays a
list of items to pick from during a voice session, where you would be
able to touch the line item or say “Line 2”. If a command is not
understood or there are multiple options, the system returns a list for
you to choose from.
ENTERTAINMENT
Your system offers many media options. You can access these options
using the touchscreen or voice commands.
Browsing Device Content
When listening to any type of audio, you can browse through other
devices without having to change sources. For example, if you are
currently listening to the radio, you can browse all the artists that are
stored on your USB device. Press the voice icon on the steering wheel. When prompted,
you can say:
“BROWSE” within devices “Browse”1
“Browse games”2
“Browse channels”2
“Browse CD track list”
“Browse Sirius channel guide”2
“Browse SD card” “Browse USB” “Help”
1If you have said “Browse”, you can then say any commands in the
following chart.
2If equipped with SIRIUS satellite radio.
MyFord Touch 61
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

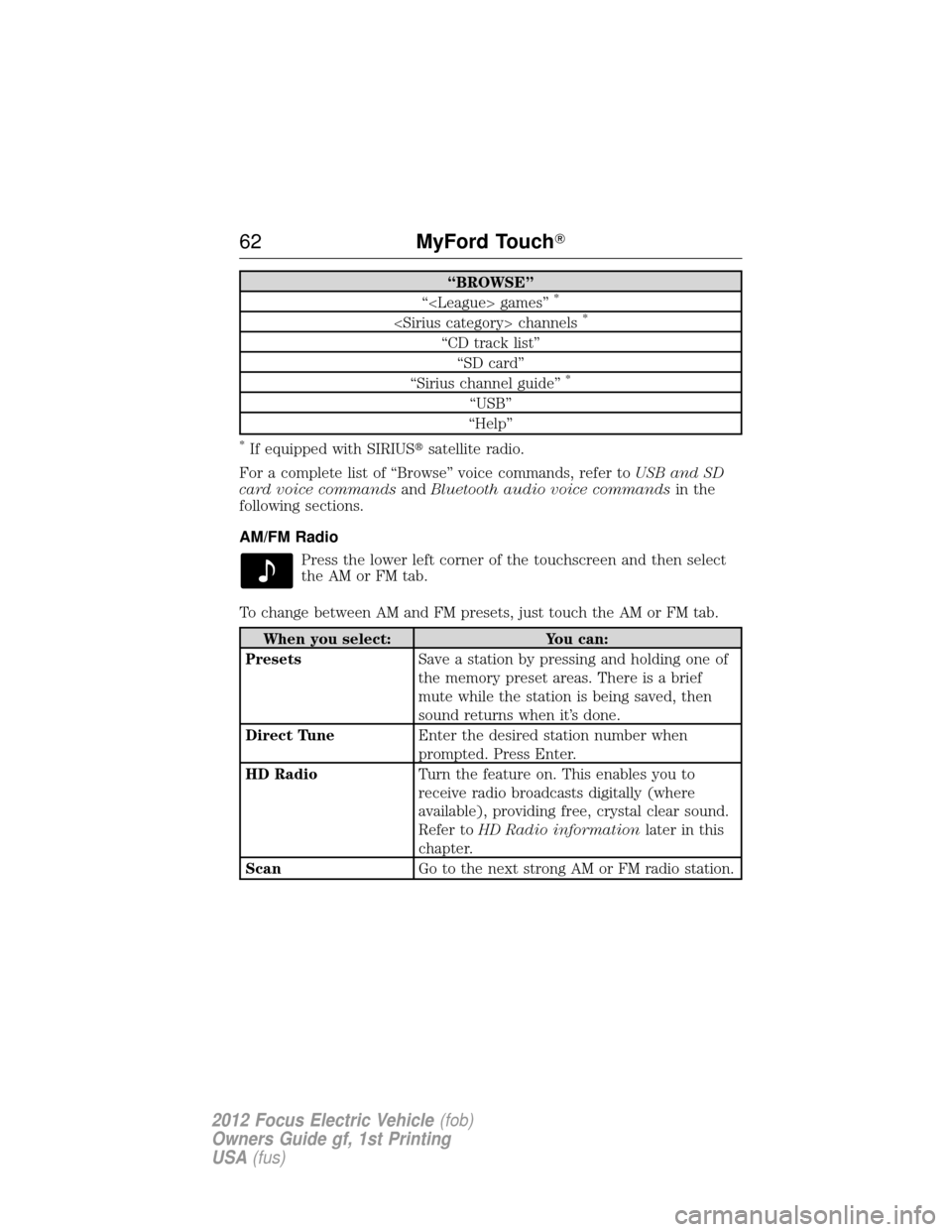

“BROWSE”
“ games”*
channels*
“CD track list” “SD card”
“Sirius channel guide”
*
“USB”
“Help”
*If equipped with SIRIUS satellite radio.
For a complete list of “Browse” voice commands, refer to USB and SD
card voice commands andBluetooth audio voice commands in the
following sections.
AM/FM Radio
Press the lower left corner of the touchscreen and then select
the AM or FM tab.
To change between AM and FM presets, just touch the AM or FM tab.
When you select: You can:
Presets Save a station by pressing and holding one of
the memory preset areas. There is a brief
mute while the station is being saved, then
sound returns when it’s done.
Direct Tune Enter the desired station number when
prompted. Press Enter.
HD Radio Turn the feature on. This enables you to
receive radio broadcasts digitally (where
available), providing free, crystal clear sound.
Refer toHD Radio information later in this
chapter.
Scan Go to the next strong AM or FM radio station.
62MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

When you select:You can:
Options Adjust more audio system settings:
Sound Settingsallows you to adjust Bass,
Treble, Midrange, Balance and Fade, THX
Deep Note Demo (if equipped), DSP (if
equipped), Occupancy Mode (if equipped),
and Speed Compensated Volume settings.
Set PTY for Seek/Scan allows you to select
a category of music you would like to search
for and then choose to either seek or scan for
the stations.
RDS Text Display On/Off allows you to
always view the information broadcast by FM
stations by selecting On.
Auto Presets (AST) - Autostore allows
you to have the system automatically store
the six strongest stations in your current
location. These do not override any presets
stored in any of the AM or FM frequency
bands.
TAG (if available) allows you to tag a song
to download later.
When you select On, TAG appears on-screen
when HD radio is active. You can press TAG
to save the information of the song that is
playing. When you plug in your portable
music player, the information is transferred (if
supported by your device). When you are
connected to iTunes, the tags appear to
remind you of the songs you’d like to
download. Refer to HD Radio information
later in this chapter.
MyFord Touch 63
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

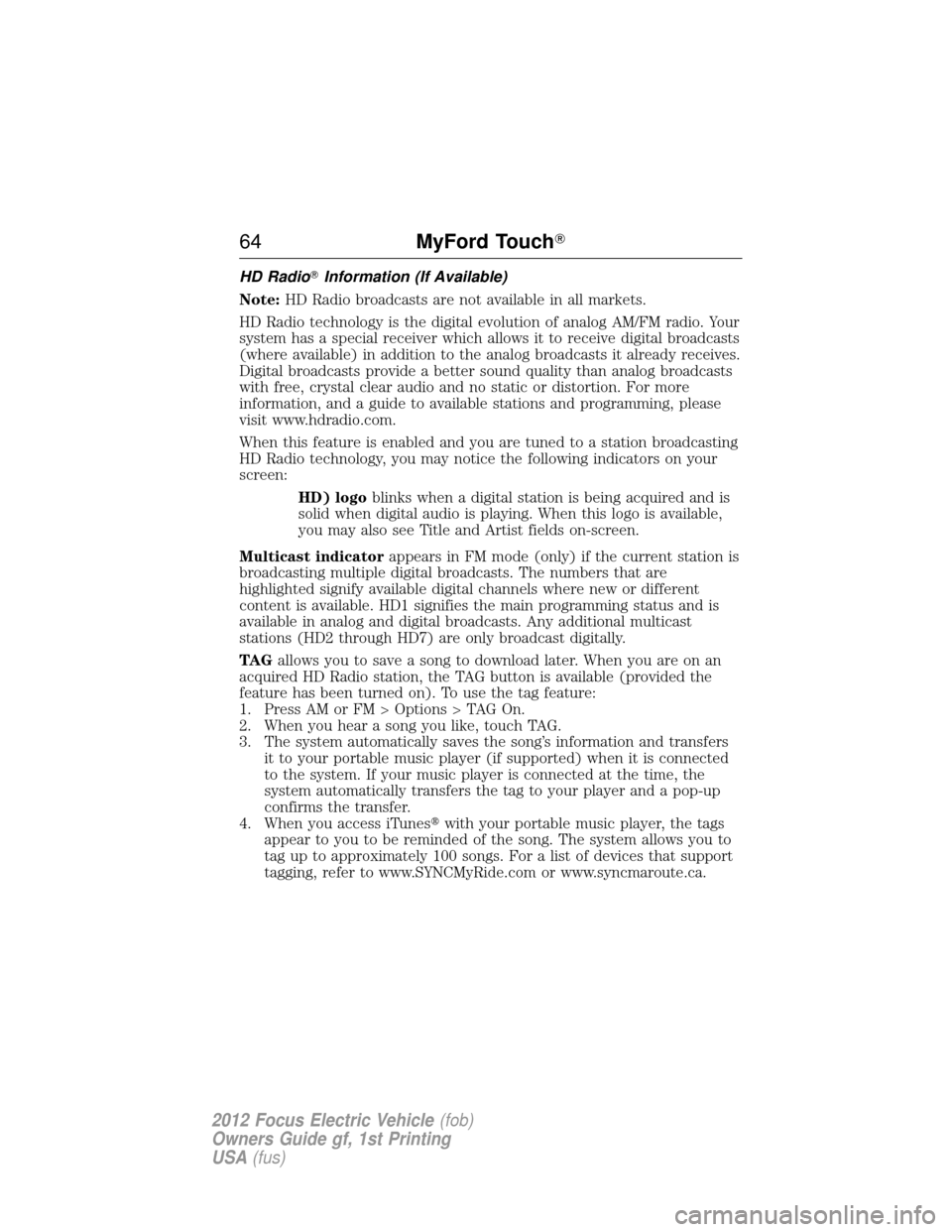

HD RadioInformation (If Available)
Note: HD Radio broadcasts are not available in all markets.
HD Radio technology is the digital evolution of analog AM/FM radio. Your
system has a special receiver which allows it to receive digital broadcasts
(where available) in addition to the analog broadcasts it already receives.
Digital broadcasts provide a better sound quality than analog broadcasts
with free, crystal clear audio and no static or distortion. For more
information, and a guide to available stations and programming, please
visit www.hdradio.com.
When this feature is enabled and you are tuned to a station broadcasting
HD Radio technology, you may notice the following indicators on your
screen: HD) logo blinks when a digital station is being acquired and is
solid when digital audio is playing. When this logo is available,
you may also see Title and Artist fields on-screen.
Multicast indicator appears in FM mode (only) if the current station is
broadcasting multiple digital broadcasts. The numbers that are
highlighted signify available digital channels where new or different
content is available. HD1 signifies the main programming status and is
available in analog and digital broadcasts. Any additional multicast
stations (HD2 through HD7) are only broadcast digitally.
TA G allows you to save a song to download later. When you are on an
acquired HD Radio station, the TAG button is available (provided the
feature has been turned on). To use the tag feature:
1. Press AM or FM > Options > TAG On.
2. When you hear a song you like, touch TAG.
3. The system automatically saves the song’s information and transfers it to your portable music player (if supported) when it is connected
to the system. If your music player is connected at the time, the
system automatically transfers the tag to your player and a pop-up
confirms the transfer.
4. When you access iTunes with your portable music player, the tags
appear to you to be reminded of the song. The system allows you to
tag up to approximately 100 songs. For a list of devices that support
tagging, refer to www.SYNCMyRide.com or www.syncmaroute.ca.
64 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)

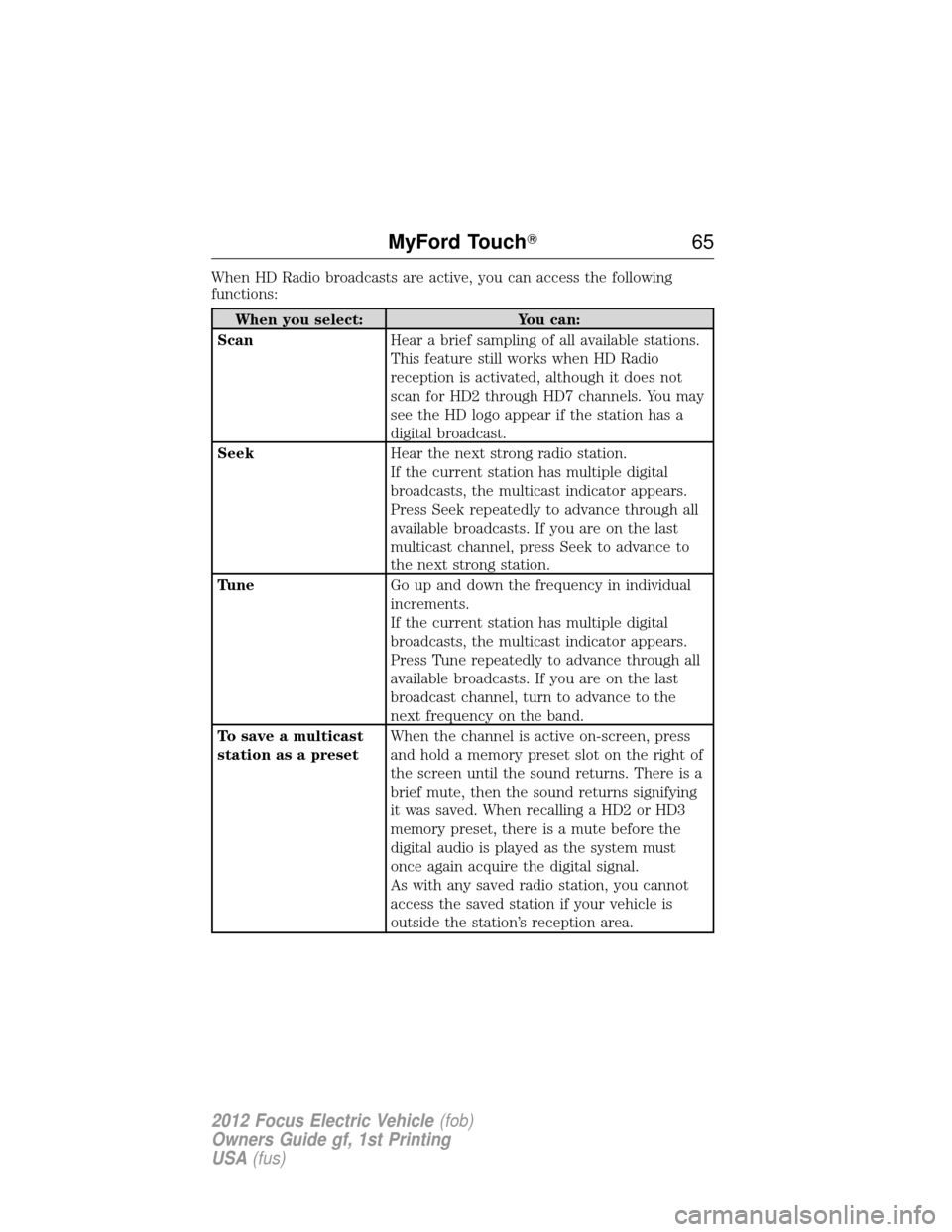

When HD Radio broadcasts are active, you can access the following
functions:
When you select:You can:
Scan Hear a brief sampling of all available stations.
This feature still works when HD Radio
reception is activated, although it does not
scan for HD2 through HD7 channels. You may
see the HD logo appear if the station has a
digital broadcast.
Seek Hear the next strong radio station.
If the current station has multiple digital
broadcasts, the multicast indicator appears.
Press Seek repeatedly to advance through all
available broadcasts. If you are on the last
multicast channel, press Seek to advance to
the next strong station.
Tune Go up and down the frequency in individual
increments.
If the current station has multiple digital
broadcasts, the multicast indicator appears.
Press Tune repeatedly to advance through all
available broadcasts. If you are on the last
broadcast channel, turn to advance to the
next frequency on the band.
To save a multicast
station as a preset When the channel is active on-screen, press
and hold a memory preset slot on the right of
the screen until the sound returns. There is a
brief mute, then the sound returns signifying
it was saved. When recalling a HD2 or HD3
memory preset, there is a mute before the
digital audio is played as the system must
once again acquire the digital signal.
As with any saved radio station, you cannot
access the saved station if your vehicle is
outside the station’s reception area.
MyFord Touch
65
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

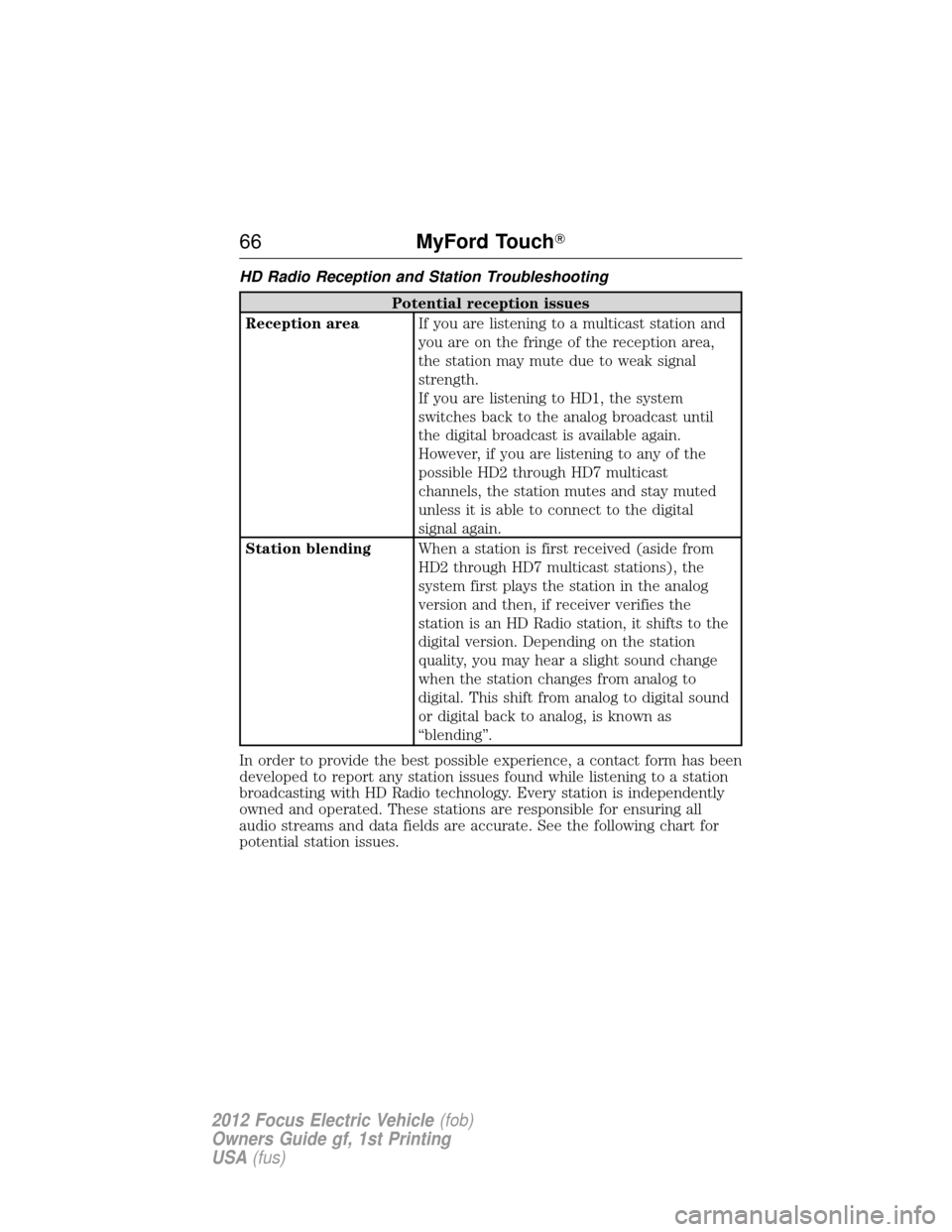

HD Radio Reception and Station Troubleshooting
Potential reception issues
Reception area If you are listening to a multicast station and
you are on the fringe of the reception area,
the station may mute due to weak signal
strength.
If you are listening to HD1, the system
switches back to the analog broadcast until
the digital broadcast is available again.
However, if you are listening to any of the
possible HD2 through HD7 multicast
channels, the station mutes and stay muted
unless it is able to connect to the digital
signal again.
Station blending When a station is first received (aside from
HD2 through HD7 multicast stations), the
system first plays the station in the analog
version and then, if receiver verifies the
station is an HD Radio station, it shifts to the
digital version. Depending on the station
quality, you may hear a slight sound change
when the station changes from analog to
digital. This shift from analog to digital sound
or digital back to analog, is known as
“blending”.
In order to provide the best possible experience, a contact form has been
developed to report any station issues found while listening to a station
broadcasting with HD Radio technology. Every station is independently
owned and operated. These stations are responsible for ensuring all
audio streams and data fields are accurate. See the following chart for
potential station issues.
66 MyFord Touch
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
