2012 FORD FOCUS ELECTRIC TPMS

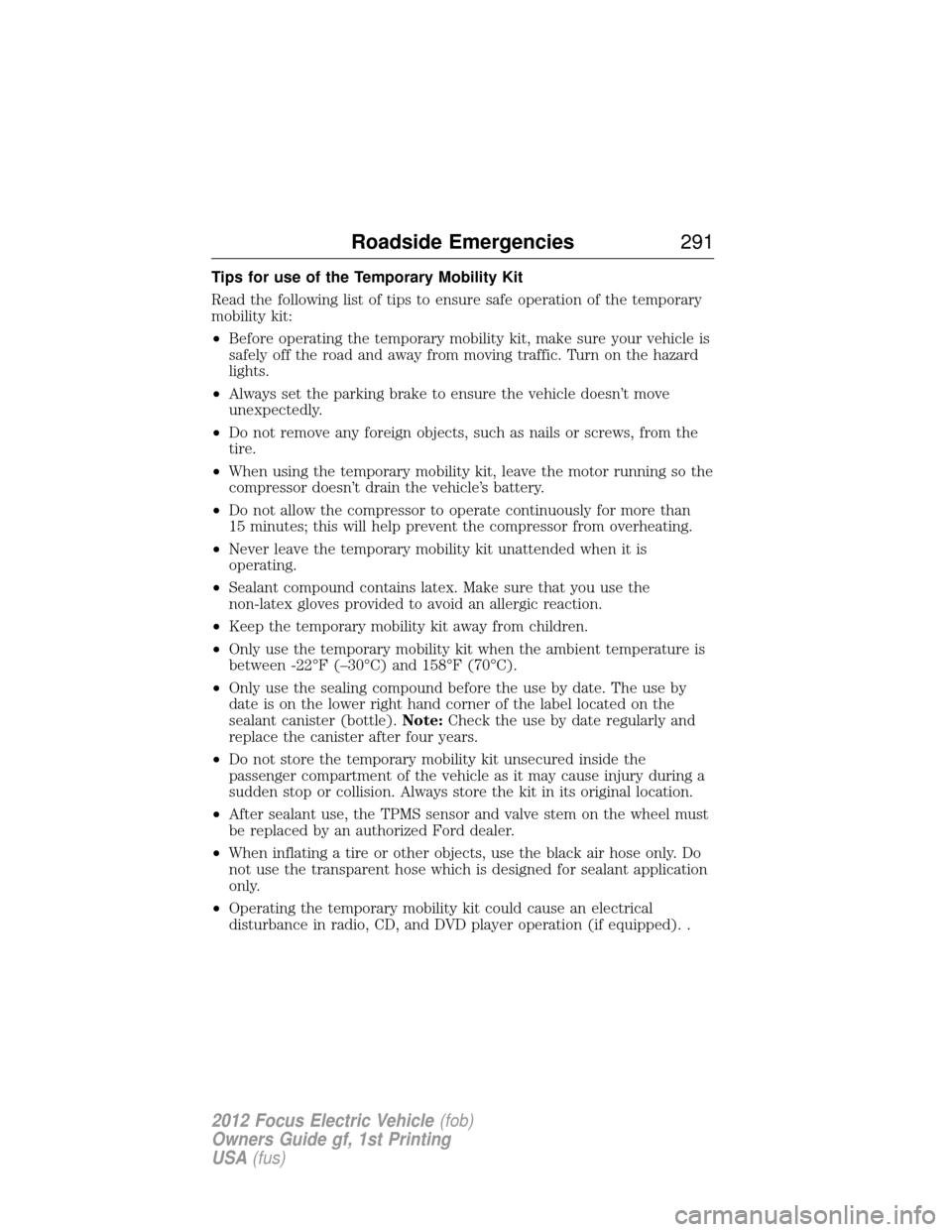

Tips for use of the Temporary Mobility Kit
Read the following list of tips to ensure safe operation of the temporary
mobility kit:
•Before operating the temporary mobility kit, make sure your vehicle is
safely off the road and away from moving traffic. Turn on the hazard
lights.
• Always set the parking brake to ensure the vehicle doesn’t move
unexpectedly.
• Do not remove any foreign objects, such as nails or screws, from the
tire.
• When using the temporary mobility kit, leave the motor running so the
compressor doesn’t drain the vehicle’s battery.
• Do not allow the compressor to operate continuously for more than
15 minutes; this will help prevent the compressor from overheating.
• Never leave the temporary mobility kit unattended when it is
operating.
• Sealant compound contains latex. Make sure that you use the
non-latex gloves provided to avoid an allergic reaction.
• Keep the temporary mobility kit away from children.
• Only use the temporary mobility kit when the ambient temperature is
between -22°F (–30°C) and 158°F (70°C).
• Only use the sealing compound before the use by date. The use by
date is on the lower right hand corner of the label located on the
sealant canister (bottle). Note:Check the use by date regularly and
replace the canister after four years.
• Do not store the temporary mobility kit unsecured inside the
passenger compartment of the vehicle as it may cause injury during a
sudden stop or collision. Always store the kit in its original location.
• After sealant use, the TPMS sensor and valve stem on the wheel must
be replaced by an authorized Ford dealer.
• When inflating a tire or other objects, use the black air hose only. Do
not use the transparent hose which is designed for sealant application
only.
• Operating the temporary mobility kit could cause an electrical
disturbance in radio, CD, and DVD player operation (if equipped). .
Roadside Emergencies 291
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

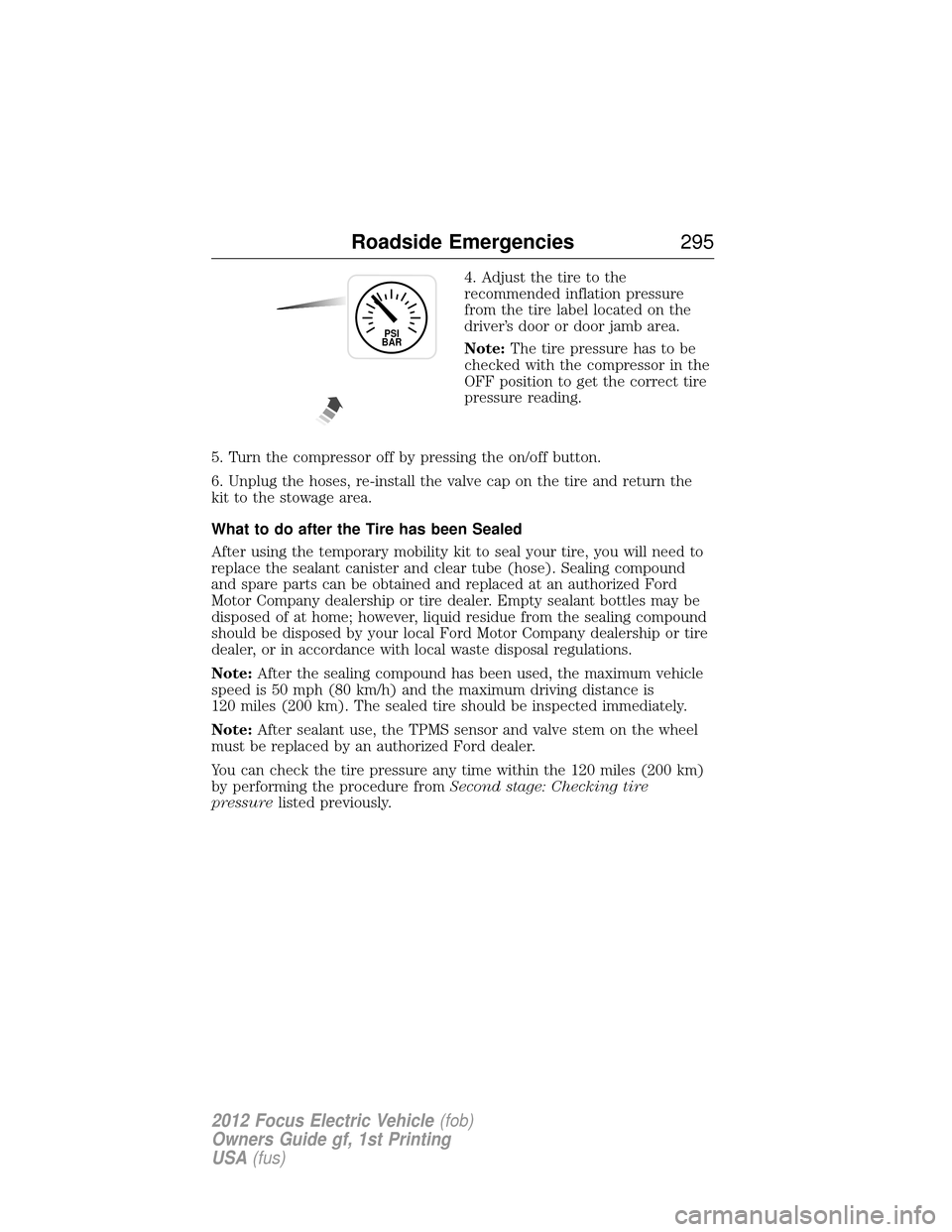

4. Adjust the tire to the
recommended inflation pressure
from the tire label located on the
driver’s door or door jamb area.
Note:The tire pressure has to be
checked with the compressor in the
OFF position to get the correct tire
pressure reading.
5. Turn the compressor off by pressing the on/off button.
6. Unplug the hoses, re-install the valve cap on the tire and return the
kit to the stowage area.
What to do after the Tire has been Sealed
After using the temporary mobility kit to seal your tire, you will need to
replace the sealant canister and clear tube (hose). Sealing compound
and spare parts can be obtained and replaced at an authorized Ford
Motor Company dealership or tire dealer. Empty sealant bottles may be
disposed of at home; however, liquid residue from the sealing compound
should be disposed by your local Ford Motor Company dealership or tire
dealer, or in accordance with local waste disposal regulations.
Note: After the sealing compound has been used, the maximum vehicle
speed is 50 mph (80 km/h) and the maximum driving distance is
120 miles (200 km). The sealed tire should be inspected immediately.
Note: After sealant use, the TPMS sensor and valve stem on the wheel
must be replaced by an authorized Ford dealer.
You can check the tire pressure any time within the 120 miles (200 km)
by performing the procedure from Second stage: Checking tire
pressure listed previously.
PSI
BAR
Roadside Emergencies 295
2012 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA (fus)

Setting your wallpaper .............101
Side air curtain .........................204
SIRIUSsatellite radio ...............69
SIRIUS satellite radio voice
commands ...................................71
SIRIUS Travel Link .....................93
SIRIUS Travel Link voice
commands ...................................95
SOS Post Crash Alert ...............207
Specification chart,
lubricants ...................................337
Speed control ............................146
Starting your vehicle ................252 jump starting ..........................299
push button start system .......253
Steering wheel controls ....................................148
tilting .......................................140
Supported media file types ........80
Supported player, media
formats and metadata
information ..................................80
SYNC Services ...........................90
System settings .........................103
T
Temperature control
(see Climate control) ...............109
Temporary mobility kit .............289
Text messaging ...........................86
Tilt steering wheel ....................140
Tire Pressure Monitoring
System (TPMS) Tires, Wheels and Loading ....240 Tires ...........................225–227, 287
alignment ................................234
care ..........................................230
changing ..................................287
checking the pressure ............230
inflating ...................................228
label .........................................239
replacing ..................................232
rotating ....................................234
safety practices .......................233
sidewall information ...............235
snow tires and chains ............244
spare tire .................................287
Temporary mobility kit ..........289
terminology .............................227
tire grades ...............................226
treadwear ........................226, 230
Touchscreen features
(climate) ....................................109
Towing .......................................250 recreational towing .................251
trailer towing ..........................250
wrecker ....................................302
Traffic preferences ...................116
Transmission brake-shift interlock (BSI) ....262
fluid, checking and adding
(automatic) .............................334
fluid, refill capacities ..............337
lubricant specifications ..........337
Trunk .........................................154 remote release ........................166
Turn signal ................................132
U
Universal garage door opener ..148
USB port ................................42, 75
Index 379
2012 Focus Electric Vehicle (fob)
Owners Guide gf, 1st Printing
USA (fus)
