MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord Part Name or
EquivalentFord Part Number / Ford
Specification
Brake/Clutch fluidTop-off to MAX
line on reservoirMotorcraftHigh
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door latch, hood latch,
auxiliary hood latch,
trunk latch, seat tracks.—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or equivalent /
ESB-M1C93-B
Lock cylinder —MotorcraftPenetrating
and Lock LubricantXL-1 /
None
Manual transmission
fluid2.2 quarts (2.1L)MotorcraftFull
Synthetic Manual
Transmission FluidXT-M5-QS /
WSD-M2C200-C
Automatic transmission
fluid1.8 quarts (1.7L)Motorcraft
Dual Clutch Transmission
FluidXT-11-QDC /
WSS-M2C200-D2
Maintenance and Specifications
321
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord Part Name or
EquivalentFord Part Number / Ford
Specification
Engine oil4.2 quarts (4.0L)
(with filter
change)•MotorcraftSAE 5W-20
Premium Synthetic Blend
Motor Oil (US)
•MotorcraftSAE 5W-20
Full Synthetic Motor Oil
(US)
•MotorcraftSAE 5W-20
Super Premium Motor Oil
(Canada)
•MotorcraftSAE 5W-20
Synthetic Motor Oil
(Canada)
1
•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20-LSP12 (Canada)
•CXO-5W20-LFS12 (Canada)
/
WSS-M2C945 -A and API
Certification Mark
Engine coolant5.8 quarts
(5.5L)MotorcraftSpecialty
Orange Engine Coolant
2
•VC-3-B (US)
•CVC-3-B (Canada) /
WSS-M97B44-D
Windshield washer fluid Fill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tank 12.4 gallons (47L) — —
1Refer toEngine oil and filter recommendationsin this chapter for more information.2Add the coolant type originally equipped in your vehicle.
Maintenance and Specifications
322
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

ENGINE DATA
Engine 1.6L engine
Cubic inches 97
Required fuel Minimum 87 octane
Firing order 1–3–4–2
Ignition system Distributorless Ignition System
(D.I.S.)
Compression ratio 11:1
Spark plug gap .029 -.033 inch
(0.75 - 0.85 mm)
Maintenance and Specifications
323
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Engine drivebelt routing
IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Maintenance and Specifications
324
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
325
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

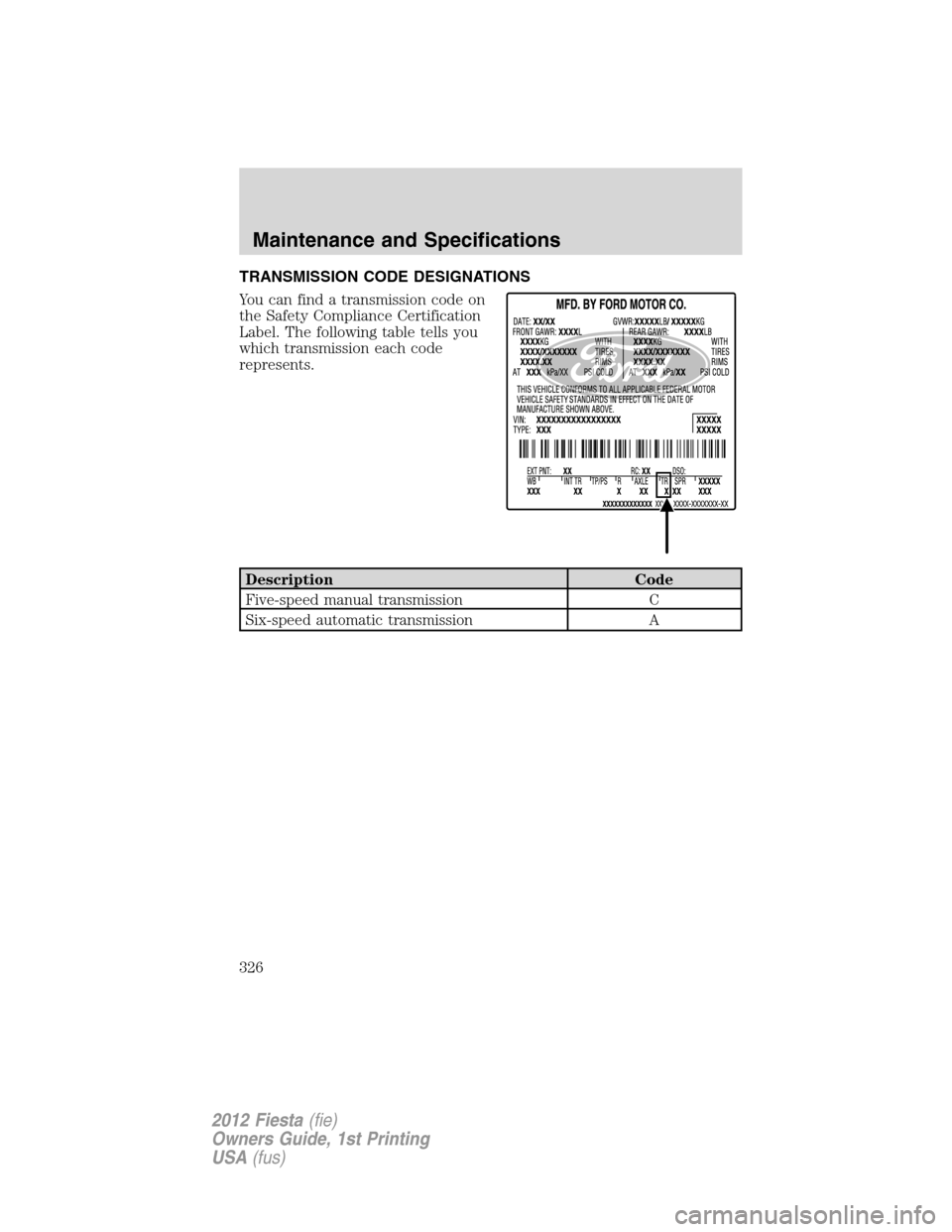

TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Five-speed manual transmission C
Six-speed automatic transmission A
Maintenance and Specifications
326
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

FORD CUSTOM ACCESSORIES FOR YOUR VEHICLE
A wide selection of Ford Custom Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Ford Custom Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Ford Custom Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at:www.fordaccessories.com(U.S. only).
