2012 FORD FIESTA Owners Manual

9.MENU:Press to access the following features:
Note:To scroll through the following menus and make adjustments,
press
/or/. Pressto return to the previous screen
or
to advance to the next screen.
Note:At any time, you can press MENU to close the menu screen.
•Sirius (if equipped):Scroll to select Sirius and then press OK to
enter the menu. Scroll to select from SAT1. SAT2 or SAT3 modes.
Note:Sirius must be the selected audio source for this option to
appear in the menu.
•Radio:Scroll to select Radio mode and then move right or press OK
to enter the menu. Scroll to select from:
•Manual Tune:Press OK to select and press
/to tune
manually.
•Scan:Press OK to activate scan mode for a brief sampling of
stations.
•Autostore:Press OK to activate the autostore feature. This allows
you to store the six strongest local stations available from the AM
and FM frequency bands. When the search is complete, the sound
will return and the six strongest stations will be stored in the
memory presets (and overwrite any stations previously stored in
the AST band.) You can also manually store stations in the AST
band. When the AST band is active, simply tune to the desired
station and press and hold a memory preset. The new station will
be saved and will override the previously saved station.
•CD (if equipped):Scroll to select CD options and then move right or
press OK to enter the menu. Scroll to select from the following.Note:
CD must be the selected audio source for this option to appear in the
menu.
•Normal mode:Scroll to select Normal Mode and press OK.
•Repeat:Press OK to Repeat the current song. For MP3 discs, you
can select from Repeat Title or Repeat Folder.
•Shuffle:Press OK to shuffle songs. For MP3 discs, you can select
from Shuffle Folder or Shuffle CD.
•Scan:Press OK to activate scan mode for a brief sampling of
songs. For MP3 discs, you can select from Scan Folder or Scan CD.
Entertainment Systems
25
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

•Audio:Scroll to select Audio and then move right or press OK to
enter the menu. Scroll to select from:
•SCV:Scroll to select Speed Compensated Volume (SCV) and press
OK to enter the menu. SCV automatically adjusts the system’s
volume to compensate for speed and wind noise. You can set the
system between off and +7.
•Sound:Scroll to select Sound and press OK to enter the menu.
Scroll to select from Treble, Bass, Middle, Fade and Balance
options. When the desired option is chosen, scroll to increase or
decrease the levels. sound settings can be set for each audio
source independently.
•Occupancy mode:Scroll to select Occupancy mode and move
right or press OK to enter. Then, scroll to select from Optimize All
or Optimize Driver. Occupancy mode optimizes sound quality for
the chosen seating position. Press OK to confirm your selection.
•DSP Equalizer:Scroll to select DSP Equalizer and move right or
press OK to enter the menu. Scroll to select from Rock, Pop,
Classic, Voice and Equalizer off. Press OK to confirm your
selection.
•RDS:Scroll to select RDS and then move right or press OK to
enter the menu. Scroll to select RDS off or RDS on. Press OK to
confirm your selection.
•Vehicle:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
•Clock:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
•Display:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
•Messages:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
10.AUX:Press to access LINE IN (auxiliary input jack) mode.
11.SIRIUS:Press repeatedly to access SAT1, SAT2 and SAT3 satellite
radio modes (if equipped).
12.RADIO:Press repeatedly to select AM1/AM2AST//FM1/FM2AST
frequency bands. Press RADIO to return to the radio base screen when
browsing. While listening to radio, you can navigate to other presets and
modes by pressing
/. When the desired selection is chosen, press
OK to tune to the selection or press RADIO to go back to current
station.
Entertainment Systems
26
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

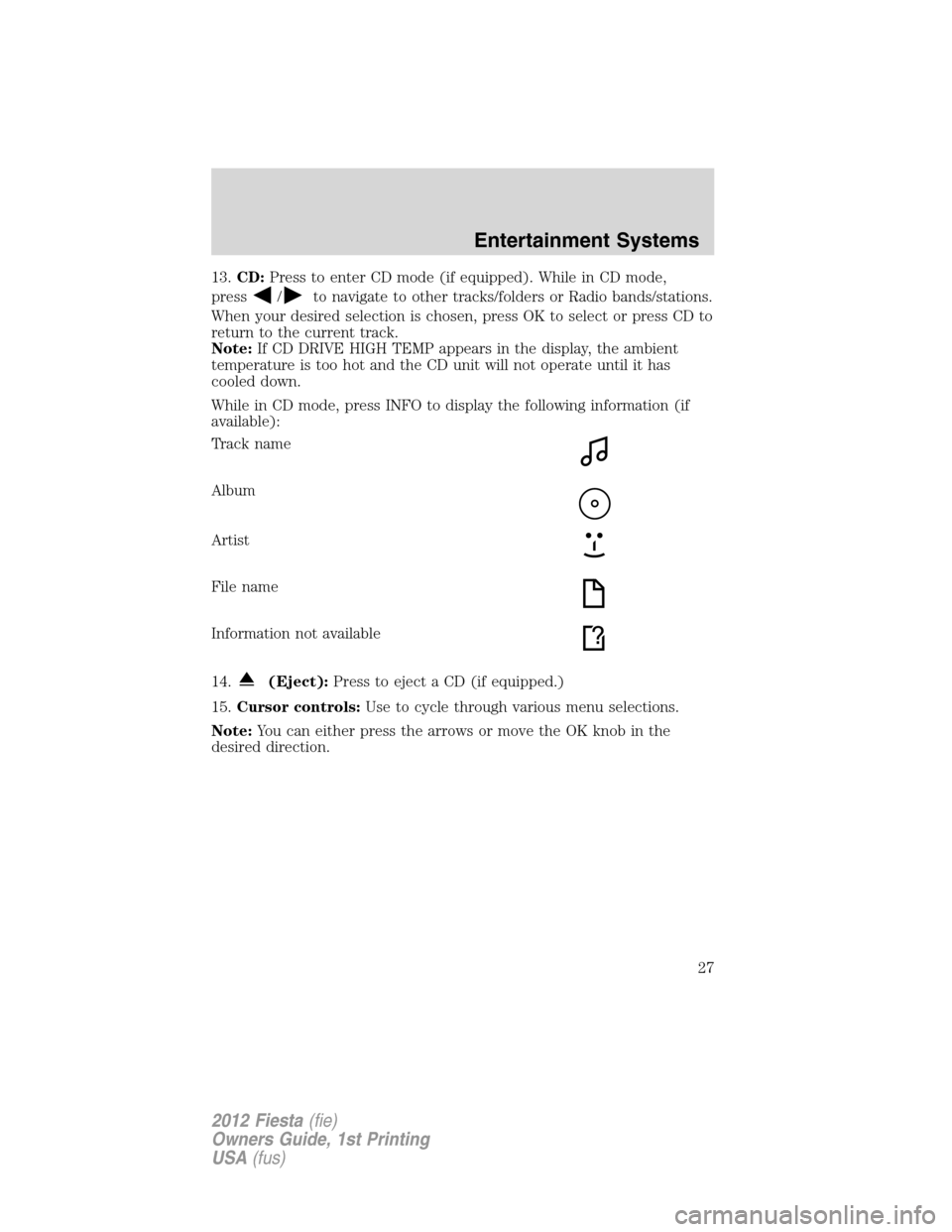

13.CD:Press to enter CD mode (if equipped). While in CD mode,
press
/to navigate to other tracks/folders or Radio bands/stations.
When your desired selection is chosen, press OK to select or press CD to
return to the current track.
Note:If CD DRIVE HIGH TEMP appears in the display, the ambient
temperature is too hot and the CD unit will not operate until it has
cooled down.
While in CD mode, press INFO to display the following information (if
available):
Track name
Album
Artist
File name
Information not available
14.
(Eject):Press to eject a CD (if equipped.)
15.Cursor controls:Use to cycle through various menu selections.
Note:You can either press the arrows or move the OK knob in the
desired direction.
Entertainment Systems
27
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

AM/FM stereo single CD/MP3 SYNCcompatible (if equipped)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
One hour mode:Press the ON/OFF control to operate the system with
the ignition turned off; the system will automatically turn off after one
hour.
Setting the clock:Press the H or M buttons on the outside of the
multifunction to access the clock settings. Once you are in the clock
setting, press the H or M button repeatedly until the desired number
appears. Press OK to confirm and close.
1431512
12
13
11
10
9
78
620191718
16
4
5
Entertainment Systems
28
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

Display icons:Your system’s display will illuminate icons for the mode
which is currently active, such as:
Radio
CD
Auxiliary input
Phone
Settings: This icon will illuminate in
green to indicate that the settings
can be updated in the menu.
1.CD slot:Insert a CD, label side up.
2.OK:Use in various menu selections to select or deselect your choice.
3.INFO:Press to access any available radio or CD information.
4.MENU:Press to access the following features:
Note:To scroll through the following menus and make adjustments,
press
/or/. Pressto return to the previous screen
or
to advance to the next screen.
Note:At any time, you can press MENU to close the menu screen.
•Sirius (if equipped):Scroll to select Sirius and then press OK to
enter the menu. Scroll to select from SAT1. SAT2 or SAT3 modes.
Note:Sirius must be the selected audio source to access this menu.
•SYNC media (if equipped):Scroll to select Mediaplayer Menu and
then press OK to enter the menu. Refer to the SYNCsection in this
chapter for more information.Note:SYNC audio must be the selected
audio source to access this menu.
•SYNC phone (if equipped):Scroll to select Phone Menu and then
press OK to enter the menu. Refer to the SYNCsection in this
chapter for more information.Note:SYNC Phone must be the
selected feature to access this menu.
Entertainment Systems
29
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

•Audio:Scroll to select Audio and then move right or press OK to
enter the menu. Scroll to select from:
•SCV:Scroll to select Speed Compensated Volume (SCV) and press
OK to enter the menu. SCV automatically adjusts the system’s
volume to compensate for speed and wind noise. You can set the
system between off and +7.
•Sound:Scroll to select Sound and move right or press OK to enter
the menu. Scroll to select from Treble, Bass, Middle, Fade and
Balance options. When the desired option is chosen, scroll to
increase or decrease the levels. Sound settings can be set for each
audio source independently.
•Occupancy mode:Select Occupancy mode and then move right or
press OK to enter the menu. Scroll to select from optimize All
Seats or Driver’s Seat. Occupancy mode optimizes sound quality for
the chosen seating position. Press OK to confirm your selection.
•DSP Equalizer:Scroll to select DSP Equalizer and then move
right or press OK to enter the menu. Scroll to select from Rock,
Pop, Classic, Voice and Equalizer off. Press OK to confirm your
selection.
•Vehicle:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
•Clock:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
•Display:Refer to Multi-function display in theInstrument Cluster
chapter for more information.
•Messages:Press
/to view the saved vehicle messages.
•RDS:Scroll to select RDS and then move right or press OK to enter
the menu. Scroll to select RDS off or RDS on. Press OK to confirm
your selection.
5.Memory presets:To save a station, tune to the desired station. Press
and hold a preset button until the information pop-up timer expires and
stored preset # pop-up appears.
6.
Fast forward:Press to access the next track or available radio
station. Press and hold to fast forward through the current track or to
quickly advance through the radio band in individual increments.
7.On/Off/Volume:Press to turn the system on or off. Turn to adjust the
volume.
Entertainment Systems
30
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

8.Reverse:Press to access the previous track or available radio
station. Press and hold to reverse through the current track or to quickly
reverse through the radio band in individual increments.
9.PHONE:Press to access SYNCphone features if available. Refer to
the SYNCsection for more information. If your vehicle is not equipped
with SYNC. the display will read MUTE and will mute the playing
media.
10.AUX:Press to access LINE IN (auxiliary input jack) mode or SYNC
media mode.
11.SIRIUS:Press repeatedly to access SAT1, SAT2 and SAT3 satellite
radio modes (if equipped).
12.RADIO:Press repeatedly to select AM1/AM2AST/FM1/FM2AST
frequency bands. Press RADIO to return to the radio base screen when
browsing. While listening to radio, you can also navigate to other preset
modes, CD tracks and folders by pressing
/. When the desired
selection is chosen, press OK to tune to the selection or press RADIO to
return to the current station. You can also select SIRIUS (if equipped) or
AUX to change to the audio source.
Autostore feature:The autostore feature allows you to store the 10
strongest local stations available from the AM and FM frequency bands.
To use, press the AST soft key at the bottom of the screen (refer to
buttons 17–20). The display will read ‘Hold to start autostore’. Continue
holding the button until ‘Autostoring’ appears in the display. When the
search is complete, the sound will return and the 10 strongest stations
will be stored in the memory presets (and overwrite any stations
previously stored in the AST band). You can also manually store stations
in the AST band. When the AST band is active, simply tune to the
desired station and press and hold a memory preset. The new station will
be saved and will override the previously saved station.
13.CD:Press to enter CD mode. Press the soft keys (refer to buttons
17–20) to scan, repeat or shuffle. In MP3 mode, you can scan folder or
CD, repeat track or folder and shuffle folder or CD. While in CD mode,
press
/to navigate to other tracks/folders or radio modes/stations.
When the desired selection is chosen, press OK to select or press CD to
return to the current track. You can also select SIRIUS (if equipped), or
AUX to change audio sources.
Note:If CD DRIVE HIGH TEMP appears in the display, the ambient
temperature is too hot and the CD unit will not operate until it has
cooled down.
Entertainment Systems
31
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

14.(Eject):Press to eject a CD.
15.Cursor controls:Use to cycle through various menu selections.
Note:You can either press the arrows or move the OK knob in the
desired direction.
16.Sound menu:Press access Treble, Bass, Fade (if equipped) and
Balance menu options. Use
/to cycle through the various options.
When the desired option is chosen, press
/to increase or
decrease the levels. Press OK to set or MENU to exit. Sound settings can
be set for each audio source independently.
17–20Soft keys:Press these soft
keys to access the corresponding
functions on the screen.
20191817
Entertainment Systems
32
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
