2012 FORD FIESTA Owners Manual

Operating in dusty conditions such as unpaved or dusty roads
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter (except Fusion Hybrid
and MKZ Hybrid)*
Every 5,000 miles
(8,000 km)Inspect the wheels and related components for
abnormal noise, wear, looseness or drag
Rotate tires, inspect tires for wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 monthsChange engine oil and filter
* Fusion Hybrid and MKZ Hybrid vehicles have an engine air filter that
does not normally require replacement. Refer toAir filterin the
Maintenance and Specificationschapter for more information.
Reset your oil life monitor system after each engine oil and filter
change; refer to theInstrument Clusterchapter
Exclusive use of E85 (Flex Fuel Vehicles only)
Every oil change If ran exclusively on E85, fill the fuel tank full
with regular unleaded fuel
Scheduled Maintenance
345
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

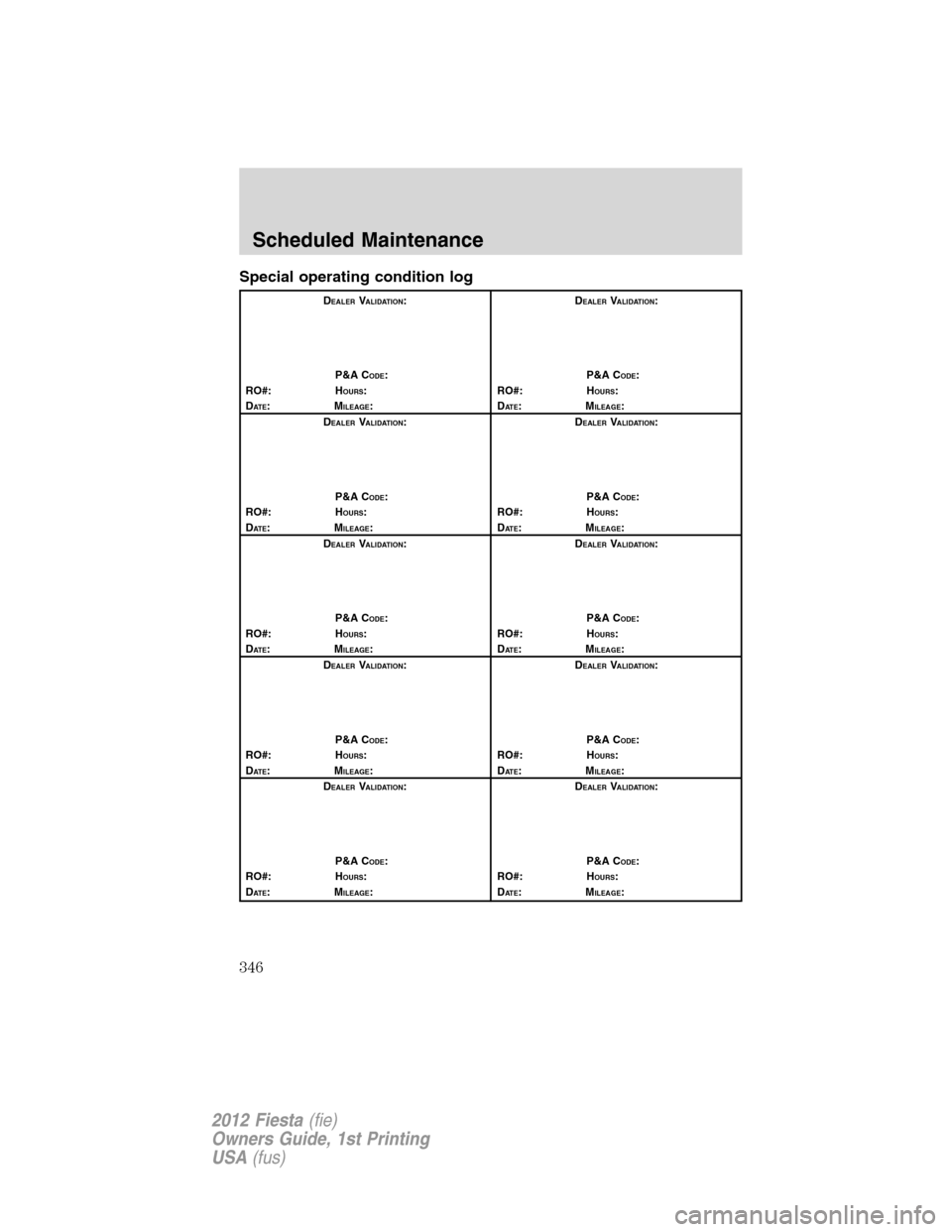

Special operating condition log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
346
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

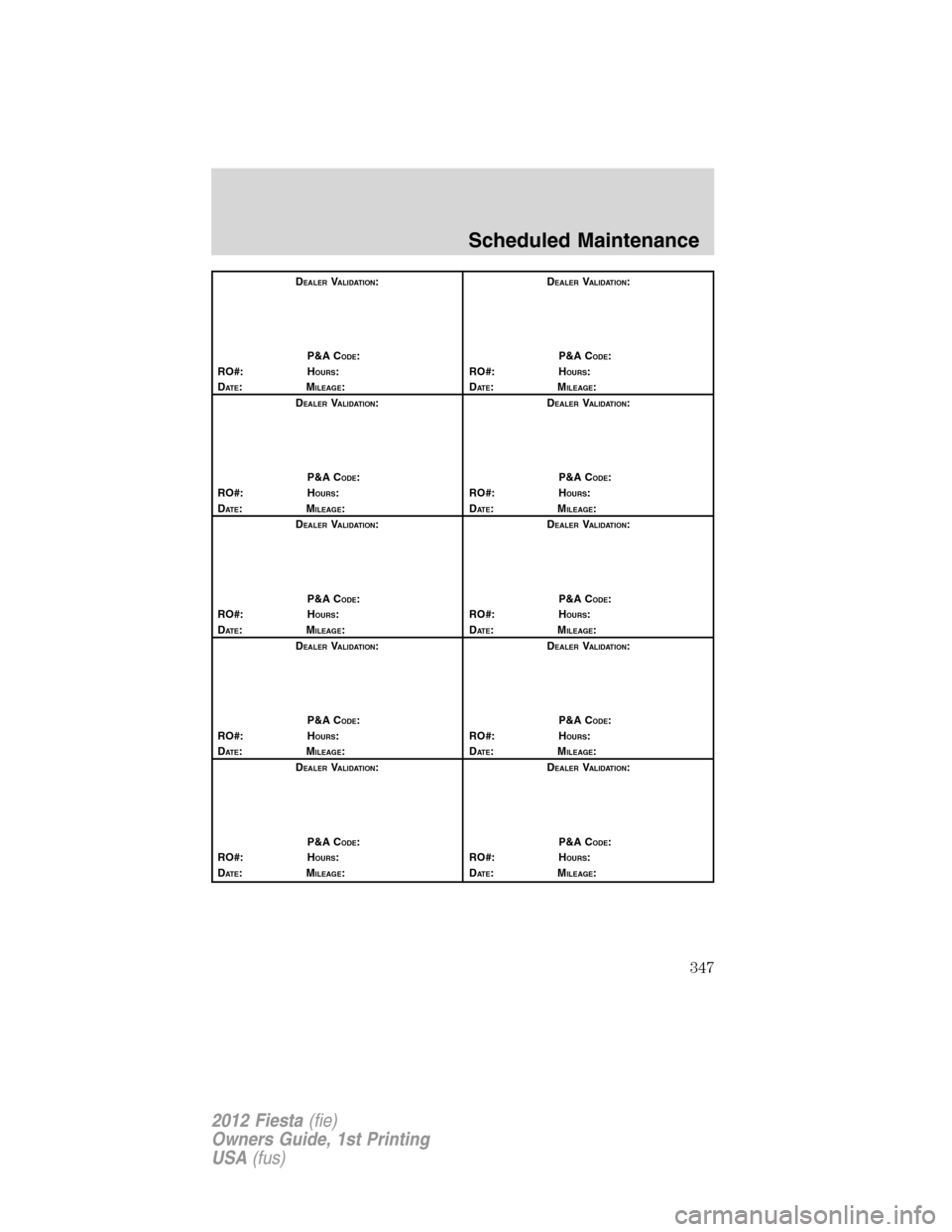

DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
347
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed
below:
Normal vehicle axle maintenance:Rear axles and power take-off
(PTO) units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should
be changed every 3,000 miles (4,800 km) or three months, whichever
comes first. This interval can be waived if the axle is filled with 75W140
synthetic gear fluid meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles (refer toMaintenance product specifications and capacitiesin
theMaintenance and Specificationschapter for details).
Police/Taxi/Livery vehicle axle maintenance:Change rear axle fluid
every 100,000 miles (160,000 km). Rear axle fluid change may be waived
if the axle was filled with 75W140 synthetic gear fluid meeting Ford
specification WSL-M2C192-A, part number FITZ-19580-B or equivalent.
Add four ounces (118 mL) of additive friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles. The axle fluid should be changed anytime the axle has been
submerged in water
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Class A Motorhome:Change brake fluid every two years.
Hot climate oil change intervals:If operating conditions are normal
and you drive your vehicle under typical, everyday conditionsandyou
are using an API performance category oil of SL or later (for example
SM, etc.) then you can follow the 7,500 mile (12,000 km) normal service
oil change intervals schedule. Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or locations with similar climates must
follow the oil change interval of 3,000 mile (4,800 km) if the owner is
Scheduled Maintenance
348
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

using oils defined by the American Petroleum Institute (API)
performance category of API SK or earlier (for example SJ, etc.)
Edge/MKX AWD only – vehicles operating off-road in sand during high
ambient temperatures must replace the AWD PTU (All-wheel drive
Power Transfer Unit) lube every 20,000 miles (32,000 km).
Engine air filter & cabin air filter replacement:Engine air filter and
cabin air filter life is dependent on exposure to dusty and dirty
conditions. Vehicles operated in these conditions will require frequent
inspection and replacement of the engine air filter and cabin air filter.
ENGINE COOLANT CHANGE RECORD
Initial change 6 years or 100,000 miles (160,000 km)
(whichever comes first)
After initial change Every 3 years or 50,000 miles (80,000 km)
Engine coolant change log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
349
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

911 Assist™ ................................68
A
Accessing call history/phone
book during active call ...............51
Accessing your media menu
features ........................................79
Accessing your phone menu
features ........................................55
Active call menu options ...........51
Advanced menu options .......63, 85
Advanced menu options
(prompts, languages, defaults,
master reset, installing
applications) ................................63
AdvanceTrac ..............................240
Airbag supplemental restraint
system ........................168, 177, 180
and child safety seats ............170
description ..............168, 177, 180
disposal ....................................183
driver airbag ............170, 178, 181
indicator light .................177, 183
operation .................170, 178, 181
passenger airbag .....170, 178, 181
side airbag ...............................177
Air cleaner filter .......317–318, 320
Ambient mood/lighting .............108
Antifreeze
(see Engine coolant) ................299
Anti-lock brake system
(see Brakes) ..............................238
Anti-theft system ..............143, 145
arming the system ..........144–145disarming a triggered
system .....................................145
triggering .................................145
AppLink™ ...................................73
Armrests ....................................150
Audio system (see Radio) ...23, 28
Automatic transmission ............246
driving an automatic
overdrive .................................246
fluid, adding ............................316
fluid, checking ........................316
Auxiliary input jack (Line in) ....33
Auxiliary power point ...............120
B
Battery .......................................297
acid, treating emergencies .....297
jumping a disabled battery ....271
maintenance-free ....................297
replacement, specifications ...320
servicing ..................................297
Belt-Minder.............................163
Blind spot mirror ......................253
Booster seats .............................198
Brakes ................................237–238
anti-lock ...................................238
anti-lock brake system (ABS)
warning light ...........................238
fluid, checking and adding ....316
fluid, refill capacities ..............321
fluid, specifications .................321
lubricant specifications ..........321
parking ....................................239
shift interlock ..........................244
Break-in period .............................5
Bulbs ..........................................109
Index
350
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

C
Capacities for refilling fluids ....321
Cell phone use ..............................8
Changing a tire .........................265
Child safety seats ......................188
attaching with tether straps ..195
in front seat ............................189
in rear seat ..............................189
LATCH .....................................192
recommendations ...................186
Child safety seats -
booster seats .............................198
Cleaning your vehicle
engine compartment ..............286
instrument panel ....................288
interior .....................................289
plastic parts ............................287
washing ....................................284
waxing .....................................284
wheels ......................................285
wiper blades ............................287
Clock ................................19, 23, 28
Clutch
fluid ..........................................316
operation while driving ..........249
recommended shift speeds ....249
Connecting a digital media
player to SYNC.........................75
Console ......................................120
Controls
steering column ......................127
Coolant
checking and adding ..............299
refill capacities ................303, 321
specifications ..........................321
Cruise control
(see Speed control) ..................125Customer Assistance ................255
Ford Extended Service
Plan ..................................329, 332
Getting assistance outside
the U.S. and Canada ..............280
Getting roadside assistance ...255
Getting the service you
need .........................................276
Ordering additional owner’s
literature .................................282
Utilizing the
Mediation/Arbitration
Program ...................................280
D
Daytime running lamps
(see Lamps) ..............................105
Dipstick
automatic transmission
fluid ..........................................316
engine oil .................................295
Doors
central unlocking ....................133
Driving under special
conditions ..................................248
through water .........................254
E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................271
running out of fuel .........270, 308
Emission control system ..........313
End user license agreement ......92
Engine ................................323–324
cleaning ...................................286
coolant .....................................299
idle speed control ...................297
Index
351
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

lubrication specifications .......321
refill capacities ........................321
service points ..................293–294
Engine block heater .................236
Engine fan .................................293
Engine oil ..................................295
checking and adding ..............295
dipstick ....................................295
filter, specifications ........296, 320
recommendations ...................296
refill capacities ........................321
specifications ..........................321
Event data recording ....................6
Exhaust fumes ..........................235
F
Fan, Engine Cooling .........291, 293
Floor mats .........................128, 130
Fluid capacities .........................321
Fuel ............................................304
calculating fuel economy .......310
cap ...........................................306
capacity ...................................321
choosing the right fuel ...........307
detergent in fuel .....................308
filler funnel .............................308
filling your vehicle
with fuel ..................304, 306, 310
filter, specifications ........304, 320
fuel pump shut-off ..................257
improving fuel economy ........310
octane rating ...........307, 323–324
quality ......................................308
running out of fuel .........270, 308
safety information relating to
automotive fuels .....................304
Fuses ..................................257–258G
Gas cap (see Fuel cap) ............306
Gas mileage
(see Fuel economy) .................310
Gauges .........................................17
H
Hazard flashers .........................256
Headlamps .................................104
aiming ......................................105
bulb specifications ..................109
daytime running lights ...........105
high beam ...............................104
replacing bulbs .......................110
turning on and off ..................104
Head restraints .........................146
Heating
heating and air conditioning
system .....................................100
Hill start assist ..........................251
Hood ..........................................292
I
Ignition .......................230, 323–324
Infant seats
(see Safety seats) .....................188
Inspection/maintenance (I/M)
testing ........................................315
Instrument panel
cleaning ...................................288
cluster ........................................12
lighting up panel and
interior .....................................105
Intelligent Access Key ..............131
Intelligent Access with push
button start ...............................137
Index
352
2012 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
