Exterior LightsBulb Type
Front Low and High Beam Headlamp .........HIR2
Front Parking/Daytime Running Lamps .....W21/5W
Front Fog Lamps ........................ H11
Front Side Marker Lamps ................. W3W
Front Turn Signal Lamps ................WY21W
Side Direction Lamps .................... W5W
Rear Turn Signal Lamps .................PY21W
Rear Side Marker Lamps .................. W3W
Rear Tail and Stop Lamps ..............P21W/5W
Rear Backup Lamps .................... W16W
Center High Mounted Stop Lamp ........... W5W
License Plate Lamps ...................... LED
(See Authorized Dealer)
NOTE: Numbers refer to commercial bulb types that
can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.BULB REPLACEMENT
Headlamps
1. Remove the plastic cap from the back of the headlamp
housing.
2. Rotate the bulb counter-clockwise.
3. Remove the bulb and replace as needed.
4. Install the bulb and rotate clockwise to lock in place.
5. Reinstall the plastic cap.
7
MAINTAINING YOUR VEHICLE 311

Front Turn Signal, Parking And Daytime Running
Lamps
1. Turn the steering wheel completely to the left or right.
2. Open the wheel housing access door.
3. Remove the plastic cap from the back of the lamp
housing.4. Rotate bulb/socket counter-clockwise.
5. Remove the bulb and replace as needed.
6. Install the bulb into socket, and rotate bulb/socket
clockwise into lamp locking it in place.
7. Reinstall the plastic cap.
Front Fog Lamps
To replace the front fog lights, see your authorized dealer.
Front/Rear Side Marker Lamps
1. Remove portion of the wheel liner to allow hand
access to side marker lamp.
2. Rotate the bulb socket counterclockwise, and remove
the bulb and socket assembly from the housing.
3. Pull the bulb from the socket and insert the replace-
ment bulb.
312 MAINTAINING YOUR VEHICLE

4. Install the bulb and socket assembly into the housing,
and rotate the socket clockwise to lock it in place.
5. Reinstall the wheel liner
Rear Tail, Stop, Backup And Turn Signal Lamps
1. Open the liftgate.
2. Remove the two screws and remove the tail lamp
assembly.3. Unsnap backplate and separate from the lamp hous-
ing.
4. Remove the tail, stop, or turn signal bulbs by pushing
them slightly and turning counter-clockwise.
5. Remove the backup lamp bulb by pulling straight out.
6. Replace lamps as required and reinstall lamp.
7
MAINTAINING YOUR VEHICLE 313

Center High Mounted Stop Lamp (CHMSL)
1. Remove the two guard caps and the two fastening
screws.
2. Remove the center high mounted stop lamp assembly.
3. Disconnect the electric connector.
4. Press the retaining device and open the bulb holder.5. Remove the snap-fitted bulb to be replaced and re-
place it.
6. Close the back cap locking it properly.
7. Reinstall the two fastening screws and reinstall the
guard caps.
FLUID CAPACITIES
U.S.
Metric
Fuel (Approximate) 10.5 Gallons 40 Liters
Engine Oil with Filter
1.4 Liter Turbo Engine 4 Quarts 3.8 Liters
Cooling System
1.4 Liter Turbo Engine (MOPAR Antifreeze/Engine Coolant
10 Year/152,000 Mile Formula or equivalent) 4.6 Quarts
4.4 Liters
314 MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 10 Year/152,000 Mile Formula OAT (Or-
ganic Additive Technology) or equivalent meeting the requirements of
Chrysler Material Standard MS-12106.
Engine Oil Use API Certified SAE 5W-40 Full Synthetic Engine Oil, meeting the re-
quirements of Chrysler Material Standard MS-10896. Refer to your engine
oil filler cap for correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs SIKR9A7 (Gap 0.026 in [0.65mm])
Fuel Selection 87 Octane Acceptable — 91 Octane Recommended
7
MAINTAINING YOUR VEHICLE 315

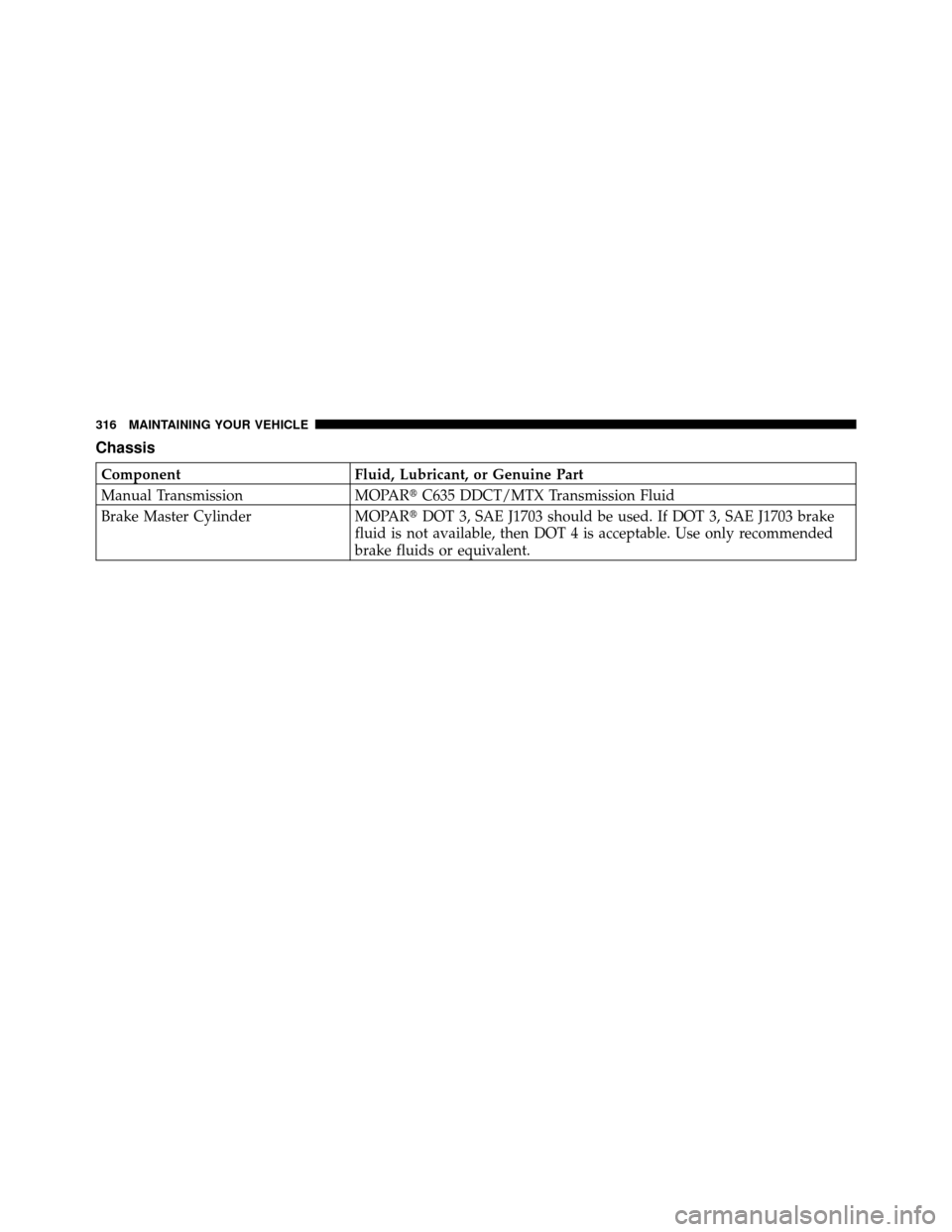

Chassis
ComponentFluid, Lubricant, or Genuine Part
Manual Transmission MOPARC635 DDCT/MTX Transmission Fluid
Brake Master Cylinder MOPARDOT 3, SAE J1703 should be used. If DOT 3, SAE J1703 brake
fluid is not available, then DOT 4 is acceptable. Use only recommended
brake fluids or equivalent.
316 MAINTAINING YOUR VEHICLE

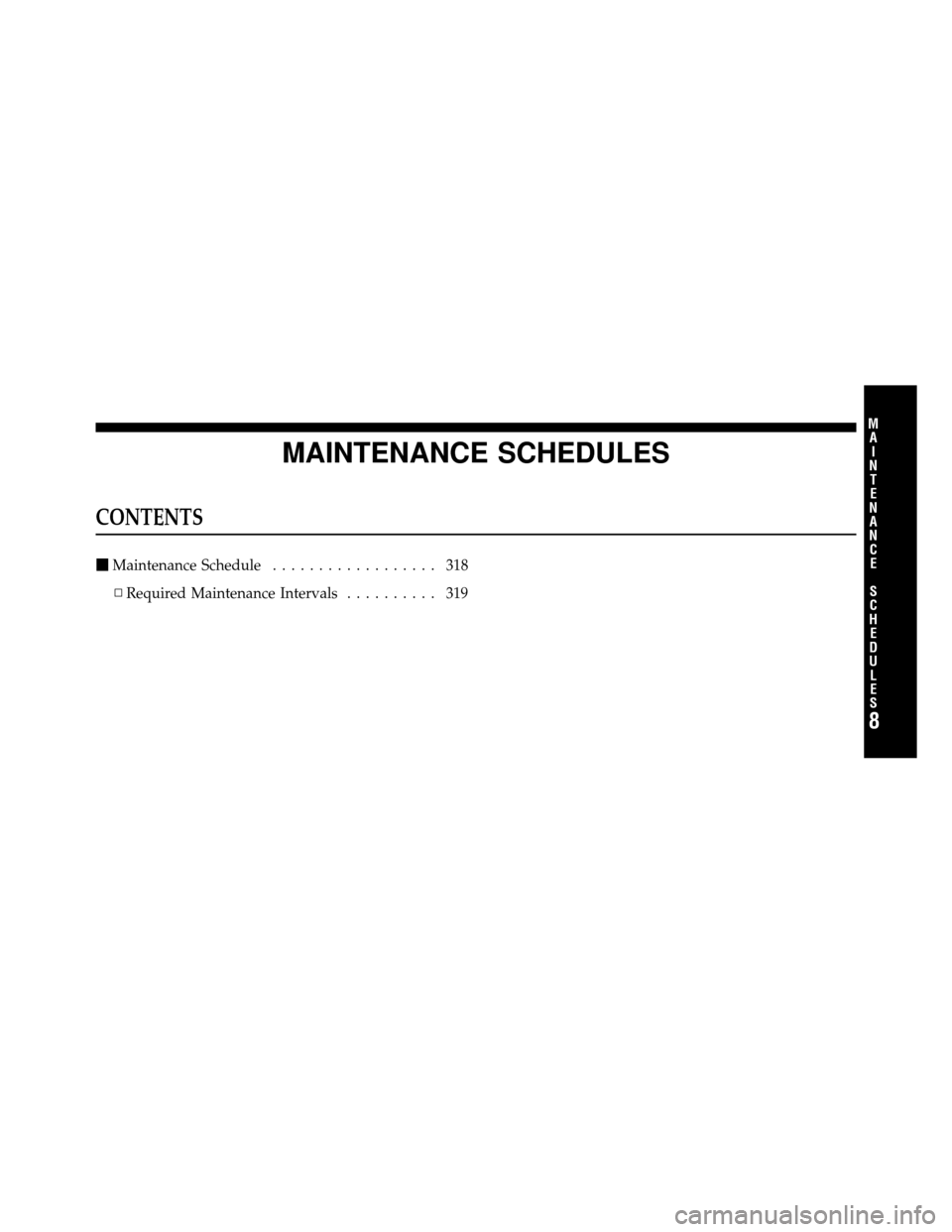

MAINTENANCE SCHEDULES
CONTENTS
Maintenance Schedule .................. 318
▫ Required Maintenance Intervals .......... 319
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

MAINTENANCE SCHEDULE
The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
anytime a malfunction is suspected.
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
Based on engine operation conditions the oil change
indicator message will illuminate, this means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible, within the next 500 miles (805 km).
NOTE:
•The oil change indicator message will not monitor the
time since the last oil change. Change your vehicles oilif it has been 6 months since your last oil change even
if the oil change indicator message is NOT illumi-
nated.
•Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
•Under no circumstances should oil change intervals
exceed 8,000 miles (13,000 km) or six months, which-
ever comes first.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
referring to the steps described under “Electronic Vehicle
Information Center (EVIC)/Change Engine Oil” in “Un-
derstanding Your Instrument Panel” for further informa-
tion.
8
