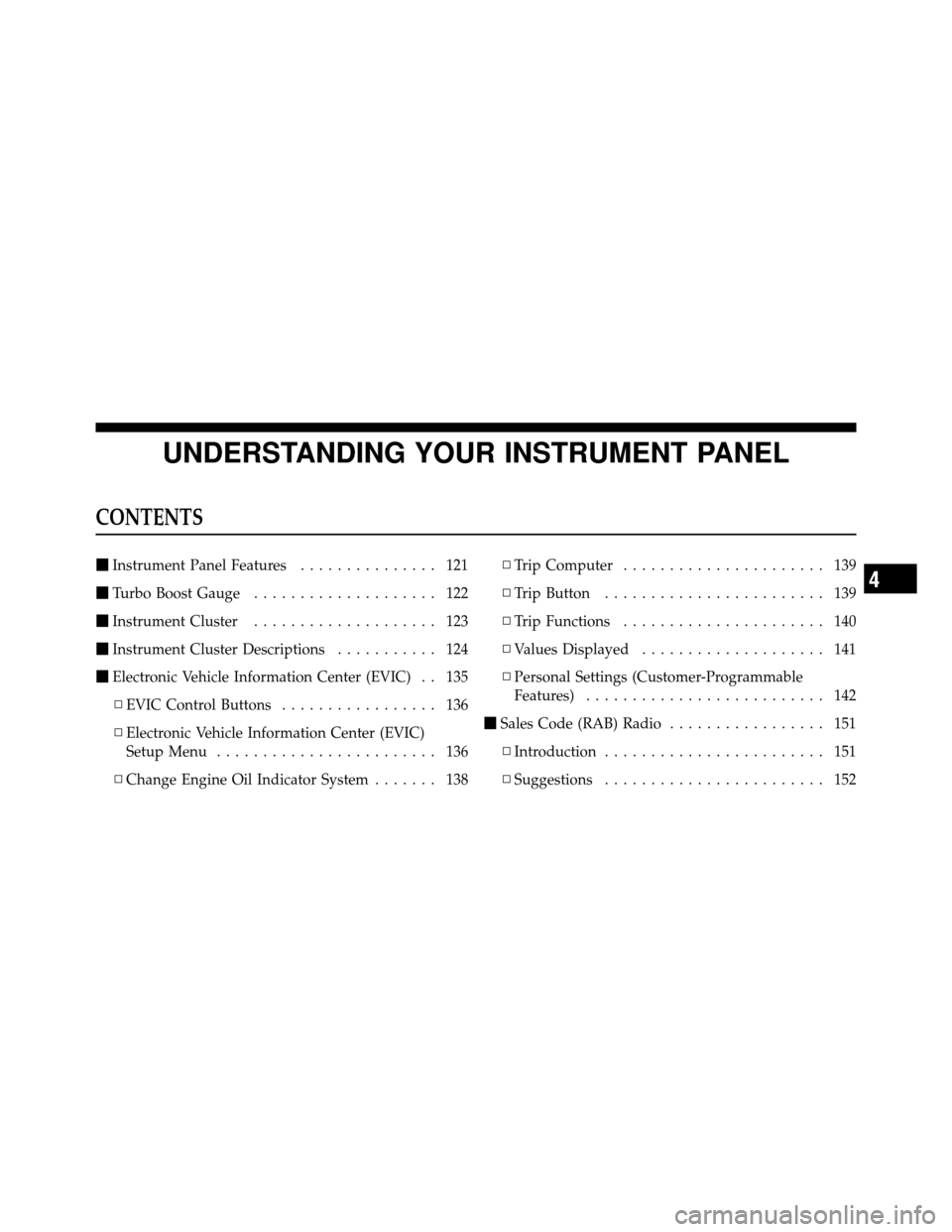

CONTENTS
Instrument Panel Features ............... 121
 Turbo Boost Gauge .................... 122
 Instrument Cluster .................... 123
 Instrument Cluster Descriptions ........... 124
 Electronic Vehicle Information Center (EVIC) . . 135
▫ EVIC Control Buttons ................. 136
▫ Electronic Vehicle Information Center (EVIC)
Setup Menu ........................ 136
▫ Change Engine Oil Indicator System ....... 138▫
Trip Computer ...................... 139
▫ Trip Button ........................ 139
▫ Trip Functions ...................... 140
▫ Values Displayed .................... 141
▫ Personal Settings (Customer-Programmable
Features) .......................... 142
 Sales Code (RAB) Radio ................. 151
▫ Introduction ........................ 151
▫ Suggestions ........................ 152
4

▫Technical Specifications ................ 154
▫ Quick Guide ....................... 155
▫ General Information .................. 158
▫ Functions And Adjustments ............. 159
▫ Radio ............................ 166
▫ Sirius Satellite Radio — If Equipped ...... 168
▫ CD Player ......................... 171
▫ CD MP3 Player ..................... 173
▫ Troubleshooting ..................... 175
 iPod/USB/Media Player Control — If
Equipped ............................ 176
 Steering Wheel Audio Controls ............ 177▫
Radio Operation ..................... 178
▫ CD Player Operation .................. 178
▫ Operating Instructions — Hands-Free Phone
(If Equipped) ....................... 179
 CD/DVD Disc Maintenance .............. 179
 Radio Operation And Mobile Phones ....... 179
 Climate Controls ...................... 180
▫ Manual Heating And Air Conditioning ..... 180
▫ Operating Tips Chart ................. 183
▫ Automatic Temperature Control (ATC) — If
Equipped .......................... 184
▫ Operating Tips ...................... 190
120 UNDERSTANDING YOUR INSTRUMENT PANEL

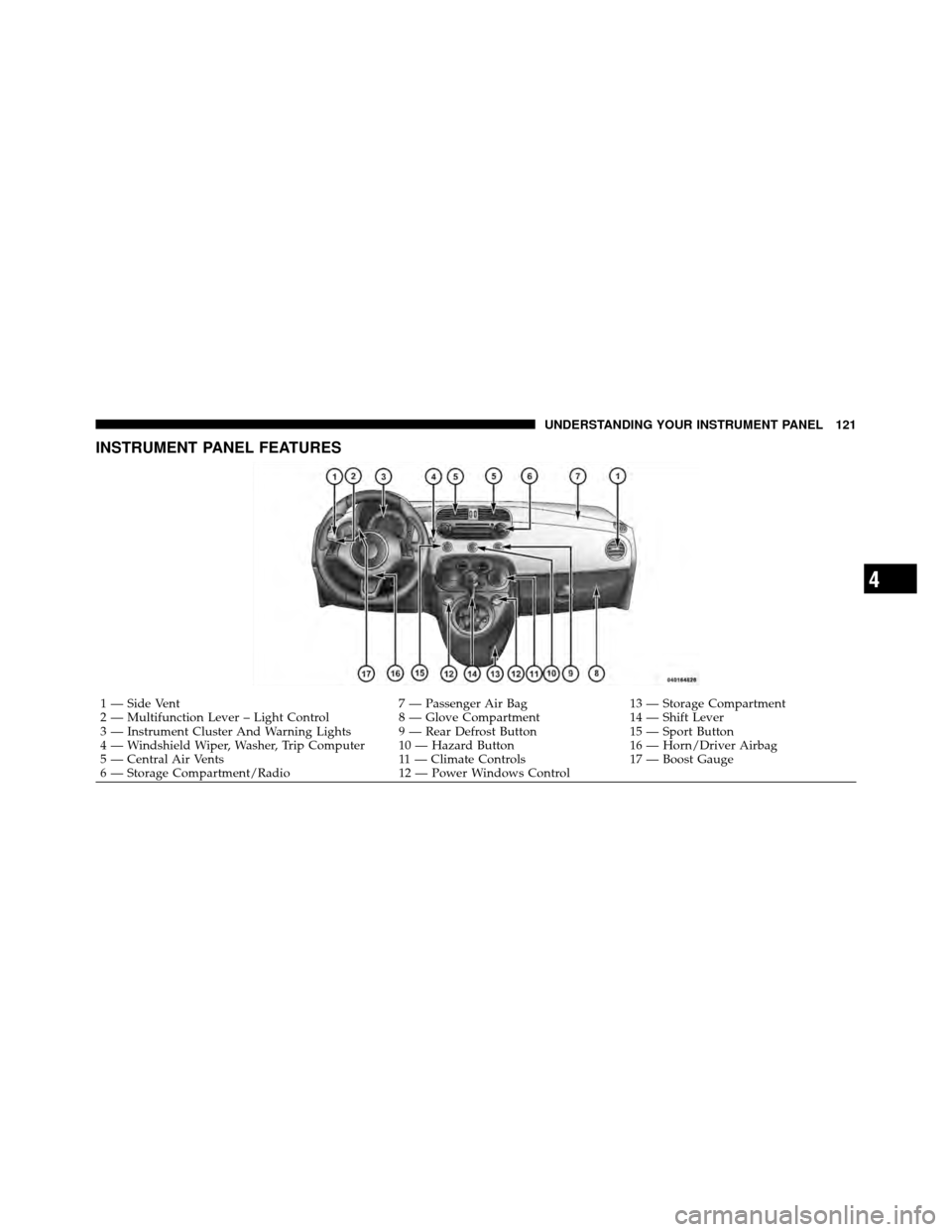

INSTRUMENT PANEL FEATURES
1 — Side Vent7 — Passenger Air Bag13 — Storage Compartment
2 — Multifunction Lever – Light Control 8 — Glove Compartment14 — Shift Lever
3 — Instrument Cluster And Warning Lights 9 — Rear Defrost Button 15 — Sport Button
4 — Windshield Wiper, Washer, Trip Computer 10 — Hazard Button 16 — Horn/Driver Airbag
5 — Central Air Vents 11 — Climate Controls17 — Boost Gauge
6 — Storage Compartment/Radio 12 — Power Windows Control
4
UNDERSTANDING YOUR INSTRUMENT PANEL 121

TURBO BOOST GAUGE
Your vehicle is equipped with a boost gauge and inte-
grated shift light indicator located to the left of the
instrument cluster. The boost gauge indicates the intake
manifold pressure relative to barometric pressure. The
engine management system in your vehicle intelligently
regulates intake manifold pressure based on environ-
mental (ambient) and engine operating conditions.

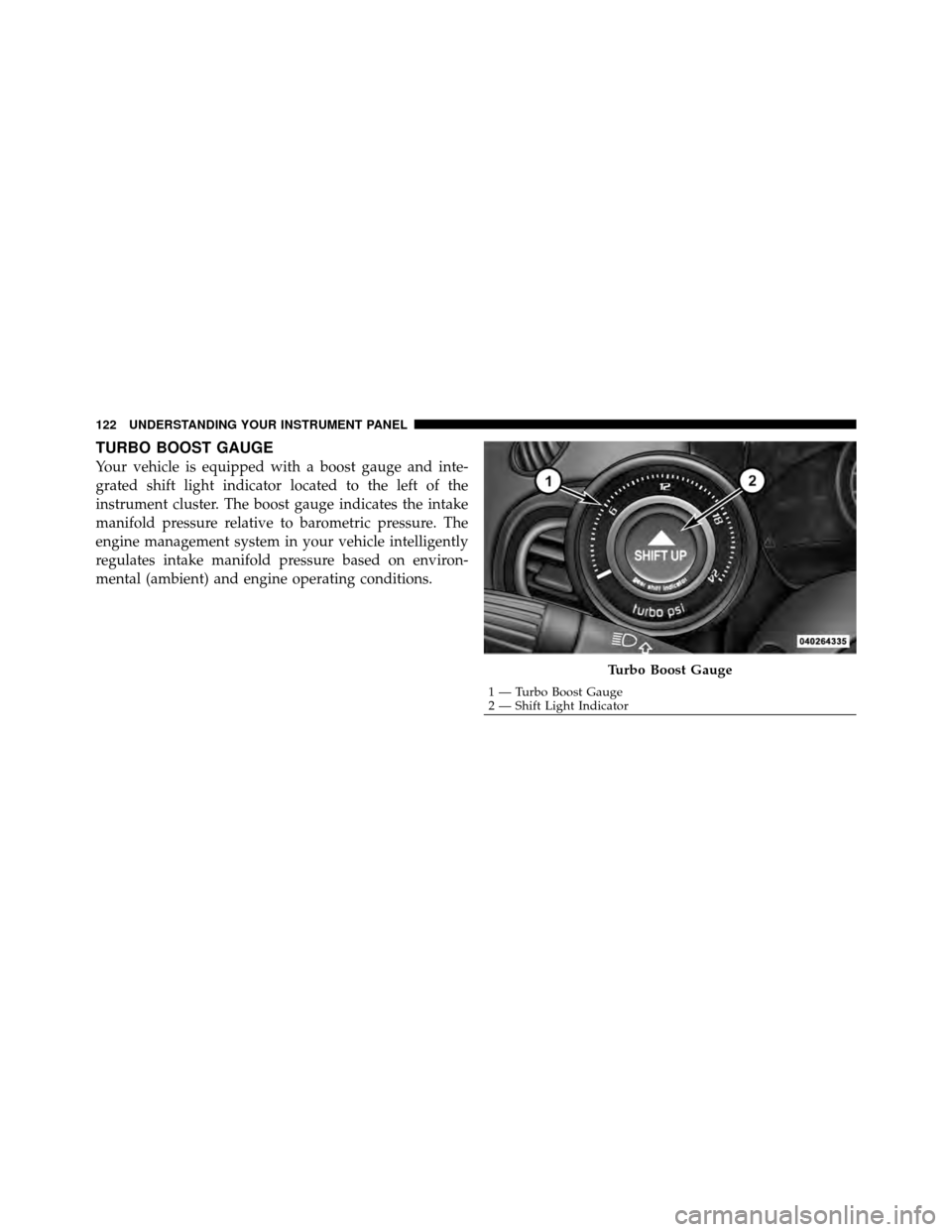

Turbo Boost Gauge
1 — Turbo Boost Gauge
2 — Shift Light Indicator
122 UNDERSTANDING YOUR INSTRUMENT PANEL

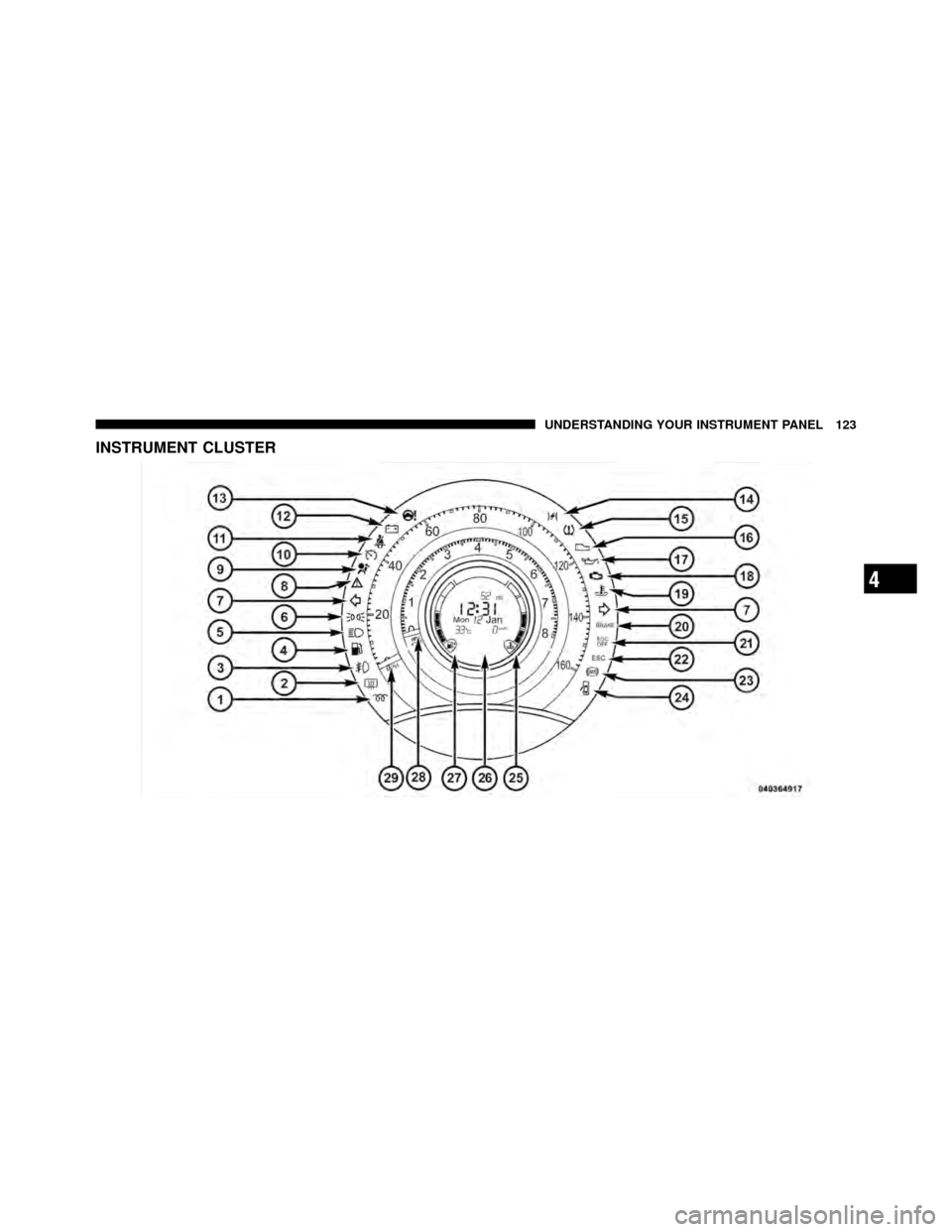

INSTRUMENT CLUSTER
4
UNDERSTANDING YOUR INSTRUMENT PANEL 123

INSTRUMENT CLUSTER DESCRIPTIONS
1. Glow Plug Light — If EquippedThe Glow Plug light will flash during engine oil
viscosity sensor measurement in cold weather.
During this measurement (up to 10 seconds), the starter
will be disabled. If the measured oil viscosity is OK, the
light will turn off and the engine will be allowed to crank.
If the measured oil viscosity is too high, engine cranking
will be disabled and the light will blink repeatedly until
the oil temperature is raised, preferably by an externally-
powered electric engine block heater (available from
your authorized dealer).
The message Plug In Engine Heater, will be displayed
in the instrument cluster when the ambient temperature
is below 5°F (-15°C) at the time the engine is shut off as
a reminder to avoid possible crank delays at the next cold
start. 2. Rear Defrost Button
Press and release this button to turn on the rear
window defroster. This indicator will illuminate
when the rear window defroster is on. The rear window
defroster automatically turns off after 20 minutes.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
(Continued)
124 UNDERSTANDING YOUR INSTRUMENT PANEL

CAUTION! (Continued)
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.

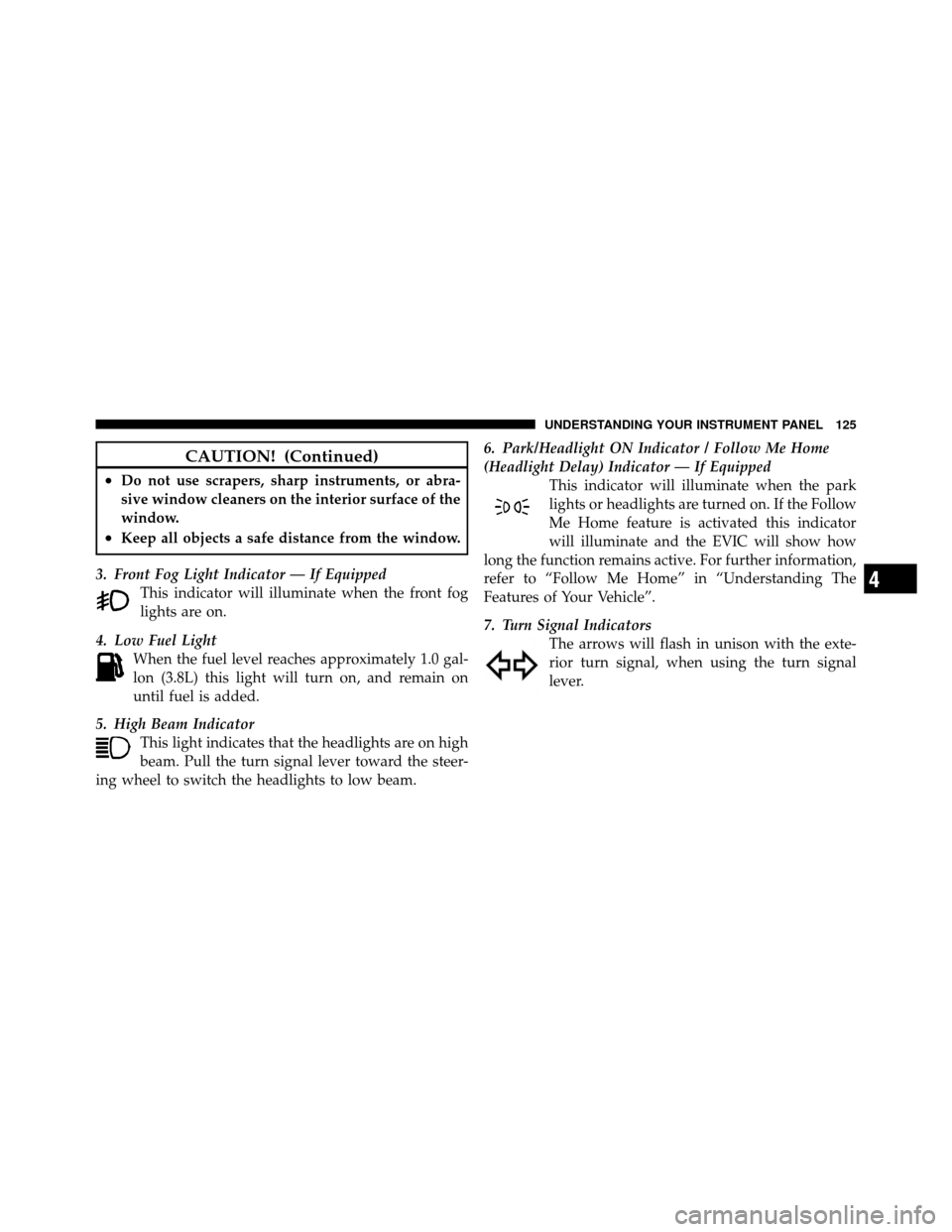

3. Front Fog Light Indicator — If Equipped This indicator will illuminate when the front fog
lights are on.
4. Low Fuel Light When the fuel level reaches approximately 1.0 gal-
lon (3.8L) this light will turn on, and remain on
until fuel is added.
5. High Beam Indicator This light indicates that the headlights are on high
beam. Pull the turn signal lever toward the steer-
ing wheel to switch the headlights to low beam. 6. Park/Headlight ON Indicator / Follow Me Home
(Headlight Delay) Indicator — If Equipped
This indicator will illuminate when the park
lights or headlights are turned on. If the Follow
Me Home feature is activated this indicator
will illuminate and the EVIC will show how
long the function remains active. For further information,
refer to “Follow Me Home” in “Understanding The
Features of Your Vehicle”.
7. Turn Signal Indicators The arrows will flash in unison with the exte-
rior turn signal, when using the turn signal
lever.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 125

8. Generic Warning LightThe Generic Warning Light will illuminate if
any of the following conditions occur: Oil
Change Request, Engine Oil Pressure Sensor
Failure, External Light Failure, Fuel Cut-Off
Intervention, Fuel Cut-Off Not Available, Parking Sensor
Failure.
9. Air Bag Warning Light This light will turn on for four seconds as a
bulb check when the ignition switch is first
turned to ON/RUN. If the light is either not on
during starting, stays on, or turns on while
driving, have the system inspected at an authorized
dealer as soon as possible. Refer to “Occupant Restraints”
in “Things To Know Before Starting Your Vehicle” for
further information. 10. Cruise Indicator — If Equipped
This indicator shows that the Speed Control
system is on.
11. Seat Belt Reminder Light When the ignition switch is first turned to ON/
RUN, this light will turn on if the driver’s seat belt
is unbuckled, a chime will sound. When driving, if
the driver’s seat belt remains unbuckled, the Seat Belt
Reminder Light will illuminate and the chime will sound.
Refer to “Occupant Restraints” in “Things To Know
Before Starting Your Vehicle” for further information.
12. Charging System Light This light shows the status of the electrical charg-
ing system. The light should come on when the
ignition switch is first turned to ON/RUN and remain on
briefly as a bulb check. If the light stays on or comes on
while driving, turn off some of the vehicle’s non-essential
126 UNDERSTANDING YOUR INSTRUMENT PANEL
