2012 FIAT 500 ABARTH Owners Manual

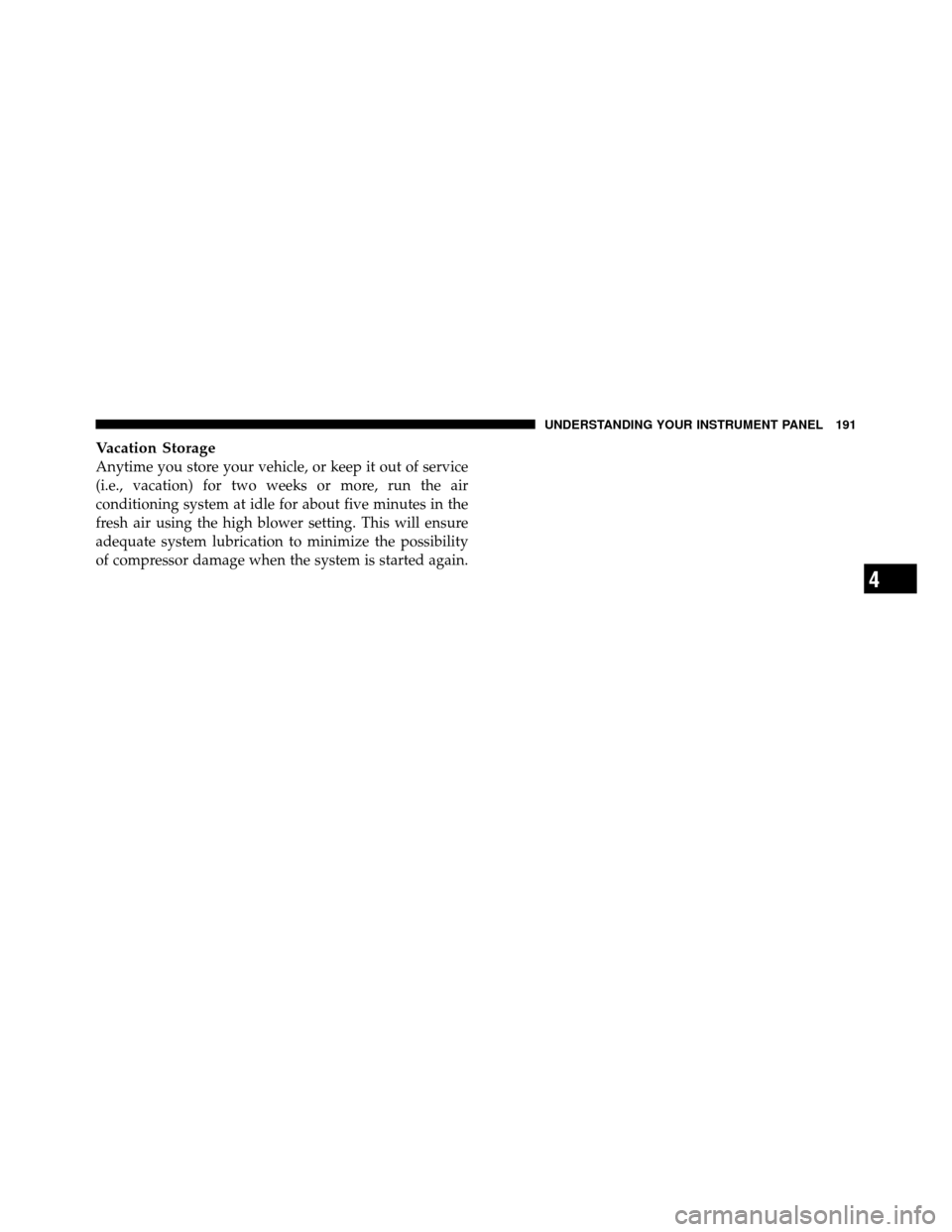

Vacation Storage
Anytime you store your vehicle, or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air using the high blower setting. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 191

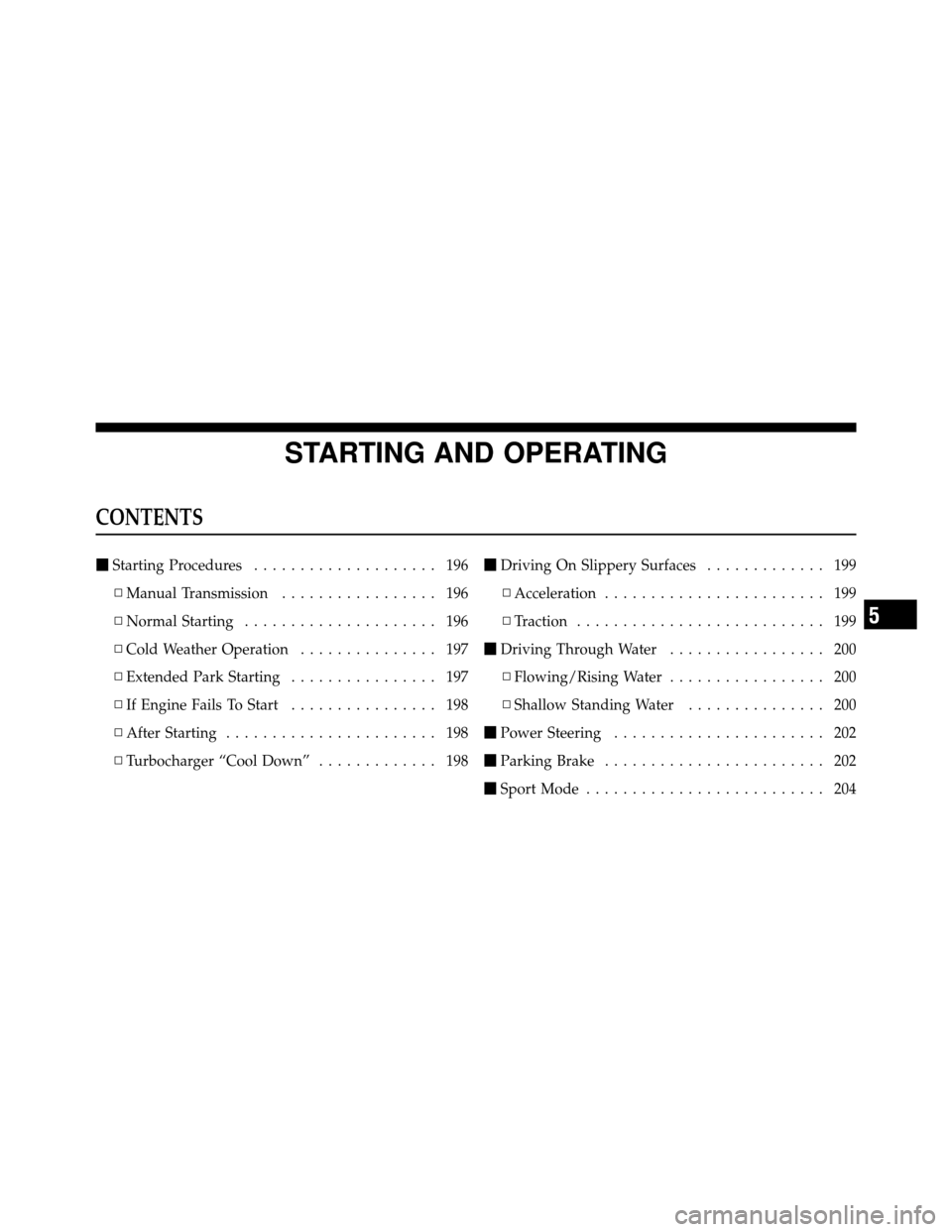

STARTING AND OPERATING
CONTENTS
Starting Procedures .................... 196
▫ Manual Transmission ................. 196
▫ Normal Starting ..................... 196
▫ Cold Weather Operation ............... 197
▫ Extended Park Starting ................ 197
▫ If Engine Fails To Start ................ 198
▫ After Starting ....................... 198
▫ Turbocharger “Cool Down” ............. 198
Driving On Slippery Surfaces ............. 199
▫ Acceleration ........................ 199
▫ Traction ........................... 199
 Driving Through Water ................. 200
▫ Flowing/Rising Water ................. 200
▫ Shallow Standing Water ............... 200
 Power Steering ....................... 202
 Parking Brake ........................ 202
 Sport Mode .......................... 204
5

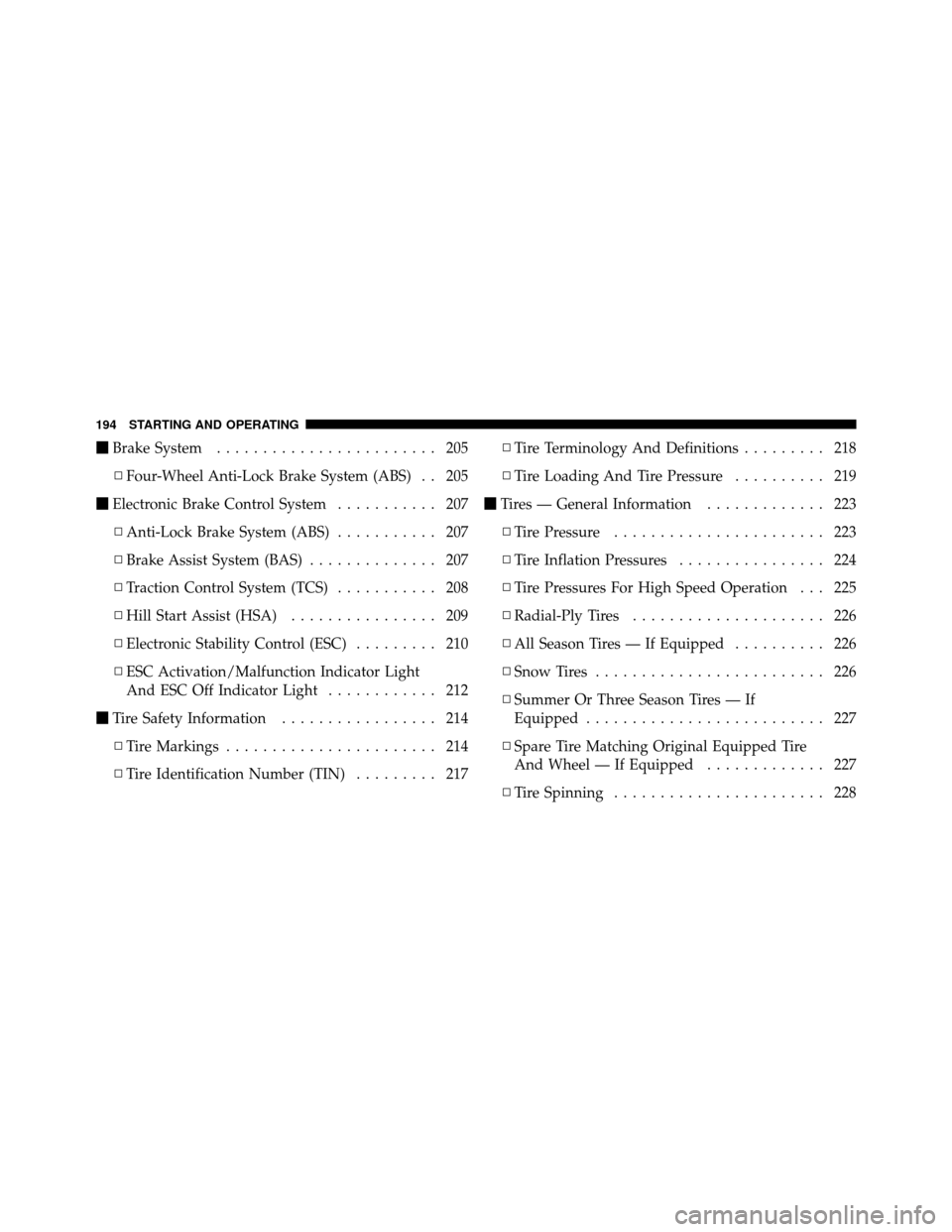

Brake System ........................ 205
▫ Four-Wheel Anti-Lock Brake System (ABS) . . 205
 Electronic Brake Control System ........... 207
▫ Anti-Lock Brake System (ABS) ........... 207
▫ Brake Assist System (BAS) .............. 207
▫ Traction Control System (TCS) ........... 208
▫ Hill Start Assist (HSA) ................ 209
▫ Electronic Stability Control (ESC) ......... 210
▫ ESC Activation/Malfunction Indicator Light
And ESC Off Indicator Light ............ 212
 Tire Safety Information ................. 214
▫ Tire Markings ....................... 214
▫ Tire Identification Number (TIN) ......... 217▫
Tire Terminology And Definitions ......... 218
▫ Tire Loading And Tire Pressure .......... 219
 Tires — General Information ............. 223
▫ Tire Pressure ....................... 223
▫ Tire Inflation Pressures ................ 224
▫ Tire Pressures For High Speed Operation . . . 225
▫ Radial-Ply Tires ..................... 226
▫ All Season Tires — If Equipped .......... 226
▫ Snow Tires ......................... 226
▫ Summer Or Three Season Tires — If
Equipped .......................... 227
▫ Spare Tire Matching Original Equipped Tire
And Wheel — If Equipped ............. 227
▫ Tire Spinning ....................... 228
194 STARTING AND OPERATING

▫Tread Wear Indicators ................. 229
▫ Life Of Tire ........................ 229
▫ Replacement Tires .................... 230
 Tire Chains .......................... 232
 Tire Rotation Recommendations ........... 232
 Tire Pressure Monitoring System (TPMS) ..... 233
▫ Base System ........................ 236
▫ General Information .................. 238
 Fuel Requirements ..................... 238
▫ Reformulated Gasoline ................ 239
▫ Gasoline/Oxygenate Blends ............. 239
▫ E-85 Usage In Non-Flex Fuel Vehicles ...... 240▫
MMT In Gasoline .................... 240
▫ Materials Added To Fuel ............... 241
▫ Fuel System Cautions ................. 241
▫ Carbon Monoxide Warnings ............ 242
 Adding Fuel ......................... 243
▫ Fuel Filler Cap (Gas Cap) .............. 243
▫ Loose Fuel Filler Cap Message ........... 245
 Trailer Towing ........................ 245
 Recreational Towing (Behind
Motorhome, Etc.) ...................... 245
▫ Towing This Vehicle Behind
Another Vehicle ..................... 245
5
STARTING AND OPERATING 195

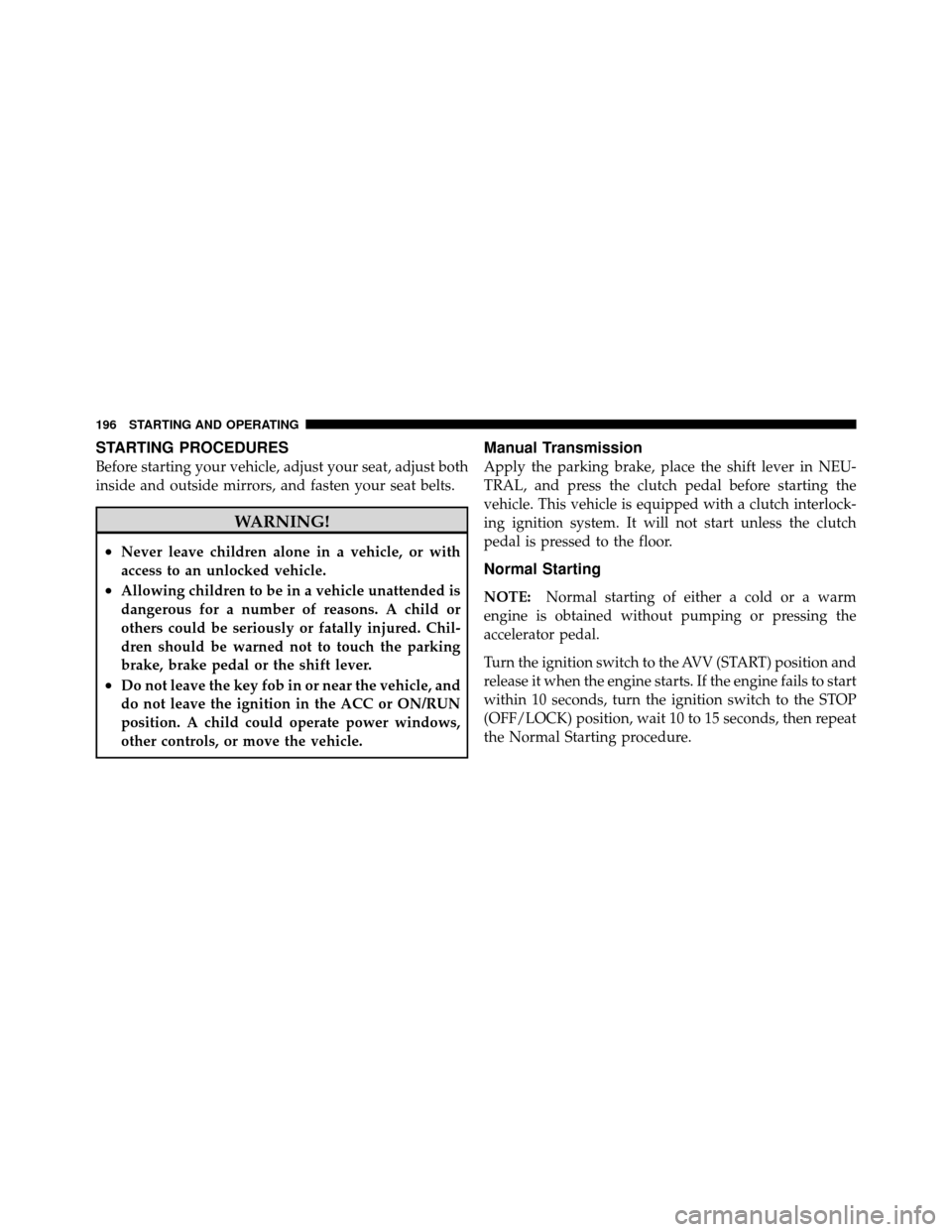

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belts.
WARNING!
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
•Do not leave the key fob in or near the vehicle, and
do not leave the ignition in the ACC or ON/RUN
position. A child could operate power windows,
other controls, or move the vehicle.
Manual Transmission
Apply the parking brake, place the shift lever in NEU-
TRAL, and press the clutch pedal before starting the
vehicle. This vehicle is equipped with a clutch interlock-
ing ignition system. It will not start unless the clutch
pedal is pressed to the floor.
Normal Starting
NOTE:Normal starting of either a cold or a warm
engine is obtained without pumping or pressing the
accelerator pedal.
Turn the ignition switch to the AVV (START) position and
release it when the engine starts. If the engine fails to start
within 10 seconds, turn the ignition switch to the STOP
(OFF/LOCK) position, wait 10 to 15 seconds, then repeat
the Normal Starting procedure.
196 STARTING AND OPERATING

Cold Weather Operation
To prevent possible engine damage while starting at low
temperatures, this vehicle will inhibit engine cranking
when the ambient temperature is less than –22° F (–30° C)
and the oil temperature sensor reading indicates an
engine block heater has not been used. An externally-
powered electric engine block heater is available as
optional equipment or from your authorized dealer.
The messageplug in engine heater will be displayed in
the instrument cluster when the ambient temperature is
below 5° F (–15° C) at the time the engine is shut off as a
reminder to avoid possible crank delays at the next cold
start.CAUTION!
Use of the recommended SAE 5W-40 synthetic en-
gine oil and adhering to the prescribed oil change
intervals is important to prevent engine damage and
ensure satisfactory starting in cold conditions.
Extended Park Starting
NOTE: Extended Park condition occurs when the ve-
hicle has not been started or driven for at least 35 days.
1. Install a battery charger or jumper cables to the battery
to ensure a full battery charge during the crank cycle.
2. Turn the ignition switch to the START position and
release it when the engine starts.5
STARTING AND OPERATING 197

3. If the engine fails to start within 10 seconds, turn the
ignition switch to the STOP (OFF/LOCK) position, wait
10 seconds to allow the starter to cool, then repeat the
Extended Park Starting procedure.
If Engine Fails To Start
WARNING!
Never pour fuel or other flammable liquids into the
throttle body air inlet opening in an attempt to start
the vehicle. This could result in a flash fire causing
serious personal injury.
CAUTION!
•Do not attempt to push or tow your vehicle to get
it started. Unburned fuel could enter the catalytic
converter and once the engine has started, ignite
and damage the converter and vehicle.
•To prevent damage to the starter, do not continu-
ously crank the engine for more than 15 seconds at
a time. Wait 10 to 15 seconds before trying again.
After Starting
The idle speed will automatically decrease as the engine
warms up.
Turbocharger “Cool Down”
This vehicle is equipped with an after-run pump to cool
the turbocharger after the engine is shut off. Depending
on the type of driving and the amount of cargo, the pump
will run for up to 10 minutes after the engine has been
shut off to circulate coolant through the turbocharger.
198 STARTING AND OPERATING
