2012 DODGE CHARGER Owners Manual

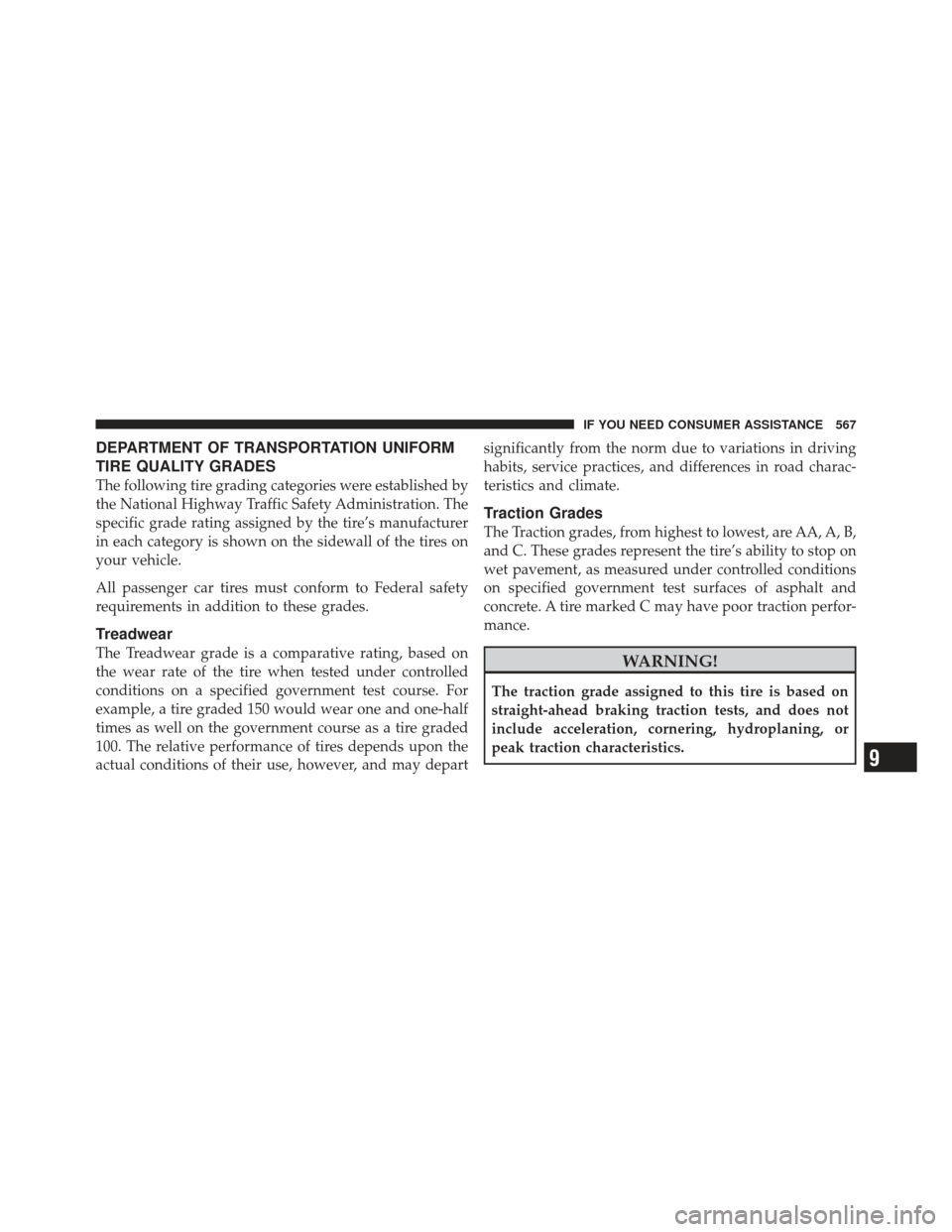

DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES
The following tire grading categories were established by
the National Highway Traffic Safety Administration. The
specific grade rating assigned by the tire’s manufacturer
in each category is shown on the sidewall of the tires on
your vehicle.
All passenger car tires must conform to Federal safety
requirements in addition to these grades.
Treadwear
The Treadwear grade is a comparative rating, based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half
times as well on the government course as a tire graded
100. The relative performance of tires depends upon the
actual conditions of their use, however, and may departsignificantly from the norm due to variations in driving
habits, service practices, and differences in road charac-
teristics and climate.
Traction Grades
The Traction grades, from highest to lowest, are AA, A, B,
and C. These grades represent the tire’s ability to stop on
wet pavement, as measured under controlled conditions
on specified government test surfaces of asphalt and
concrete. A tire marked C may have poor traction perfor-
mance.
WARNING!
The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not
include acceleration, cornering, hydroplaning, or
peak traction characteristics.
9
IF YOU NEED CONSUMER ASSISTANCE 567

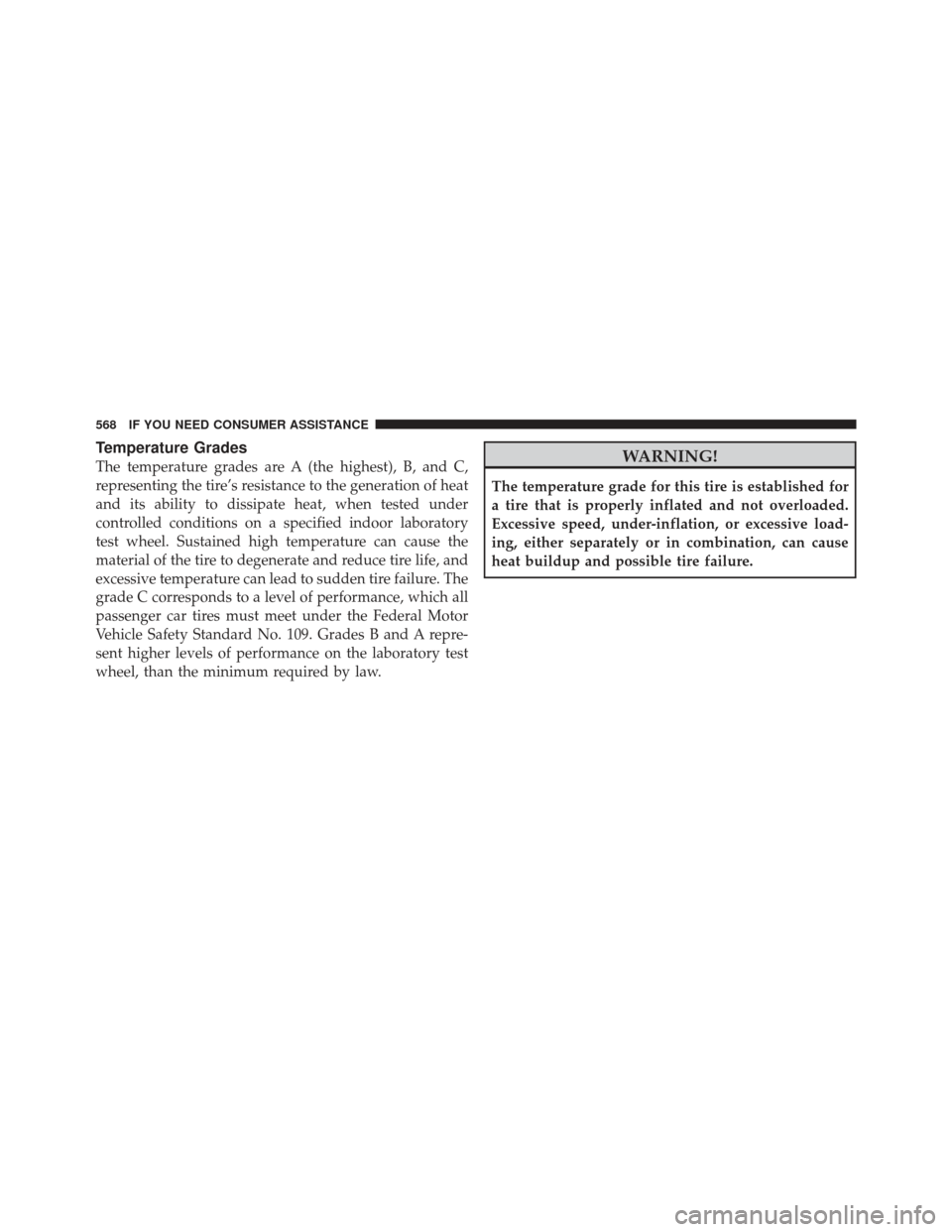

Temperature Grades
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of heat
and its ability to dissipate heat, when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure. The
grade C corresponds to a level of performance, which all
passenger car tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades B and A repre-
sent higher levels of performance on the laboratory test
wheel, than the minimum required by law.WARNING!
The temperature grade for this tire is established for
a tire that is properly inflated and not overloaded.
Excessive speed, under-inflation, or excessive load-
ing, either separately or in combination, can cause
heat buildup and possible tire failure.
568 IF YOU NEED CONSUMER ASSISTANCE

INDEX
10

About Your Brakes....................... 391
ABS (Anti-Lock Brake System) .............. 394
Adaptive Cruise Control (ACC) (Cruise Control) . . 222
Adding Engine Coolant (Antifreeze) .......... 510
Adding Fuel ........................... 444
Adding Washer Fluid ..................... 505
Additives, Fuel ......................... 439
Adjustable Pedals ....................... 217
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 498
Air Conditioner Maintenance ............... 501
Air Conditioning Filter .................356,502
Air Conditioning Refrigerant .............501,502
Air Conditioning System ................354,501
Air Conditioning, Operating Tips ............ 357
Air Pressure, Tires ....................... 414
Airbag .............................. 54,65
Airbag Deployment ....................... 66
Airbag Light ..................... 63,69,83,294
Airbag Maintenance ....................... 68 Airbag, Side
........................ 57,62,65
Airbag, Window (Side Curtain) ...........58,62,65
Alarm (Security Alarm) .................... 17
Alarm Light ........................... 295
Alarm System (Security Alarm) ............... 17
Alarm, Panic ............................ 23
All Wheel Drive (AWD) ................385,518
Alterations/Modifications, Vehicle ............. 7
Anti-Lock Brake System (ABS) ............394,396
Anti-Lock Warning Light .................. 295
Anti-Theft Security Alarm (Theft Alarm) ........ 17
Antifreeze (Engine Coolant) ..............509,538
Disposal ........................... 512
Appearance Care ........................ 519
Arming Theft System (Security Alarm) ......... 17
Assist, Hill Start ........................ 400
Auto Down Power Windows ................ 37
Auto Unlock, Doors ....................... 30
Auto Up Power Windows .................. 37
570 INDEX

Automatic Dimming Mirror................. 94
Automatic Door Locks ..................... 30
Automatic Headlights .................... 200
Automatic Oil Change Indicator ............. 308
Automatic Temperature Control (ATC) ......... 354
Automatic Transaxle Special Additives ..................... 516
Automatic Transmission ...........370,374,516,517
Adding Fluid .................... 517,540
Autostick .......................... 381
Fluid and Filter Changes ............... 517
Fluid Change ....................... 517
Fluid Level Check .................... 517
Fluid Type ......................... 540
Special Additives ..................... 516
Automatic Transmission Limp Home Mode ..... 373
Autostick ............................. 381
Axle Fluid ............................. 540
Axle Lubrication (Axle Fluid) ............... 540B-Pillar Location
........................ 409
Battery ............................... 499
Keyless Transmitter Replacement (RKE) ..... 24
Location ........................... 499
Belts, Seat ............................ 43,83
Body Mechanism Lubrication ............... 504
Brake Assist System ...................... 397
Brake Control System, Electronic ............. 396
Brake Fluid ............................ 540
Brake System ........................... 514
Anti-Lock (ABS) ..................... 394
Fluid Check ..................... 514,540
Master Cylinder ..................... 514
Parking ........................... 391
Warning Light ....................... 296
Brake, Parking .......................... 391
Brake/Transmission Interlock ............... 370
Brakes ............................... 514
Break-In Recommendations, New Vehicle ........ 81
10
INDEX 571

Brightness, Interior Lights.................. 207
Bulb Replacement ..................... 533,534
Bulbs, Light .......................... 85,533
Camera, Rear ........................... 254
Capacities, Fluid ........................ 538
Caps, Filler Oil (Engine) ..................... 496,497
Radiator (Coolant Pressure) ............. 511
Car Washes ............................ 519
Carbon Monoxide Warning ...............82,440
Cargo (Vehicle Loading) ................... 447
Cellular Phone .......................... 345
Certification Label ....................... 447
Chains, Tire ............................ 422
Changing A Flat Tire ..................... 465
Chart, Tire Sizing ........................ 405
Check Engine Light
(Malfunction Indicator Light) .............293,491Checking Your Vehicle For Safety
............. 82
Checks, Safety ........................... 82
Child Restraint .................. 70,72,73,75,79
Child Restraint Tether Anchors .............74,75
Child Safety Locks ........................ 31
Clean Air Gasoline ....................... 437
Cleaning Wheels ............................ 521
Windshield Wiper Blades ............... 504
Climate Control ......................... 346
Coin Holder ........................... 279
Cold Weather Operation ................... 367
Compact Disc (CD) Maintenance ............. 345
Compact Spare Tire ...................... 417
Computer, Trip/Travel .................... 311
Connector UCI .............................. 341
Universal Consumer Interface (UCI) ....... 341
Conserving Fuel ........................ 310
572 INDEX

Console, Floor.......................... 279
Console, Overhead ....................... 256
Contract, Service ........................ 563
Coolant Pressure Cap (Radiator Cap) .......... 511
Cooling System ......................... 508
Adding Coolant (Antifreeze) ............. 510
Coolant Capacity ..................... 538
Coolant Level .................... 509,512
Disposal of Used Coolant ............... 512
Drain, Flush, and Refill ................ 509
Inspection .......................... 512
Points to Remember .................. 513
Pressure Cap ........................ 511
Radiator Cap ........................ 511
Selection of Coolant (Antifreeze) ....509,538,539
Corrosion Protection ..................... 519
Cruise Control (Speed Control) .............. 222
Cupholders ......................... 275,524
Customer Assistance ..................... 561 Data Recorder, Event
...................... 69
Daytime Brightness, Interior Lights ........... 209
Daytime Running Lights ................... 202
Dealer Service .......................... 493
Deck Lid, Emergency Release ................ 41
Deck Lid, Power Release ................... 39
Defroster, Rear Window ................... 282
Defroster, Windshield ................... 84,352
Delay (Intermittent) Wipers ................. 210
Diagnostic System, Onboard ................ 491
Dimmer Switch, Headlight ................. 205
Dipsticks Oil (Engine) ........................ 495
Disabled Vehicle Towing ................... 484
Disposal Antifreeze (Engine Coolant) ............. 512
Engine Oil ......................... 498
Door Locks ............................. 28
Door Locks, Automatic .................... 30
10
INDEX 573

Door Opener, Garage..................... 258
Driving On Slippery Surfaces .................. 386
Through Flowing, Rising, or Shallow
Standing Water ...................... 387
Driving to Achieve Maximum Fuel Economy .... 310
E-85 Fuel ............................. 440
Electric Rear Window Defrost ............... 282
Electric Remote Mirrors .................... 97
Electrical Power Outlets ................... 270
Electronic Brake Control System ............. 396
Anti-Lock Brake System ................ 396
Brake Assist System ................... 397
Traction Control System ................ 396
Electronic Power Distribution Center (Fuses) .... 524
Electronic Speed Control (Cruise Control) ....218,222
Electronic Stability Control (ESC) ............. 398Electronic Vehicle Information Center
(EVIC)
............................. 254,300
Emergency Deck Lid Release ................ 41
Emergency Trunk Release ................... 41
Emergency, In Case of Freeing Vehicle When Stuck ............. 479
Hazard Warning Flasher ............... 464
Jacking ............................ 465
Jump Starting ....................... 475
Overheating ........................ 464
Towing ............................ 484
Emission Control System Maintenance ......... 491
Engine ............................... 490
Air Cleaner ......................... 498
Block Heater ........................ 368
Break-In Recommendations .............. 81
Checking Oil Level ................... 495
Compartment .................... 489,490
Compartment Identification ............. 489
574 INDEX
