2012 DODGE CHARGER jacking

WHAT TO DO IN EMERGENCIES
CONTENTS
Hazard Warning Flashers ................ 464
 If Your Engine Overheats ................ 464
 Jacking And Tire Changing ............... 465
▫ Jack Location/Spare Tire Stowage ........ 466
▫ Preparations For Jacking ............... 468
▫ Jacking And Changing A Tire ............ 469
▫ Road Tire Installation ................. 474
 Jump-Starting Procedures ................ 475
▫ Preparations For Jump-Start ............. 475▫
Jump-Starting Procedure ............... 477
 Freeing A Stuck Vehicle ................. 479
 Shift Lever Override —
5 Speed Transmission ................... 480
 Manual Park Release — 8 Speed Transmission
(3.6L Engine) ......................... 481
 Towing A Disabled Vehicle ............... 484
▫ Without The Ignition Key .............. 486
6

CAUTION!
Driving with a hot cooling system could damage
your vehicle. If the temperature gauge reads “H,”
pull over and stop the vehicle. Idle the vehicle with
the air conditioner turned off until the pointer drops
back into the normal range. If the pointer remains on
the “H,” turn the engine off immediately and call for
service.
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.
JACKING AND TIRE CHANGING
WARNING!
•Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
•Being under a jacked-up vehicle is dangerous. The
vehicle could slip off the jack and fall on you. You
could be crushed. Never put any part of your body
under a vehicle that is on a jack. If you need to get
under a raised vehicle, take it to a service center
where it can be raised on a lift.
•Never start or run the engine while the vehicle is
on a jack.(Continued)
6
WHAT TO DO IN EMERGENCIES 465

WARNING!
•A loose tire or jack thrown forward in a collision
or hard stop could endanger the occupants of the
vehicle. Always stow the jack parts and the spare
tire in the places provided.
•Have the deflated (flat) tire repaired or replaced
immediately.
Preparations For Jacking
1. Park the vehicle on a firm, level surface as far from the
edge of the roadway as possible. Avoid icy or slippery
areas.
WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic, pull far enough off
the road to avoid being hit when operating the jack
or changing the wheel.
2. Turn on the Hazard Warning flasher.
3. Set the parking brake.
4. Place the shift lever into PARK.
5. Turn OFF the ignition. 6. Block the front and rear of the
wheel diagonally opposite of the jack-
ing position. For example, if changing
the right front tire, block the left rear
wheel.
468 WHAT TO DO IN EMERGENCIES

NOTE:Passengers should not remain in the vehicle
when the vehicle is being jacked.
Jacking And Changing A Tire
WARNING!
Carefully follow these tire changing warnings to
help prevent personal injury or damage to your
vehicle:
•Always park on a firm, level surface as far from
the edge of the roadway as possible before raising
the vehicle.
•Turn on the Hazard Warning flasher.
•Block the wheel diagonally opposite the wheel to
be raised.
•Set the parking brake firmly and set an automatic
transmission in PARK; a manual transmission in
REVERSE.
(Continued)
WARNING! (Continued)
•Never start or run the engine with the vehicle on a
jack.
•Do not let anyone sit in the vehicle when it is on a
jack.
•Do not get under the vehicle when it is on a jack.
•Only use the jack in the positions indicated and
for lifting this vehicle during a tire change.
•If working on or near a roadway, be extremely
careful of motor traffic.
Jack Warning Label
6
WHAT TO DO IN EMERGENCIES 469

CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated in the Jacking
Instructions for this vehicle.1. Remove the spare tire, jack, and lug wrench.
2. If equipped with aluminum wheels where the center
cap covers the lug nuts, use the lug wrench to pry the
center cap off carefully before raising the vehicle.
3. Before raising the vehicle, use the lug wrench to
loosen, but not remove, the lug nuts on the wheel with
the flat tire. Turn the lug nuts counterclockwise one turn
while the wheel is still on the ground.
4. Place the jack underneath the lift area that is closest to
the flat tire. Turn the jack screw clockwise to firmly
engage the jack saddle with the lift area of the sill flange.
Jacking Locations
470 WHAT TO DO IN EMERGENCIES

5. Raise the vehicle just enough to remove the flat tire
and install the spare tire.
Front Jacking LocationRear Jacking Location6
WHAT TO DO IN EMERGENCIES 471

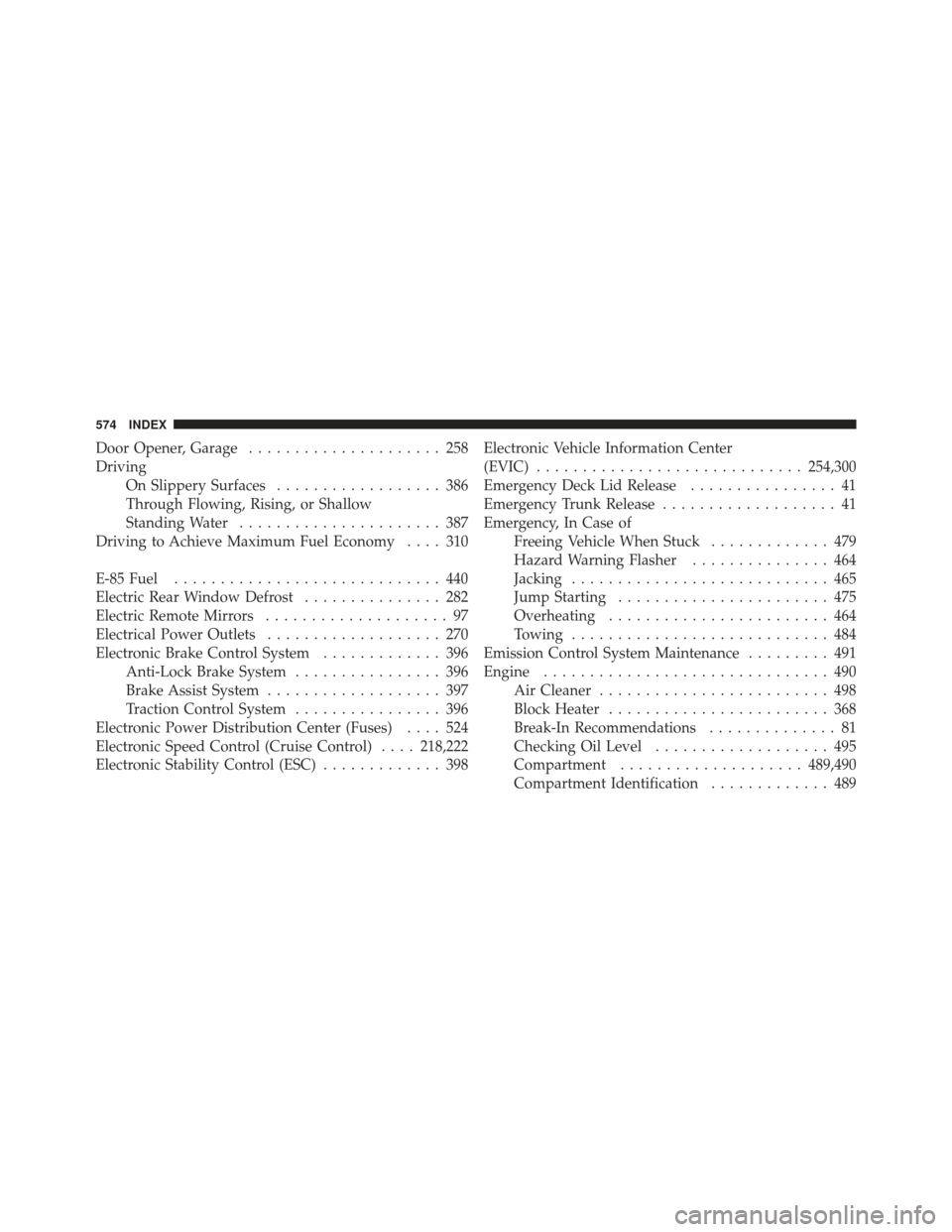

Door Opener, Garage..................... 258
Driving On Slippery Surfaces .................. 386
Through Flowing, Rising, or Shallow
Standing Water ...................... 387
Driving to Achieve Maximum Fuel Economy .... 310
E-85 Fuel ............................. 440
Electric Rear Window Defrost ............... 282
Electric Remote Mirrors .................... 97
Electrical Power Outlets ................... 270
Electronic Brake Control System ............. 396
Anti-Lock Brake System ................ 396
Brake Assist System ................... 397
Traction Control System ................ 396
Electronic Power Distribution Center (Fuses) .... 524
Electronic Speed Control (Cruise Control) ....218,222
Electronic Stability Control (ESC) ............. 398Electronic Vehicle Information Center
(EVIC)
............................. 254,300
Emergency Deck Lid Release ................ 41
Emergency Trunk Release ................... 41
Emergency, In Case of Freeing Vehicle When Stuck ............. 479
Hazard Warning Flasher ............... 464
Jacking ............................ 465
Jump Starting ....................... 475
Overheating ........................ 464
Towing ............................ 484
Emission Control System Maintenance ......... 491
Engine ............................... 490
Air Cleaner ......................... 498
Block Heater ........................ 368
Break-In Recommendations .............. 81
Checking Oil Level ................... 495
Compartment .................... 489,490
Compartment Identification ............. 489
574 INDEX

Jacking Instructions...................... 469
Jump Starting .......................... 475
Key-In Reminder ......................... 14
Key, Programming ........................ 17
Key, Replacement ........................ 16
Key, Sentry (Immobilizer) ................... 15
Keyless Enter-N-Go .................... 32,365
Keyless Entry System ...................... 20
Keyless Go ............................. 12
Keys ................................. 12
Kicker Sound System ..................... 342
Knee Bolster ............................ 54
Lane Change and Turn Signals .............. 204
Lane Change Assist ...................... 205
Lap/Shoulder Belts ....................... 43
LATCH
(Lower Anchors and Tether for CHildren) .....74,75 Latch Plate
............................. 44
Latches ................................ 85
Hood ............................. 198
Lead Free Gasoline ...................... 436
Leaks, Fluid ............................ 85
Life of Tires ............................ 420
Light Bulbs .......................... 85,533
Lights .............................. 85,199
Airbag ...................... 63,69,83,294
Alarm ............................ 295
Anti-Lock .......................... 295
Automatic Headlights ................. 200
Brake Assist Warning .................. 402
Brake Warning ...................... 296
Bulb Replacement ................. 533,534
Daytime Running .................... 202
Dimmer Switch, Headlight ...........204,205
Electronic Stability Program (ESP) Indicator . . 402
Exterior ............................ 85
10
INDEX 579
