2012 DODGE CHARGER wiper fluid

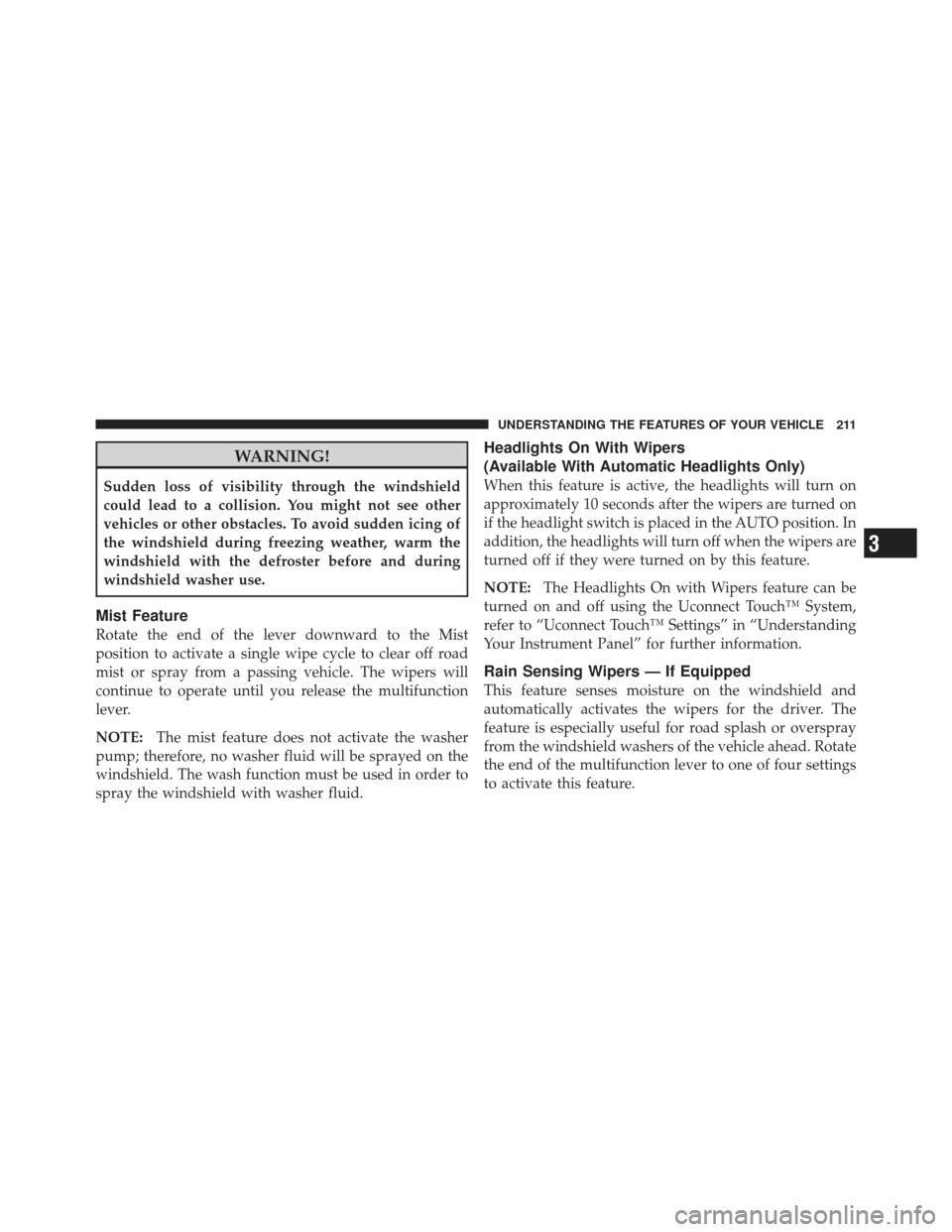

WARNING!
Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
Mist Feature
Rotate the end of the lever downward to the Mist
position to activate a single wipe cycle to clear off road
mist or spray from a passing vehicle. The wipers will
continue to operate until you release the multifunction
lever.
NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
Headlights On With Wipers
(Available With Automatic Headlights Only)
When this feature is active, the headlights will turn on
approximately 10 seconds after the wipers are turned on
if the headlight switch is placed in the AUTO position. In
addition, the headlights will turn off when the wipers are
turned off if they were turned on by this feature.
NOTE: The Headlights On with Wipers feature can be
turned on and off using the Uconnect Touch™ System,
refer to “Uconnect Touch™ Settings” in “Understanding
Your Instrument Panel” for further information.
Rain Sensing Wipers — If Equipped
This feature senses moisture on the windshield and
automatically activates the wipers for the driver. The
feature is especially useful for road splash or overspray
from the windshield washers of the vehicle ahead. Rotate
the end of the multifunction lever to one of four settings
to activate this feature.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 211

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 3.6L ............. 489
 Engine Compartment — 5.7L ............. 490
 Onboard Diagnostic System — OBD II ...... 491
 Emissions Inspection And Maintenance
Programs ............................ 491
 Replacement Parts ..................... 493
 Dealer Service ........................ 493
 Maintenance Procedures ................. 494
▫ Engine Oil ......................... 495 ▫
Engine Oil Filter ..................... 498
▫ Engine Air Cleaner Filter ............... 498
▫ Maintenance-Free Battery .............. 499
▫ Air Conditioner Maintenance ............ 501
▫ A/C Air Filter ...................... 502
▫ Body Lubrication .................... 504
▫ Windshield Wiper Blades ............... 504
▫ Adding Washer Fluid ................. 505
▫ Exhaust System ..................... 506
7

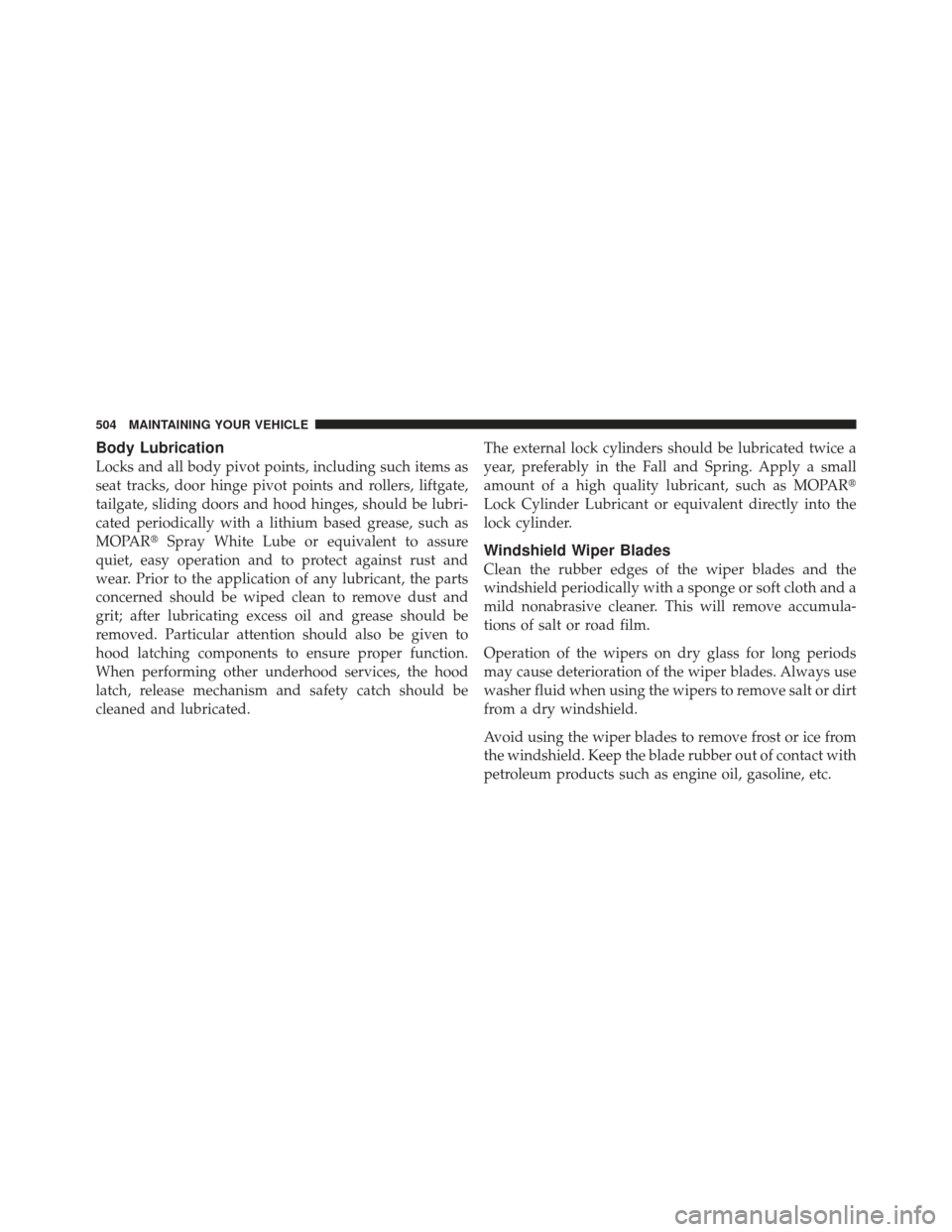

Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, sliding doors and hood hinges, should be lubri-
cated periodically with a lithium based grease, such as
MOPARSpray White Lube or equivalent to assure
quiet, easy operation and to protect against rust and
wear. Prior to the application of any lubricant, the parts
concerned should be wiped clean to remove dust and
grit; after lubricating excess oil and grease should be
removed. Particular attention should also be given to
hood latching components to ensure proper function.
When performing other underhood services, the hood
latch, release mechanism and safety catch should be
cleaned and lubricated. The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR
Lock Cylinder Lubricant or equivalent directly into the
lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
504 MAINTAINING YOUR VEHICLE

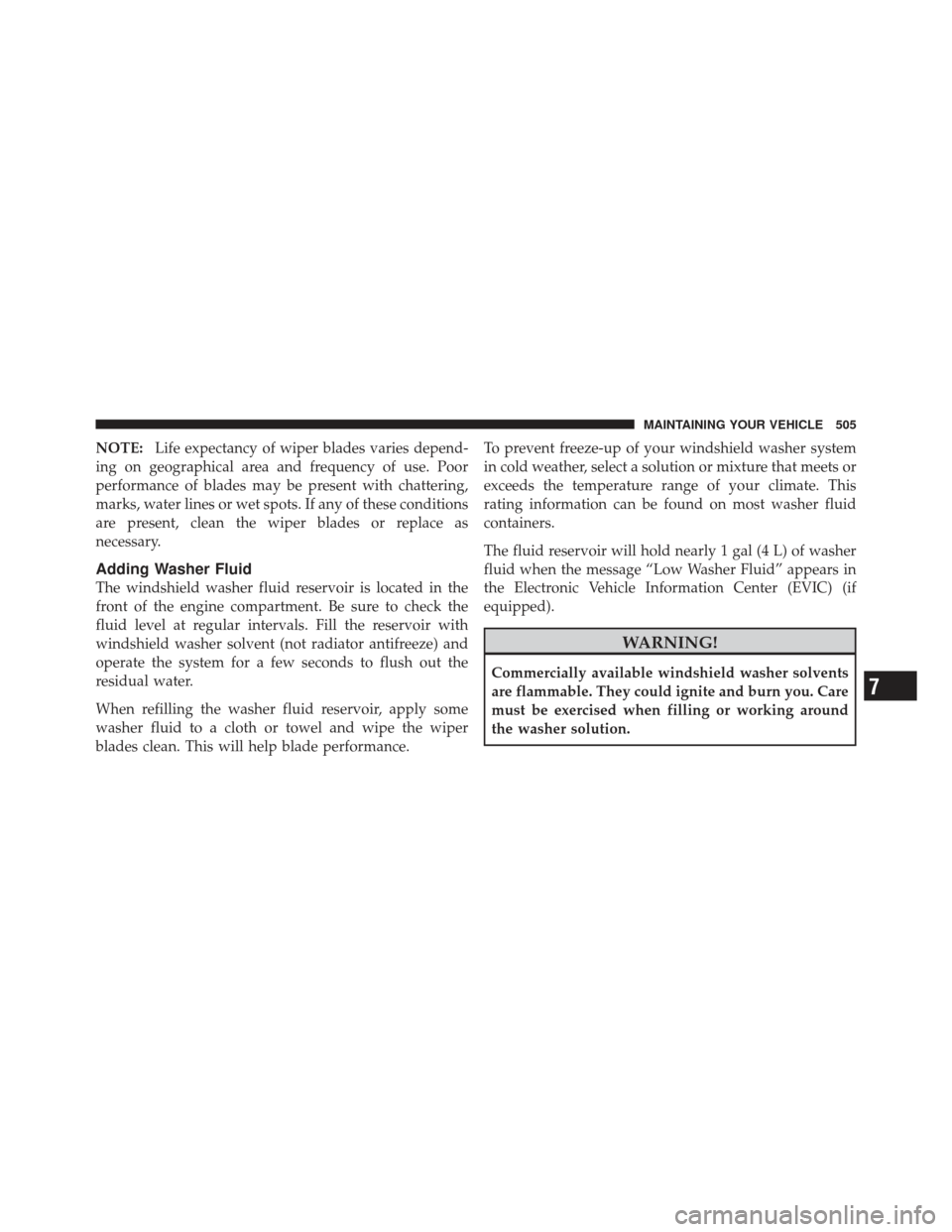

NOTE:Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any of these conditions
are present, clean the wiper blades or replace as
necessary.
Adding Washer Fluid
The windshield washer fluid reservoir is located in the
front of the engine compartment. Be sure to check the
fluid level at regular intervals. Fill the reservoir with
windshield washer solvent (not radiator antifreeze) and
operate the system for a few seconds to flush out the
residual water.
When refilling the washer fluid reservoir, apply some
washer fluid to a cloth or towel and wipe the wiper
blades clean. This will help blade performance. To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.
The fluid reservoir will hold nearly 1 gal (4 L) of washer
fluid when the message “Low Washer Fluid” appears in
the Electronic Vehicle Information Center (EVIC) (if
equipped).
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around
the washer solution.
7
MAINTAINING YOUR VEHICLE 505

Brightness, Interior Lights.................. 207
Bulb Replacement ..................... 533,534
Bulbs, Light .......................... 85,533
Camera, Rear ........................... 254
Capacities, Fluid ........................ 538
Caps, Filler Oil (Engine) ..................... 496,497
Radiator (Coolant Pressure) ............. 511
Car Washes ............................ 519
Carbon Monoxide Warning ...............82,440
Cargo (Vehicle Loading) ................... 447
Cellular Phone .......................... 345
Certification Label ....................... 447
Chains, Tire ............................ 422
Changing A Flat Tire ..................... 465
Chart, Tire Sizing ........................ 405
Check Engine Light
(Malfunction Indicator Light) .............293,491Checking Your Vehicle For Safety
............. 82
Checks, Safety ........................... 82
Child Restraint .................. 70,72,73,75,79
Child Restraint Tether Anchors .............74,75
Child Safety Locks ........................ 31
Clean Air Gasoline ....................... 437
Cleaning Wheels ............................ 521
Windshield Wiper Blades ............... 504
Climate Control ......................... 346
Coin Holder ........................... 279
Cold Weather Operation ................... 367
Compact Disc (CD) Maintenance ............. 345
Compact Spare Tire ...................... 417
Computer, Trip/Travel .................... 311
Connector UCI .............................. 341
Universal Consumer Interface (UCI) ....... 341
Conserving Fuel ........................ 310
572 INDEX

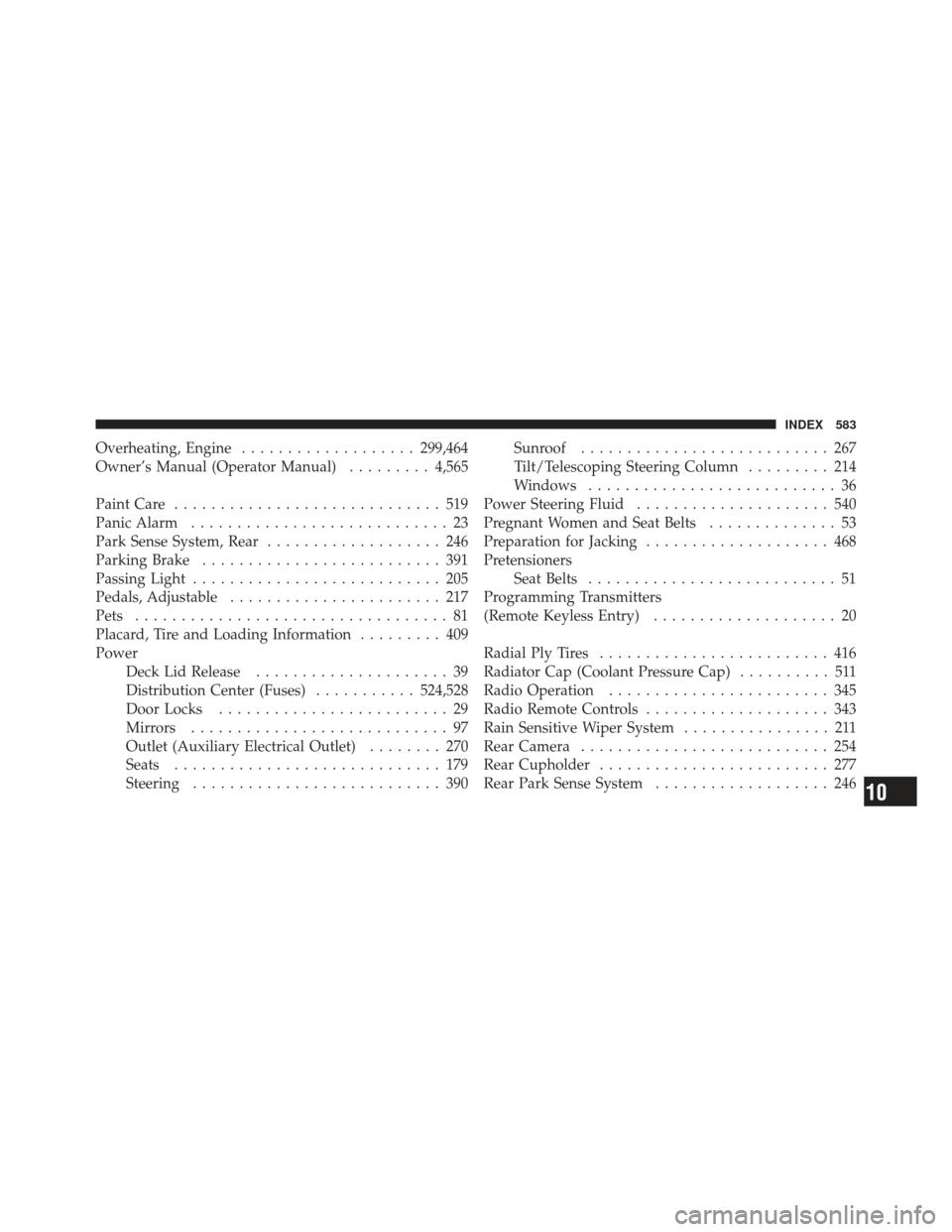

Overheating, Engine................... 299,464
Owner’s Manual (Operator Manual) .........4,565
Paint Care ............................. 519
Panic Alarm ............................ 23
Park Sense System, Rear ................... 246
Parking Brake .......................... 391
Passing Light ........................... 205
Pedals, Adjustable ....................... 217
Pets .................................. 81
Placard, Tire and Loading Information ......... 409
Power Deck Lid Release ..................... 39
Distribution Center (Fuses) ...........524,528
Door Locks ......................... 29
Mirrors ............................ 97
Outlet (Auxiliary Electrical Outlet) ........ 270
Seats ............................. 179
Steering ........................... 390 Sunroof
........................... 267
Tilt/Telescoping Steering Column ......... 214
Windows ........................... 36
Power Steering Fluid ..................... 540
Pregnant Women and Seat Belts .............. 53
Preparation for Jacking .................... 468
Pretensioners Seat Belts ........................... 51
Programming Transmitters
(Remote Keyless Entry) .................... 20
Radial Ply Tires ......................... 416
Radiator Cap (Coolant Pressure Cap) .......... 511
Radio Operation ........................ 345
Radio Remote Controls .................... 343
Rain Sensitive Wiper System ................ 211
Rear Camera ........................... 254
Rear Cupholder ......................... 277
Rear Park Sense System ................... 246
10
INDEX 583

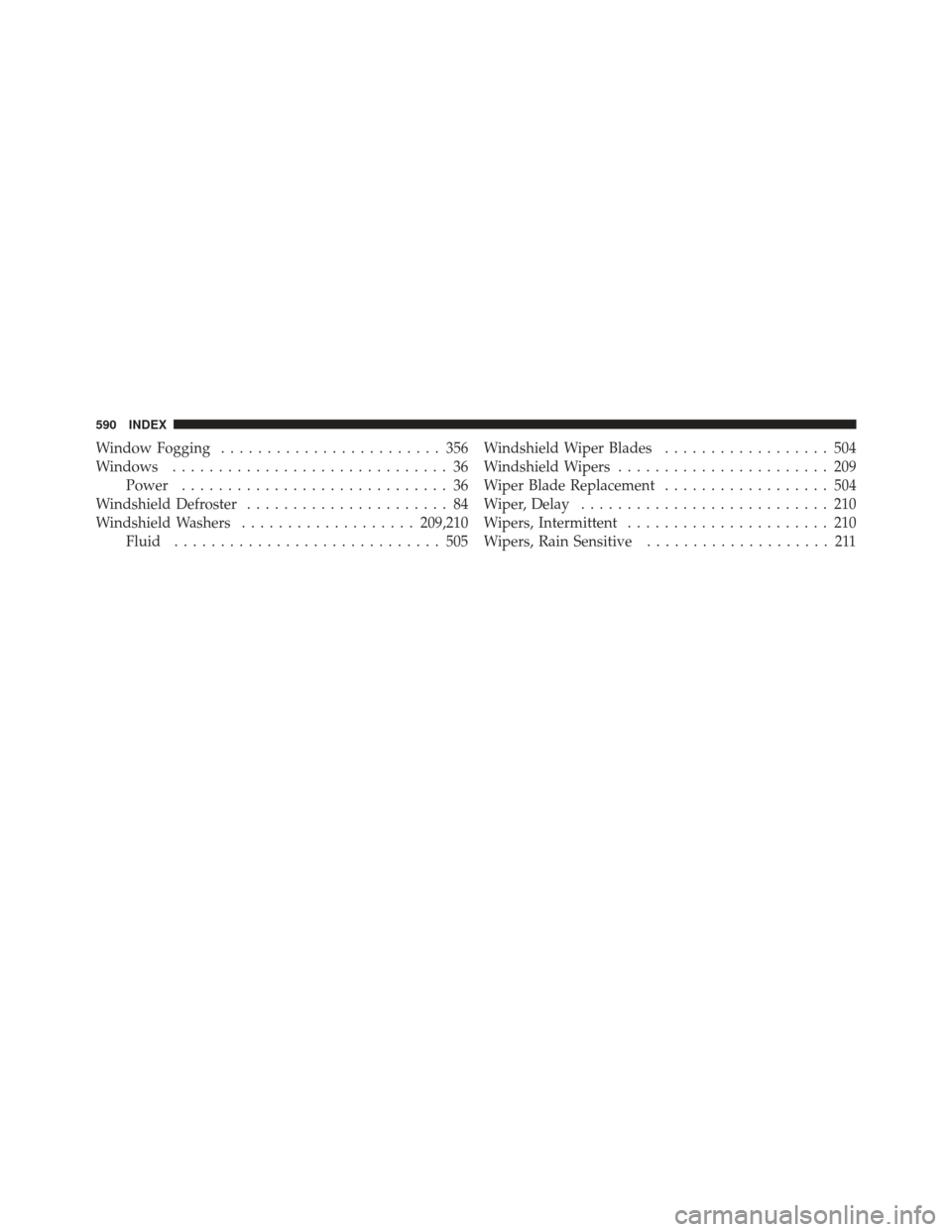

Window Fogging........................ 356
Windows .............................. 36
Power ............................. 36
Windshield Defroster ...................... 84
Windshield Washers ................... 209,210
Fluid ............................. 505 Windshield Wiper Blades
.................. 504
Windshield Wipers ....................... 209
Wiper Blade Replacement .................. 504
Wiper, Delay ........................... 210
Wipers, Intermittent ...................... 210
Wipers, Rain Sensitive .................... 211
590 INDEX
