Passenger compartment storage space and fittings
PASSENGER COMPARTMENT STORAGE/FITTINGS (1/4)
Glove box
If fitted on the vehicle, pull paddle 1 to
open.
Storage compartment 2
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
1
2

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
3.13
ENG_UD24446_1
Rangements / Aménagements (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3
PASSENGER COMPARTMENT STORAGE/FITTINGS (2/4)
Dashboard storage
compartment 3
If the storage compartment has a cover,
lift to open.
You should avoid keeping liquids in this
compartment (if a liquid leaks there is a
risk of seepage).
Storage compartment A
Pass a hand in location 4 and pull to
open the storage compartment A.
3
5
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
Door storage compartment 5
4
A

Downloaded from www.Manualslib.com manuals search engine 3.14
ENG_UD24446_1
Rangements / Aménagements (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3
Jaune NoirNoir texte
PASSENGER COMPARTMENT STORAGE/FITTINGS (3/4)
6
Sunglasses holder 6Front seat storage pockets 7
7

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
3.15
ENG_UD24446_1
Rangements / Aménagements (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3
PASSENGER COMPARTMENT STORAGE/FITTINGS (4/4)
Storage compartment 8
6
11
Storage compartment 12
12
10
9
8
Cup holder 9, 10 and 11

Downloaded from www.Manualslib.com manuals search engine cigar lighter ........................................... (up to the end of the DU)
ashtrays ................................................ (up to the end of the DU)
accessories socket ............................... (up to the end of the DU)
3.16
ENG_UD24445_1
Cendriers, Allume-cigares, Prise d’accessoires (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3
Ashtrays, Cigarette lighter, Accessories socket
ASHTRAY/CIGARETTE LIGHTER/ACCESSORIES SOCKET
Cigarette lighter or
accessories socket 3
With the ignition on, push in the ciga -
rette lighter 3. It will spring back with a
click when it is ready. Pull it out to use.
After use, replace it without pushing it
all the way in.
1
2
3
6
Ashtray 1
This may be in location 2, 4 or 6.
Lift the cover to open.
To empty, pull the ashtray towards you
and it will be released from its housing.
4
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an approved
Dealer.
Accessories socket 5
It is provided for connecting acces -
sories approved by our Technical
Department with a maximum power of
120 Watts (12V).
C o n n e c t a c c e s s o r i e s
with a maximum power of
120 Watts only.
Fire hazard.
5

Downloaded from www.Manualslib.com manuals search engine headrest................................................ (up to the end of the DU)
adjusting your driving position .............. (up to the end of the DU)
3.17
ENG_UD28017_3
Appuis-tête arrière (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3
Rear headrests

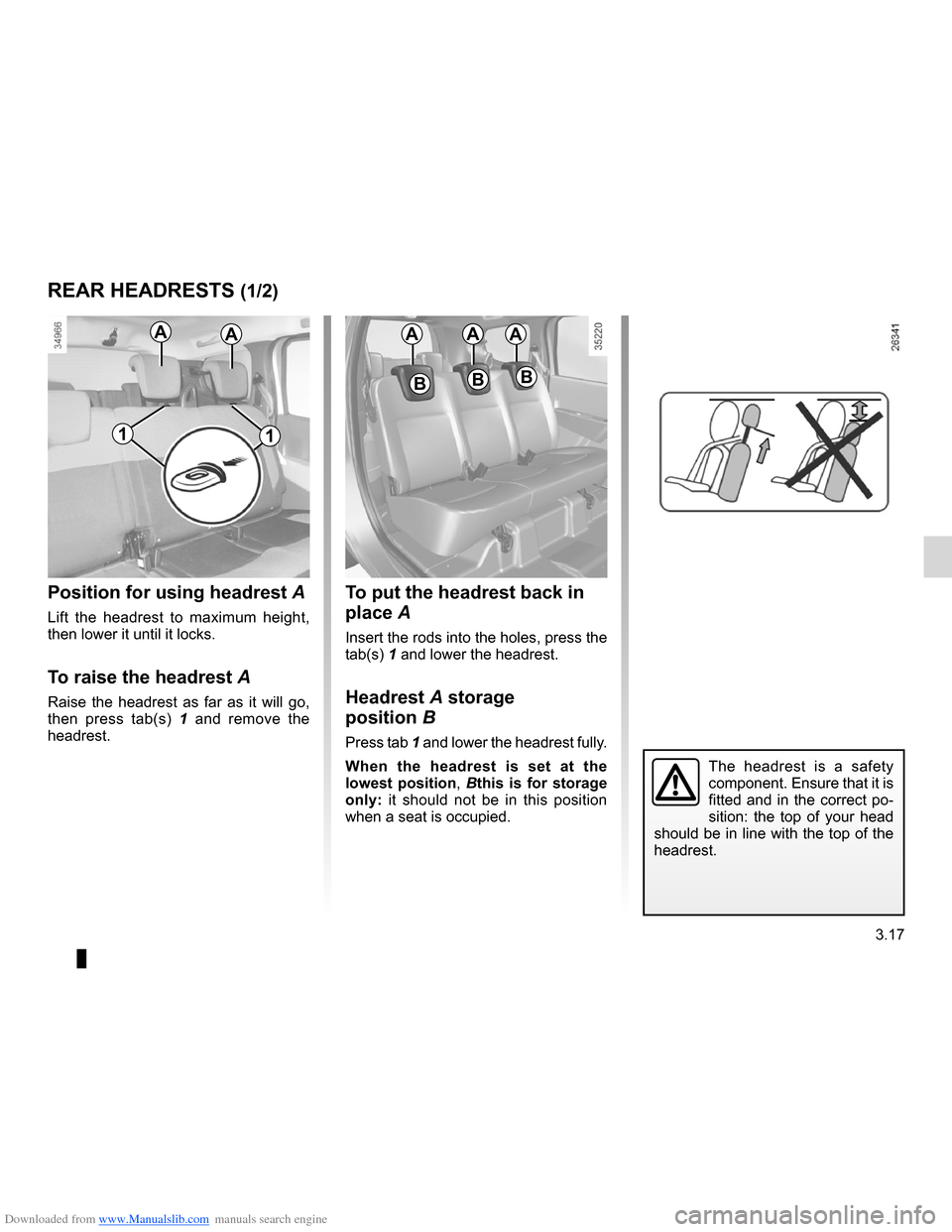

REAR HEADRESTS (1/2)
Position for using headrest A
Lift the headrest to maximum height,
then lower it until it locks.
To raise the headrest A
Raise the headrest as far as it will go,
then press tab(s) 1 and remove the
headrest.
The headrest is a safety
component. Ensure that it is
fitted and in the correct po-
sition: the top of your head
should be in line with the top of the
headrest.
11
To put the headrest back in
place A
Insert the rods into the holes, press the
tab(s) 1 and lower the headrest.
Headrest A storage
position B
Press tab 1 and lower the headrest fully.
When the headrest is set at the
lowest position , Bthis is for storage
only: it should not be in this position
when a seat is occupied.
AAA
BBB
AA

Downloaded from www.Manualslib.com manuals search engine 3.18
ENG_UD28017_3
Appuis-tête arrière (X92 - Renault)
ENG_NU_975-3_X92_Dacia_3
To adjust the height of the
headrest C
(depending on vehicle)
Press lock tab 2 and simultaneously
slide the headrest to the required po -
sition.
To raise the headrest C
Press lock tab 2 and remove the head -
rest.
To put the headrest back in
place C
Insert the rods into the holes, press lock
tab 2 and lower the headrest.
The headrest is a safety
component. Ensure that it is
fitted and in the correct po-
sition: the top of your head
should be in line with the top of the
headrest.
REAR HEADRESTS (2/2)
C
2

Downloaded from www.Manualslib.com manuals search engine rear bench seat..................................... (up to the end of the DU)
rear seats functions ......................................... (up to the end of the DU)
3.19
ENG_UD26885_2
Sièges arrière de deuxième rangée: fonctionnalité (X92 -\
Renault)
ENG_NU_975-3_X92_Dacia_3
Rear seats:
second row
REAR SEAT FUNCTIONS: second row (1/3)
Fixed rear bench seat
To fold down the seatback
– Bring the front seats forward;
– insert the rear seatbelt buckle in
housing 1;
– Lower door handle 2;
– lower the seatback onto the seat
base;
– adjust the front seats. To reposition the seatback
–
Raise the seatbacks;
– make sure you lock the seat back in
place.
When moving the rear
seats, check that the an -
choring points are clean
(they must be free from grit,
cloths, toys, etc.)
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
2
1
