Front seats
FRONT SEATS
To move forwards or
backwards
Lift bar 1 to release.
Release the bar 1 once the seat is in
the correct position and ensure that the
seat is fully locked into place.
To raise or lower the driver’s
seat surface
Depending on the vehicle, lift lever 2 ,
adjust the seat base to the desired
height, then release the lever.
To tilt the seatback
Turn control knob 4 and tilt the seat -
back to the desired position.
Heated seats
Depending on the vehicle, with the igni -
tion on, press switch 3.
The system, which has a thermostat,
decides whether or not the heating is
needed.
To exit this function, press switch 3
again.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
We would advise you not to recline
the seatbacks too far to ensure that
the effectiveness of the seat belts is
not reduced.
Make sure that the seatbacks are
correctly locked in place.
Nothing should be placed on the
floor (area in front of driver) as such
objects may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
13
4
2

Downloaded from www.Manualslib.com manuals search engine adjusting your driving position .............. (up to the end of the DU)
seat belts .............................................. (up to the end of the DU)
1.12
ENG_UD24405_1
Ceintures de sécurité (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Jaune NoirNoir texte
Seat belts
SEAT BELTS (1/5)
Always wear your seat belt when trav-
elling in your vehicle. You must also
comply with the legislation of the par -
ticular country you are in.
I n c o r r e c t l y a d j u s t e d o r
twisted seat belts may
cause injuries in the event
of an accident.
Use one seat belt per person,
whether child or adult.
Even pregnant women should wear
a seat belt. In this case, ensure that
the lap belt is not exerting too much
pressure on the abdomen, but do
not allow any slack.
Before starting, first adjust your driv-
ing position, then ask all occupants
to adjust their seat belts to ensure
optimum protection.
Adjusting your driving position
(depending on the vehicle)
– Sit well back in your seat (having
removed your coat or jacket etc.).
This is essential to ensure your back
is positioned correctly;
– adjust the distance between the
seat and the pedals. Your seat
should be as far back as possible
while still allowing you to depress
the clutch pedal fully. The seatback
should be adjusted so that your arms
are slightly bent when you hold the
steering wheel;
– adjust the position of your head -
rest. For the maximum safety, your
head must be as close as possible to
the headrest;
– adjust the height of the seat. This
adjustment allows you to select the
seat position which offers you the
best possible view;
– adjust the position of the steering
wheel.
Adjusting the seat belts
Sit with your back firmly against the
seatback.
The shoulder strap 1 should be as close
as possible to the base of the neck but
not on it.
Lap belt 2 must be worn flat over the
thighs and against the pelvis. The seat
belt must be worn as close to the body
as possible. i.e.: avoid wearing heavy
clothing or keeping bulky objects under
the belts, etc.
1
2
Make sure that the rear bench seat
is securely locked in position so that
the rear seat belts will operate effi -
ciently. Refer to information in the
paragraph on “Second row rear
seats: functions” and “Third row rear
seats: functions” in Section 3.

Downloaded from www.Manualslib.com manuals search engine 1.14
ENG_UD24405_1
Ceintures de sécurité (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Jaune NoirNoir texte
SEAT BELTS (3/5)
Second row rear seats
Rear side seat belts
Slowly unwind belt 7 and click buckle 8
into red catch 9. Centre seat belt
Unwind belt
15 slowly from its hous -
ing 10.
Pass the two buckles and the belt 15 in
the belt guide 11.
Click the smallest buckle into the catch
with the black locking button 12.
Fasten the largest buckle and slide 14
in the catch with the red unlocking
button 13.
Check that the rear seat
belts are positioned and op-
erating correctly each time
the rear seats are moved.Operating the rear seats. Please
see the information in the para -
graphs on “Second row rear seats:
functions” and “Third row rear seats:
functions” in Section 3.
7
8
9
15
1011
1213
14

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
1.15
ENG_UD24405_1
Ceintures de sécurité (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
SEAT BELTS (4/5)
When handling, the third row rear
seat belt strap 16 must always
be fastened to hook A to prevent
damage to the strap or luggage
compartment cover (if fitted to the
vehicle).
Check that the rear seat
belts are positioned and op-
erating correctly each time
the rear seats are moved.
Operating the rear seats. Please
see the information in the para -
graphs on “Second row rear seats:
functions” and “Third row rear seats:
functions” in Section 3.
A
16
17
18
Third row rear seats
Remove strap 16 from hook A. Slowly
unwind the strap 16.
Fasten the buckle 17 into the corre -
sponding catch with the red unlocking
button 18.

Downloaded from www.Manualslib.com manuals search engine 1.16
ENG_UD24405_1
Ceintures de sécurité (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1

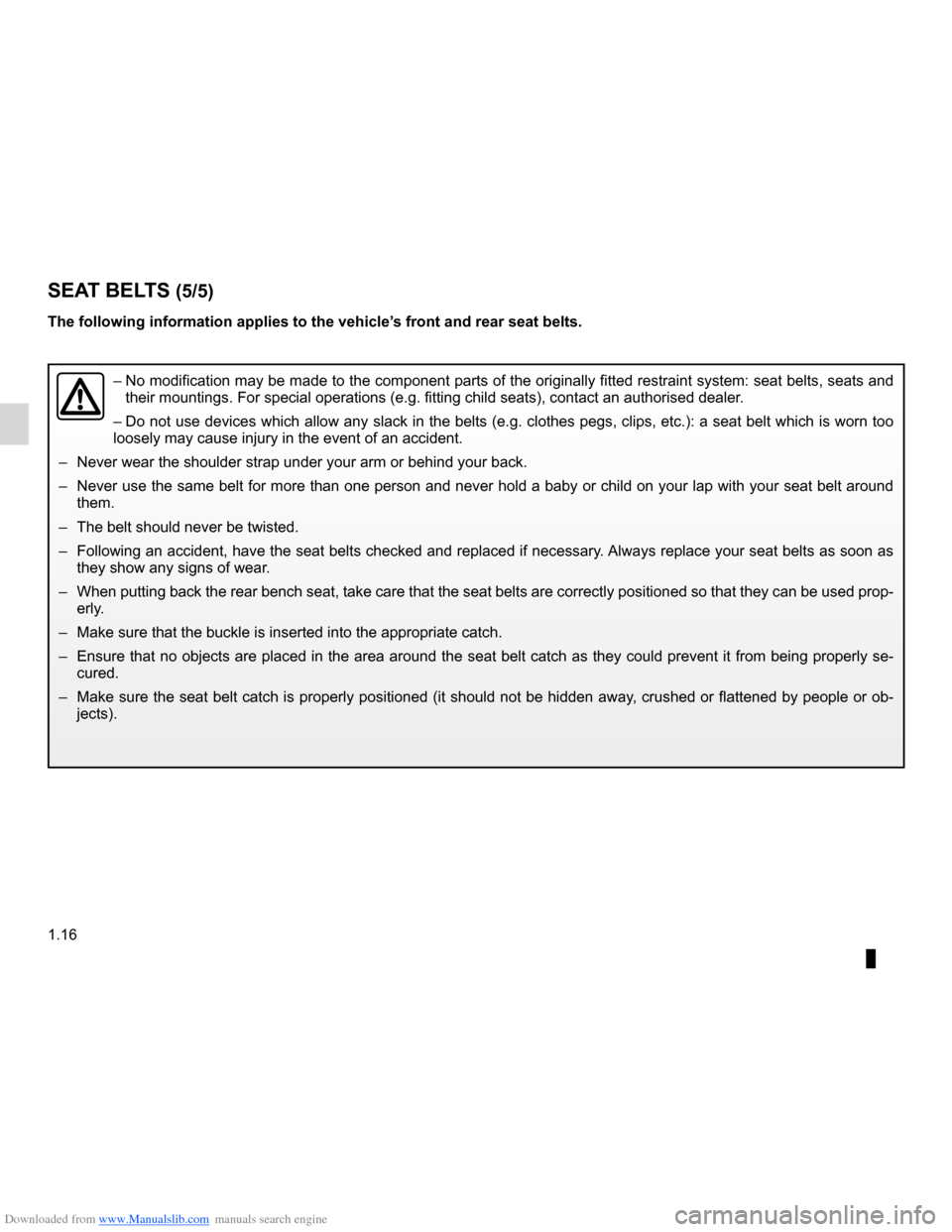

SEAT BELTS (5/5)
The following information applies to the vehicle’s front and rear seat belts.
– No modification may be made to the component parts of the originally fitted restraint system: seat belts, seats and
their mountings. For special operations (e.g. fitting child seats), co\
ntact an authorised dealer.
– Do not use devices which allow any slack in the belts (e.g. clothes pegs, clips, etc.): a seat belt which is worn too
loosely may cause injury in the event of an accident.
– Never wear the shoulder strap under your arm or behind your back.
– Never use the same belt for more than one person and never hold a baby or child on your lap with your seat belt around
them.
– The belt should never be twisted.
– Following an accident, have the seat belts checked and replaced if necessary. Always replace your seat belts as soon as
they show any signs of wear.
– When putting back the rear bench seat, take care that the seat belts are correctly positioned so that they can be used prop-
erly.
– Make sure that the buckle is inserted into the appropriate catch.
– Ensure that no objects are placed in the area around the seat belt catch as they could prevent it from being properly se-
cured.
– Make sure the seat belt catch is properly positioned (it should not be hidden away, crushed or flattened by people or ob-
jects).

Downloaded from www.Manualslib.com manuals search engine seat belts .............................................. (up to the end of the DU)
air bag ................................................... (up to the end of the DU)
air bag ................................................... (up to the end of the DU)
side protection devices ......................... (up to the end of the DU)
methods of restraint in addition to the seat belts
(up to the end of the DU)
1.21
ENG_UD24407_1
Dispositifs de protection latérale (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Side protection devices
SIDE PROTECTION DEVICES
Side air bags
These air bags may be fitted to the front
seats and are deployed at the sides of
the seats (door side) to protect the oc-
cupants in the event of a severe side
impact.
Warnings concerning the side air bag
– Fitting seat covers: seats equipped with an airbag require covers spe-
cifically designed for your vehicle. Contact an authorised dealer to find
out if these covers are available. The use of any covers other than those
designed for your vehicle (including those designed for another vehicle) may
affect the operation of the airbags and reduce your protection.
– Do not place any accessories, objects or even pets between the seatback, the
door and the internal fittings. Do not cover the seatback with any items such as
clothes or accessories. This may prevent the air bag from operating correctly
or cause injury when the air bag is deployed.
– No work or modification whatsoever may be carried out on the seat or internal
fittings, except by qualified personnel from an approved dealer.

Downloaded from www.Manualslib.com manuals search engine air bag................................................... (up to the end of the DU)
seat belts .............................................. (up to the end of the DU)
air bag ................................................... (up to the end of the DU)
additional methods of restraint ............. (up to the end of the DU)
methods of restraint in addition to the seat belts
(up to the end of the DU)
1.22
ENG_UD24408_1
Dispositifs de retenue complémentaire (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Additional methods of restraint
ADDITIONAL METHODS OF RESTRAINT
All of the warnings below are given so that the air bag is not obstructed in any
way when it is inflated and also to prevent the risk of serious injuries caused
by items which may be dislodged when the air bag inflates.
The air bag is designed to complement the action of the seat belt. The air
bag and the seat belt are integral parts of the same protection system. It
is therefore essential to wear the seat belt at all times. If seat belts are not
worn, the occupants are exposed to the risk of serious injury in the event
of an accident. It may also increase the risk of minor superficial injuries occurring
when the air bag is deployed, although such minor injuries are always possible
with air bags.
If the vehicle should overturn or suffer a rear impact, however severe, the pre-
tensioners and air bags are not always triggered. Impacts to the underside of the
vehicle, e.g. from pavements, potholes or stones, can all trigger these \
systems.
– No work or modification whatsoever may be carried out on any part of the
driver or passenger air bag system (air bag, electronic unit, wiring, etc.), except
by qualified personnel from our Network.
– To ensure that the system is in good working order and to avoid accidental trig-
gering of the system which could cause injury, only qualified personnel from
our Network may work on the air bag system.
– As a safety precaution, have the air bag system checked if your vehicle has
been involved in an accident, or is stolen or broken into.
– When selling or lending the vehicle, inform the user of these points and hand
over this handbook with the vehicle.
– When scrapping your vehicle, contact an approved Dealer for advice on dis-
posing of the gas generator and air bags.
Operating faults
This warning light 1 will light up on the
instrument panel when the ignition is
switched on and then go out after a few
seconds.
If it does not come on when the ignition
is switched on, or if it comes on when
the engine is running, there is a fault
with the system (air bags, pretension -
ers, etc.) in the front and/or rear seats.
Contact an authorised dealer as soon
as possible. The efficiency of protection
will be reduced until this fault is recti -
fied.
1
