EASE OF USE
and
COMFOR
T
Seats

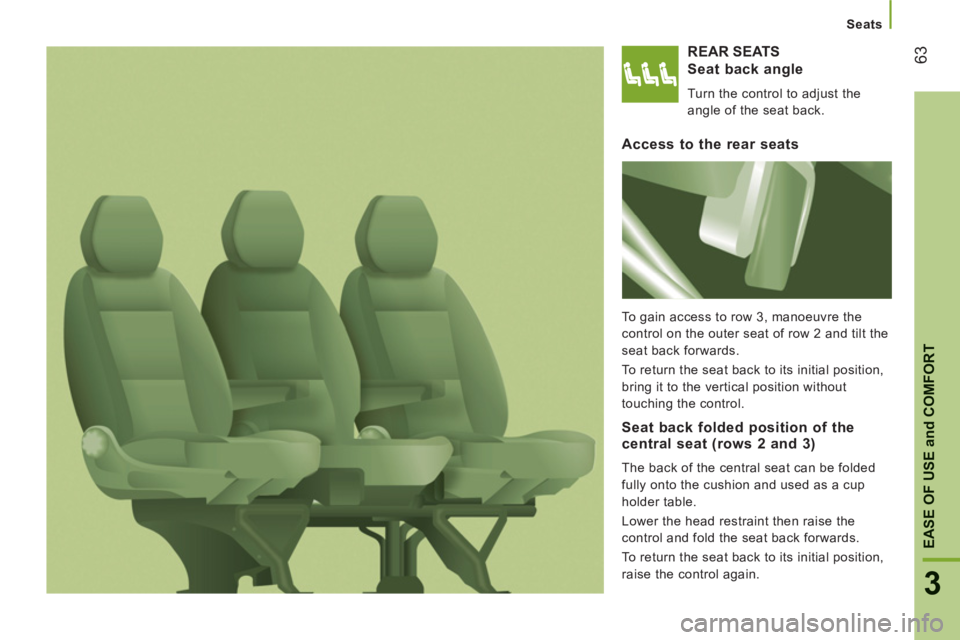

REAR SEATS
Seat back an
gle
Turn the control to adjust the
angle of the seat back.
Access to the rear seats

To gain access to row 3, manoeuvre the
control on the outer seat of row 2 and tilt the
seat back forwards.
To return the seat back to its initial position,
bring it to the vertical position without
touching the control.
Seat back folded position of the central seat (rows 2 and 3)

The back of the central seat can be folded
fully onto the cushion and used as a cup
holder table.
Lower the head restraint then raise the
control and fold the seat back forwards.
To return the seat back to its initial position,
raise the control again.

64


Seats

REAR BENCH SEATS
Removing the bench seat

At least two people are required to
remove the bench seat.
Fold the seat back onto the cushion as
described above.
Turn the two levers forwards.
Tilt the base of the bench seat forwards to
place the assembly in the vertical position.

Good practice

Following the various operations:


- do not remove a head restraint without
storing it securely,

- do not travel in row 3 with the row 2 bench
seat in the vertical position,

- do not store any kind of object on the
folded seat back of row 2,

- check that the seat belts are always
accessible and easy for the passenger
to use,

- a passenger must not take their seat
without correctly adjusting their seat's
head restraint and adjusting and
fastening their seat belt.


Access to the rear seats

Lower the head restraints then raise the
control and tilt the seat back forwards.


Seat back folded position

Remove the head restraints then tilt the seat
back as described above.
With your right hand, raise the lever then tilt
the seat back 5° towards the rear.
With your left hand, tilt the seat back
forwards onto the cushion. Turn the two levers upwards.
Raise the bench seat and remove it.

65
3
EASE OF USE
and
COMFOR
T
Seats
CREW CAB
Consisting of an ergonomic 4-seat bench
and a high-strength partition, it offers
comfort and safety.
Each seat of the bench is fitted with an
inertia reel seat belt.
Refer to section 5 to read the "Good
practice" recommendations.
Access to the box under the bench seat


From the cab
Tilt the seat cushion forwards to gain access
to the large box.

From the load space
Raise the two flaps which make the full
length at the floor available. The flaps are
retained in the raised position by magnets
on the back of the partition.

Good pratice

Do not tilt the bench seat cushion during
transportation.
No not attach anything to the cab fixing
structure.
Do not exceed the number of passengers
indicated on the registration certificate.
Do not install child seats, booster cushions or
carrycots on the rear seats of the crew cab.
In the rear, the load space is intended for
the transportation of goods only.
You are advised to place the goods or heavy
objects as far forwards as possible in the
load space (towards the cab) and secure
them by means of straps using the stowing
rings on the floor.

66


Practical information

CAB FITTINGS
Front seat stora
ge
There is a storage drawer, located under the
front seat (driver's).
The location under the passenger's seat
is used for storing the tools required when
changing a wheel.
If your vehicle is fitted with a seat with
variable vibration reduction, it does not have
any storage compartments.


Folding writing table

This is located in the centre of the fascia
panel.
The clip can be used to secure documents,
slips, ...
Pull or push the top of the table to unfold or
fold it.
PRACTICAL INFORMATION

Central stora
ge tray

This may be lockable (according to
specification).

If your vehicle is fitted with a front
passenger airbag, the table cannot be
raised.

67
3
EASE OF USE
and
COMFOR
T
Practical information
Glove box
Cooled glove box

This is located on the top left part of the
dashboard.
The ventilation flap can be opened or
closed. The air supplied into the glove box is
the same as from the vents.
Sun visor

To avoid glare from ahead, fold the sun visor
down.
Pockets are arranged in the sun visors for
storing toll cards, tickets, ...

68


Practical information


Cigarette lighter/12 volt socket

Press and wait a few moments until the
lighter pops out automatically.
When used as a socket: 180 W max.
Portable ashtray

After opening, pull upwards then empty the
ashtray into a bin.


Overhead storage compartment

This is located above the sun visors.
Maximum load: approximately 20 kg.

69
3
EASE OF USE
and
COMFOR
T
Practical information

Courtesy lamp

This is a double courtesy lamp located in the
centre of the roof. It can be activated by means of:


- the switches located on the courtesy
lamp, with the ignition on - RUNNING
position,

- opening or closing one of the front doors,

- locking/unlocking the vehicle.
It switches off automatically:


- if the switch is not pressed to the right or
to the left,

- in all cases after 15 minutes, if the doors
remain open or when the ignition is
switched on.

Reading lamps

These are controlled by the switches.
The driver's switch controls both reading
lamps simultaneously.
The passenger switch controls either the driver's
reading lamp or the passenger reading lamp.
Fittings/storage compartment in thedoor pockets
Switches on the bottom right of
the dashboard allow the driver
to switch the passenger reading
lamp on and off.

70


Practical information

LOAD SPACE FITTINGS Support for stowing rail

Supports for securing a stowing rail are
available above the trims, on each side of
the vehicle.


12 volt socket

When used as a power socket: 180 W max.


Stowing rings

Eight stowing rings are provided for securing
your loads. Six rings are located on the floor
and two on the partition behind the cab.
As a safety precaution in case of sharp
braking, you are advised to place heavy
objects as far forwards towards the cab as
possible.
Trims

The lower parts of the sides are fitted with
load protection trims.
