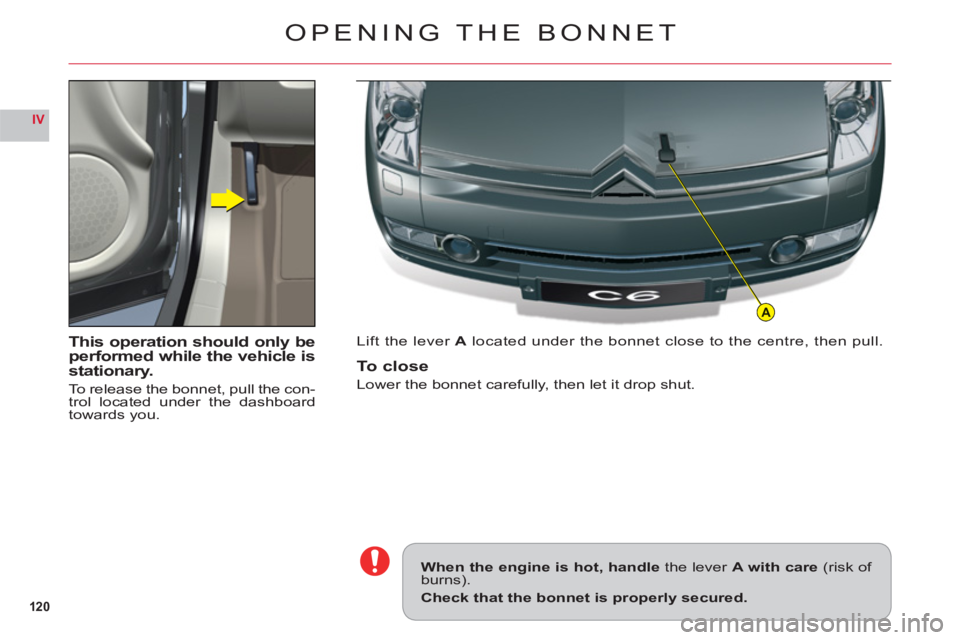

To release the bonnet, pull the con-
trol located under the dashboardtowards you.
Lift the leverA located under the bonnet close to the centre, then pull.
To close
Lower the bonnet carefully, then let it drop shut.
When the engine is hot, handle the lever A with care(risk of burns).
Check that the bonnet is properly secured.
OPENING THE BONNET

121
IVA
B
C
D
LEVELS
Air fi lter
Follow the requirements set out in the Maintenance and Warranty Guide.
REFER TO THE CHAPTER: USER PRECAUTIONS.
Screen wash and
headlamp wash fl uid
Use CITROËN-approved products wherever possible.
Capacity: See "Capacity".
Engine coolant
The fl uid level should be between the marks MIN.and
MAX. on the header tank.
Engine hot, wait at least
15 minutes.
Qualit
y: See "Maintenance and
Warranty Guide".
Never do anything relating to
the cooling system of an engine
that is hot.
Poles "+" and "-" for
starting with a slave battery
See "Starting with a slave battery".
Engine oil
Check the engine oil level on
horizontal ground with theengine having been switchedoff for at least 30 minutes.
It is normal to top up the engine oilbetween two services. The manu-facturer recommends that the oil bechecked and topped up if necessaryevery 3 000 miles (5 000 Km).
Qualit
y: See "Maintenance andWarranty Guide".
Pull out the manual dips-
tick.
The level should be between
the marks MIN.and MAX.on the gauge.
It must never exceed the maximum.
MAX.
MIN.
Brake fl uid
The level of fl uid should be between the marks MIN.andMAX. on the reservoir.
Quality: See "Maintenance and
Warranty Guide".
If this warning lamp comes on
when driving, stop as soon as it is safe to do so and contact a
CITROËN dealer or a qualifi ed
workshop.
Power steering andsuspension oil
For topping up, it is neces-sary to go to a CITROËN pp g p,
dealer or a qualifi ed workshop.
Quality: See "Maintenance and
Warranty Guide".
If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember thatthe cooling fan may operate at any moment.
Between routine servicing visits, check the level of engine oil frequently as well as before going on a longjourney.
•
•

122
IVD
B
A
C
HDi ENGINE
HDi engines are the result of advanced technology.
Any intervention requires special qualifi cations which only a CITROËN dealer can guarantee.qpq
The diesel fuel circuit beingunder high pressure:
ANY INTERVENTION ON THE
CIRCUIT IS PROHIBITED.
V6 Hdi engine

123
IVDB
1
1
TOPPING UP ENGINE OIL
Before fi lling, pull out the dipstick.
Check the dipstick after fi lling.
It must never exceed the maximum.
Screw the cap back on and close
the bonnet.
Quality: See "Maintenance andWarranty Guide".
LEVELS
RADIATOR – COOLANT FLUID
Checking the level and topping up
with fl uid must always be done with
the engine cold.
Engine hot
Wait 15 minutes or for the tempe-
rature to be lower than 100 °C and
then carefully unscrew the cap so as
to allow the pressure to drop, pro-
tectin
g yourself with, for example, a cloth.
Topping up the coolant
The level of coolant1 should bebetween theMIN.and MAX.mar-kings on the header tank.
To
p up the level. If more than 1 litre
is added, have the cooling systemchecked by a CITROËN dealer or ,gy
a qualifi ed workshop.
Make sure that the cap is back
on properly.Note:If you need to top up the fl uid frequently, this indicates a malfunc-tion which you should get checked
at the earliest opportunity.
Remark: The cooling fan mayoperate for around 10 minutesafter the engine has stopped.
Qualit
y:See "Maintenance and
Warranty Guide".
If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember that the cooling fan may operate at any moment.

124
IV
A
D
C
B
BATTERY LOCATION AND
ACCESS
The battery is located in the bootunder the left hand wing trim. To
access the battery, rotate the pin
on the fl ap by a 1/4.
CHANGING THE BATTERY (Contact a CITROËN dealer or a qualifi ed
workshop).
1.Release the two pins on each side at the back of the boot, and remove
the boot fl oor.2.On each side trim, release the two fi xing pinsA.3.Undo the two screws Bon each side and remove the sill embellisher.4.On the side trim close to the battery, release the pin D.5.Separate the side trim close to the battery, pulling hard to free the other
fi xing points.
6.Unclip the boot lamp C.7.Disconnect both battery terminals.8.Release the battery from its support.9.Remove the battery.
Before changing or repairing the battery, open all four windows.
If you have to unlock your vehicle with the key because of a problem with the battery, any opening/closingof a door with the window closed may seriously damage the glass to the point of breaking it.
12 V BATTERY

125
IV
STARTING THE ENGINE AFTER DISCONNECTING AND RECONNECTING THE BATTERY
1. Turn the ignition key.2. Wait approximately 1 minute before operating the starter in order to allow the electronic systems to re-initialise.
After the battery has been disconnected for a lengthy period of time, it may be necessary to re-initialise the followingfunctions:The anti-pinch on the windows.
The anti-pinch on the sun roof.
The multifunction display parameters (date, time, language, units of distance and of temperature).
Th
e Radio stations.
The NaviDrive.
See the NaviDrive chapter.
IMPORTANT
In the event of a battery failure, and if the boot is closed, it is then necessary to feed an electrical supply to your
vehicle. See following page.
•
••
•
•
12 V BATTERY

126
IV
BC
A
i
12 V BATTERY
STARTING THE ENGINE WITH AN ASSISTING BATTERY
If the battery is discharged, it is possible to use either
a separate emergency battery or a battery on another
vehicle.
If you use the battery on another vehicle, stop the engine on the latter. The two vehicles must not come
into direct contact with each other.
Check that the assisting battery has suffi cient voltage (12 V).
Connect the cables according to the orderindicated in rthe diagram.
A Pole "+" on the vehicle being assisted (under the
red cover).
B Assisting battery.C Pole"-" on the assisted vehicle (under the bonnet).
Check that the leads are well secured (risk of sparks).
Start the engine of the assisting vehicle. Let the engine
run for around 1 minute at a slightly accelerated idle.
Operate the starter on the vehicle being assisted.
It is essential to follow the indicated sequencecorrectly.
Never approach with a fl ame or create sparks in the vicinity of the battery (explosive gas).
The battery contains dilute sulphuric acid which is highly corrosive.
When handling batteries, always protect your face and especially your eyes.
In the event of any contact with the skin, rinse immediately with copious amounts of fresh water.
ADVICE
Do not touch the leads during the operation.
Do not lean over the batteries.
Disconnect the cables in reverse order, making sure
they do not touch together.
