2012 CITROEN C-CROSSER Handbook (in English)

V
CHILD SAFETY
95
CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are se-
cured using a three point seat belt
:


Group 0+: from birth to 13 kg









L1

"RÖMER Baby-Safe Plus"
Installed in the rearwards-facing position.


Groups 2 and 3: from 15 to 36 kg








L3

"RECARO Start''






L4

"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the booster is
used on its own.







L5

"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.

V
!
CHILD SAFETY
96


Passenger airbag OFF

Refer to the advice given on the label
present on both sides of the passen-
ger's sun visor.

To assure the safety of your child, you must deactivate the passenger's
front airbag when you install a child seat in the rearwards facing position
on the front passenger's seat.
Otherwise, there is a risk that the child could be seriously injured or killed if the
airbag were deployed.

V
CHILD SAFETY
97
LOCATIONS FOR CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt
and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.

U:
seat suitable for the installation of a child seat secured using the seat belt and universally approved, "rear facing" and/or
"forward facing".

X:
seat not suitable for the installation of a child seat of the weight group indicated.

L-:
only the child seats indicated can be installed on the seat concerned (according to country).

Seat



Weight of the child and indicative age




Less than 13 kg
(groups 0 (b) and 0+)
Up to ≈ 1 year

From 9 to 18 kg

(group 1)
From 1 to ≈ 3 years

From 15 to 25 kg

(group 2)
From 3 to ≈ 6 years

From
22 to 36 kg

(group 3)
From 6 to ≈ 10 years
Front passenger
seat (c) with
passenger airbag
activated



X



X



L3, L4

**
, L5

***


L3, L4

**
, L5

***

Front passenger
seat (c) with
passenger airbag
deactivated



L1



X



L3, L4

**
, L5

***


L3, L4

**
, L5

***

Outer rear seats
(row 2)



L1



X



U

*


U

*

Centre rear seat
(row 2)



L1



X



L4

*
,
L5

*


L4

*
, L5

*


*
Remove the rear head restraint before fi tting a child seat at this position.

**
Place the head restraint in the fully up position before fi tting a child seat at this position.

***
Remove the front head restraint before fi tting a child seat at this position.

V
!
CHILD SAFETY
98
The incorrect installation of a
child seat in a vehicle compro-
mises the child's protection in
the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, refer to the table show-
ing the locations for ISOFIX child
seats.
"ISOFIX" mountings
These are three rings for each seat:


- two rings A
, located between the
vehicle seat back and cushion, indi-
cated by a label,

- a ring B
, used to fi x the upper strap,
referred to as the TOP TETHER
, in-
dicated by a label. This ISOFIX mounting system provides
fast, reliable and safe fi tting of the child
seat in your vehicle.
The ISOFIX child seats
are fi tted with
two latches which are secured easily on
the two rings A
.
Some also have an upper strap
which
is attached to the ring B
.
To attach this strap, remove the vehicle
seat's head restraint. Then fi x the hook
on the ring B
and tighten the upper
strap. Your vehicle has been approved in accor-
dance with the new
ISOFIX regulation
.
The seats, represented below, are fi tted
with regulation ISOFIX mountings:

V
CHILD SAFETY

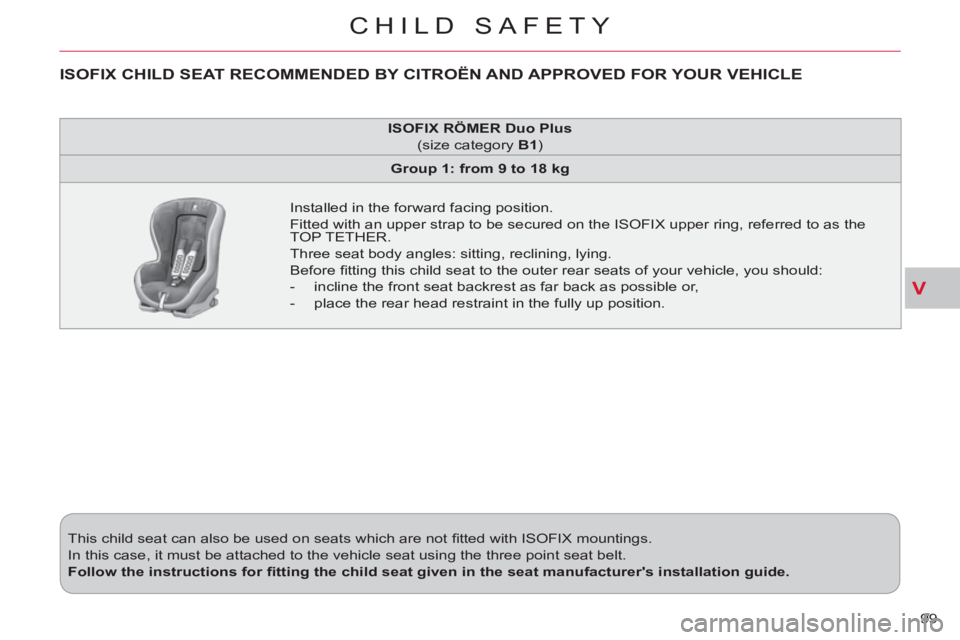

99 This child seat can also be used on seats which are not fi tted with ISOFIX mountings.
In this case, it must be attached to the vehicle seat using the three point seat belt.

Follow the instructions for fi tting the child seat given in the seat manufacturer's installation guide.




ISOFIX
RÖMER Duo Plus

(size category B1
)


Group 1: from 9 to 18 kg








Installed in the forward facing position.
Fitted with an upper strap to be secured on the ISOFIX upper ring, referred to as the
TOP TETHER.
Three seat body angles: sitting, reclining, lying.
Before fi tting this child seat to the outer rear seats of your vehicle, you should:


- incline the front seat backrest as far back as possible or,

- place the rear head restraint in the fully up position.














ISOFIX CHILD SEAT RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHICLE

V
CHILD SAFETY
100












LOCATIONS FOR ISOFIX CHILD SEATS


IUF:
seat suitable for the installation of an I
sofi x U
niversal seat, " F
orward facing" secured using the "Top Tether" upper
strap.

IL-SU:
seat suitable for the installation of an Isofi x S
emi- U
niversal seat either:


- "rear facing" fi tted with a "Top Tether" upper strap or a support,

- "forward facing" fi tted with a support.
For advice on securing of the "Top Tether" upper strap, refer to the "ISOFIX mountings" section.

X:
seat not suitable for the installation of an ISOFIX seat of the size category indicated.
The head restraint of the vehicle's ISOFIX seat must be removed and stored. In accordance with European Regulations (ECE 16), this table indicates the options for installing ISOFIX child seats on seats
in the vehicle fi tted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A
to G
,
is indicated on the child seat next to the ISOFIX logo.


Weight of the child
/indicative age


Less than 10 kg
(group 0)

Up to approx.
6 months

Less than 10 kg
(group 0)
Less than
13 kg
(group 0+)

Up to approx. 1 year

From 9 to 18 kg (group 1)

From approx. 1 to 3 years


Type of ISOFIX child seat



infant car seat



"rear facing"



"rear facing"



"forward facing"




ISOFIX size category



F



G



C



D



E



C



D



A



B



B1



Universal and semi-
universal ISOFIX child seats
which can be installed on
the outer rear seats
X
IL-SU
IL-SU
IUF
IL-SU

V
!
CHILD SAFETY
101
ADVICE ON CHILD SEATS

Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
CITROËN recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:


- one or more children alone and un-
supervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

- the keys within reach of children
inside the vehicle.
To prevent accidental opening of the
doors, use the "Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.

CHILD LOCK



)
Lower the control A
to position 1
.

Child lock on

Child lock off


)
Raise the control A
to position 2
.

Mechanical system to prevent open-
ing of the rear doors using their interior
controls.
The control is located on the edge of
each rear door. The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an ac-
cident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack
in relation to the child's body to
a minimum
, even for short journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat and
that the head restraint does not cause
any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of sharp
braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Deactivate the passenger's airbag
when a "rear facing" child seat is in-
stalled on the front seat. Otherwise,
the child would risk being seriously
injured or killed if the airbag were to
infl ate.

VI
SAFETY
102
DIRECTION INDICATORS





HAZARD WARNING LAMPSHORN



)
Left: lower the lighting stalk passing
the point of resistance.

)
Right: raise the lighting stalk passing
the point of resistance.


)
Press one of the spokes of the
steering wheel.

"Motorway" function



)
Press briefl y upwards or down-
wards, without going beyond the
point of resistance; the direction
indicators will fl ash 3 times.

Audible warning to alert other road users
to an imminent danger.
The audible signal can be confi gured
via the colour screen "Equipment"
menu.

)
Press this button, the direction indi-
cators fl ash.
They can operate with the ignition off.
Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
They switch off automatically the fi rst
time you accelerate.


)
You can also switch them off by
pressing the button.
A visual warning by means of the direc-
tion indicators to alert other road users to
a vehicle breakdown, towing or accident.
