2012 CITROEN C-CROSSER Handbook (in English)

VI
!
SAFETY
103
BRAKING ASSISTANCE
SYSTEMS
Group of supplementary systems which
help you to obtain optimum braking in
complete safety in emergency situations:


- anti-lock braking system (ABS),

- electronic brake force distribution
(EBFD).
When braking in an emergency,
press very fi rmly without releas-
ing the pressure. The two warning lamps comes on
at the same time and the two warn-
ings are displayed alternately in the
instrument panel screen.
When replacing wheels (tyres and
rims), ensure that they conform to the
manufacturer's recommendations.

Operating fault
If this warning lamp comes on, accompa-
nied by the indication on the instrument
panel screen, it indicates a malfunction of
the anti-lock braking system which could
result in a loss of control of the vehicle
when braking.
Contact a CITROËN dealer or a quali-
fi ed workshop. If these two warning lamps come on,
linked with the warnings on the instru-
ment panel screen, they indicate a mal-
function of the electronic brake force
distribution which could result in a loss
of control of the vehicle on braking.

You MUST stop as soon as it is safe
to do so.

Contact a CITROËN dealer or a quali-
fi ed workshop.


Anti-lock braking system and electronic brake force distribution

Linked systems which improve the sta-
bility and manoeuvrability of your vehi-
cle when braking, in particular on poor
or slippery surfaces. The warning lamp comes on for a few
seconds when the ignition is switched on
(ON position). If it does not switch off or
does not come on, contact a CITROËN
dealer or a qualifi ed workshop.
When the vehicle is stationary

When the vehicle is moving
If this warning lamp comes on
continuously it indicates a mal-
function of the anti-lock braking
system which could result in a
loss of control of the vehicle on braking.

You MUST stop as soon as it is safe
to do so.

Contact a CITROËN dealer or a quali-
fi ed workshop.


Activation
The anti-lock braking system is active if
the vehicle speed is higher than 6 mph
(10 km/h). It is deactivated when the ve-
hicle speed falls below 3 mph (5 km/h).
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal.

VI
!
SAFETY
104 The ASC/TCL systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive at
high speed.
The correct functioning of these sys-
tems depends on observation of the
manufacturer’s recommendations on:


- wheels (tyres and rims),

- braking components

- electronic components,

- assembly and repair procedures.
After an impact, have these systems
checked by a CITROËN dealer or a
qualifi ed workshop.


Deactivation
In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may be
better to deactivate the ASC system, so
that the wheels can move freely and re-
gain grip.


)
Press the "ASC OFF"
button, locat-
ed to the right of the steering wheel,
until the ASC OFF symbol appears
in the instrument panel screen.
The display of this symbol in the top
right corner of the instrument panel
screen indicates that the ASC and TCL
systems are deactivated.
Reactivation
These systems are not reactivated au-
tomatically above 30 mph (50 km/h).


)
Press the "ASC OFF"
button again
to reactivate them manually.
Switching off of the symbol in the top
right corner of the instrument panel
screen indicates the reactivation of the
ASC and TCL systems.

Operating fault
The display of this message
in the instrument panel
screen indicates a malfunc-
tion of these systems.
Contact a CITROËN deal-
er or a qualifi ed workshop to have the
ASC/TCL systems checked.
TRAJECTORY CONTROL
SYSTEMS

Activation
These systems are activated automati-
cally each time the vehicle is started.
They operate when the vehicle speed is
higher than 10 mph (15 km/h).

Traction control and automatic
stability control
Traction control optimises traction to
prevent wheel spin, by acting on the
brakes of the driving wheels and on the
engine.
Automatic stability control acts on the
brake of one or more wheels and on the
engine to keep the vehicle on the tra-
jectory required by the driver.
They come into operation in
the event of a grip or trajectory
problem.
This is indicated by fl ashing
of this symbol on the instrument panel
screen.



Associated systems which guarantee
the directional stability of the vehicle
within the limits of the laws of physics:


- traction control (TCL),

- automatic stability control (ASC).

VI
SAFETY
105
SEAT BELTS
Height adjustment










Fastening


)
Pull the strap, then insert the tongue
in the buckle A
.

)
Check that the seat belt is fastened
correctly by pulling the strap.


)
to lower the attachment point, press
the control B
and slide the fi xing C

down,

)
to raise the attachment point, press
the control B
and slide the fi xing C
up.


Unfastening


)
Press the red button on the buckle A
.


Front seat belts


The front seat belts are fi tted with a pre-
tensioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side im-
pact. Depending on the severity of the
impact, the pretensioning system instant-
ly tightens the seat belts against the body
of the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pres-
sure of the seat belt on the chest of the
occupant, so improving their protection.

VI
SAFETY
106

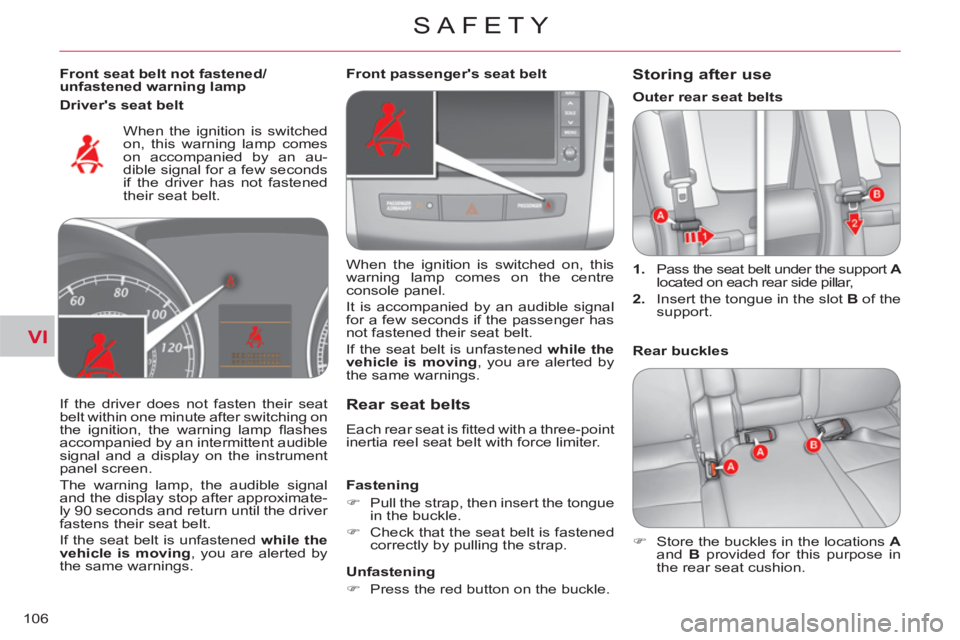

Front seat belt not fastened/
unfastened warning lamp
When the ignition is switched
on, this warning lamp comes
on accompanied by an au-
dible signal for a few seconds
if the driver has not fastened
their seat belt.
Rear seat belts
Each rear seat is fi tted with a three-point
inertia reel seat belt with force limiter.

Fastening


)
Pull the strap, then insert the tongue
in the buckle.

)
Check that the seat belt is fastened
correctly by pulling the strap.


Unfastening


)
Press the red button on the buckle.

If the driver does not fasten their seat
belt within one minute after switching on
the ignition, the warning lamp fl ashes
accompanied by an intermittent audible
signal and a display on the instrument
panel screen.
The warning lamp, the audible signal
and the display stop after approximate-
ly 90 seconds and return until the driver
fastens their seat belt.
If the seat belt is unfastened while the
vehicle is moving
, you are alerted by
the same warnings.
Storing after use



1.
Pass the seat belt under the support A
located on each rear side pillar,

2.
Insert the tongue in the slot B
of the
support.


Rear buckles


)
Store the buckles in the locations A

and B
provided for this purpose in
the rear seat cushion.


Driver's seat belt
Outer rear seat belts
Front passenger's seat belt
When the ignition is switched on, this
warning lamp comes on the centre
console panel.
It is accompanied by an audible signal
for a few seconds if the passenger has
not fastened their seat belt.
If the seat belt is unfastened while the
vehicle is moving
, you are alerted by
the same warnings.

VI
!
107




The driver must ensure that pas-
sengers use the seat belts correct-
ly and that they are all restrained
securely before setting off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for
short journeys.
Do not interchange the seat belt buck-
les as they will not fulfi l their role fully.
The seat belts are fi tted with an inertia
reel permitting automatic adjustment
of the length of the strap to your size.
The seat belt is stowed automatically
when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
The inertia reels are fi tted with an auto-
matic locking device which comes into
operation in the event of a collision,
emergency braking or if the vehicle
rolls over. You can release the device
by pulling fi rmly on the strap and re-
leasing it so that it reels in slightly.
Recommendations for children
Use a suitable child seat if the passen-
ger is less than 12 years old or shorter
than one and a half metres.
Never use the same seat belt to se-
cure more than one person.
Never allow a child to travel on your lap. In order to be effective, a seat belt
must:


- be tightened as close to the body
as possible,

- be pulled in front of you with a
smooth movement, checking that
it does not twist,

- be used to restrain only one person,

- not bear any trace of cuts or fraying,

- not be converted or modifi ed to
avoid affecting its performance.
In accordance with current safety reg-
ulations, for all repairs on your vehicle,
go to a qualifi ed workshop with the
skills and equipment needed, which a
CITROËN dealer is able to provide.
Have your seat belts checked regu-
larly by a CITROËN dealer or a quali-
fi ed workshop, particularly if the straps
show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by CITROËN dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt is
positioned and reeled in correctly.
In the event of an impact

Depending on the nature and serious-
ness of the impact
, the pretensioning
device may be deployed before and in-
dependently of the airbags. Deployment
of the pretensioners is accompanied by
a slight discharge of harmless smoke
and a noise, due to the activation of the
pyrotechnic cartridge incorporated in
the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a CITROËN dealer
or a qualifi
ed workshop.

VI
!
SAFETY
108

AIRBAGS


The airbags do not operate
when the ignition is switched
off.
This equipment will only operate
once. If a second impact occurs (dur-
ing the same or a subsequent acci-
dent), the airbag will not operate.
Front airbags

System which protects the head and
chest of the driver and front passenger
in the event of a front impact.
The driver's airbag is fi tted in the centre
of the steering wheel; the front passen-
ger's airbag is fi tted in the dashboard
above the glove box.

Deployment
The airbags are deployed simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of
a serious front impact applied to all or
part of the front impact zone A
, in the
longitudinal centreline of the vehicle on
a horizontal plane and directed from the
front to the rear of the vehicle.
The front airbag infl ates between the
front occupant of the vehicle and the
dashboard to cushion their forward
movement.
Impact detection zones


A.
Front impact zone.

B.
Side impact zone.
Deployment of the airbag(s) is ac-
companied by a slight emission of
harmless smoke and a noise, due to
the activation of the pyrotechnic car-
tridge incorporated in the system.
This smoke is not harmful, but sensi-
tive individuals may experience slight
irritation.
The noise of the detonation may re-
sult in a slight loss of hearing for a
short time.


System designed to maximise the safety
of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts.
If a collision occurs, the electronic de-
tectors record and analyse the front
and side impacts sustained in the im-
pact detection zones:


- in the case of a serious impact, the
airbags are deployed instantly and
protect the occupants of the vehicle
(with the exception of the rear cen-
tre passenger); immediately after the
impact, the airbags defl ate rapidly so
that they do not hinder visibility or the
exit of the occupants,

- in the case of a minor or rear impact
or in certain roll-over conditions, the
airbags will not be deployed; the
seat belt alone is suffi cient to pro-
vide optimum protection in these
situations.

VI
!
!
SAFETY
109 If the airbag warning lamp and
the display come on continuously,
do not install a "rear facing" child
seat on the front passenger seat.
Contact a CITROËN dealer or a
qualifi ed workshop.

Operating fault
If this warning lamp comes on on the
instrument panel and this display ap-
pears on the instrument panel screen,
contact a CITROËN dealer or a qualifi ed
workshop to have the system checked.
The airbags may no longer be deployed
in the event of a serious impact. To ensure the safety of your
child, the passenger's airbag
must be deactivated when you
install a "rear facing" child seat on
the front passenger seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were triggered.
This warning lamp comes on in the cen-
tre console panel when the ignition is
on and until the airbag is reactivated.
Reactivation
When you remove the child seat, turn
switch A
to the "ON"
position to reacti-
vate the airbag and so ensure the safe-
ty of your front passenger in the event
of an impact.
The associated warning lamp goes off.
Deactivation
Only the front passenger's airbag can
be deactivated:


)
with the ignition off
, insert the key
in the passenger airbag deactiva-
tion switch A
,

)
turn it to the "OFF"
position,

)
remove the key.

VI
!
SAFETY
11 0
Lateral airbags
System which protects the driver and
passenger in the event of a serious side
impact in order to limit the risk of injury
to the chest.
Each lateral airbag is fi tted in the front
seat back frame, on the door side.

Activation
The lateral airbag is triggered unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
zone B
, perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
The lateral airbag infl ates between the
front occupant of the vehicle and the
corresponding door trim panel.

System which protects the driver and
passengers (with the exception of the
rear centre passenger and the passen-
gers in row 3) in the event of a serious
side impact in order to limit the risk of
injury to the head.
Each curtain airbag is fi tted in the pillars
and the upper section of the passenger
compartment.
Deployment
The curtain airbag is deployed at the
same time as the corresponding lateral
airbag in the event of a serious side im-
pact applied to all or part of the side impact
zone B
, perpendicular to the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the outside to-
wards the inside of the vehicle.
The curtain airbag infl ates between the
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact or
bump on the side of the vehicle
or if the vehicle rolls over, the
airbag may not be deployed.
In the event of a rear or front colli-
sion, the airbag is not deployed.
Impact detection zones


A.
Front impact zone.

B.
Side impact zone.



Operating fault

If this warning lamp comes on in the instru-
ment panel and this display appears in the
instrument panel screen, contact a CITROËN
dealer or a qualifi ed workshop to have the
system checked. The airbags may no longer
be deployed in the event of a serious impact.
