2012 CHRYSLER TOWN AND COUNTRY Owners Manual

•In the event of deployment of an Active Head Re-
straint, refer to “Occupant Restraints/Resetting Active
Head Restraints (AHR)” in “Things To Know Before
Starting Your Vehicle” for further information.
WARNING!
•Do not place items over the top of the Active Head
Restraint, such as coats, seat covers or portable
DVD players. These items may interfere with the
operation of the Active Head Restraint in the event
of a collision and could result in serious injury or
death.(Continued)
WARNING! (Continued)
•Active Head Restraints may be deployed if they
are struck by an object such as a hand, foot or loose
cargo. To avoid accidental deployment of the Ac-
tive Head Restraint ensure that all cargo is se-
cured, as loose cargo could contact the Active Head
Restraint during sudden stops. Failure to follow
this warning could cause personal injury if the
Active Head Restraint is deployed.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175

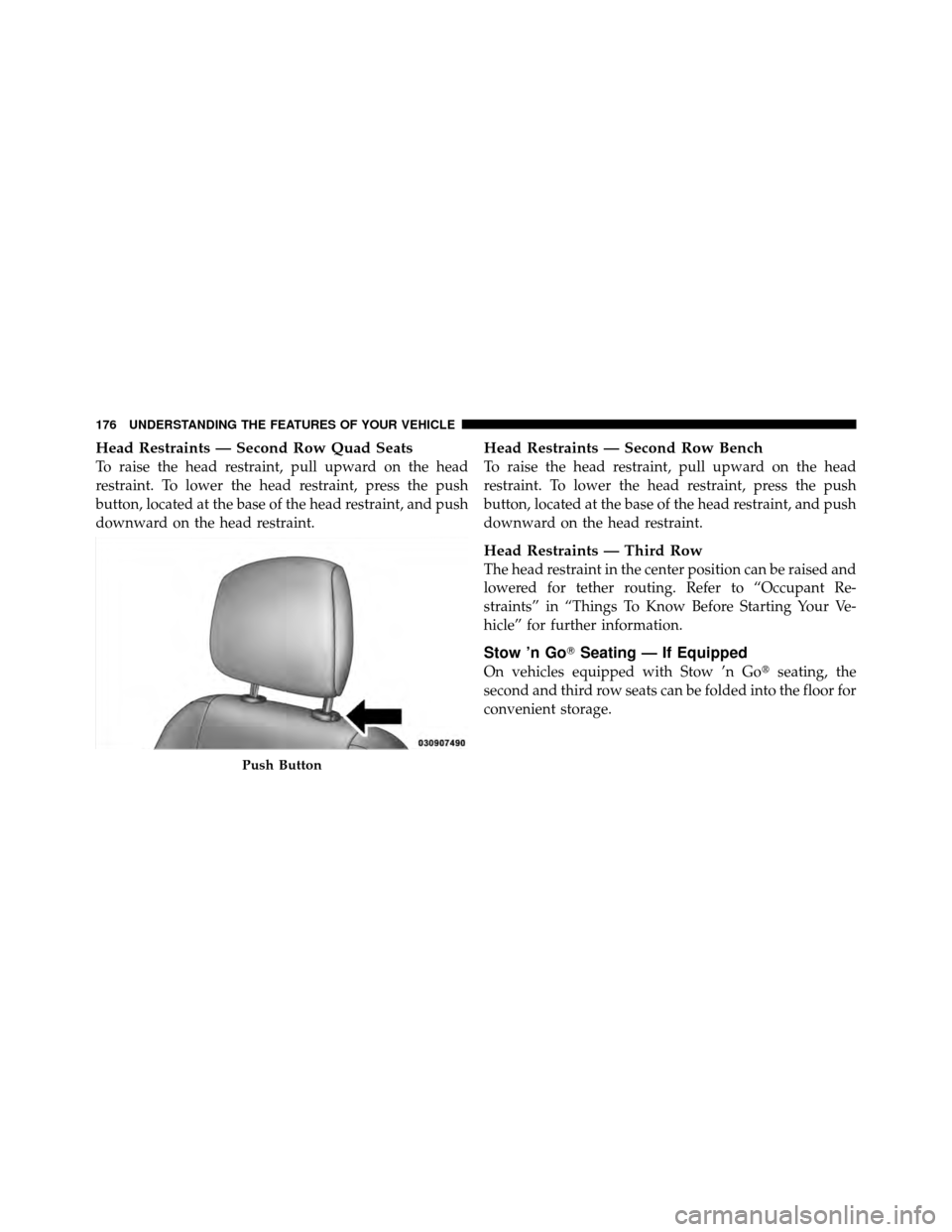

Head Restraints — Second Row Quad Seats
To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, press the push
button, located at the base of the head restraint, and push
downward on the head restraint.
Head Restraints — Second Row Bench
To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, press the push
button, located at the base of the head restraint, and push
downward on the head restraint.
Head Restraints — Third Row
The head restraint in the center position can be raised and
lowered for tether routing. Refer to “Occupant Re-
straints” in “Things To Know Before Starting Your Ve-
hicle” for further information.
Stow ’n GoSeating — If Equipped
On vehicles equipped with Stow ’n Go seating, the
second and third row seats can be folded into the floor for
convenient storage.
Push Button
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

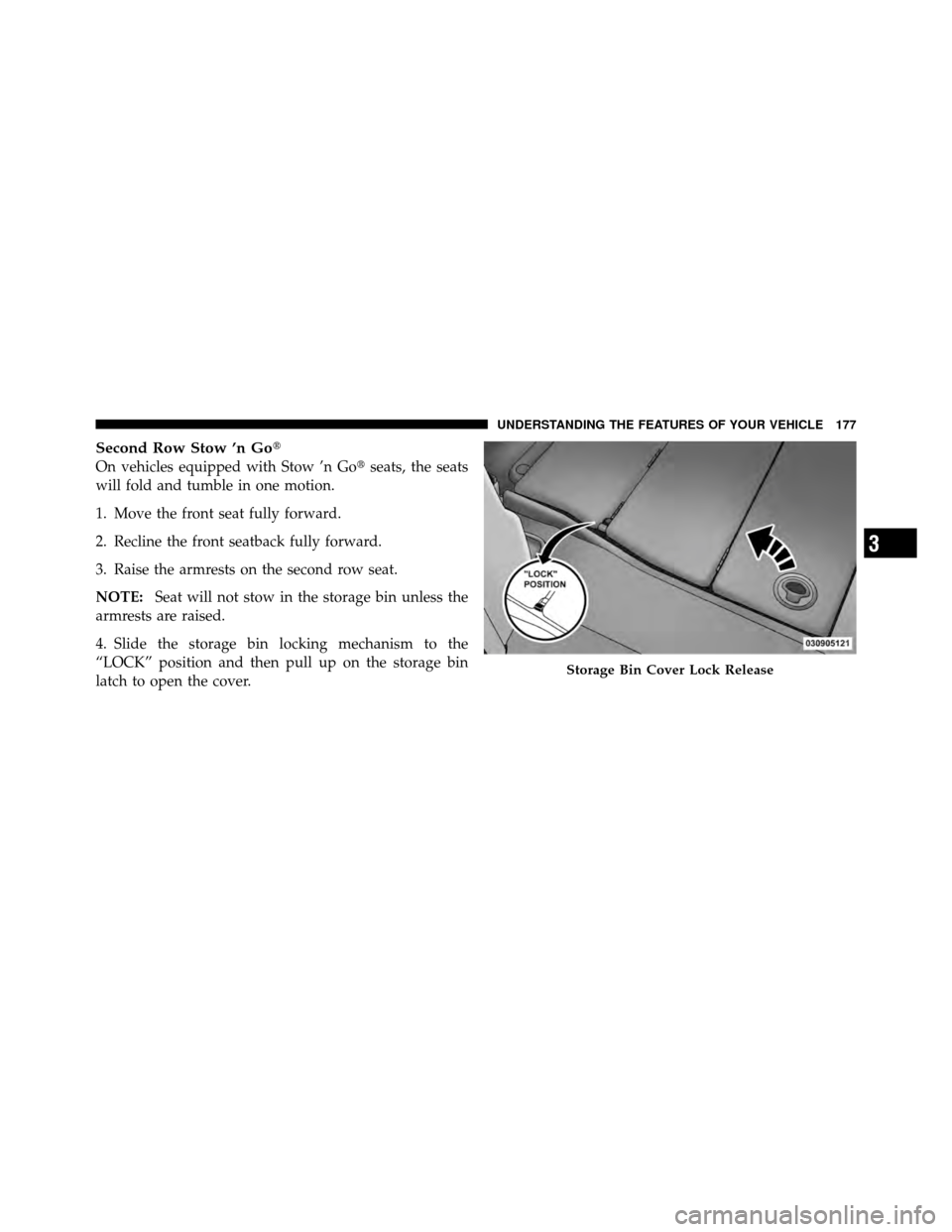

Second Row Stow ’n Go
On vehicles equipped with Stow ’n Goseats, the seats
will fold and tumble in one motion.
1. Move the front seat fully forward.
2. Recline the front seatback fully forward.
3. Raise the armrests on the second row seat.
NOTE: Seat will not stow in the storage bin unless the
armrests are raised.
4. Slide the storage bin locking mechanism to the
“LOCK” position and then pull up on the storage bin
latch to open the cover.
Storage Bin Cover Lock Release
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177

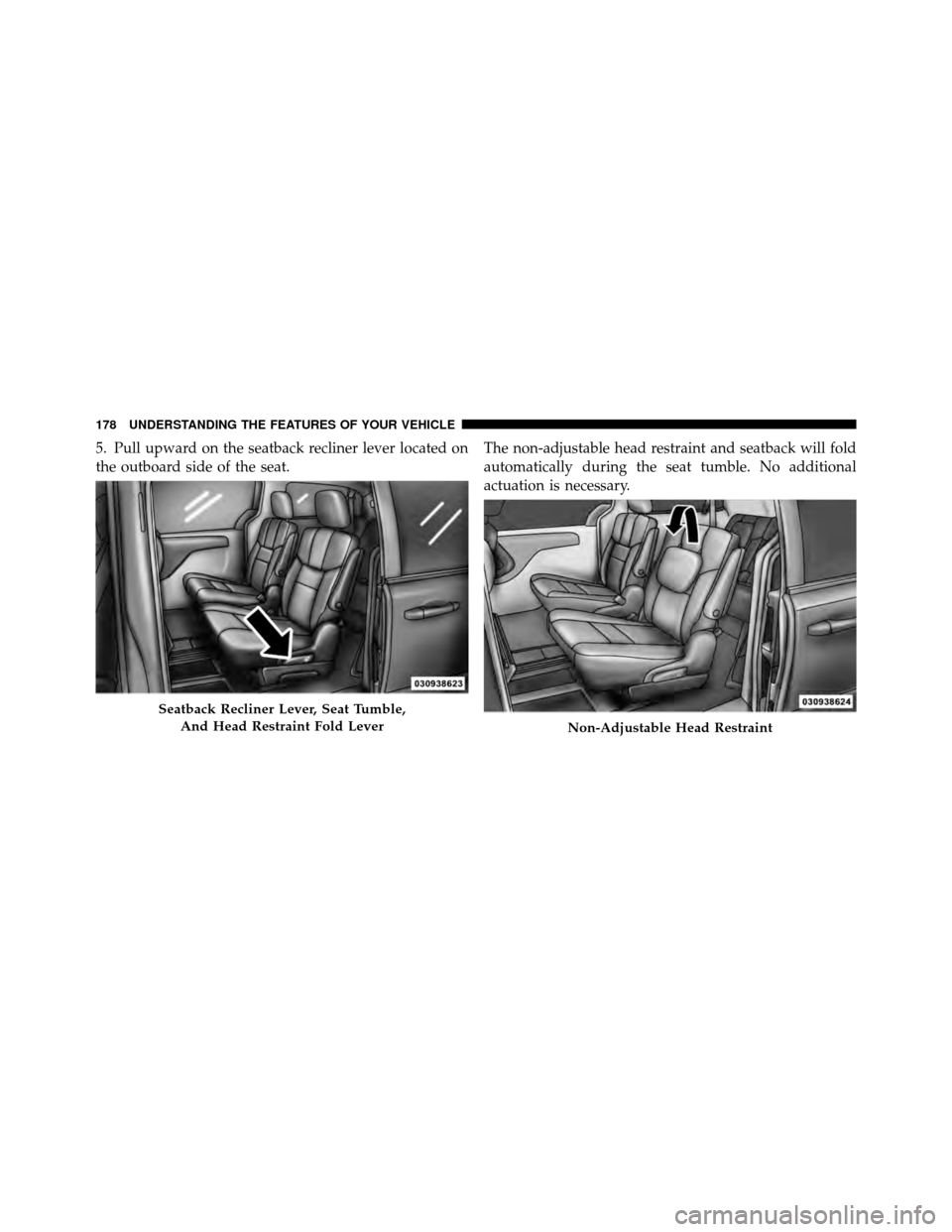

5. Pull upward on the seatback recliner lever located on
the outboard side of the seat.The non-adjustable head restraint and seatback will fold
automatically during the seat tumble. No additional
actuation is necessary.
Seatback Recliner Lever, Seat Tumble,
And Head Restraint Fold Lever
Non-Adjustable Head Restraint
178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

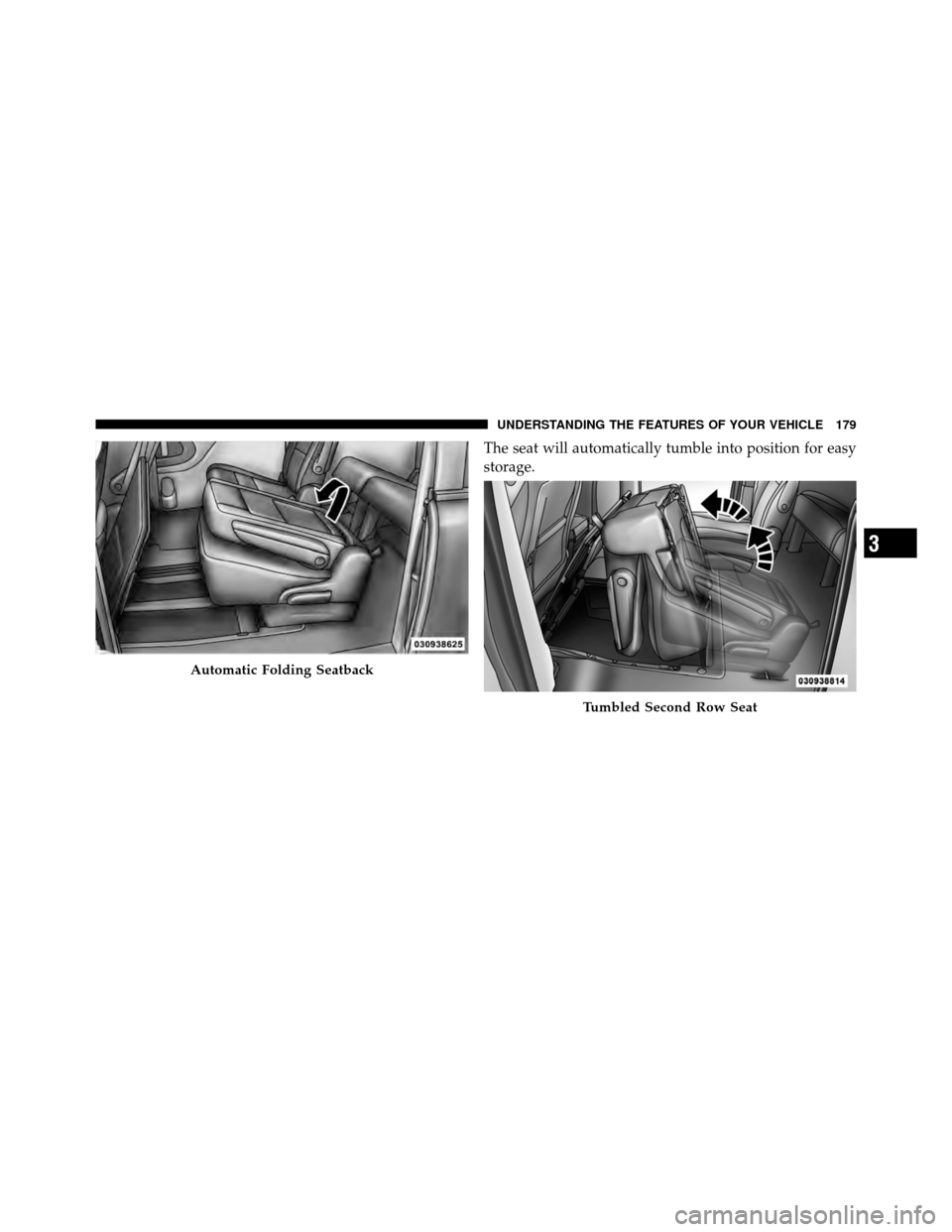

The seat will automatically tumble into position for easy
storage.
Automatic Folding Seatback
Tumbled Second Row Seat
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179

6. Push the seat into the storage bin.
7. Close the storage bin cover.CAUTION!
The storage bin cover must be locked and flat to
avoid damage from contact with the front seat tracks,
which have minimal clearance to the cover.
WARNING!
In a collision, serious injury could result if the seat
storage bin covers are not properly latched.
•Do not drive the vehicle with the storage bin
covers open.
•Keep the storage bin covers closed and latched
while the vehicle is in motion.
•Do not use a storage bin latch as a tie down.
Seat In Storage Bin
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

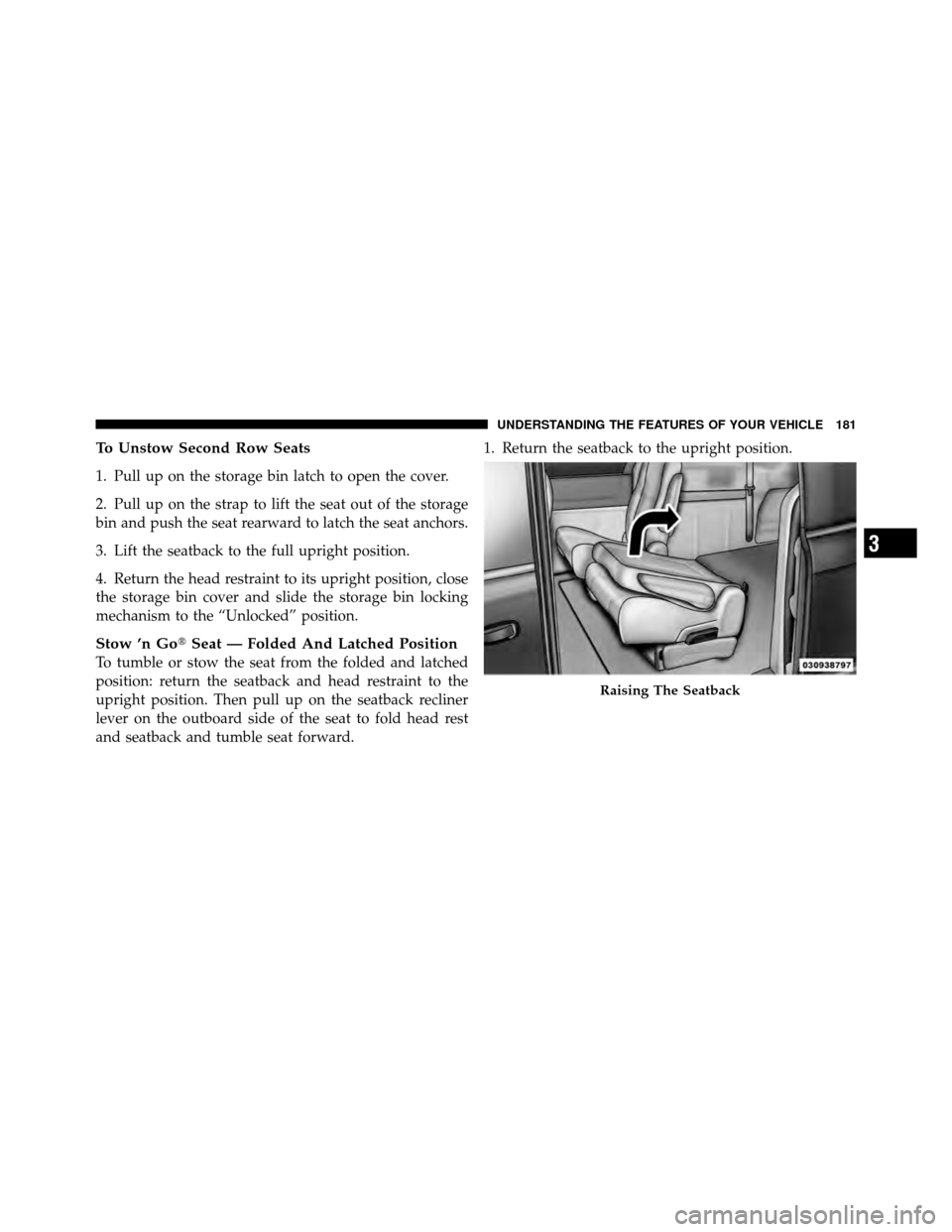

To Unstow Second Row Seats
1. Pull up on the storage bin latch to open the cover.
2. Pull up on the strap to lift the seat out of the storage
bin and push the seat rearward to latch the seat anchors.
3. Lift the seatback to the full upright position.
4. Return the head restraint to its upright position, close
the storage bin cover and slide the storage bin locking
mechanism to the “Unlocked” position.
Stow ’n GoSeat — Folded And Latched Position
To tumble or stow the seat from the folded and latched
position: return the seatback and head restraint to the
upright position. Then pull up on the seatback recliner
lever on the outboard side of the seat to fold head rest
and seatback and tumble seat forward. 1. Return the seatback to the upright position.
Raising The Seatback
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181

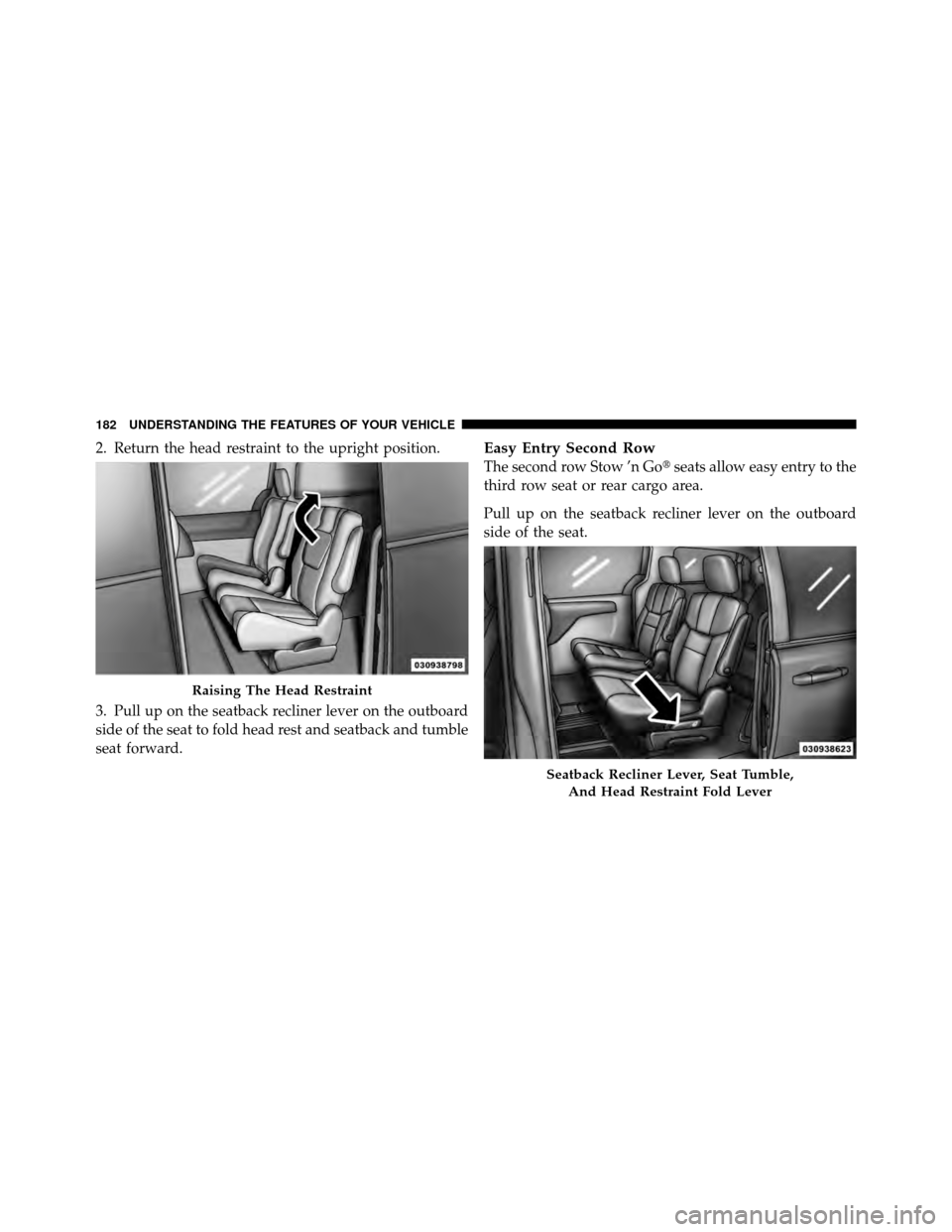

2. Return the head restraint to the upright position.
3. Pull up on the seatback recliner lever on the outboard
side of the seat to fold head rest and seatback and tumble
seat forward.Easy Entry Second Row
The second row Stow ’n Goseats allow easy entry to the
third row seat or rear cargo area.
Pull up on the seatback recliner lever on the outboard
side of the seat.
Raising The Head Restraint
Seatback Recliner Lever, Seat Tumble,
And Head Restraint Fold Lever
182 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
