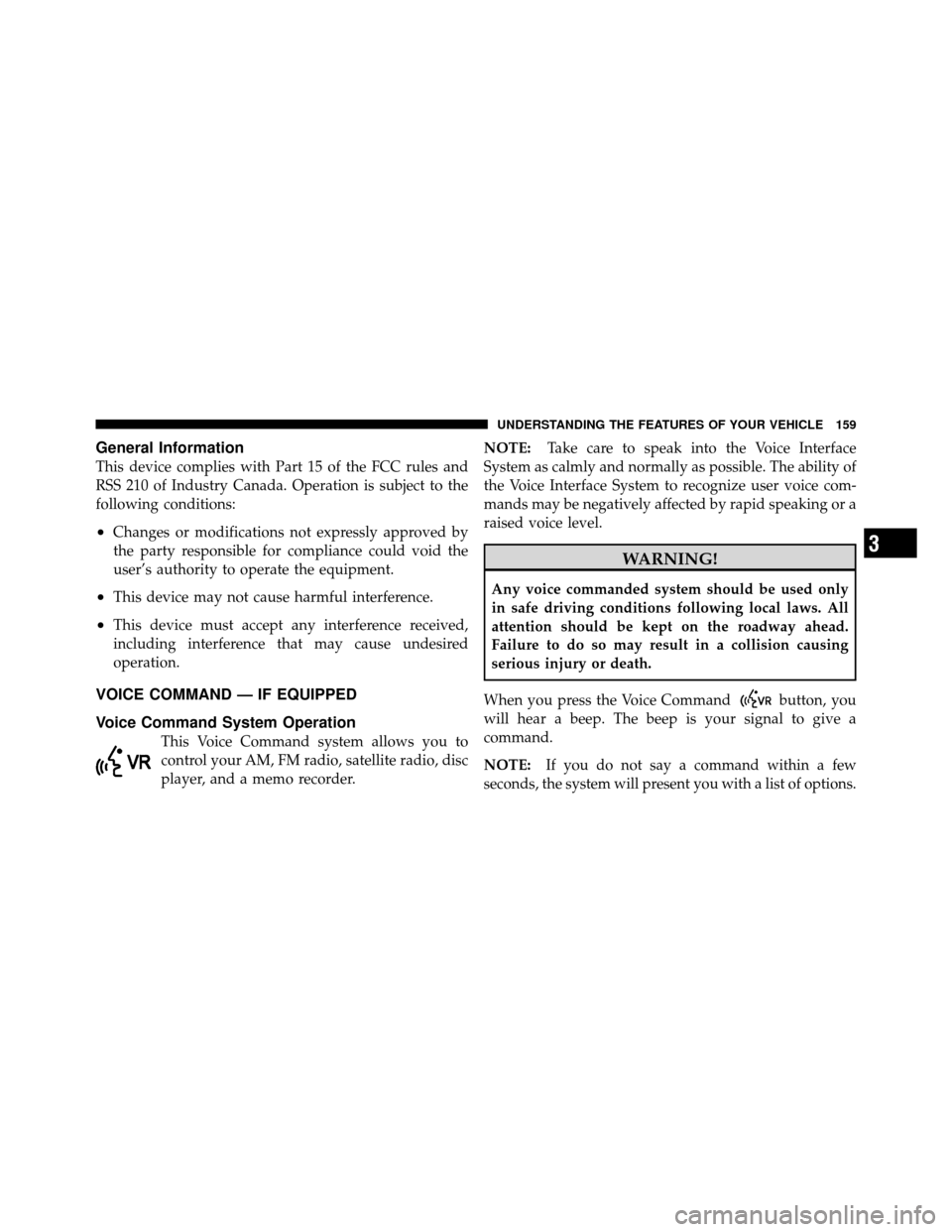

General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired
operation.
VOICE COMMAND — IF EQUIPPED
Voice Command System Operation
This Voice Command system allows you to
control your AM, FM radio, satellite radio, disc
player, and a memo recorder.NOTE:
Take care to speak into the Voice Interface
System as calmly and normally as possible. The ability of
the Voice Interface System to recognize user voice com-
mands may be negatively affected by rapid speaking or a
raised voice level.
WARNING!
Any voice commanded system should be used only
in safe driving conditions following local laws. All
attention should be kept on the roadway ahead.
Failure to do so may result in a collision causing
serious injury or death.
When you press the Voice Command
button, you
will hear a beep. The beep is your signal to give a
command.
NOTE:
If you do not say a command within a few
seconds, the system will present you with a list of options.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159

•In the event of deployment of an Active Head Re-
straint, refer to “Occupant Restraints/Resetting Active
Head Restraints (AHR)” in “Things To Know Before
Starting Your Vehicle” for further information.
WARNING!
•Do not place items over the top of the Active Head
Restraint, such as coats, seat covers or portable
DVD players. These items may interfere with the
operation of the Active Head Restraint in the event
of a collision and could result in serious injury or
death.(Continued)
WARNING! (Continued)
•Active Head Restraints may be deployed if they
are struck by an object such as a hand, foot or loose
cargo. To avoid accidental deployment of the Ac-
tive Head Restraint ensure that all cargo is se-
cured, as loose cargo could contact the Active Head
Restraint during sudden stops. Failure to follow
this warning could cause personal injury if the
Active Head Restraint is deployed.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175

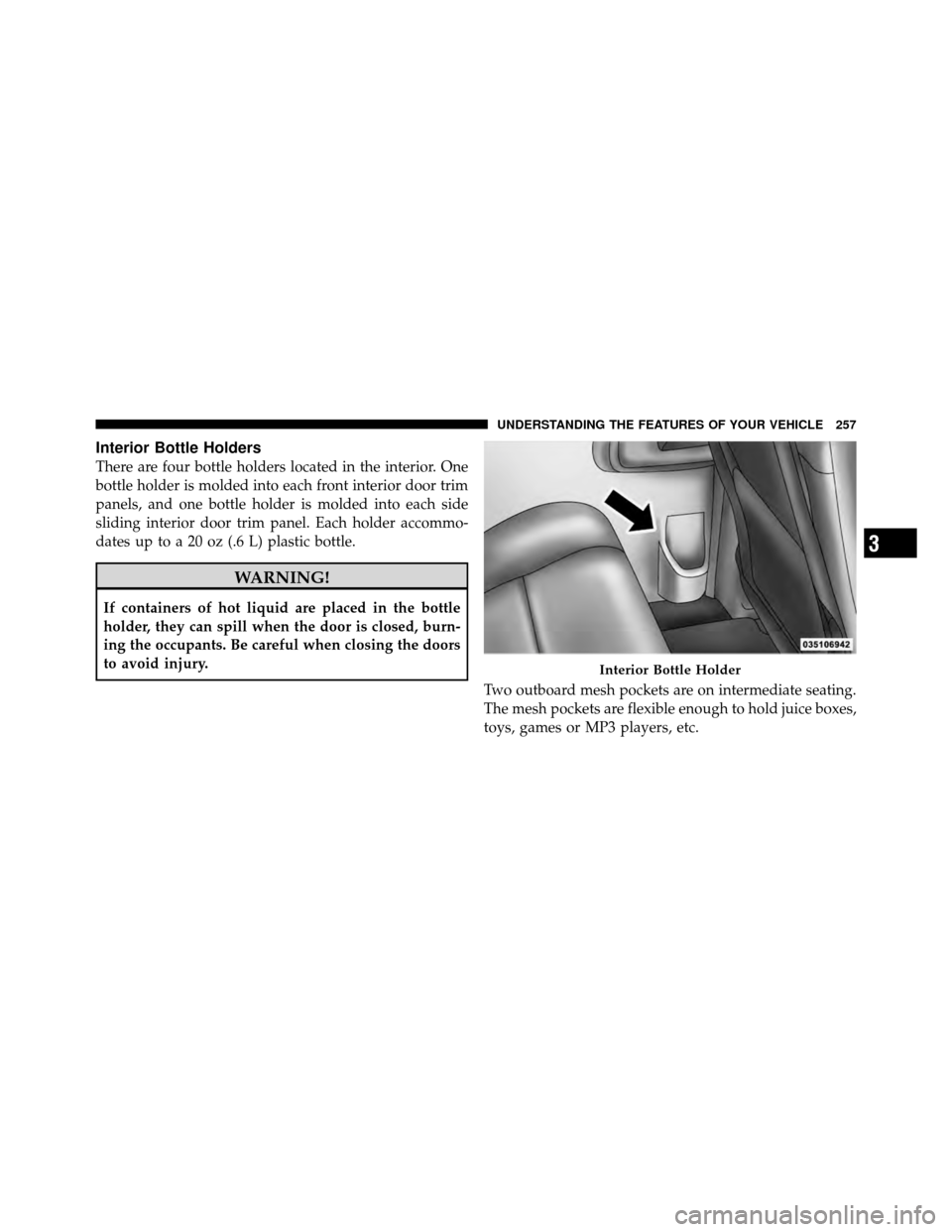

Interior Bottle Holders
There are four bottle holders located in the interior. One
bottle holder is molded into each front interior door trim
panels, and one bottle holder is molded into each side
sliding interior door trim panel. Each holder accommo-
dates up to a 20 oz (.6 L) plastic bottle.
WARNING!
If containers of hot liquid are placed in the bottle
holder, they can spill when the door is closed, burn-
ing the occupants. Be careful when closing the doors
to avoid injury.Two outboard mesh pockets are on intermediate seating.
The mesh pockets are flexible enough to hold juice boxes,
toys, games or MP3 players, etc.
Interior Bottle Holder
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 257

CONSOLE FEATURES
There are three consoles available: Basic, Premium and
Super.
WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Cellular phones, music
players, and other handheld electronic devices
should be stowed while driving. Use of these devices
while driving can cause an accident due to distrac-
tion, resulting in death or injury.
Basic Console
Basic Console features consist of the following:
•The basic console profile allows vehicle occupants to
easily pass through the first row to the second.
•Four cupholders accept up to extra large size beverage
cups or 20 oz (.6 L) plastic bottles. Cupholders are
dishwasher safe for cleaning.
•The cupholders are removable to access a large storage
bin.
•The basic console is removable from the vehicle for
additional floor space by removing the cap and clip at
the console base.
To Remove The Basic Floor Console
1. Remove the front anchor cup plug and clip.
2. Slide the console base forward while lifting slightly to
clear the rear load floor hook.
3. Remove the console.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 265

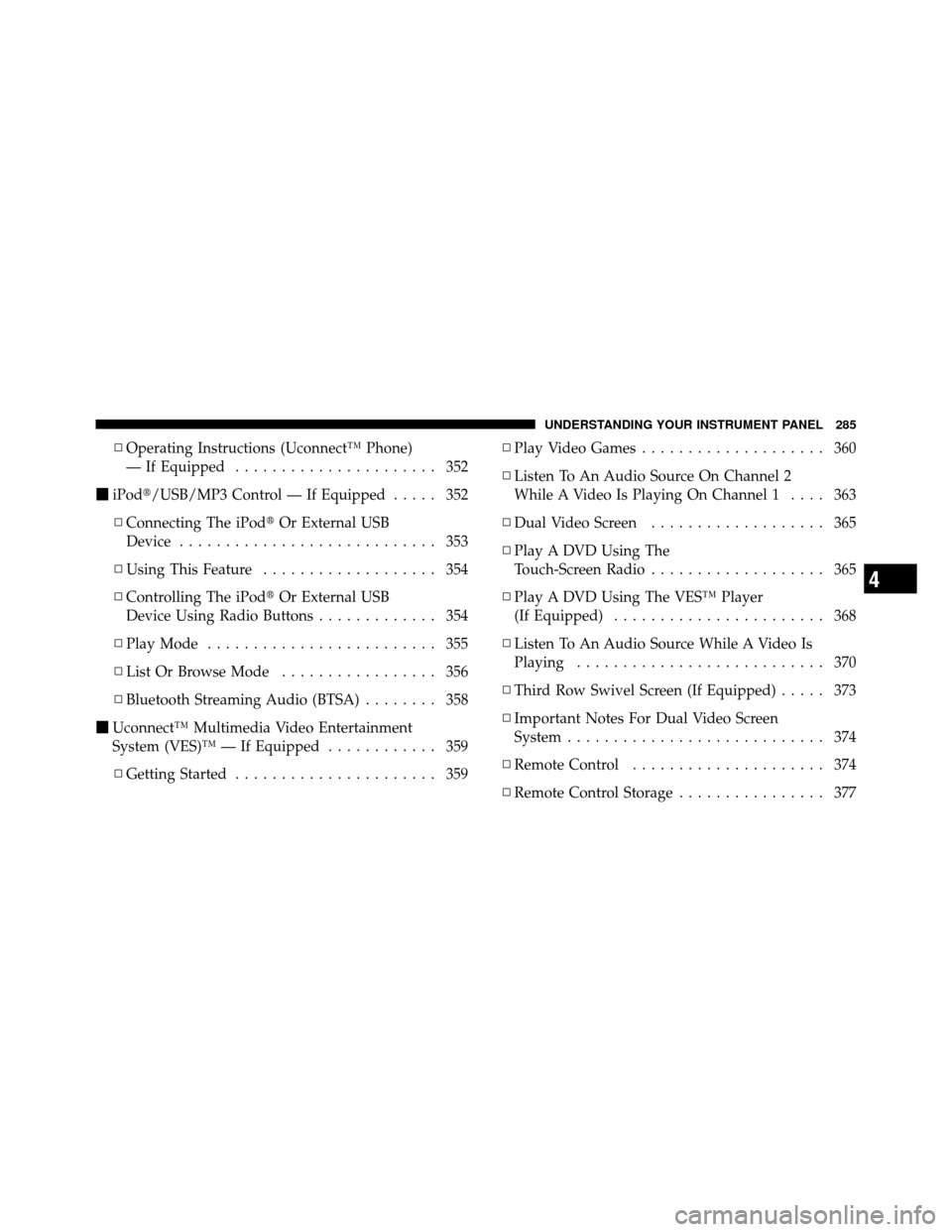

▫Operating Instructions (Uconnect™ Phone)
— If Equipped ...................... 352
 iPod/USB/MP3 Control — If Equipped ..... 352
▫ Connecting The iPod Or External USB
Device ............................ 353
▫ Using This Feature ................... 354
▫ Controlling The iPod Or External USB
Device Using Radio Buttons ............. 354
▫ Play Mode ......................... 355
▫ List Or Browse Mode ................. 356
▫ Bluetooth Streaming Audio (BTSA) ........ 358
 Uconnect™ Multimedia Video Entertainment
System (VES)™ — If Equipped ............ 359
▫ Getting Started ...................... 359 ▫
Play Video Games .................... 360
▫ Listen To An Audio Source On Channel 2
While A Video Is Playing On Channel 1 .... 363
▫ Dual Video Screen ................... 365
▫ Play A DVD Using The
Touch-Screen Radio ................... 365
▫ Play A DVD Using The VES™ Player
(If Equipped) ....................... 368
▫ Listen To An Audio Source While A Video Is
Playing ........................... 370
▫ Third Row Swivel Screen (If Equipped) ..... 373
▫ Important Notes For Dual Video Screen
System ............................ 374
▫ Remote Control ..................... 374
▫ Remote Control Storage ................ 377
4
UNDERSTANDING YOUR INSTRUMENT PANEL 285

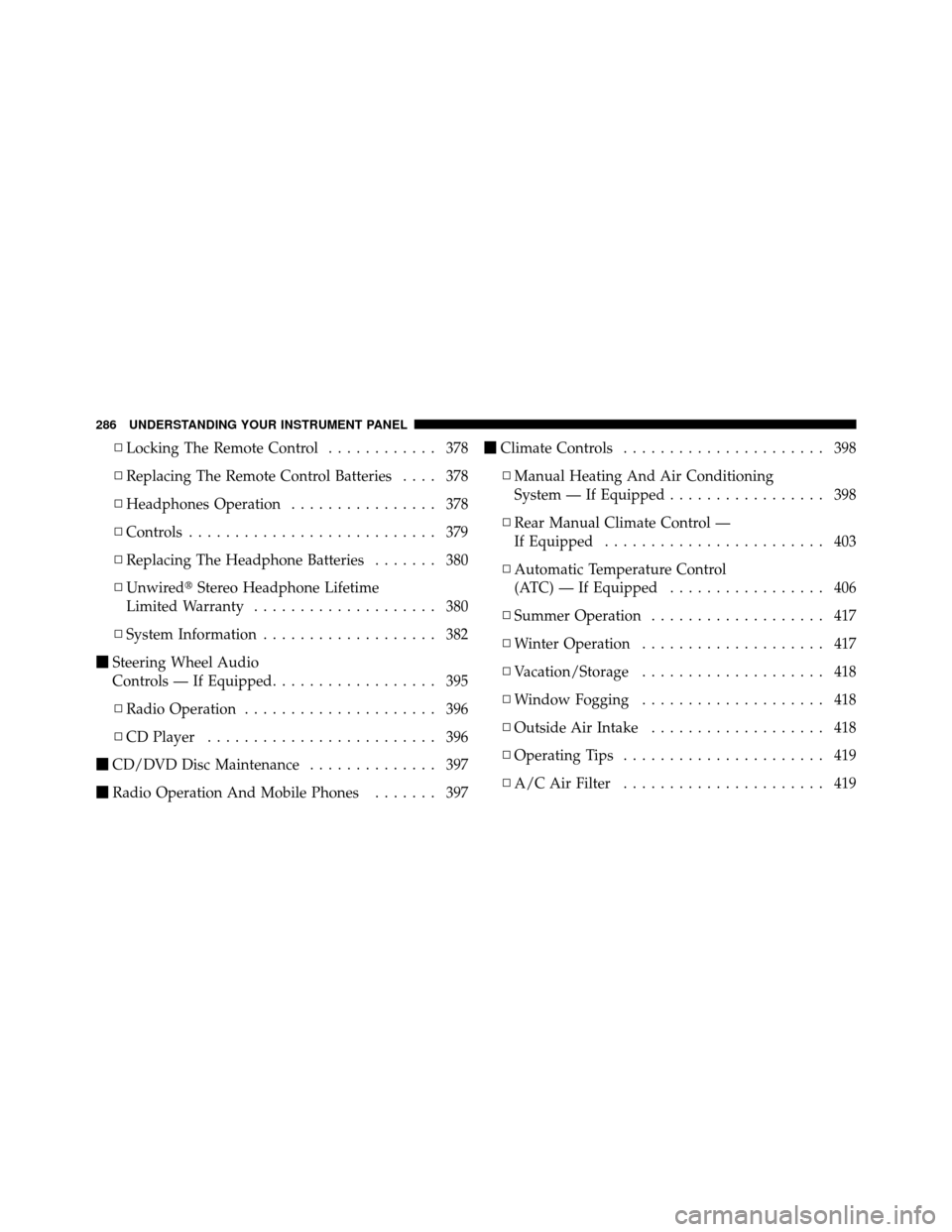

▫Locking The Remote Control ............ 378
▫ Replacing The Remote Control Batteries .... 378
▫ Headphones Operation ................ 378
▫ Controls ........................... 379
▫ Replacing The Headphone Batteries ....... 380
▫ Unwired Stereo Headphone Lifetime
Limited Warranty .................... 380
▫ System Information ................... 382
 Steering Wheel Audio
Controls — If Equipped .................. 395
▫ Radio Operation ..................... 396
▫ CD Player ......................... 396
 CD/DVD Disc Maintenance .............. 397
 Radio Operation And Mobile Phones ....... 397
Climate Controls ...................... 398
▫ Manual Heating And Air Conditioning
System — If Equipped ................. 398
▫ Rear Manual Climate Control —
If Equipped ........................ 403
▫ Automatic Temperature Control
(ATC) — If Equipped ................. 406
▫ Summer Operation ................... 417
▫ Winter Operation .................... 417
▫ Vacation/Storage .................... 418
▫ Window Fogging .................... 418
▫ Outside Air Intake ................... 418
▫ Operating Tips ...................... 419
▫ A/C Air Filter ...................... 419
286 UNDERSTANDING YOUR INSTRUMENT PANEL

•This radio is capable of playing compact discs (CD),
recordable compact discs (CD-R), rewritable compact
discs (CD-RW), compact discs with MP3 tracks and
multisession compact discs with CD and MP3 tracks.
Inserting Compact Disc(s)
Gently insert one CD into the CD player with the CD
label facing up. The CD will automatically be pulled into
the CD player and the CD icon will illuminate on the
radio display. If a CD does not go into the slot more than
1.0 in (2.5 cm), a disc may already be loaded and must be
ejected before a new disc can be loaded.
If you insert a disc with the ignition ON and the radio
ON, the unit will switch from radio to CD mode and
begin to play when you insert the disc. The display will
show the track number, and index time in minutes and
seconds. Play will begin at the start of track 1.
CAUTION!
•This CD player will accept 4-3/4 in (12 cm) discs
only. The use of other sized discs may damage the
CD player mechanism.
•Do not use adhesive labels. These labels can peel
away and jam the player mechanism.
•The RES Media Center is a single CD player. Do
not attempt to insert a second CD if one is already
loaded.
EJECT Button - Ejecting a CD
Press the EJECT button to eject the CD.
If you have ejected a disc and have not removed it within
10 seconds, it will be reloaded. If the CD is not removed,
the radio will reinsert the CD but will not play it.
A disc can be ejected with the radio and ignition OFF.
332 UNDERSTANDING YOUR INSTRUMENT PANEL

NOTE:Ejecting with the ignition OFF is not allowed on
convertible or soft-top models (if equipped).
SEEK Button
Press the right SEEK button for the next selection on the
CD. Press the left SEEK button to return to the beginning
of the current selection, or return to the beginning of the
previous selection if the CD is within the first second of
the current selection. Pressing and holding the SEEK
button will allow faster scrolling through the tracks in
CD and MP3 modes.
TIME Button
Press this button to change the display from a large CD
playing time display to a small CD playing time display.
RW/FF
Press and hold the FF (Fast Forward) button and the CD
player will begin to fast forward until FF is released, or
RW or another CD button is pressed. The RW (Reverse)
button works in a similar manner.
AM/FM Button
Press the button to select either AM or FM mode.
SET/RND Button (Random Play Button)
Press this button while the CD is playing to activate
Random Play. This feature plays the selections on the
compact disc in random order to provide an interesting
change of pace.
Press the right SEEK button to move to the next ran-
domly selected track.
Press the RND button a second time to stop Random
Play.
Notes on Playing MP3 Files
The radio can play MP3 files; however, acceptable MP3
file recording media and formats are limited. When
writing MP3 files, pay attention to the following restric-
tions.
