2012 AUDI A8 ESP

164 Airbag system
are in the proper seating posit ion
c:> page 54, General recommendations.
- If the airbag indicator light comes on
when the vehicle is being used, have the
system inspected immediately by your
authorized Audi dealer. The side curta in
airbag may not work prope rly even when
the vehicle acceleration in a side coll is ion
is h igh enough to act ivate the airbag.
How side curtain airbags work
Side curtain airbags can work together with
side airbags to help reduce the risk of head
and upper torso injuries for occupants who
are properly restrained.
Fig . 154 Illustrat ion of principle: Inflated side curtain
a ir bags on the left side
The side curtain airbags inflate between the
occupant and the windows on the side of the
vehicle that is struck in a side co llision
~fig. 154.
When the system is tr iggered, the side curtain
a ir bag is filled with propellant gas and breaks
through a seam above the front and rear side
windows identified by the A IRBAG label. In or­
der to help provide this additional p rotection,
the side c urtain airbag must inflate within the
b link of an eye at very high speed and with
great force. The side c urtain airbag cou ld in­
jure you if your seating position is not proper
or upright or if items are located in the area
where the supplementa l side curtain airbag
inflates . This applies espec ial ly to children
~page 166.
Although they are not a soft pillow, side cur­
tain airbags can "cushion" the impact and in
this way they can he lp to reduce the r isk of in - jury to the head and the upper part of the
body.
A fine dust may deve lop when the airbag de­
ploys. This is qui te normal and does not mean
there is a fire in the vehicle .
Important safety instructions on the
side curtain airbag system
Airbags are only supplemental restraints. Al ­
ways properly wear safety belts and ride in a
proper seating position .
There is a lot that you and your passengers
must know and do to he lp the safety belts and
airbags do their job to provide supplemental
protection .
A WARNING ........
Improperly wearing safety belts and im­
proper seating posit ions increase the risk
of ser ious personal inju ry and death when­
ever a vehicle is bei ng used.
- Never let occupants place any parts of
their bod ies in the area from which the
side curta in a irbags inflate.
- Always make sure that the s ide curtain
a ir bags can inflate without interference.
Unsuitable accessor ies fitted inside the
exp ansion range of a s ide cur tain airbag
can dangero usly inter fere w ith its f unc ­
tion. A deploying head airbag develops
enough force to catapu lt any piece of
add-on component out of its path of in­
flation and into the passenger compart­
ment. A n occupant h it by suc h a projec­
tile can suffer serio us injury or death
~ page 283, Technical Modifications.
- Do not swivel the sun visors to the side if
you have any objects clipped onto them
(for examp le pens) .
If the airbag should
deploy, you could be injured by these ob­
jects.
- Use the bu ilt -in coat hooks only for light·
weight clothing. Never leave any heavy o r
sha rp-edged objects in the pockets that
-
may interfere with airbag dep loyment ~

166 Child Saf ety

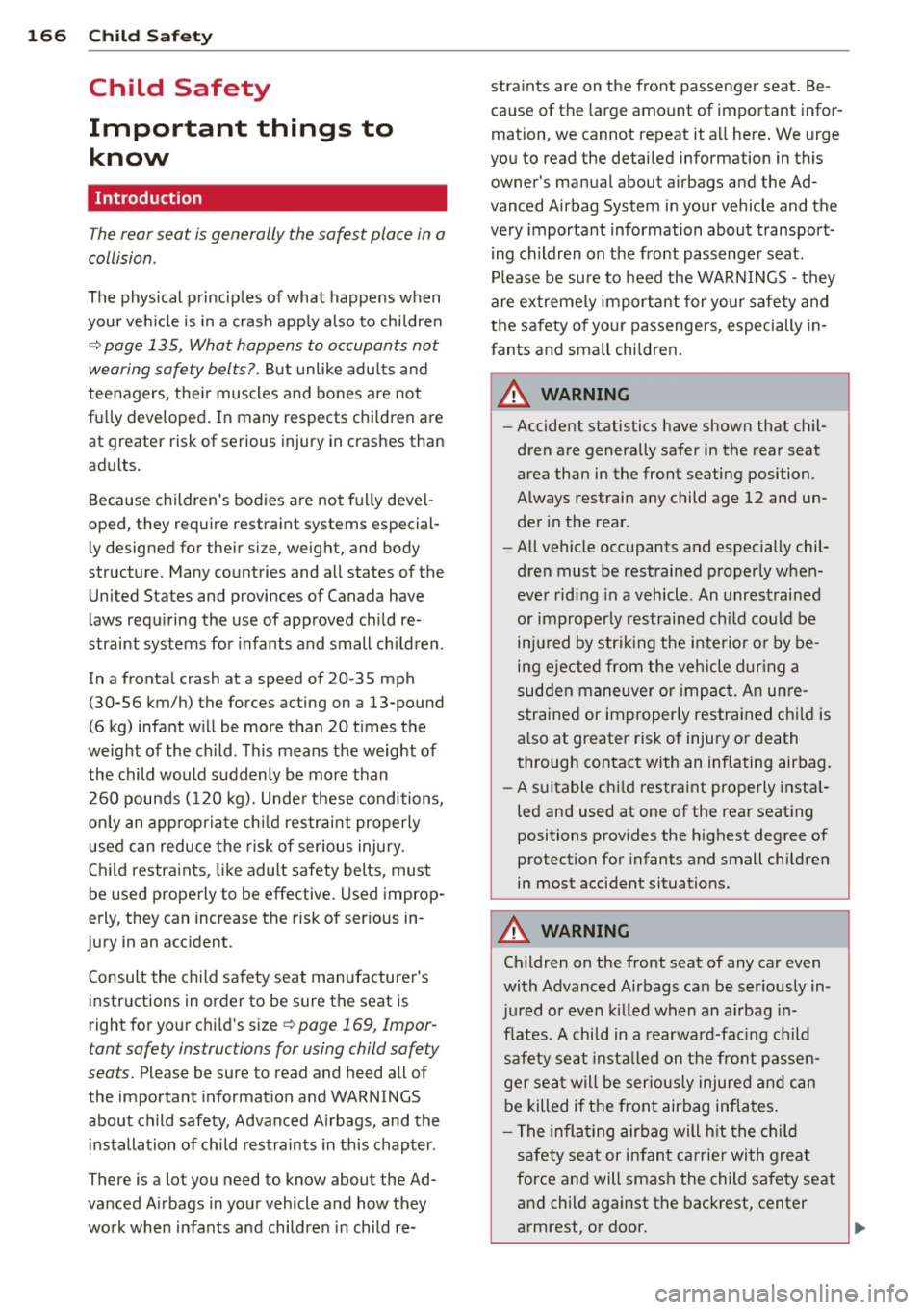

Child Safety
Important things to
know
Introduction
The rear seat is generally the safest place in a
collision.
The physical principles of what happens when
your veh icle is in a crash app ly also to chi ldren
~ page 135, What happens to occupants not
wearing safety belts?.
But unlike adults and
teenagers, their muscles and bones are not
fu lly developed. In many respects children are
at greater risk of serious injury in crashes than
adults.
Because children's bodies are not fully deve l­
oped, they require restraint systems especial­
ly designed for their size, weight, and body
structure. Many countries and all states of the
United States and provinces of Canada have
laws requiring the use of approved child re­
straint systems for infants and small ch ildren.
In a fronta l crash at a speed of 20 -35 mph
(30-56 km/h) the forces acting on a 13-pound
(6 kg) infant w ill be more than 20 t imes the
weight of the child. This means the weight of
the child would suddenly be more than 260 pounds (120 kg). Under these conditions,
only an appropriate ch ild restraint properly
used can reduce the risk of ser ious injury.
Child restraints, like adult safety belts, must
be used properly to be effective. Used improp­
erly, they can increase the risk of serious in­
jury in an accident.
Consult the child safety seat manufacturer's instructions in order to be sure the seat is
right for your ch ild's size ~
page 169, Impor­
tant safety instructions for using child safety
seats.
Please be sure to read and heed all of
the important information and WARNINGS
about child safety, Advanced A irbags, and the
installation of child restraints in this chapter .
There is a lot you need to know about the Ad­
vanced Airbags in your vehicle and how they
work when infants and children in child re- straints are on the front passenger seat
. Be­
cause of the large amount of important infor­
mation, we cannot repeat it all here . We urge
you to read the detailed information in this
owner's manual about airbags and the Ad­
vanced Airbag System in your vehicle and the
very important information about transport­
ing children on the front passenger seat.
Please be sure to heed the WARNINGS -they
are extremely important for your safety and
the safety of your passengers, especially in­
fants and small children.
A WARNING
-Accident statistics have shown that chil­
dren are generally safer in the rear seat
area than in the front seating position.
Always restrain any child age 12 and un­
der in the rear.
- All vehicle occupants and especially chil­
dren must be restrained properly when­
ever riding in a vehicle. An unrestrained
or improperly restrained chi ld could be
injured by str iking the i nterior or by be­
ing ejected from the vehicle during a
sudden maneuver or impact. An unre­
strained or improperly restrained chi ld is
also at greater risk of injury or death
through contact with an inflating airbag.
- A suitable chi ld restraint properly instal ­
led and used at one of the rear seating positions provides the highest degree of
protection for infants and small children
in most accident situations.
A WARNING ,_
Children on the front seat of any car even
with Advanced Airbags can be ser iously in­
jured or even killed when an airbag in­
flates. A child in a rearward-facing child
safety seat installed on the front passen­
ger seat will be seriously injured and can
be killed if the front airbag inflates.
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat and child against the backrest, center
armrest, or door.
II>-

-Always install rear-facing child safety
seats on the rear seat.
- If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rear-facing child safety seat in
a rear seating position and have the air­
bag system inspected immediately by
your Audi dealer.
_& WARNING
If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by its manufacturer for use on a front seat
with a passenger front and side airbag.
- Always follow the manufacturer's in­
structions provided with the child safety
seat or carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the child restraint. The backrest must be
adjusted to an upright position .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
(D Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your vehicle is equipped with a front "Ad­
vanced Airbag System" in compliance with United States Federal Motor Vehicle Safety
Child Safety 167
Standard (FMVSS) 208 as applicable at the
time your vehicle was manufactured.
The Advanced Airbag system in your vehicle
has been certified to meet the "low-risk" re­
quirements for 3- and 6-year old children on
the passenger side and small adults on the driver side. The low risk deployment criteria
are intended to reduce the risk of injury
through interaction with the airbag that can
occur, for example, by being too close to the
steering wheel and instrument panel when
the airbag inflates . In addition, the system
has been certified to comply with the "sup­
pression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restrained on the front
passenger seat in child restraints that are list­
ed in the Standard.
Even though your vehicle is equipped with an
Advanced Airbag system, all children, espe­ cially those 12 years and younger, should al­
ways ride in the back seat properly restrained
for their age and size. The airbag on the pas­
senger side makes the front seat a potentially dangerous place for a child to ride . The front
seat is not the safest place for a child in a for­
ward-facing child safety seat. It can be a very
dangerous place for an infant or a larger child
in a rearward-facing seat .
Advanced Airbags and the weight­
sensing mat in the front seat
The Advanced Airbag System in your vehicle
detects the presence of an infant or child in a
child restraint on the front passenger seat us­
ing the weight -sensing mat in the seat cush­
ion and the sensor below the safety belt latch
on the front passenger seat that measures the
tension on the safety belt.
The weight -sensing mat measures total
weight of the child and the child safety seat
and a child blanket on the front passenger seat. The weight on the front passenger seat
is related to the design of the child restraint
and its "footprint", the size and shape of the
bottom of the child restraint as it sits on the ..,.
•
•

-Model Manufactured on or
a fter
Evenflo First Choic e December 1, 1999
1204
Gra co Infant 8457 December 1, 1999
Graco Snug ride September 25, 2007
Peg Perego Primo Vi -September 25, 2007
aggio SIP IMUN00US
Subpart C -Forward -fa cing and
c on vert ible child restraint s
Model Manufactured on or
after
Britax Roundabout September 25, 2007
E9L02xx
Cosco Touriva 02519 December 1, 1999
Cosco Summit Deluxe September 25, 2007
High Back Booster
2 2-262
! Cosco High Back September 25, 2007
Booster 22-209
E venflo Tribu te V September 25, 200 7
379xxxx
Evenflo Medallion December 1, 1999
254
Evenflo Generations September 25, 2007
352xxxx
Graco ComfortSport September 25, 2007
Graco Toddler Safety September 25, 2007
Seat Step 2
Graco Platinum Cargo September 25, 2007
&_ WARNING
To reduce the risk of serious injury, make sure that the
PASSENGER AIR BAG O FF
light comes on and stays on whenever a
child restraint is installed on the front pas­
senger seat and the ignition is switched
on.
- Take the child rest raint off the front pas­
senger seat and install it properly at one
of the rea r seat posi tions if the
PASSEN­
GER AIR BAG OFF
light does not stay o n.
Child Sa fet y 169
-Have the airbag system inspected by
your author ized Audi dealer immed iate­
ly.
(D Tips
The child seats listed in categories A to C have been statically tested by A udi on ly for
the Advanced A irbag function.
Important safety instructions for using
child safety seats
Correct use of child safety seats substantially
reduces the risk of injury in an accident!
As the dr iver, you are responsib le for the safe­
ty of everybody in the veh icle, especially ch il­
dren:
... Always use the r ight chi ld safety seat for
each child and always use it properly
¢ page 171 .
... Always carefully fo llow the child safety seat
manufactu rer's inst ruct io ns on how to route
th e safety belt properly through the child
safety sea t .
... When usi ng the vehicle safe ty belt to install
a child safety se at, you m ust first activate
t he conve rtible locking retractor on the
safety belt to prevent the child safety seat
from mov ing
¢ page 175.
... Push the ch ild safety seat down with your
full weight to get the safety be lt really tight
so that the seat cannot move forward or
sideways more than one inch (2 .5 cm) .
... If a strap o r tethe r is be ing used to tie the
child safety seat to the front passenger
seat , make sure tha t it is not so tigh t that it
causes the weigh t-sens ing ma t to measure
more weight than is act ually on the seat.
Always remember: Even tho ugh you r vehicle is
equippe d wi th an Advanced Airbag system, all
children, especially those 12 years and young ­
er, s hou ld always ride in the back seat prope r-
l y restrained for thei r age and size.
ll>
•
•

1 70 Child Safety
&_ WARNING
Not using a child safety seat, using the
wrong child safety seat or improperly in­
stalling a child restraint increases the risk
of serious personal injury and death .
-All vehicle occupants and especially chil ­
dren must always be restrained properly
whenever riding in a vehicle.
-
- An unrestrained or improperly restrain­
ed child can be injured or killed by be­
ing thrown against the inside of the ve­
hicle or by being ejected from it during
a sudden maneuver or impact .
- An unrestrained or improperly restrain­
ed child is at much greater risk of injury
or death by being struck by an inflating
airbag.
- Commercially available child safety seats
are required to comply with U.S. Federal
Motor Vehicle Safety Standard (FMVSS)
213 (in Canada CMVSS 213).
- When buying a child restraint, select
one that fits your child and the vehicle.
- Only use child restraint systems that
fully contact the flat portion of the
seat cushion. The child restraint must not tip or lean to either side. Audi does
not recommend using child safety
seats that rest on legs or tube -like
frames . They do not provide adequate
contact with the seat.
-Always heed all legal requirements per­
taining to the installation and use of
child safety seats and carefully follow
the instructions provided by the manu­
facturer of the seat you are using.
- Never allow children under 57 inches
(1.45 meters) to wear a normal safety
belt. They must always be restrained by a
proper child restraint system. Otherwise,
they could sustain injuries to the abdo­
men and neck areas during sudden brak­
ing maneuvers or accidents.
- Never let more than one child occupy a
child safety seat . -
Never let babies or older children ride in
a vehicle while sitting on the lap of an­
other passenger .
- Holding a child in your arms is never a
substitute for a child restraint system.
- The strongest person could not hold
the child with the forces that exist in
an accident. The child will strike the in­
terior of the vehicle and can also be
struck by the passenger.
- The child and the passenger can also
injure each other in an accident.
- Never install rear-facing child safety
seats or infant carriers on the front pas­
senger seat. A child will be seriously in­
jured and can be killed when the passen­
ger airbag inflates -even with an Ad­
vanced Airbag System .
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, center
armrest, door or roof.
-Always install rear-facing child safety
seats or infant carriers on the rear seat .
- Forward-facing child safety seats instal­
led on the front passenger's seat can in­
terfere with the airbag when it inflates
and cause serious injury to the child. Al­
ways install forward-facing child safety
seats on the rear seat.
- If exceptional circumstances require the
use of a forward-facing child restraint on
the front passenger's seat, the child's
safety and well-being require that the
following special precautions be taken :
- Make sure the forward-facing seat has
been designed and certified by its man­
ufacturer for use on a front seat with a
passenger front and side airbag.
-Always carefully follow the manufac­
turer's instructions provided with the child safety seat or carrier.
- Always move the front passenger seat
into the rearmost position of the pas­
senger seat's fore and aft adjustment range, and as far away from the airbag

174 Child Safety
Booster seats and safety belts
Properly used booster seats can help protect
children weighing between about 40 lbs. and
80 lbs. (18 kg and 36 kg) who are less than 4
ft. 9 in. (57 inches/1.45 meters) tall.
Fig. 158 Rear seat: child properly restrained in a boos­
ter seat
The vehicle's safety belts alone will not fit
most children until they are at least 4
ft. 9 in.
(57 inches/1.45 meters) tall and weigh about
80 lbs. (36 kg). Booster seats raise these chil­
dren up so that the safety belt will pass prop­
erly over the stronger parts of their bodies
and the safety belt can help protect them in a
crash.
.. Do not use the convertible locking retractor
when using the vehicle's safety belt to re­
strain a child on a booster seat.
.. The shoulder belt must lie as close to the
center of the child's collar bone as possible
and must lie flat and snug on the upper
body.
It must never lie across the throat or
neck . The lap belt must lie across the pelvis
and never across the stomach or abdomen.
Make sure the belt lies flat and snug. Pull on
the belt to tighten if necessary.
.. If you must transport an older child in a
booster seat on the front passenger seat,
you can use the safety belt height adjust­
ment to help adjust the shoulder portion
properly.
Children up to at least 8 years old (over 40 lbs
or 18 kg) are best protected in child safety
seats designed for their age and weight. Ex­
perts say that the skeletal structure, particu­
larly the pelvis, of these children is not fully developed, and they must not
use the vehicle
safety belts without a suitable child restraint.
It is usually best to put these children in ap­
propriate booster seats. Be sure the booster
seat meets all applicable safety standards.
Booster seats raise the seating position of the
child and reposition both the lap and shoulder
parts of the safety belt so that they pass
across the child's body in the right places. The
routing of the belt over the child's body is very
important for the child's protection, whether
or not a booster seat is used. Children age 12
and under must always ride in the rear seat.
Children who are at least 4
ft. 9 in. (57 in­
ches/1.45 meters) tall can generally use the
vehicle's three point lap and shoulder belts.
Never use the lap belt portion of the vehicle's
safety belt alone to restrain any child, regard ­
less of how big the child is. Always remember
that children do not have the pronounced pel­
vic structure required for the proper function
of lap belt portion of the vehicle's three point
lap and shoulder belts. The child's safety ab­
solutely requires that a lap belt portion of the
safety belt be fastened snugly and as low as
possible around the pelvis. Never let the lap
belt portion of the safety belt pass over the
child's stomach or abdomen .
In a crash, airbags must inflate within a blink
of an eye and with considerable force. In order
to do its job, the airbag needs room to inflate
so that it will be there to protect the occupant
as the occupant moves forward into the air­
bag.
A vehicle occupant who is out of position and
too close to the airbag gets in the way of an inflating airbag . When an occupant is too
close, he or she will be struck violently and
will receive serious or possibly even fatal in­
Jury.
In order for the airbag to offer protection, it is
important that all vehicle occupants, especial-
ly any children, who must be in the front seat
because of exceptional circumstances, be
properly restrained and as far away from the
airbag as possible. By keeping room between ..,_

the child's body and the front of the passen­
ger compartment, the airbag can inflate com ­
p letely and provide supplemental protection
in certa in frontal col lisions .
_&. WARNING
Not using a booster seat, us ing the boos­
ter seat improperly, incorrect ly installing a
booster seat or using the vehicle safety
belt improperly increases the risk of seri­
ous personal injury and death in a collision
or other eme rgency s ituation. To help re­
duce the risk of serious persona l injury
and/or death:
- T he shoulder be lt mus t lie as close to the
center of the child's co llar bone as possi ­
ble and must lie flat and sn ug on the up­
per body . It must never lie across the
throat or neck. The lap belt must lie across the pelvis and never across the
stomach or abdomen . Make sure that the
belt lies flat and snug. Pull on the belt to
t ighten if necessary.
- Failure to properly route safety belts over a ch ild's body will cause severe inju­
ries in an acc ident or other emergency
situation ¢
page 134 .
-The rea r side of the child safety seat
sho uld be positioned as close as possible
to the backrest on the ve hicle seat. Ad­
just the rear se at head res traint if it is
difficult to install the child seat w ith the
head restraint in place¢
page 128. Driv­
ing with head restraints that are not
properly ad justed increases the risk of
serious or fatal neck injury dramatically.
- Children on the front seat of any car,
even with Advanced A irbags, can be seri­
ous ly injured or even killed when an a ir­
bag inflates.
- Never let a child stand or knee l on any
seat, for examp le the front seat.
- Never let a child ride in the cargo area of
your vehicle.
-Always remember that a ch ild lean ing
forward, sitt ing s ideways or out of posi­
t io n in any way during an acc ident can be
Child Sa fet y 175
struck by a dep loying a irbag . This will re­
sult in ser ious personal injury or death.
- If you must install a booster seat on the
front passenger seat because o f excep­
tional circumstances the
PASSENGER
AIR BAG OFF
li ght must come on and
stay on, whenever the ignition is switch­
ed on.
- If the
PASSENGER AIR BAG OFF light
does not come on and stay on, pe rform
the checks descr ibed¢
page 153, Moni­
toring the Advanced Airbag System.
- Take t he chi ld restraint off the front pas­
senger seat and install it prope rly at one
of t he rear seat positions if the
PASSEN ­
GER AIR BAG OFF
light does not stay on
whenever the ignit ion is switched on .
- Always rea d and heed all WAR NIN GS
wheneve r using a child res tra ine d in ave­
hicle is being used
¢ page 134, Safety
belts,
¢ page 142, Airbag system and
¢ page 166 , Important things to know .
Installing a child safety
seat
Securing a child safety seat using a
safety belt
Safety belts for the rear seats and the front
passenger can be locked with the convertible locking retractor to properly secure child
safety seats.
The safety belts emergency locking retractors
for the rear seats safety belts and for the
front passenger's seat safety belt have a con­
vertib le locking retractor for child restraints.
The safety belt must be locked so that be lt
webb ing cannot unreel. The retractor can be
activated to loc k the safety belt and prevent
the safety be lt webb ing from loosening up
dur ing norma l dr iving . A ch ild safety seat can
o nl y be properly installed when t he safety bel t
is loc ked so that t he chi ld and child sa fety
seat w ill stay in place.
Always remember: Even tho ugh you r vehicle is
equipped wi th an Advanced Airbag system, all
c hil dren, especially those 1 2 years and .,. •
•

-Always make sure the forward-facing
seat has been designed and certified by
its manufacturer for use on a front seat
with a passenger front and side airbag .
- Never put the forward-facing child re­
straint up, against or very near the in­
strument panel.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the forward-facing child restraint . The
backrest must be adjusted to an upright
position.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the
time whenever the ignition is switched
on.
A WARNING ,..__
Rearward-facing child restraints:
- A child in a rearward-facing child safety
seat installed on the front passenger
seat will be seriously injured and can be
killed if the front airbag inflates - even
with an Advanced Airbag System.
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, center
armrest, door or roof.
- Always be especially careful if you must
install a rearward facing child safety seat
on the front passenger seat in exception­
al circumstances.
-A tight tether strap on a rearward-facing child restraint attached to the front pas­
senger seat can put too much pressure
on the weight-mat in the seat and regis­
ter a heavier weight in the Advanced Air­
bag System. The heavier weight regis­
tered can make the system work as
though an adult were on the seat and de­
ploy the Advanced Airbag when it must
be suppressed causing serious or even
fatal injury to the child .
Child Safety 177
-Make sure that the PASSENGER AIR BAG
OFF
light comes on and stays on all the
time whenever the ignition is switched
on .
- If the
PASSENGER AIR BAG OFF light
does not come on and stay on, immedi­
ately install the rear-facing child safety
seat in a rear seating position and have
the airbag system inspected by your Audi
dealer.
Activating the convertible locking
, retractor
Use the convertible locking retractor to se­
cure a child restraint.
Always heed the child safety seat manufactur­
er's instructions when installing a child re­
straint in your vehicle . To activate the conver­
tible locking retractor:
.. Place the child restraint on a seat, prefera­
bly on the rear seat.
.. Slowly pull the belt
all the way out .
.. Route it around or through the child re­
straint belt path
¢ _A .
.. Push the child safety seat down with your
full weight to get the safety belt really tight.
.. Insert the belt tongue into the buckle for
that seating position .
.. Guide the safety belt back into the retractor
until the belt lies flat and snug on the child
safety seat.
.. You should hear a "clicking" noise as the
belt winds back into the inertia reel. Test the
convertible locking retractor by pulling on
the belt. You should no longer be able to
pull the belt out of the retractor. The con­
vertible locking retractor is now activated.
.. Make sure that the red release button is fac­
ing away from the child restraint so that it
can be unbuckled quickly .
.. Pull on the belt to make sure the safety belt
is properly tight and fastened so that the
seat cannot move forward or sideways more
than one inch (2.5 cm). .,._
•
•
