2012 AUDI A3 ESP

To provide maximum protection, safety belts
must always be positioned correctly on the
wearer's body .
... Adjust the front seat and head restra int
properly
c::> page 61, General recommenda­
tions .
... Make sure the seatback of the rear seat
bench is in an upright position and securely
latched in place before using the belt
c::> ,&. .
... Hold the be lt by the tongue and pull it
evenly across the chest and pelvis
c::> ,&..
... Insert the tongue into the correct buckle of
your seat until you hea r it latch securely
c::> fig. 126.
... Pull on t he be lt to make sure that it is se-
curely latched in the buckle.
Automatic safety belt retractors
Every safety belt is equipped w ith an automat­
i c belt retractor on the shoulder be lt. This fea­
ture locks the be lt when the belt is pulled out
fast, dur ing hard braking and in an accident.
The belt may also lock when you drive up or
down a steep hill or through a sharp curve.
During normal driving the belt lets you move
freely.
Safety belt pretensioners
The safety belts are equipped with a belt pre­
tensioner that helps to tighten the safety belt
and remove slack when the pretensioner is ac­
tivated. The funct ion of the pretensioner is
monitored by a warning light
c::> page 16.
Sw itchable locking feature
E very safety belt except the one on the driver
seat is equipped with a switchable locking fea­
ture that
must be used when the safety belt is
used to attach a child safety seat. Be sure to read the important information about this
feature
c::> page 152.
A WARNING
Imprope rly positioned safety belts can
cause serious injury in an accident
o::> page 117, Safety belt position.
-Safety belts offer optimum protect ion
only when the seatback is upright and
Safety belts 11 7
belts are properly positioned on the
body.
- Always make sure that the rear seat
backrest to which the center rear safety
be lt is attached is securely latched when­
ever the rear center safety belt is being
used. If the backrest is not securely latched, the passenger w ill move for­
ward with the backrest during sudden
braking, in a sudden maneuver and espe­
cially in a crash .
- Never attach th e safety belt to the buck­
le for another seat . Atta ching the belt to
the wrong buckle will reduce safety be lt
effectiveness and can cause ser ious per­
sonal injury.
- A passenger who is not proper ly restrain ­
ed can be seriously injured by the safety
be lt itself when it moves from the stron­
ger parts of the body into critical areas
like the abdomen.
- Always lock the convertible locking re­
tractor when you are securing a child safety seat in the vehicle
c::> page 154.
Safety belt position
Correct belt position is the key to getting
maximum protection from safety belts.
Fig . 1 27 Head restra int and safety belt pos it ion as
see n from the s ide
ill
q :r ... CD
Standard features on your vehicle he lp you ad ­
just the position of the safety belt to match
your body size.
- be lt h eight adjustment for the front seats,
- automatic belt height adjustment for the
rear seats .

,&_ WARNING
Never unfasten safety belt while the vehi ­
cle is movi ng . Doing so will increase your
risk of being injured or killed .
Adjusting safety belt height
With the aid of the safety belt height adjust ­
ment, the thr ee point safety belt strap rout­
ing can be fitted to the shoulder area, accord­
ing to body size.
Fi g. 13 0 Safety be lt heig ht ad justment fo r the fr ont
s e ats - loop -a ro un d f ittin gs
g 0 0 0 ... a,
• Push the loop -aro und fitti ngs up ¢ fig. 130
@ , or
• squee ze together the (D button, and push
the loop-around fitt ings down @.
• Pull the belt to make sure that the upper at­
tachment is properly engaged .
_&. WARNING
Always read and heed all WARNINGS an d
ot her i mpo rtant in format io n
¢ page 116.
(D Tips
-The sho ulder belt part sho uld route ap­
pro ximately over the middle of your
shou lde r -
under no circum stances
should it route over your neck and
throat area
¢ .&. in Safety belt posi tion
on page 118.
- Wi th the fr ont seats, the he igh t adju st­
me nt of the se at c an a lso be used to ad­
ju st the position o f the safety belts.
Safety belts 119
Improperly worn safety belts
Incorrectly positioned safety belts can cause
severe injuries .
Wearing safety belts improperly can cause se­
rious injury or death. Safety belts can on ly
work when they are correctly positioned on
the body . Imprope r seat ing pos itions reduce
the effectiveness of safety be lts and will
even
inc rea se t he risk of inju ry and death by mov ­
in g t he safety be lt to c riti cal a reas o f the
bo dy. Improper seating posi tions a lso in ­
c rease the ris k of serious injury and death
when a n airbag dep loys and strikes an occu­
pant who is not in the correct seating posi­
tion. A driver is respons ible for the safety of
all vehicle occupants and especially for ch il­
dren . Therefore:
• Never perm it anyone to assume an incorrect
sitt ing pos ition in the vehicle while traveling
¢ _& .
The following lists only some examples of im­
proper ly worn safety belts that will increase
the risk of ser ious injury and death . Our hope
is that these examp les w ill make you more
aware of seat ing pos itions that are dangerous .
Therefore, whenever the vehicle is
moving:
- never wear the shoulder belt under your arm
- never let the s hou lder belt pass over yo ur
neck
- never wear the safety belt loose ly
- neve r place the lap belt port ion of the safety
be lt across your abdomen¢.&. .
_&. WARNING
Im properly worn safety belts increase the
risk of ser ious persona l injury and death
whenever a vehicle is being used .
- Always make s ure t hat all vehicle occu­
pa nts are co rrectly restra ined and stay in
a co rrect seati ng position whe never th e
veh icle is being used.
- A lways read and heed a ll WARNIN GS and
o th er impo rtant information
¢ pag e 116 .

122 Airbag sys te m
Airbag system
Important things to know
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints. For
airbags to do their job , occupants must al­
ways properly wear their safety belts and be
in a proper seating position.
F or your safety and the safety of your passen­
gers, before driving off, always:
• Adjust the dr iver's seat and steering wheel
properly ¢
page 104,
• Adjust the front passenger's seat properly
¢page 62,
• Wear safety be lts properly ¢ page 116,
• Always properly use the proper child re-
stra int to protect children¢
page 143.
In a collision, airbags must inflate within the
blink of an eye and with considerable force .
The supplementa l airbags can cause injuries if
the dr iver or the front seat passenger is not
seated properly . Therefore in order to he lp the
a irbag to do its job, it is important, both as a
d river and as a passenge r to sit properly at all
times.
By keeping room between your body and the
steering wheel and the front of the passenger
compartment, the airbag ca n inflate fully and
comp letely and provide supp lemental p rotec­
tion in ce rtain frontal collisions¢
page 104.
For detai ls on the operation o f the seat ad­
justment contro ls
¢ page 63.
It 's especially important that children a re
properly restrained ¢
page 143.
There is a lot that the driver and the passen­
gers can and must do to help the individual
safety features installed in your Audi work to­
gether as a system.
Prope r seat ing pos ition is important so that
the front airbag on the drive r side ca n do its
job. If yo u have a physical impa irment or con­
d ition that p revents you from sitt ing proper ly on the driver seat with the safety belt properly
fastened and reaching the pedals, or if you have concerns with regard to the function or
operation of the Advanced Airbag System,
please contact your author ized Audi dealer or
other qualified workshop, or ca ll Audi Cus ­
tomer CAR E at 1-800-822-2834 for possible
modifications to your vehicle .
When the airbag system deploys, a gas gener­ ator will fill the a irbags, break open the pad ­
ded covers, and inflate between the steering
whee l and the dr iver and between the instru­
ment pane l and the front passenger. The a ir­
bags will defla te immed iately after dep loy­
me nt so that the front occupants can see
t h rough the windshie ld again witho ut inter ­
ruption.
All of th is takes place in the b lin k of an eye , so
f ast that many peop le don't even realize that
the ai rbags have deployed. The airbags a lso
inflate with a g reat deal of force and nothing
shou ld be in their way when they deploy.
Front a irbags in combination with properly
worn safety belts slow down and lim it the oc­
cupant's forward movement. Together they
help to prevent the driver and front seat pas­
senger from hitting pa rts of the inside of the
vehicle while reducing the forces act ing on the
occupant dur ing the crash. In this way they
help to reduce the risk of injury to the head
and upper body in the crash. Airbags do not
protect the arms or the lower parts of t he
body.
Both front airbags w ill not inflate in all fronta l
co llisions . The triggering of the a irbag system
depends on the vehicle dece leration rate
caused by the co llision and registered by the
electron ic control unit. If th is rate is below
the reference value programmed into the con­
trol unit , the airbags will not be triggered ,
even though the car may be badly damaged as
a resu lt of the co llision . Ve hicle damage, re­
pair costs o r even the lack of ve hicle damage
is not necessari ly an indica tion of whether an
airbag shou ld inflate or not .
S ince the circumstances wi ll vary considerably
betwee n one co llision and ano ther, it is not .,.

124 Airbag system
Even though your vehicle is equipped with an
Advanced Airbag System, make certain that
all chi ldren, especially those 12 years and
younger, a lways ride in the back seat properly
restrained for their age and size. The airbag
on the passenger side makes the front seat a potentially dangerous place for a ch ild to ride.
The front seat is not the safest place for a
child in a forward-facing child safety seat. It
can be a very dangerous place for an infant or
a child in a rearward-facing seat.
The Advanced Airbag System in your veh icle
has been certified to comply with the require­
ments of United States Federal Motor Vehicle
Safety Standard 208 as applicable at the time
your vehicle was manufactured.
The Standard requires the front a irbag on the
passenger side to be turned off ("sup­
pressed") if a child up to about one year of
age restrained in one of the rear-facing or for­
ward -facing infant restraints listed in Federal
Motor Vehicle Safety Standard 208 with which
the Advanced Airbag System in your vehicle
was certified has been installed on the front passenger seat . For a listing of the child re ­
strai nts that we re used to certify compliance
with the US Safety Standard
r=v page 145.

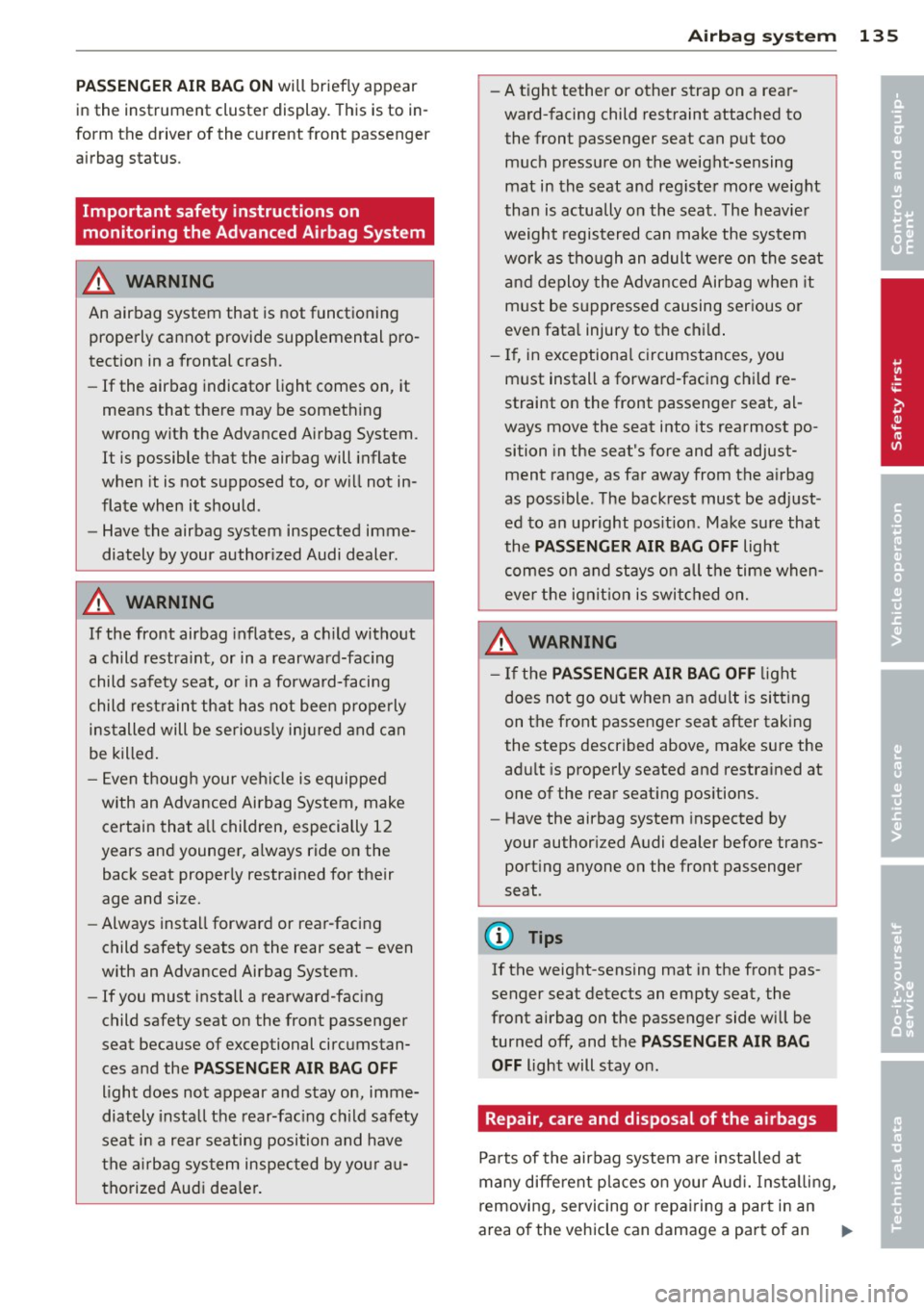

The PASSENGER AIR BAG OFF light in the in­
strument panel te lls you when the front Ad­
vanced A irbag on the passenger side has been
turned off by the e lectronic control unit.
Each t ime you turn on the ignition, the
PAS ­
SENGER AIR BAG OFF
light will come on for a
few seconds and:
- will stay on if the front passenger seat is not
occupied,
- will stay on if there is a small child or child restraint on the front passenger seat,
- wi ll go off if the front passenger seat is oc ­
cupied by an adult as registered by the
weight-sensing mat
r=v page 133, Monitor­
ing the Advanced Airbag System .
The PASSENGER AIR BAG OFF light comes on
when the control un it detects a total weight
on the front passenger seat that requires the
front airbag to be turned off.
If the total weight on the front passenge r
seat is more than that of a typica l 1 year -old
chi ld but less than the weight of a small
adult, the front airbag on the passenger side
can deploy (the
PASSENGER AIR BAG OFF
light does not come on). If the PASSENGER
AIR BAG OFF
light does not come on, the
front airbag on the passenger side has not
been turned off by the electronic con trol unit
and can deploy if the control unit senses an
impact that meets the cond itions stored in its
memory .
For example, the airbag may deploy if:
-a small ch ild that is heav ier than a typical 1
year-old ch ild is on the front passenger seat
( re gard less of whether the child is in one of
the child safety seats listed
r=v page 145), or
- a child who has outgrown ch ild restraints is
on the front passenger seat.
If the front passenger airbag is turned off, the
PASSENGER AIR BAG OFF light comes on in
the instrument cluster and stays on.
The front airbag on the passenger s ide may
not deploy (the PASSENGER AIR BAG OFF
light does not illum inate and stay lit) even if a
small adult or teenager, or a passenger who is
not sitting upright with their back against a
non-reclined backrest with their feet on the
vehicle floor in front of the seat is on the front
passenger seat
r=v page 104, Proper seating
position for the driver.
If the front passenger airbag deploys, the
Federal Standard requires the airbag to meet
the "low risk" deployment criteria to reduce
the risk of injury t hroug h interaction with the
airbag. "Low risk" deployment occurs in those
crashes that take place at lower dece lerat ions
as defined in the electronic control unit
r=v page 133, PASSENGER AIR BAG OFF light .
Always remember, a child safety seat or infant
carr ier installed on the front seat may be
struck and knocked out of posit ion by the rap­
idly inflat ing passenger's airbag in a frontal
collision . The air bag could greatly reduce the
effectiveness of the ch ild restraint and even
seriously injure the child during inflation .

126 Airbag system
-Never place additiona l items on the seat
that can increase the total weight regis­
tered by the weight-sensing mat and can
cause injury in a crash.
Front airbags
Description of front airbags
The airbag system can provide supplemental
protection to properly restrained front seat
occupants.
F ig . 131 Location of driver airbag: in steer ing whee l
Fig. 132 Location of front passenger's airbag: in the in ­
strument panel
Your veh icle is equipped with an "Advanced
A irbag System" in compliance with United
States Federal Motor Vehicle Safety Standard ( FM VSS) 208 as app licab le at the time your
ve hicl e was manufac tured. The safe ty belts
for the front seats have "pretensioners" that
he lp to take slack out of the belt system. The
pretensioners are also activated by the elec­
tronic control unit for the airbag system.
The front safety be lts a lso have load limiters
to help reduce the forces applied to the body
i n a crash.
The airbag fo r the driver is in t he s teer ing
wheel hub¢
fig. 131 and the airbag for the front passenger is in the
instrument panel
¢
fig. 132 . The general location of the airbags
is marked "AIRBAG".
T here is a lot you need to know about the a ir­
bags in your vehicle. We urge you to read the
detailed information about airbags, safety
belts and child safety in this and the other
chapters that make up the owner's literature.
Please be sure to heed the WARNINGS - they
are extremely important for your safety and
the safety of you r passengers, especially in­
fants and small children.
_&. WARNING
Neve r rely on airbags a lone for p rotection.
- Even when they deploy, airbags provide
only supplemental protect ion.
- Ai rbag work most effectively when used
with properly worn safety belts.
- Therefore, always wear your safety belts
a nd make sure that eve rybody in your ve­
h icle is p roperly restrained.
_&. WARNING
=
A pe rson on the front passenger seat, es-
pe cial ly infants and sma ll children, w ill re­
ce ive ser io us in ju ries and can even be kil­
l ed by being too close to the airbag when
it inflates .
- Altho ugh the Advanced Airbag Sys tem in
your vehicle is designed to tur n off the
front passenger airbag if a n in fant or a
sma ll child is on the front passenger
seat, nobody can absolutely guarantee
that deployment under these special
conditions is imposs ible in all conceiva­
b le si tua tions that may happen during
the useful life of your v ehicle.
- The Advanced Airbag System can dep loy
i n acco rdance with the "low risk" option
unde r the U.S. Fede ral Standa rd if a child
t hat is heav ie r th an the typical o ne-year
old ch ild is on the front passenger seat
and the other conditions for ai rbag de ­
p loyment are met .

-Accident statistics have shown that chil­
dren are generally safer in the rear seat
area than in the front seating posit ion.
- For their own safety, all children, espe­
cially 12 years and younger, sho uld al­
ways ride in the back properly restrained
for their age and size.
Advanced front airbag system
Your veh icle is equipped w ith a front Advanced
A irbag System in compliance with Un ited
States Federal Motor Vehicle Safety S tanda rd
208 as applicab le a t the time your vehicle was
manufac tured .
The front Advanced Airbag System supple­ ments the safety belts to provide add it iona l
p rotection fo r the driver's and fron t passeng­
e r' s heads and upper bodies in fronta l crashes.
The airbags inflate only in frontal impacts
when the vehicle dece leration is high enough .
The fron t Advanced A irbag Sys tem for the
front seat occ upants is no t a substi tute for
your safety bel ts. Rather, it is part of the over ­
a ll occupa nt restraint system in your vehicle.
A lways remember that the airbag system can
only help to protect you, if you are s itting up­
right, wearing your safety belt and wearing it
properly . This is w hy you and your passenge rs
must always be properly restrai ned, not just
because the law requires you to be .
The Advanced Airbag System i n your veh icle
has been certified to meet the " low r isk" re ­
qu irements for 3 and 6 year-o ld childre n on
the passenger s ide and very small adu lts on
the dr iver side. The low ris k dep loymen t cr ite­
ria are intended to he lp red uce the risk of i n­
j ury thro ugh in teraction with the front airbag
that can occ ur, fo r example, by being too
close to the steering whee l and instrument
panel when the airbag inflates.
I n addition, the sys tem has been certif ied to
comp ly with the "suppression" requirements
of the Safety Standard, to turn off the front
airbag for infants 12 months old and younger
who are restra ined on the front passenger
A irbag system 127
seat in child rest raints that are listed in the
Standard
¢ page 145 .
"Supp ress ion" requi res the fron t airbag on t he
passenge r sid e to be turned off if:
- a child up to abo ut one year of age is re­
strained on the front passenger seat in one
of t he rear-fa cing o r fo rward -f a cing infan t
res traints listed in Federal Motor Vehicle
Safety Standard 208 with which the Ad ­
vanced Airbag System in your ve hicle was
cert ified. For a listing o f the chi ld restraints
that were used to certify your vehicle's com­
pliance w ith the US Safety Standard
¢page 145,
- weight less than a thresho ld level stored in
the control unit is detected on the front pas­
senge r seat.
When a person is detected on the front pas­
senger seat, weighing more than the total
weight of a chi ld that is about 1 year old re­
stra ined in one of the rear -fac ing or forward ­
facing infant restraints ( listed in Fede ral Mo­
tor Vehicle Safety Standard 208 with whic h
t h e Advanced A irbag Sys tem in yo ur vehicle
was certified), the fron t airbag on the passen­
ger side may or may not dep loy .
T he
PASSENGER AIR BAG OFF lig ht comes o n
whe n the elect ro nic cont ro l unit de tects a to ­
ta l we igh t on the front p assenger sea t that re­
quires the front airbag to be t urned off .
If the
PASSENGER AIR BAG OFF light does not
come on, the front ai rbag on the passenger
s ide has not been t urned off by the contro l
u nit and can dep loy if the control un it senses
an impact that meets the cond itions stored i n
its memory .
If the total weight on the front passenger
seat is more than that of a typical 1 year-old,
but less than the we ight of a small adu lt, the
front a irbag on t he passenger side may dep loy
(the
PASSENGER AIR BAG OFF light does not
come on) .
For example, the airbag may deploy if:
-a small chi ld that is heav ie r than a typical 1
year-old ch ild is on the front passenger seat ..,. •
•

132 Airbag system
of their body too close to the area where
the airbags are located.
- Occupants who are unbelted, out of posi­
tion or too close to the airbag can be se­ riously injured by an airbag as it unfolds
with great force in the blink of an eye
r=> page 123 .
A WARNING
A child in a rearward-facing child safety
seat installed on the front passenger seat
will be seriously injured and can be killed if
the front airbag inflates -even with an Ad ­
vanced Airbag System.
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, center armrest, door or roof.
- Always install rear-facing child safety
seats on the rear seat.
- If you must install a rearward facing
child safety seat on the front passenger
seat because of exceptional circumstan ·
ces and the
PASSENGER AIR BAG OFF
light does not come on and stay on, im­
mediately install the rear-facing child
safety seat in a rear seating position and
have the airbag system inspected by your
authorized Audi dealer .
A WARNING
Objects between you and the airbag will
increase the risk of injury in a crash by in­
terfering with the way the airbag unfolds
or by being pushed into you as the airbag
inflates.
- Never hold things in your hands or on
your lap when the vehicle is in use .
- Never transport items on or in the area
of the front passenger seat. Objects
could move into the area of the front air­
bags during braking or other sudden ma­
neuvers and become dangerous projec­
tiles that can cause serious personal in­
jury if the airbags inflate.
-
- Never place or attach accessories or oth­
er objects (such as cup holders, tele­
phone brackets, large, heavy or bulky ob­
jects) on the doors, over or near the area
marked "AIRBAG" on the steering wheel,
instrument panel, seat backrests or be­
tween those areas and yourself . These
objects could cause injury in a crash, es­
pecially when the airbags inflate.
- Never recline the front passenger's seat
to transport objects. Items can also
move into the area of the side airbag or
the front airbag during brak ing or in a
sudden maneuver. Objects near the air­
bags can become projectiles and cause
injury, particularly when the seat is re­
clined.
A WARNING
-T he fine dust created when airbags deploy
can cause breathing problems for people
with a history of asthma or other breath­
ing conditions.
= To reduce the risk of breathing problems ,
those with asthma or other respiratory
conditions should get fresh air right
away by getting out of the vehicle or
opening windows or doors.
- If you are in a collision in which airbags
deploy, wash your hands and face with
mild soap and water before eating.
- Be careful not to get the dust into your
eyes, or into any cuts or scratches.
- If the residue should get into your eyes ,
flush them with water.

PASSENGER AIR B AG ON will briefly appear
in the instrument cluster display. This is to in­
form the driver of the current front passenger
airbag status .
Important safety instructions on
monitoring the Advanced Airbag System
A WARNING
An airbag system that is not functioning
properly cannot provide supplemental pro­
tection in a frontal crash.
- If the airbag indicator light comes on, it
means that there may be someth ing
wrong with the Advanced Airbag System .
It is possible that the airbag will inflate
when it is not supposed to, or w ill not in ­
flate when it should .
- Have the airbag system inspected imme­
diately by your author ized Audi dealer .
A WARNING
If the front airbag inflates, a ch ild without
a child restra int, or in a rearward-fac ing
child safety seat, or in a forward-facing
child restraint that has not been prope rly
installed will be serio usly injured and can
be killed.
- E ven though your veh icle is equipped
with an Advanced Airbag System , make
certain that a ll children, especially 12
years and younger, a lways ride on the
back seat properly restrained for their
age and si ze.
- Always install forward or rea r-facing
child safety seats on the rear seat -even
with an Advanced Airbag System.
- If you must install a rearward-facing
child safety seat on the front passenger
seat because of exceptional circumstan­
ces and the
PAS SENG ER AIR BAG OFF
light does not appear and stay on, imme­
diately install the rear-fac ing ch ild safety
sea t in a rear seating position and have
the a irbag sys tem inspected by you r au­
tho rized Aud i dea ler.
-
A irbag system 135
-A t ight tether or other strap on a rea r­
ward-facing child rest raint attached to
the front passenger seat can put too much pressure on the weight-sensing
mat in the seat and reg iste r more weight
than is actually on the seat . The heavie r
weight registered can make the system
wo rk as tho ugh an adult we re on the seat
and deploy the Advanced Airbag when it
m ust be suppressed causing serious or
even fata l injury to the chi ld .
- If , in exceptiona l c ircumstances , you
m ust install a forward-facing child re­
straint on the front passenger seat, al­
ways move the seat into its rearmost po­ sition in the seat's fore and aft adjust­
ment range, as far away from the a irbag
as poss ible. The backrest must be adjust ­
ed to an upright pos ition. Make su re that
the
PASSENGER AIR BAG OFF light
comes on and stays on all the time when­
eve r the ignit ion is switched on.
A WARNING
-
- If the PASSENGER AIR BAG OFF light
does not go o ut when an ad ult is sitting
on the front passenger seat after taking
the steps described above, make sure the
adu lt is properly seated and restra ined at
one of the rear seating pos itions.
- Have the airbag system inspected by
your author iz ed Audi dealer before trans­
port ing anyone on the front passenger
seat .
(j) Tips
If the weight-sensing mat in the front pas­
senger seat detects an empty seat, the
front airbag on the passenger side will be
turned off, and the
PASSENGER AIR BAG
OFF
light will stay on.
Repair , care and disposal of the airbags
Pa rts of the airbag system are installed at
many different places on your Aud i. Insta lling,
removing, servicing or repa iring a part in an
area of the vehicle can damage a part of an ..,.
•
•
