Care and maintenance
Clean the cover with a soft antistatic cloth only. Cleaning
and polishing products may damage the surface.
INTRODUCTION
The radio has been designed according to the passenger
compartment’s specific characteristics and with a
personalised design that complements the style of the
dashboard.
The instructions for use are provided below. We
recommend that you read them carefully.
SUGGESTIONS
Road safety
Familiarise yourself with the various car radio functions
(for example, store the stations) before starting to drive.
Reception conditions
Reception conditions change constantly while driving.
Reception may be interfered with by the presence of
mountains, buildings or bridges, or when you are far
away from the broadcaster.
IMPORTANT When receiving traffic information, the
volume may increase above normal levels.
High volume can be a risk for the driver and
for other road users. Always adjust the
volume so that you can still hear background noise.
ATTENZIONE
RADIO
222
221-258 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:46 Pagina 222

CDs
The presence of dirt, scratches or distortions on the
CDs may cause skipping while it is playing and poor
sound quality. For optimal playback conditions, follow
these guidelines:
❒only use CDs with the following mark;
RADIO
223
❒clean every CD thoroughly removing any fingermarks
or dust using a soft cloth. Hold CDs by the
circumference and clean them from the centre
towards the edge;
❒never use chemicals (e.g. antistatics or thinners or
sprays) for cleaning as they may damage the surface of
the CDs;
❒after listening place CDs back in their boxes to avoid
them from being damaged;
❒do not expose CDs to direct sunlight, high
temperatures or moisture for long periods;
❒do not stick labels on the CD surface or write on the
recorded surface with pencils or pens.
❒do not use CDs that are very scratched, flawed,
distorted, etc. Using discs like these will result in
malfunctions or damage to the player;
❒The use of original CD media is required for the best
quality audio production. Correct operation is not
guaranteed when CD-R/RW media are used that
were not correctly mastered and/or with a maximum
capacity above 650 Mb;
❒Do not use commercially available protective sheets
for CDs or discs with stabilisers, etc. as they could
get stuck in the internal mechanism and damage the
disc;
❒ if a copy-protected CD is used, it may take a few
seconds before the system starts to reproduce it.
The CD player cannot be guaranteed to play all
protected discs. The fact that the CD is protected
from being copied is often shown in very small letters
or is just legible on the CD cover itself where it may,
for example, say “COPY CONTROL”, “COPY
PROTECTED”, “THIS CD CANNOT BE PLAYED
ON A PC/MAC”, or it may be identified through the
use of symbols, such as, for example:
❒The CD player is capable of reading most
compression systems currently in use (e.g.: LAME,
BLADE, XING, FRAUNHOFER) but, following the
development of these systems, the reading of all
compression formats is not guaranteed.
221-258 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:46 Pagina 223

224
RADIO
Hi-Fi audio equipment
(for versions/markets, where provided)
Front speakers
❒No. 2 x tweeters installed in the door handle trims;
❒No. 2 x Ø 165 mm mid-woofers installed in the door
frames.
Rear speakers
❒No. 2 x Ø 130 mm full-range speakers installed in the
rear side panels;
❒No. 1 x sub-woofer box in the luggage compartment
(RH side);
❒No. 1 ASP multichannel audio amplifier installed under
the dashboard (passenger side).

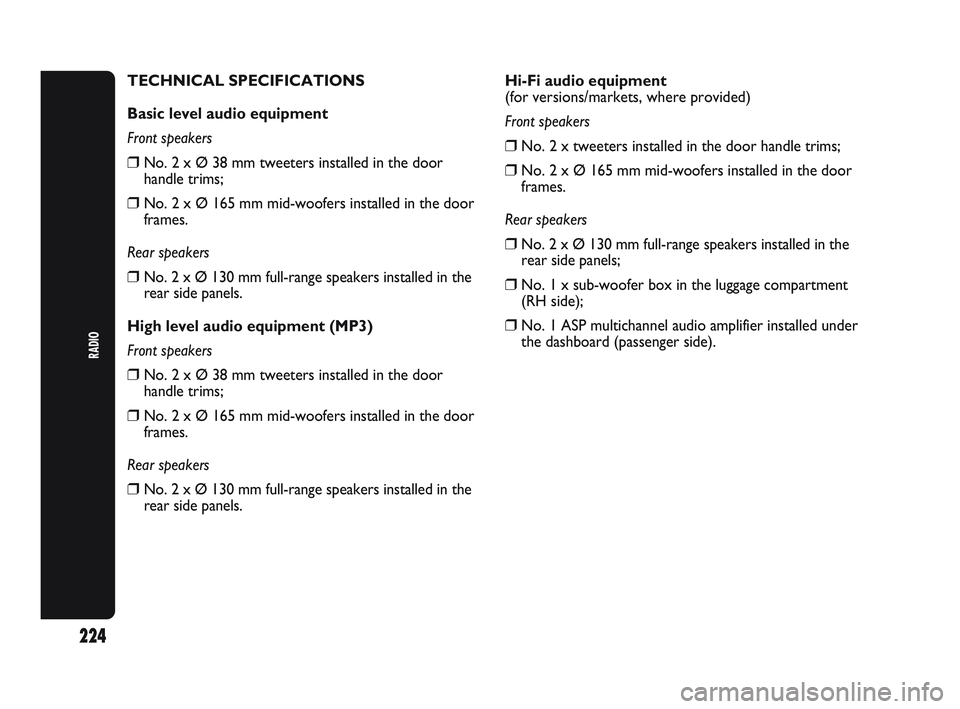

TECHNICAL SPECIFICATIONS
Basic level audio equipment
Front speakers
❒No. 2 x Ø 38 mm tweeters installed in the door
handle trims;
❒No. 2 x Ø 165 mm mid-woofers installed in the door
frames.
Rear speakers
❒No. 2 x Ø 130 mm full-range speakers installed in the
rear side panels.
High level audio equipment (MP3)
Front speakers
❒No. 2 x Ø 38 mm tweeters installed in the door
handle trims;
❒No. 2 x Ø 165 mm mid-woofers installed in the door
frames.
Rear speakers
❒No. 2 x Ø 130 mm full-range speakers installed in the
rear side panels.
221-258 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:46 Pagina 224

225
RADIO
QUICK GUIDE
Button
FM
AM
MEDIA
GENERAL FUNCTIONS
On
Off
FM1, FM2, FM Autostore radio source selection
MW1, MW2 radio source selection
Selection of CD/Media Player source (only with Blue&Me™)/
AUX (only with Blue&Me™)
Mode
Short button press
Short button press
Short cyclical button press
Short cyclical button press
Short cyclical button press
F0U0542m
gON/OFF
fig. 1
221-258 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:46 Pagina 225

Button
1 2 3 4 5 6
RADIO FUNCTIONS
Radio station search:
- Automatic search- Manual search
Storing the current radio station
Stored station recall
Mode
Automatic search: pressing buttons ¯or ˙
(long press for fast forward)
Manual search: pressing buttons ▲or ▼
(long press for fast forward)
Long button press for memory preset
1 to 6 respectively
Short button press for memory preset
1 to 6 respectively
Button
MUTE
AUDIO
MENU
GENERAL FUNCTIONS
Volume activation/deactivation (Mute/Pause)
Audio adjustments: low tones (BASS), high tones
(TREBLE), RH / LH balance (BALANCE),
front / rear balance (FADER)
Advanced functions adjustment
Volume adjustment
Mode
Short button press
Menu activation: short button press
Adjustment type selection: buttons ▲or ▼
press Value adjustment: buttons ¯or ˙press
Menu activation: short button press
Adjustment type selection: buttons ▲or ▼
press Value adjustment: buttons ¯or ˙press
Left/right rotation of twist control
RADIO
226
221-258 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:46 Pagina 226

RADIO
227
Button
˚EJECT
CD FUNCTIONS
CD ejection
Play previous/next track
Fast forwarding/rewinding CD track
Playing previous/next folder (for CD-MP3)
Mode
Short button press
Short press of buttons ¯or ˙
Long press of buttons ¯or ˙
Short press of buttons ▲or ▼
Media Player FUNCTIONS
(only with Blue&Me™)
Selecting previous/next folder/artist/genre/album depending on
selected selection mode
Play previous/next track
Mode
Short button press
Short button press
Button
221-258 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:46 Pagina 227

CONTROLS ON THE STEERING
WHEEL
(for versions/markets where provided)
F0U518Ab
Button
&
+
–
SRC
▲
▼
FUNCTION
AudioMute on/off (Radio mode)
or Pause function (MP3 or Media Player mode only with
Blue&Me™)
Increasing volume
Decreasing volume
Selection of Radio frequency range (FM1, FM2, FMT, FMA,
MW1, MW2) or listening sources (Radio, MP3 or Media
Player only with Blue&Me™)/AUX
(only with Blue&Me™)
Radio: automatic search for next station available
CD/CD MP3: select next track.
Radio: automatic search for previous station available
CD/CD MP3: select previous track Mode
Short button press
Button press
Button press
Button press
Button press
Button press
RADIO
228
fig. 2
