2012 Abarth Punto Owner handbook (in English)

77
KNOWING
YOUR VEHICLE
SAFETY
ST

ARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
When travelling, do not put any object
on the parcel shelf because they can
injure passengers in the event of an accident or
sudden braking.
WARNING
F0U076Abfig. 74
CLOSING THE BOOT
Lower the tailgate until you hear the locking click fig. 74. OPENING THE BOOT IN AN EMERGENCY
fig. 75
To open the boot from inside if the car battery is flat or
the electric lock of the rear door is faulty, proceed as
follows:
❒
tilt the rear seats fully forward (see “Extending the
boot” in this section);
❒ press lever B inside the boot.
F0U077Abfig. 75
069-108 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 77

78
KNOWING
YOUR VEHICLE
SAFETY
ST

ARTING
AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U078Abfig. 76
EXTENDING THE BOOT
Tilting the rear seat forwards gives maximum loading
volume.
Proceed as follows:
❒fully lower the rear seat head restraints;
❒ check that the seat belts are not twisted;
F0U079Abfig. 77
F0U081Abfig. 78
❒tilt the cushions forward as shown by the arrow
fig. 76;
❒ operate the handles A and B-fig. 77 to release the
backrests and guide them down onto the cushion.
069-108 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 78

79
KNOWING
YOUR VEHICLE
SAFETY
ST

ARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Repositioning the rear seat fig. 79
Raise the backrests and push them back until the locking
click of both retainers is heard.
Position the seat belt buckles upwards and set the
cushion to the position of normal use.
IMPORTANT The backrest is correctly secured when
the red band next to the handles disappears. This red
band indicates that the backrest is not secured. When
returning the backrest to its normal position, make sure
that it is correctly fastened and that you hear the lock
click.
F0U082Abfig. 79
Make sure the backrest is properly secured at both
sides to prevent it moving forward in the event of sharp
braking that may cause injuries to passengers.
069-108 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 79

80
KNOWING
YOUR VEHICLE
SAFETY
ST

ARTING
AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
REMOVING THE PARCEL SHELF
To remove the parcel shelf in order to extend the boot:
release the upper ends of the links A-fig. 80 by removing
the eyelets from the pins, unhook and swivel the parcel
shelf in its housing and then release both pins
fig. 81 from the side holes.
F0U083Abfig. 80F0U085Abfig. 82
F0U084Abfig. 81
Once removed, the parcel shelf can be positioned
between the back of the front seats and the folded
cushion of the rear seat fig. 82.
069-108 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 80

81
KNOWING
YOUR VEHICLE
SAFETY
ST

ARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U086Abfig. 83
BONNET
OPENING
Proceed as follows:
❒ pull the lever fig. 83 in the direction of the arrow;
❒ pull the lever A-fig. 84 as shown in the figure;
❒ lift the bonnet and, at the same time, release the
bonnet support rod from its locking device D-fig. 85;
then insert the end of the bonnet support rod C-
fig. 86 into the hole E.
IMPORTANT Before opening the bonnet, check that
windscreen wiper arms are not lifted from the
windscreen.
F0U087Abfig. 84
CLOSURE
Proceed as follows:
❒ hold the bonnet up with one hand and with the
other remove the rod C-fig. 86 from the hole E and
fit it back into its catch D-fig. 85;
❒ lower the bonnet to approximately 20 centimetres
from the engine compartment, then let it drop. Make
sure that the bonnet is completely closed and not
fastened only by the safety catch. If it is not perfectly
closed, do not try to press the bonnet lid down but
open it and repeat the procedure.
IMPORTANT Always check that the bonnet is closed
properly to prevent it from opening while the car is
travelling.
069-108 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 81

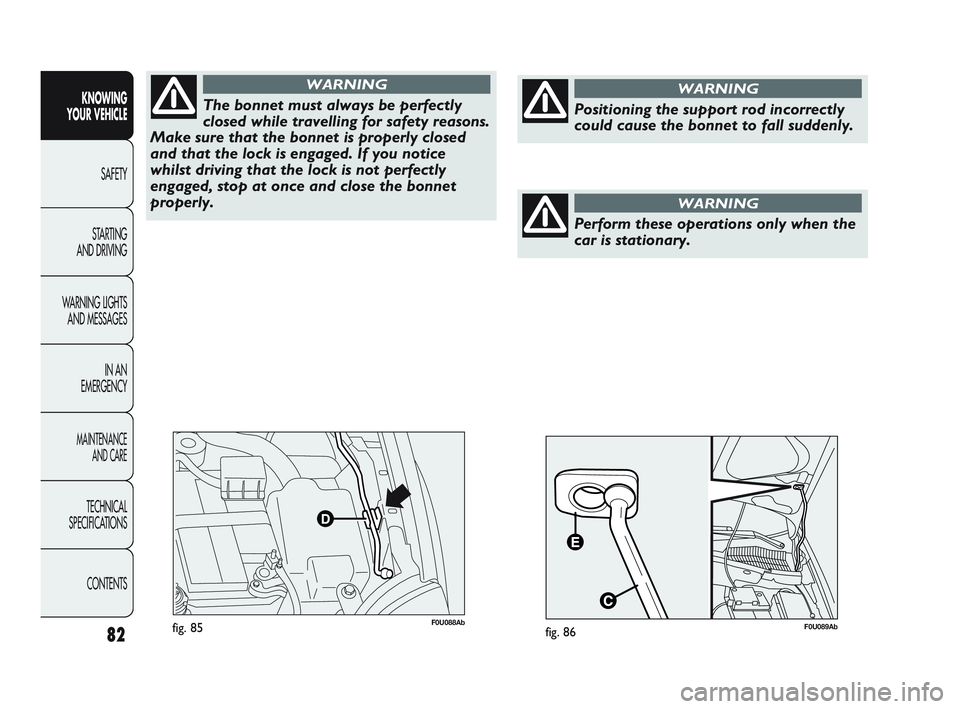

82
KNOWING
YOUR VEHICLE
SAFETY
ST

ARTING
AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U088Abfig. 85
The bonnet must always be perfectly
closed while travelling for safety reasons.
Make sure that the bonnet is properly closed
and that the lock is engaged. If you notice
whilst driving that the lock is not perfectly
engaged, stop at once and close the bonnet
properly.
WARNING
Positioning the support rod incorrectly
could cause the bonnet to fall suddenly.
WARNING
F0U089Abfig. 86
Perform these operations only when the
car is stationary.
WARNING
069-108 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 82

83
KNOWING
YOUR VEHICLE
SAFETY
ST

ARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U090Abfig. 87
ROOF RACK/SKI RACK
The front hooks are located at points A-fig. 87.
The rear hooks are located at points B marked by the
( O ) symbols on the rear side windows.
IMPORTANT Follow the instructions contained in the
assembly kit carefully. Assembly must be performed by
qualified personnel.After travelling a short distance, check
that the attachment fixing screws are
tight.
WARNING
Distribute the load evenly and when
driving, bear the increased sensitivity of
the car to side wind in mind.
WARNING
Strictly comply with current legal
regulations concerning maximum overall
dimensions.
Never exceed the permitted weight (see
section “Technical specifications”).
069-108 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 83

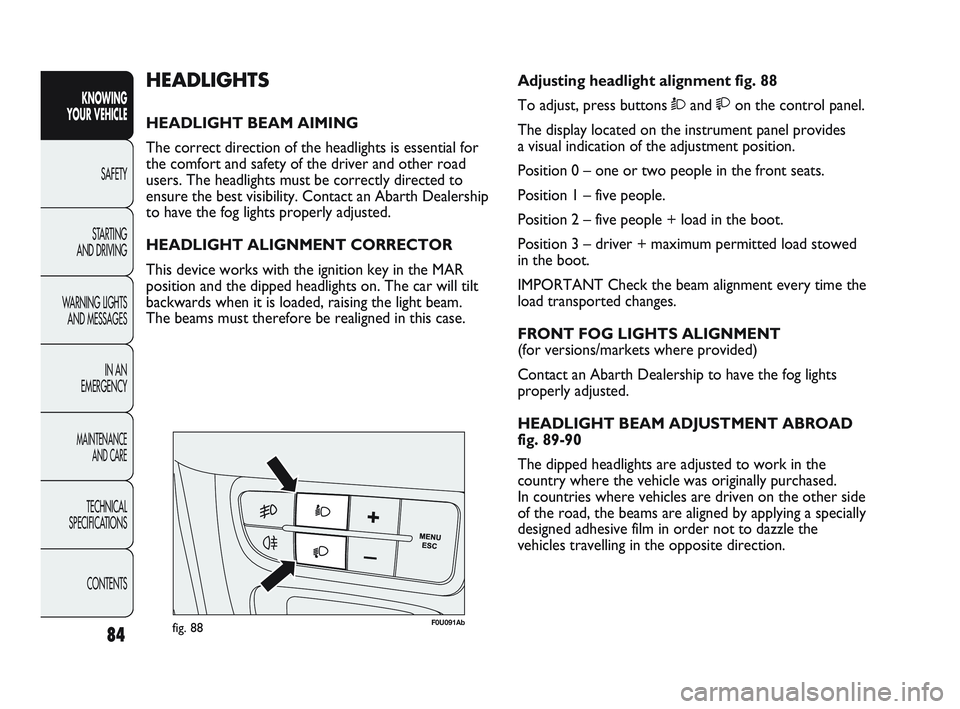

84
KNOWING
YOUR VEHICLE
SAFETY
ST

ARTING
AND DRIVING
WARNING LIGHTS AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U091Abfig. 88
Adjusting headlight alignment fig. 88
To adjust, press buttons Òand on the control panel.
The display located on the instrument panel provides
a visual indication of the adjustment position.
Position 0 – one or two people in the front seats.
Position 1 – five people.
Position 2 – five people + load in the boot.
Position 3 – driver + maximum permitted load stowed
in the boot.
IMPORTANT Check the beam alignment every time the
load transported changes.
FRONT FOG LIGHTS ALIGNMENT
(for versions/markets where provided)
Contact an Abarth Dealership to have the fog lights
properly adjusted.
HEADLIGHT BEAM ADJUSTMENT ABROAD
fig. 89-90
The dipped headlights are adjusted to work in the
country where the vehicle was originally purchased.
In countries where vehicles are driven on the other side
of the road, the beams are aligned by applying a specially
designed adhesive film in order not to dazzle the
vehicles travelling in the opposite direction. HEADLIGHTS
HEADLIGHT BEAM AIMING
The correct direction of the headlights is essential for
the comfort and safety of the driver and other road
users. The headlights must be correctly directed to
ensure the best visibility. Contact an Abarth Dealership
to have the fog lights properly adjusted.
HEADLIGHT ALIGNMENT CORRECTOR
This device works with the ignition key in the MAR
position and the dipped headlights on. The car will tilt
backwards when it is loaded, raising the light beam.
The beams must therefore be realigned in this case.
069-108 GPUNTO EVO Abarth GB 2ed 8-11-2010 14:43 Pagina 84
