Page 33 of 88
EAU13932
Seat
To open the seat
1. Place the scooter on the centers-
tand.
2. Insert the key into the main
switch, and then turn it counter-
clockwise to “OPEN”.
1. Open
TIP
Do not push inward when turning the
key.
3. Fold the seat up.
1. Seat open position
To close the seat
1. Fold the seat down, and then
push it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left
unattended.
TIP
Make sure that the seat is properly
secured before riding.
EAUS1622
Storage compartments
Front storage compartment
To open the storage compartment
when it is locked, insert the key in the
lock, turn it counterclockwise, and
then grasp the lock while pushing the
button in.
To open the storage compartment
when it is unlocked, simply grasp the
lock while pushing the button in.
1. Open
2. Button
3. Front storage compartment lid
To lock the storage compartment,
push the lid into the original position,
insert the key in the lock, turn it clock-
wise, and then remove it.
21
3
INSTRUMENT AND CONTROL FUNCTIONS
3-18
3
37P-F8199-E1 19/2/10 05:09 Página 33

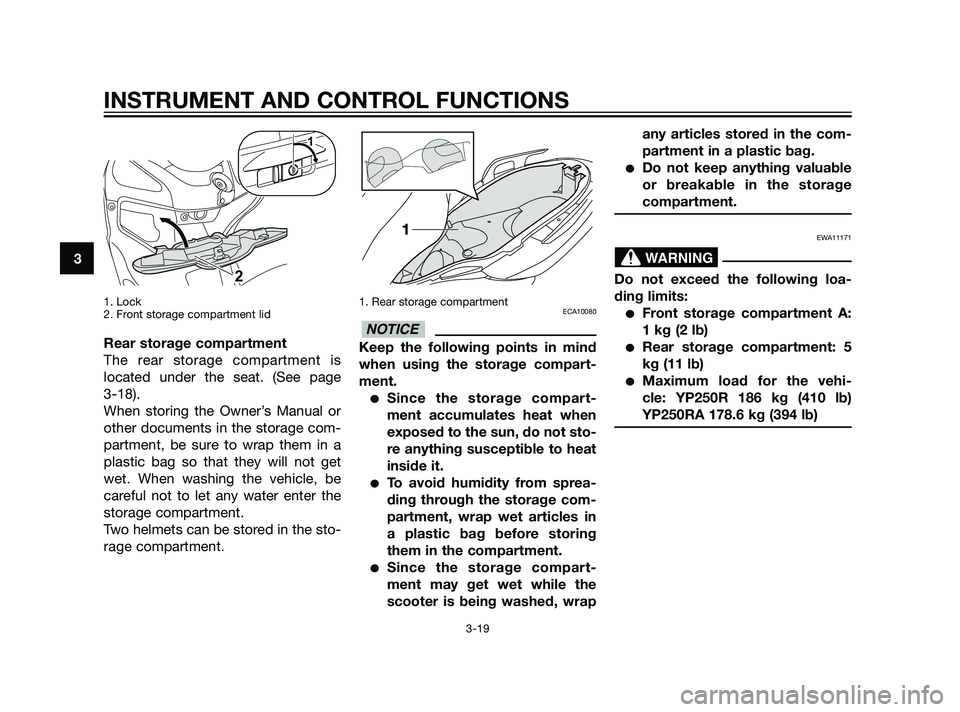

Page 34 of 88
1. Lock
2. Front storage compartment lid
Rear storage compartment
The rear storage compartment is
located under the seat. (See page
3-18).
When storing the Owner’s Manual or
other documents in the storage com-
partment, be sure to wrap them in a
plastic bag so that they will not get
wet. When washing the vehicle, be
careful not to let any water enter the
storage compartment.
Two helmets can be stored in the sto-
rage compartment.
1. Rear storage compartmentECA10080
Keep the following points in mind
when using the storage compart-
ment.
Since the storage compart-
ment accumulates heat when
exposed to the sun, do not sto-
re anything susceptible to heat
inside it.
To avoid humidity from sprea-
ding through the storage com-
partment, wrap wet articles in
a plastic bag before storing
them in the compartment.
Since the storage compart-
ment may get wet while the
scooter is being washed, wrapany articles stored in the com-
partment in a plastic bag.
Do not keep anything valuable
or breakable in the storage
compartment.
EWA11171
Do not exceed the following loa-
ding limits:
Front storage compartment A:
1 kg (2 lb)
Rear storage compartment: 5
kg (11 lb)
Maximum load for the vehi-
cle: YP250R 186 kg (410 lb)
YP250RA 178.6 kg (394 lb)
WARNING
NOTICE
1
2
INSTRUMENT AND CONTROL FUNCTIONS
3-19
3
37P-F8199-E1 19/2/10 05:09 Página 34
Page 35 of 88
EAU14892
Adjusting the shock
absorber assemblies
EWA10210
Always adjust both shock absorber
assemblies equally, otherwise poor
handling and loss of stability may
result.
Each shock absorber assembly is
equipped with a spring preload adjus-
ting ring.
ECA10101
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring on each shock
absorber assembly in direction (a). To
decrease the spring preload and the-
reby soften the suspension, turn the
adjusting ring on each shock absor-
ber assembly in direction (b).
Align the appropriate notch in
the adjusting ring with the
position indicator on the shock
absorber.
Use the spring preload adjus-
ting tool included in the
owner's tool kit to make this
adjustment.
1. Spring preload adjusting ring
2. Position indicator
3. Spring preload adjusting tool
EAU15303
Sidestand
1. Sidestand switch
The sidestand is located on the left
side of the frame. Raise the sidestand
or lower it with your foot while holding
the vehicle upright.
TIP
The built-in sidestand switch is part of
the ignition circuit cut-off system,
which cuts the ignition in certain
situations. (See page 3-21 for an
explanation of the ignition circuit cut-
off system.)
ZAUM0648
1
Spring preload setting:
Minimum (soft):
1
Standard:
2
Maximum (hard):
4
1
2
3
4NOTICE
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-20
3
37P-F8199-E1 19/2/10 05:09 Página 35
Page 36 of 88
EWA10240
The vehicle must not be ridden with
the sidestand down, or if the sides-
tand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control. Yama-
ha’s ignition circuit cut-off system
has been designed to assist the
operator in fulfilling the responsibi-
lity of raising the sidestand before
starting off. Therefore, check this
system regularly as described
below and have a Yamaha dealer
repair it if it does not function pro-
perly.
EAU45051
Ignition circuit cut-off
system
The ignition circuit cut-off system
(comprising the sidestand switch and
brake light switches) has the following
functions.
It prevents starting when the
sidestand is up, but neither brake
is applied.
It prevents starting when either
brake is applied, but the sides-
tand is still down.
It cuts the running engine when
the sidestand is moved down.
Periodically check the operation of
the ignition circuit cut-off system
according to the following procedure.
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-21
3
37P-F8199-E1 19/2/10 05:09 Página 36
Page 37 of 88
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
With the engine still off:
6. Move the sidestand up.
7. Keep the front or rear brake applied.
8. Push the start switch.
Does the engine start?
With the engine still running:
9. Move the sidestand down.
Does the engine stall?
The system is OK. The scooter can be ridden.The sidestand switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
The brake switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO NO YES
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-22
3
37P-F8199-E1 19/2/10 05:09 Página 37
Page 38 of 88
FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the ins-
pection and maintenance procedures and schedules described in the Owner’s Manual.
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment dama-
ge. Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures pro-
vided in this manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
WARNING
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary.3-15
• Check fuel line for leakage.
• Check oil level in engine.
Engine oil• If necessary, add recommended oil to specified level. 6-10
• Check vehicle for oil leakage.
Final transmission oil• Check vehicle for oil leakage. 6-12
• Check coolant level in reservoir.
Coolant• If necessary, add recommended coolant to specified level. 6-13
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Front brake• Replace if necessary. 6-19, 6-20, 6-21
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
37P-F8199-E1 19/2/10 05:09 Página 38
Page 39 of 88
ITEM CHECKS PAGE
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Rear brake• Replace if necessary. 6-19, 6-20, 6-21
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Make sure that operation is smooth.
Throttle grip• Check cable free play.
• If necessary, have Yamaha dealer adjust cable free play and lubricate 6-16, 6-22
cable and grip housing.
• Check for damage.
Wheels and tires• Check tire condition and tread depth.
• Check air pressure.6-17, 6-19
• Correct if necessary.
Brake levers• Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.6-22
Centerstand, sidestand• Make sure that operation is smooth.
• Lubricate pivots if necessary.6-23
Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary.—
Instruments, lights, • Check operation.
signals and switches• Correct if necessary.—
Sidestand switch • Check operation of ignition circuit cut-off system.
• If system is not working correctly, have Yamaha dealer check vehicle.3-20
FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-2
4
37P-F8199-E1 19/2/10 05:09 Página 39
Page 40 of 88
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do
not understand, ask your Yamaha
dealer.
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of
control, which could cause an acci-
dent or injury.
EAU48020
TIP
This model is equipped with a lean
angle sensor to stop the engine in
case of a turnover. In this case, the
multi-function display indicates error
code 30, but this is not a malfunction.
Turn the key to “OFF” and then to
“ON” to clear the error code. Failing
to do so will prevent the engine from
starting even though the engine will
crank when pushing the start switch.
EAUS1890
Starting the engineECA10250
See page 5-4 for engine break-in
instructions prior to operating the
vehicle for the first time.
In order for the ignition circuit cut-off
system to enable starting, the sides-
tand must be up.
See page 3-21 for more information.
1. Turn the key to “ON”.
The following warning light, indi-
cator light and indicators should
come on for a few seconds, then
go off.
Engine trouble warning light
ABS warning light (for ABS
models)
Immobilizer system indicator light
V-belt replacement indicator
Oil change indicator
NOTICE
WARNING
OPERATION AND IMPORTANT RIDING POINTS
5-1
5
