Page 57 of 88
1. Final transmission oil filler cap
2. O-ring
6. Install the final transmission oil
drain bolt and its new gasket,
and then tighten the bolt to the
specified torque.
1. Final transmission oil drain bolt
7. Refill with the specified amount
of the recommended final trans-
mission oil. WARNING! Make
sure that no foreign material
enters the final transmission
case. Make sure that no oil
gets on the tire or wheel.
[EWA11311]
8. Install the final transmission oil
filler cap and its new O-ring, and
then tighten the oil filler cap.
9. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
EAU20070
Coolant
The coolant level should be checked
before each ride. In addition, the coo-
lant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAUS1670
To check the coolant level
1. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion.
TIP
The coolant level must be chec-
ked on a cold engine since the
level varies with engine tempera-
ture.
Make sure that the vehicle is
positioned straight up when
checking the coolant level. A
slight tilt to the side can result in
a false reading.
2. Check the coolant level through
the check window.
Recommended final transmission
oil:
See page 8-1
Oil quantity:
0.25 L (0.26 US qt, 0.22 Imp.qt)
Tightening torque:
Final transmission oil drain bolt:
22 Nm (2.2 m•kgf, 16 ft•lbf)
PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
6
37P-F8199-E1 19/2/10 05:09 Página 57
Page 58 of 88
TIP
The coolant should be between the
minimum and maximum level marks.
1. Maximum level mark
2. Minimum level mark
3. Coolant level check window
3. If the coolant is at or below the
minimum level mark, lift up the
right floorboard mat as shown.
1. Floorboard mat
4. Open the reservoir cap, and then
add coolant to the maximum
level mark. WARNING! Remove
only the coolant reservoir cap.
Never attempt to remove the
radiator cap when the engine is
hot.
[EWA15161]
NOTICE: If coolant is not avai-
lable, use distilled water or soft
tap water instead. Do not use
hard water or salt water since it
is harmful to the engine. If
water has been used instead of
coolant, replace it with coolant
as soon as possible, otherwise
the cooling system will not be
protected against frost andcorrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant
as soon as possible, otherwise
the effectiveness of the coolant
will be reduced.
[ECA10472]
1. Coolant reservoir cap
5. Close the reservoir cap
6. Place the floorboard mat in the
original position and push it
downward to secure it.
Coolant reservoir capacity:
0.25 L (0.26 US qt, 0.22 Imp.qt)
FULL
LOW
PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
6
37P-F8199-E1 19/2/10 05:09 Página 58
Page 59 of 88
EAU33031
Changing the coolant
The coolant must be changed at the
intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer change the
coolant. WARNING! Never attempt
to remove the radiator cap when
the engine is hot.
[EWA10381]EAUS1334
Air filter and V-belt case air
filter elements
The air filter element should be repla-
ced and the V-belt case air filter ele-
ment should be cleaned at the inter-
vals specified in the periodic
maintenance and lubrication chart.
Service the air filter elements more
frequently if you are riding in unu-
sually wet or dusty areas.
Replacing the air filter element
1. Place the scooter on the centers-
tand.
2. Remove the air filter case cover
by removing the screws.
1. Air filter case cover
2. Screw
3. Air filter element
3. Pull the air filter element out.
4. Insert a new air filter element into
the air filter case.
5. Install the air filter case cover by
installing the screws.
Cleaning the V-belt case air filter
element
1. Remove the V-belt case air filter
cover by removing the screws.
1. V-belt case air filter element cover
2. Screw
2. Remove the air filter element, and
then blow out the dirt with com-
pressed air as shown.
1
2 2
ZAUM06623
PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
6
37P-F8199-E1 19/2/10 05:09 Página 59
Page 60 of 88
1. V-belt case air filter cover
2. V-belt case air filter element
3. Check the air filter element for
damage and replace it if neces-
sary.
4. Install the air filter element with
the colored side facing outward.
NOTICE: Make sure that each
filter element is properly sea-
ted in its case. The engine
should never be operated wit-
hout the filter elements insta-
lled, otherwise the piston(s)
and/or cylinder(s) may become
excessively worn.
[ECA10531]
5. Install the V-belt case air filter
cover by installing the screws.
EAU48431
Adjusting the throttle cable
free play
1. Throttle cable free play
The throttle cable free play should
measure 3.0–5.0 mm (0.12–0.20 in) at
the inner edge of the throttle grip.
Periodically check the throttle cable
free play and, if necessary, adjust it as
follows.
TIP
The engine idling speed must be
correctly adjusted before checking
and adjusting the throttle cable free
play.
1. Slide the rubber cover back.
2. Loosen the locknut.3. To increase the throttle cable free
play, turn the adjusting nut in
direction (a). To decrease the
throttle cable free play, turn the
adjusting nut in direction (b).
1. Rubber protector
2. Locknut
3. Adjusting nut
4. Tighten the locknut and then sli-
de the rubber cover to its original
position.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-16
6
37P-F8199-E1 19/2/10 05:09 Página 60
Page 61 of 88
EAU21401
Valve clearance
The valve clearance changes with
use, resulting in improper air-fuel mix-
ture and/or engine noise. To prevent
this from occurring, the valve clearan-
ce must be adjusted by a Yamaha
dealer at the intervals specified in the
periodic maintenance and lubrication
chart.
EAU21873
Tires
To maximize the performance, durabi-
lity, and safe operation of your vehi-
cle, note the following points regar-
ding the specified tires.
Tire air pressure
The tire air pressure should be chec-
ked and, if necessary, adjusted befo-
re each ride.
EWA10501
Operation of this vehicle with
improper tire pressure may cause
severe injury or death from loss of
control.
The tire air pressure must be
checked and adjusted on coldtires (i.e., when the temperatu-
re of the tires equals the
ambient temperature).
The tire air pressure must be
adjusted in accordance with
the riding speed and with the
total weight of rider, passenger,
cargo, and accessories appro-
ved for this model.
Tire air pressure (measured on
cold tires):
0–90 kg (0–198 lb):
Front:
190 kPa (1.90 kgf/cm
2,
28 psi, 1.90 bar)
Rear:
220 kPa (2.20 kgf/cm
2,
32 psi, 2.20 bar)
90 kg - maximum load:
Front:
210 kPa (2.10 kgf/cm
2,
30 psi, 2.10 bar)
Rear:
250 kPa (2.50 kgf/cm
2,
36 psi, 2.50 bar)
Maximum load*:
YP250R 186 kg (410 lb)
YP250RA 178.6 kg (394 lb)
* Total weight of rider, passenger,
cargo and accessories WARNING
ZAUM0053
PERIODIC MAINTENANCE AND ADJUSTMENT
6-17
6
37P-F8199-E1 19/2/10 05:09 Página 61
Page 62 of 88
EWA10511
Never overload your vehicle. Ope-
ration of an overloaded vehicle
could cause an accident.
Tire inspection
1. Tire tread depth
2. Tire sidewall
The tires must be checked before
each ride. If the center tread depth
reaches the specified limit, if the tire
has a nail or glass fragments in it, or if
the sidewall is cracked, have a Yama-
ha dealer replace the tire immediately.
TIP
The tire tread depth limits may differ
from country to country. Always
comply with the local regulations.
Tire information
This model is equipped with tubeless
tires.
After extensive tests, only the tires lis-
ted below have been approved for
this model by Yamaha Motor Co., Ltd.
EWA10470
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the
vehicle with excessively worn
tires decreases riding stability
and can lead to loss of control.
The replacement of all wheel
and brake related parts, inclu-
ding the tires, should be left to
a Yamaha dealer, who has the
WARNING
Front tire:
Size:
120/70-15 M/C 56P(PIRELLI-
METZELER)-56S(MICHELIN)
Manufacturer/model:
PIRELLI / GTS23
MICHELIN / GOLD STANDARD
MICHELIN / CITYGRIP
METZELER / FEELFREE
Rear tire:
Size:
140/70-14 M/C 68P(PIRELLI-
METZELER)-68S(MICHELIN)
Manufacturer/model:
PIRELLI / GTS24
MICHELIN / GOLD STANDARD
MICHELIN / CITYGRIP
METZELER / FEELFREEMinimum tire tread depth (front
and rear):
1.6 mm (0.06 in)
1
2
ZAUM0054
WARNING
PERIODIC MAINTENANCE AND ADJUSTMENT
6-18
6
37P-F8199-E1 19/2/10 05:09 Página 62
Page 63 of 88
necessary professional know-
ledge and experience.EAU21960
Cast wheels
To maximize the performance, durabi-
lity, and safe operation of your vehi-
cle, note the following points regar-
ding the specified wheels.
The wheel rims should be chec-
ked for cracks, bends or warpage
before each ride. If any damage
is found, have a Yamaha dealer
replace the wheel. Do not
attempt even the smallest repair
to the wheel. A deformed or crac-
ked wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced.
An unbalanced wheel can result
in poor performance, adverse
handling characteristics, and a
shortened tire life.
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for
it to develop its optimal characte-
ristics.
EAUM2061
Checking the front and rear
brake lever free play
Front
1. Brake lever free play
Rear
1. Brake lever free play
PERIODIC MAINTENANCE AND ADJUSTMENT
6-19
6
37P-F8199-E1 19/2/10 05:09 Página 63
Page 64 of 88

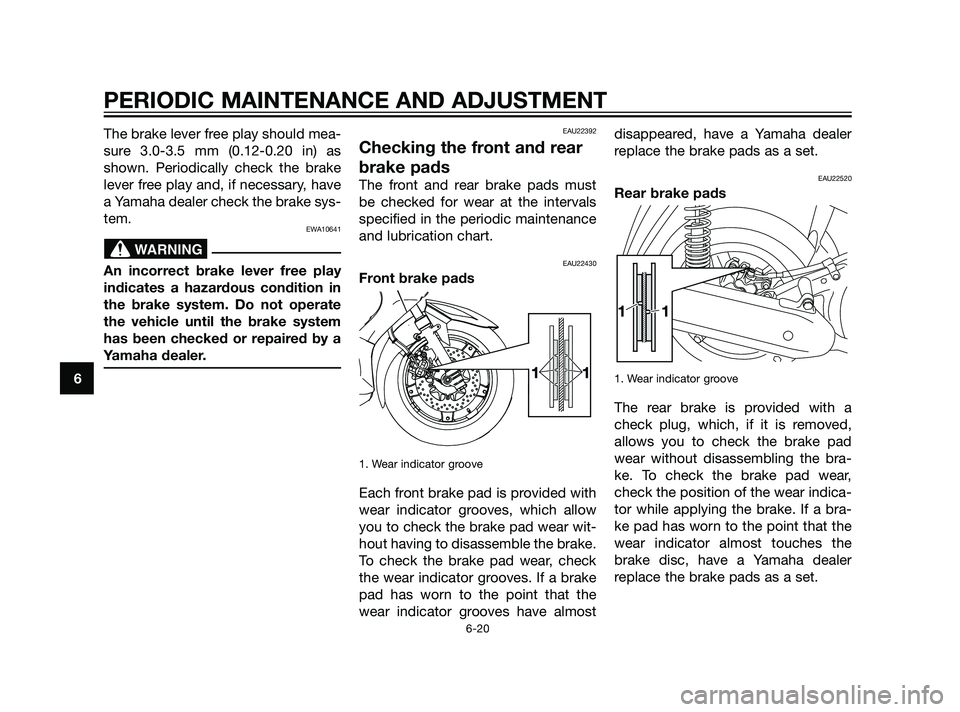

The brake lever free play should mea-
sure 3.0-3.5 mm (0.12-0.20 in) as
shown. Periodically check the brake
lever free play and, if necessary, have
a Yamaha dealer check the brake sys-
tem.
EWA10641
An incorrect brake lever free play
indicates a hazardous condition in
the brake system. Do not operate
the vehicle until the brake system
has been checked or repaired by a
Yamaha dealer.
EAU22392
Checking the front and rear
brake pads
The front and rear brake pads must
be checked for wear at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU22430
Front brake pads
1. Wear indicator groove
Each front brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear wit-
hout having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that the
wear indicator grooves have almostdisappeared, have a Yamaha dealer
replace the brake pads as a set.
EAU22520
Rear brake pads
1. Wear indicator groove
The rear brake is provided with a
check plug, which, if it is removed,
allows you to check the brake pad
wear without disassembling the bra-
ke. To check the brake pad wear,
check the position of the wear indica-
tor while applying the brake. If a bra-
ke pad has worn to the point that the
wear indicator almost touches the
brake disc, have a Yamaha dealer
replace the brake pads as a set.
WARNING
PERIODIC MAINTENANCE AND ADJUSTMENT
6-20
6
37P-F8199-E1 19/2/10 05:09 Página 64
