fuel from deteriorating.
3. Perform the following steps to
protect the cylinder, piston rings,
etc. from corrosion.
a Remove the spark plug cap
and spark plug.
b Pour a teaspoonful of engine
oil into the spark plug bore.
c Install the spark plug cap
onto the spark plug, and then
place the spark plug on the
cylinder head so that the
electrodes are grounded.
(This will limit sparking during
the next step.)
d Turn the engine over several
times with the starter. (This
will coat the cylinder wall with
oil.)
e Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap. WARNING!
To prevent damage or injury
from sparking, make sure
to ground the spark plug
electrodes while turning the
engine over.
[EWA10951]
4. Lubricate all control cables and
the pivoting points of all levers
and pedals as well as of the
sidestand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the scooter so that both of its
wheels are off the ground. Alter-
natively, turn the wheels a little
every month in order to prevent
the tires from becoming degra-
ded in one spot.
6. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a
month. Do not store the battery in
an excessively cold or warm pla-
ce [less than 0 °C (30 °F) or more
than 30 °C (90 °F)]. For more
information on storing the bat-
tery, see page 6-25.
TIP
Make any necessary repairs before
storing the scooter.
SCOOTER CARE AND STORAGE
7-4
7
37P-F8199-E1 19/2/10 05:09 Página 81

Dimensions:Overall length:2201 mm (86.7 in)
Overall width: 776 mm (30.6 in)
Overall height: 1337 mm (52.6 in)
Seat height: 792 mm (31.2 in)
Wheelbase: 1545 mm (60.8 in)
Ground clearance: 135 mm (5.31 in)
Minimum turning radius: 1805 mm (71.1 in)
Weight:With oil and fuel:YP250R 177 kg (391 lb)
YP250RA 184.4 kg (407 lb)
Engine:Engine type:Liquid cooled 4-stroke, SOHC
Cylinder arrangement: Forward-inclined single cylinder
Displacement: 249 cm
3
Bore x stroke:69.0 x 66.8 mm (2.72 x 2.63 in)
Compression ratio: 10.00 :1
Starting system: Electric starter
Lubrication system: Wet sump
Engine oil:Recommended brand:YAMALUBE
Type: SAE 10W-30, 10W-40, 10W-50, 15W-40,
20W-40 or 20W-50
Recommended engine oil grade: API service SF, SG type or higher, JASO
standard MA
Engine oil quantity:Periodic oil change: 1.30 L (1.37 US qt, 1.14 Imp.qt)
Final transmission oil:Type:YAMALUBE 10W-40 or SAE 10W-30 type
SE motor oil
Quantity: 0.25 L (0.26 US qt, 0.22 Imp.qt)
Cooling system:Coolant reservoir capacity (up to the maxi-
mum level mark):0.25 L (0.26 US qt, 0.22 Imp.qt) Radiator capacity (including all routes):
1.00 L (1.06 US qt, 0.88 Imp.qt)
Air filter:Air filter element:Oil-coated paper element
Fuel:Recommended fuel:Regular unleaded gasoline only
Fuel tank capacity: 11.8 L (3.12 US gal, 2.60 Imp.gal)
Fuel reserve amount: 2.0 L (0.53 US gal, 0.44 Imp.gal)
Fuel injection:Throttle body:ID mark:1C04 00
Manufacturer: AISAN
Spark plug(s):Manufacturer/model:NGK/DPR8EA-9
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)
Clutch:Clutch type:Dry, centrifugal automatic
Transmission:Primary reduction system:Helical gear
Primary reduction ratio: 40/15 (2.666)
Secondary reduction system: Helical gear
-20 -10 0 10 20 30
40 50 ˚C
SAE 10W-30
SAE 15W-40
SAE 20W-40
SAE 20W-50
SAE 10W-40
SAE 10W-50
SPECIFICATIONS
8-1
8
37P-F819D-E1 13/4/10 07:28 Página 82

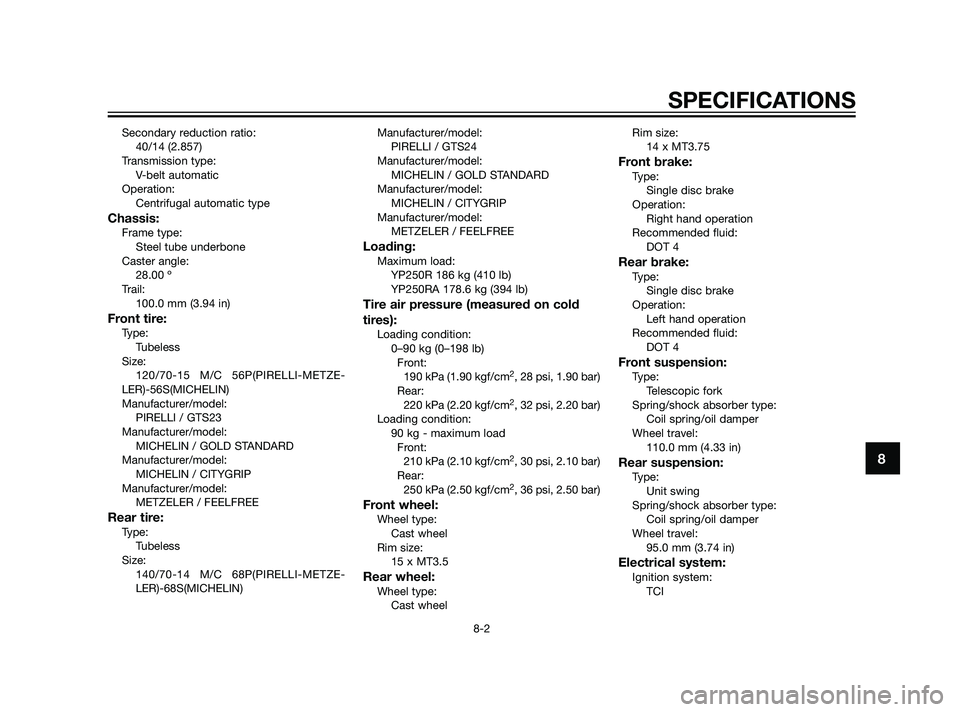

Secondary reduction ratio:
40/14 (2.857)
Transmission type:
V-belt automatic
Operation:
Centrifugal automatic type
Chassis:Frame type:
Steel tube underbone
Caster angle:
28.00 º
Trail:
100.0 mm (3.94 in)
Front tire:Type:
Tubeless
Size:
120/70-15 M/C 56P(PIRELLI-METZE-
LER)-56S(MICHELIN)
Manufacturer/model:
PIRELLI / GTS23
Manufacturer/model:
MICHELIN / GOLD STANDARD
Manufacturer/model:
MICHELIN / CITYGRIP
Manufacturer/model:
METZELER / FEELFREE
Rear tire:Type:
Tubeless
Size:
140/70-14 M/C 68P(PIRELLI-METZE-
LER)-68S(MICHELIN)Manufacturer/model:
PIRELLI / GTS24
Manufacturer/model:
MICHELIN / GOLD STANDARD
Manufacturer/model:
MICHELIN / CITYGRIP
Manufacturer/model:
METZELER / FEELFREE
Loading:Maximum load:
YP250R 186 kg (410 lb)
YP250RA 178.6 kg (394 lb)
Tire air pressure (measured on cold
tires):
Loading condition:
0–90 kg (0–198 lb)
Front:
190 kPa (1.90 kgf/cm
2, 28 psi, 1.90 bar)
Rear:
220 kPa (2.20 kgf/cm
2, 32 psi, 2.20 bar)
Loading condition:
90 kg - maximum load
Front:
210 kPa (2.10 kgf/cm
2, 30 psi, 2.10 bar)
Rear:
250 kPa (2.50 kgf/cm
2, 36 psi, 2.50 bar)
Front wheel:Wheel type:
Cast wheel
Rim size:
15 x MT3.5
Rear wheel:Wheel type:
Cast wheelRim size:
14 x MT3.75
Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:Type:
Single disc brake
Operation:
Left hand operation
Recommended fluid:
DOT 4
Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
110.0 mm (4.33 in)
Rear suspension:Type:
Unit swing
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
95.0 mm (3.74 in)
Electrical system:Ignition system:
TCI
SPECIFICATIONS
8-2
8
37P-F8199-E1 19/2/10 05:09 Página 83

Charging system:
AC magneto
Battery:Model:
GTX9-BS
Voltage, capacity:
12 V, 8.0 Ah
Headlight:Bulb type:
Halogen bulb
Bulb voltage, wattage x quantity:Low beam headlight:
12 V, 55.0 W x 1
High beam headlight:
12 V, 55.0 W x 1
Tail/brake light:
12 V, 5.0 W/21.0 W x 2
Front turn signal light:
12 V, 10.0 W x 2
Rear turn signal light:
12 V, 10.0 W x 2
Auxiliary light:
12 V, 5.0 W x 2
License plate light:
12 V, 5.0 W x 1
Meter lighting:
12 V, 2.0 W x 3
High beam indicator light:
12 V, 1.4 W x 1
Turn signal indicator light:
12 V, 1.4 W x 2
Engine trouble warning light:
12 V, 1.4 W x 1ABS warning light (for ABS models):
12 V, 1.4 W x 1
Immobilizer system indicator light:
LED
Fuses:Main fuse:
30.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
7.5 A
Hazard fuse:
10.0 A
ECU fuse:
5.0 A
ABS control unit fuse (for ABS models):
5.0 A
ABS motor fuse (for ABS models):
30.0 A
ABS solenoid fuse (for ABS models):
20.0 A
Backup fuse:
5.0 A
SPECIFICATIONS
8-3
8
37P-F8199-E1 19/2/10 05:09 Página 84

EAU48610
Identification numbers
Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in
case the vehicle is stolen.
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EAU26410
Vehicle identification number
1. Vehicle identification number
The vehicle identification number is
stamped into the frame.
TIP
The vehicle identification number is
used to identify your vehicle and may
be used to register it with the licen-
sing authority in your area.
EAU26460
Model label
1. Model label
The model label is affixed to the loca-
tion shown. Record the information
on this label in the space provided.
This information will be needed when
ordering spare parts from a Yamaha
dealer.
1
CONSUMER INFORMATION
9-1
9
37P-F8199-E1 19/2/10 05:09 Página 85

AABS (for ABS models)..............................3-13
ABS warning light (for ABS models) ..........3-4
Acceleration and deceleration ...................5-3
Air filter and V-belt case air filter
elements ................................................6-15
Auxiliary light bulb, replacing ...................6-30
BBattery......................................................6-25
Brake fluid level, checking .......................6-21
Brake fluid, changing ...............................6-22
Brake lever, front ......................................3-12
Brake lever, rear .......................................3-13
Brake levers, lubricating ..........................6-22
Braking .......................................................5-3
CCare............................................................7-1
Catalytic converters .................................3-16
Centerstand and sidestand, checking
and lubricating .......................................6-23
Coolant.....................................................6-13
Cowlings and panels, removing and
installing ...................................................6-8
DDimmer switch .........................................3-11
EEngine break-in ..........................................5-4
Engine oil .................................................6-10
Engine trouble warning light ......................3-4
FFinal transmission oil ...............................6-12
Front and rear brake lever free play.........6-19
Front and rear brake pads, checking ......6-20
Front fork, checking .................................6-24Fuel ..........................................................3-15
Fuel consumption, tips for reducing ..........5-4
Fuel tank cap ...........................................3-14
Fuses, replacing .......................................6-26
HHandlebar switches .................................3-11
Hazard switch ..........................................3-12
Headlight bulb, replacing .........................6-28
High beam indicator light...........................3-4
Horn switch ..............................................3-11
IIdentification numbers ...............................9-1
Ignition circuit cut-off system ..................3-21
Immobilizer system ....................................3-1
Indicator and warning lights ......................3-4
LLicense plate light bulb, replacing ...........6-30
MMain switch/steering lock ..........................3-2
Maintenance and lubrication, periodic ......6-4
Maintenance, emission control system .....6-3
Matte color, caution ...................................7-1
Model label ................................................9-1
Multi-function display ................................3-6
PParking .......................................................5-5
Part locations .............................................2-1
Pass switch ..............................................3-11
SSafe-riding points.......................................1-5
Safety information ......................................1-1
Seat ..........................................................3-18
Securing bracket ......................................3-17
Shock absorber assemblies, adjusting....3-20Sidestand .................................................3-20
Spark plug, checking .................................6-9
Specifications.............................................7-3
Speedometer .............................................3-5
Start switch ..............................................3-12
Starting off .................................................5-2
Starting the engine.....................................5-1
Steering, checking ...................................6-24
Storage.......................................................7-3
Storage compartments ............................3-18
TTachometer ................................................3-6
Tail/brake light bulb or rear turn signal
light bulb, replacing ...............................6-29
Throttle cable free play, adjusting ............6-16
Throttle grip and cable, checking and
lubricating ..............................................6-22
Tires .........................................................6-17
Tool kit ........................................................6-2
Troubleshooting .......................................6-31
Troubleshooting charts ............................6-32
Turn signal indicator lights .........................3-4
Turn signal light bulb (front), replacing ....6-29
Turn signal switch ....................................3-11
VValve clearance ........................................6-17
Vehicle identification number .....................9-1
WWheel bearings, checking........................6-25
Wheels .....................................................6-19
INDEX
37P-F8199-E1 19/2/10 05:09 Página 86

37P-F8199-E1 19/2/10 05:09 Página 87

YAMAHA MOTOR ESPAÑA, S.A.
PRINTED IN SPAIN
2010.01
(E)
37P-F8199-E1 19/2/10 05:09 Página 88
