2011 VOLVO XC60 Owner´s Manual

08 Maintenance and specifications
Fuses
08

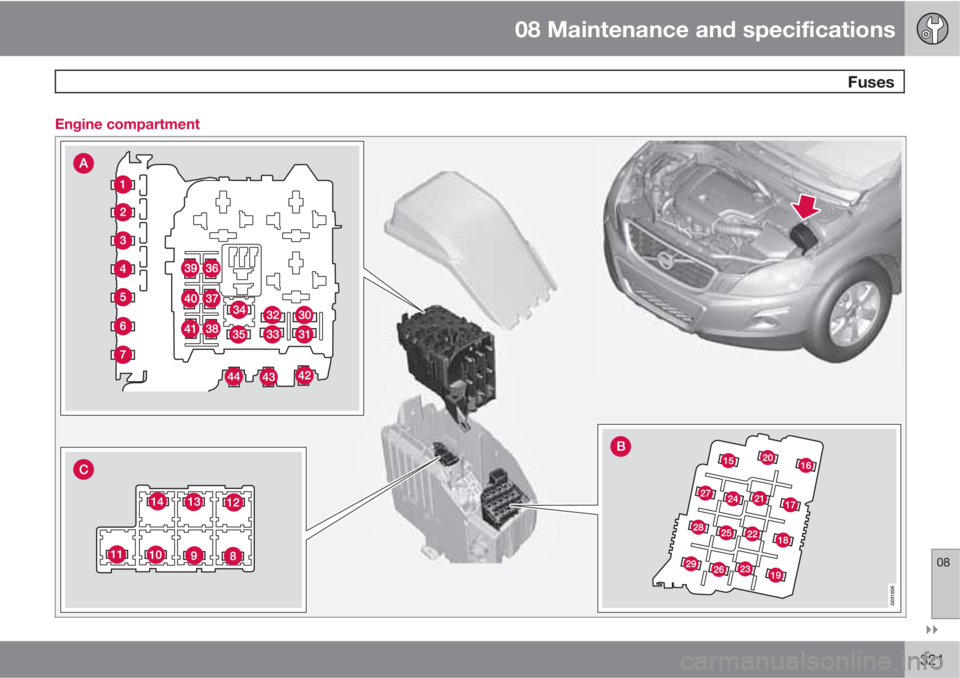

321 Engine compartment

08 Maintenance and specifications
Fuses
08
322* Option/accessory, for more information, see Introduction.
Engine compartment, upper
Engine compartment, front
Engine compartment, lower
PositionsThese fuses are all located in the engine com-
partment box. Fuses in
are located under
.
NOTE
•Fuses 16 – 33 and 35 – 41 may be
changed at any time when necessary.
•Fuses 1 – 15, 34 and 42 – 44 are relays/
circuit breakers and should only be
removed or replaced by a trained and
qualified Volvo service technician.
•There is a special fuse removal tool on
the underside of the cover.
PosFunctionA
Circuit breaker50
Circuit breaker50
Circuit breaker60
Circuit breaker60
PosFunctionA
Circuit breaker60
–
–
Headlight washers*20
Windshield wipers30
–
Climate system blower40
–
ABS pump40
ABS valves20
–
Active Bending Lights-
headlight leveling*10
Central electrical module20
ABS 15 feed5
Speed-dependent steering
force*5
PosFunctionA
Engine Control Module
(ECM), transmission, SRS10
Heated washer nozzles*10
Vacuum pump I5T5
Lighting panel5
-
-
-
Engine compartment box5
Auxiliary lights*20
Horn15
Engine Control Module
(ECM)10
Control module, automatic
transmission15
Compressor A/C15
Relay coils5

08 Maintenance and specifications
Fuses
08

323
PosFunctionA
Starter motor relay30
Ignition coils20
Engine Control Module
(ECM), throttle10
Injection system15
Engine valves10
EVAP/heated oxygen sen-
sor/Injection15
Crank case ventilation
heater20
Fuel leakage detection5
–
Cooling fan80
Electro-hydraulic power
steering100

08 Maintenance and specifications
Fuses
08
324* Option/accessory, for more information, see Introduction.
Under the glove compartment
Fold aside the upholstery covering the fuse
boxes.
1. Press the cover's lock and fold it up.
2. The fuses are accessible.
Positions-fuse box A
PosFunctionA
Circuit breaker - audio sys-
tem, subwoofer*40
-
-
PosFunctionA
-
-
-
12-volt socket (cargo area)15
Controls in driver's door20
Controls in front passeng-
er's door20
PosFunctionA
Controls in right rear pas-
senger's door20
Controls in left rear pas-
senger's door20
Keyless drive*20
Power driver's seat*20
Power front passenger's
seat*20

08 Maintenance and specifications
Fuses
08

* Option/accessory, for more information, see Introduction.325
PosFunctionA
Folding rear seat head
restraints*15
-
Audio system, Navigation
system display*10
Audio system15
Bluetooth hands-free sys-
tem5
-
Laminated panoramic roof*
Courtesy lighting
Climate system sensor5
12-volt sockets15
Heated front passenger's
seat*15
Heated driver's seat*15
-
Heated rear passenger's
seat (right)*15
PosFunctionA
Heated rear passenger's
seat (left)*15
Park assist*, Volvo Naviga-
tion System*, Park assist
camera*5
All Wheel Drive* control
module5
Active chassis system*10
Positions-fuse box B
PosFunctionA
Tailgate wiper15
-
Front courtesy lighting,
power seat(s)*7.5
Instrument panel informa-
tion display5
Adaptive cruise control/
collision warning*10
Courtesy lighting, rain sen-
sor*7.5
PosFunctionA
Steering wheel module7.5
Cental locking: fuel filler
door/trunk lid10
Tailgate window washer15
Windshield washer15
Tailgate unlock10
Tailgate lock10
Fuel pump20
Remote key receiver, Alarm
movement sensor*, Climate
system5
-
Alarm, On-board diagnos-
tic system5
-
Airbag system, Occupant
weight system10
Adaptive cruise control
front radar*5

08 Maintenance and specifications
Fuses
08
326* Option/accessory, for more information, see Introduction.

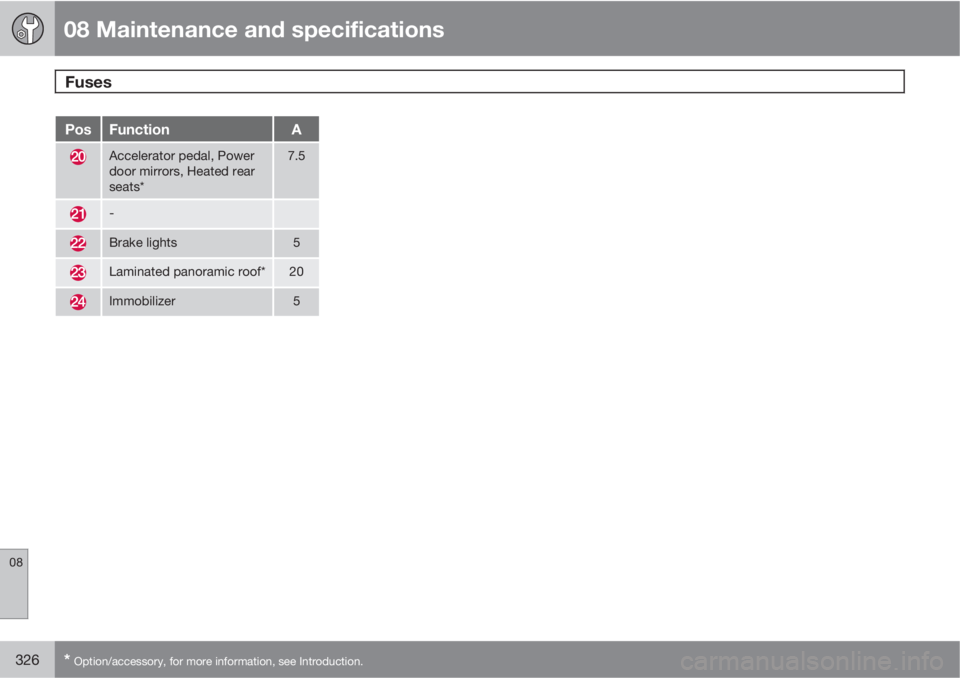

PosFunctionA
Accelerator pedal, Power
door mirrors, Heated rear
seats*7.5
-
Brake lights5
Laminated panoramic roof*20
Immobilizer5

08 Maintenance and specifications
Fuses
08
* Option/accessory, for more information, see Introduction.327 Cargo area
Located behind the upholstery on the left side of the cargo area
Positions
PosRear fuse boxA
Electric parking brake (left
side)30
Electric parking brake (right
side)30
Heated rear window30
Trailer socket 2*15
Power tailgate*30
PosRear fuse boxA
-
-
-
-
-
PosRear fuse boxA
Trailer socket 1*40
-

08 Maintenance and specifications
Vehicle care
08
328

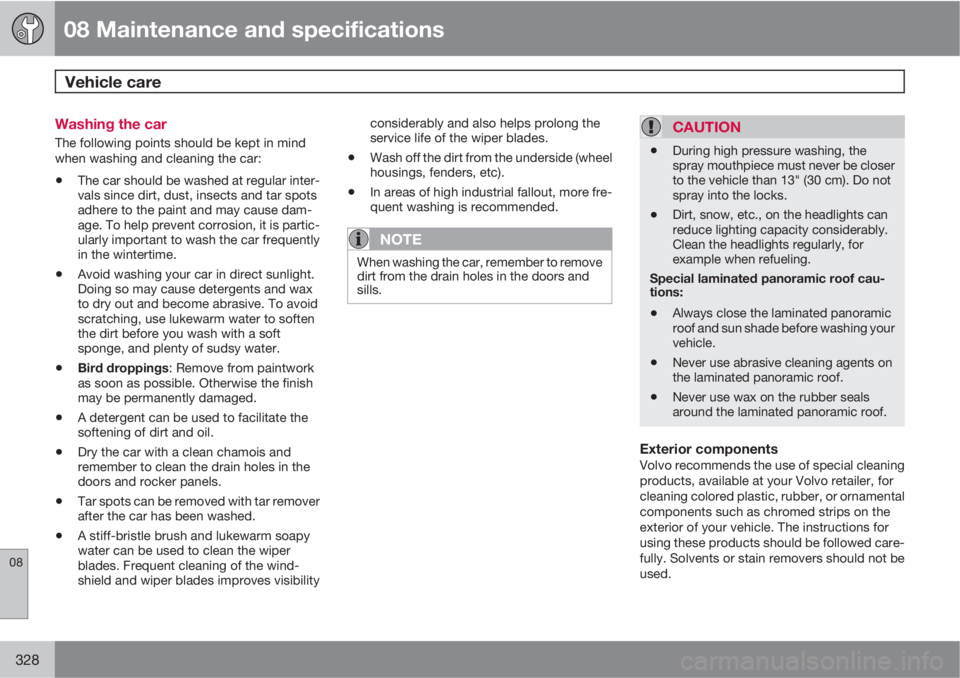

Washing the car
The following points should be kept in mind
when washing and cleaning the car:
•The car should be washed at regular inter-
vals since dirt, dust, insects and tar spots
adhere to the paint and may cause dam-
age. To help prevent corrosion, it is partic-
ularly important to wash the car frequently
in the wintertime.
•Avoid washing your car in direct sunlight.
Doing so may cause detergents and wax
to dry out and become abrasive. To avoid
scratching, use lukewarm water to soften
the dirt before you wash with a soft
sponge, and plenty of sudsy water.
•Bird droppings: Remove from paintwork
as soon as possible. Otherwise the finish
may be permanently damaged.
•A detergent can be used to facilitate the
softening of dirt and oil.
•Dry the car with a clean chamois and
remember to clean the drain holes in the
doors and rocker panels.
•Tar spots can be removed with tar remover
after the car has been washed.
•A stiff-bristle brush and lukewarm soapy
water can be used to clean the wiper
blades. Frequent cleaning of the wind-
shield and wiper blades improves visibilityconsiderably and also helps prolong the
service life of the wiper blades.
•Wash off the dirt from the underside (wheel
housings, fenders, etc).
•In areas of high industrial fallout, more fre-
quent washing is recommended.
NOTE
When washing the car, remember to remove
dirt from the drain holes in the doors and
sills.
CAUTION
•During high pressure washing, the
spray mouthpiece must never be closer
to the vehicle than 13" (30 cm). Do not
spray into the locks.
•Dirt, snow, etc., on the headlights can
reduce lighting capacity considerably.
Clean the headlights regularly, for
example when refueling.
Special laminated panoramic roof cau-
tions:
•Always close the laminated panoramic
roof and sun shade before washing your
vehicle.
•Never use abrasive cleaning agents on
the laminated panoramic roof.
•Never use wax on the rubber seals
around the laminated panoramic roof.
Exterior componentsVolvo recommends the use of special cleaning
products, available at your Volvo retailer, for
cleaning colored plastic, rubber, or ornamental
components such as chromed strips on the
exterior of your vehicle. The instructions for
using these products should be followed care-
fully. Solvents or stain removers should not be
used.
