2011 VOLVO XC60 Owner´s Manual

04 Comfort and driving pleasure
Passenger compartment convenience
04

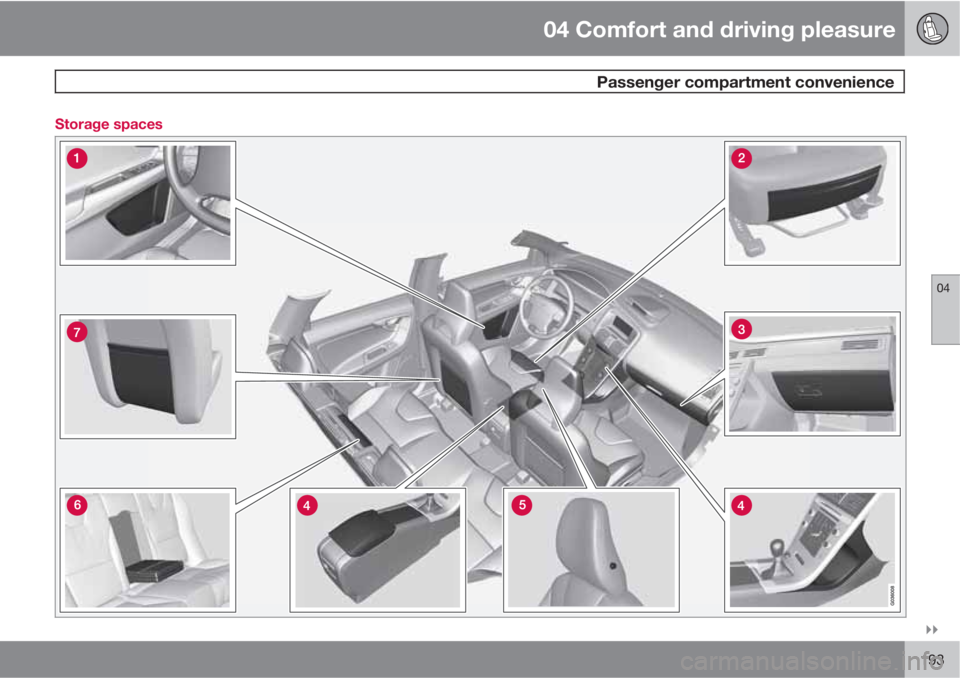

193 Storage spaces

04 Comfort and driving pleasure
Passenger compartment convenience
04
194* Option/accessory, for more information, see Introduction.
Compartment in door panel
Storage pocket on the front edge of the
front seat cushions
Glove compartment
Storage compartment, 12-volt socket and
AUX input/USB connector*
Jacket holder
Rear seat cup holders
Storage pocket
Jacket holderThe jacket hanger is located on the inboard
side of the front passenger's seat head
restraint. It is only intended for hanging light
garments.
Tunnel console
Storage compartment (for CDs, etc.) under
armrest, AUX input/USB connector.
Includes cup holder for driver and passen-
ger, 12-volt socket and small storage com-
partment.
Glove compartment
The owner's manual and maps can be kept
here. There are also holders for pens and fuel
cards. The glove compartment can be locked
manually with the key blade, see page 67.

04 Comfort and driving pleasure
Passenger compartment convenience
04

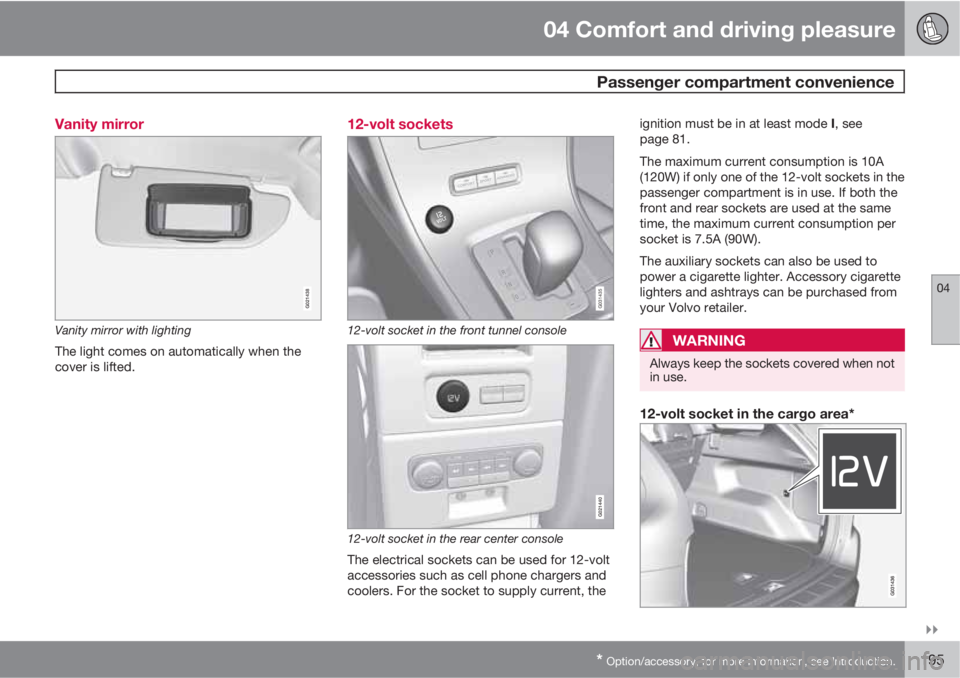

* Option/accessory, for more information, see Introduction.195 Vanity mirror
G021438
Vanity mirror with lighting
The light comes on automatically when the
cover is lifted.
12-volt sockets
G031435
12-volt socket in the front tunnel console
G021440
12-volt socket in the rear center console
The electrical sockets can be used for 12-volt
accessories such as cell phone chargers and
coolers. For the socket to supply current, theignition must be in at least mode I, see
page 81.
The maximum current consumption is 10A
(120W) if only one of the 12-volt sockets in the
passenger compartment is in use. If both the
front and rear sockets are used at the same
time, the maximum current consumption per
socket is 7.5A (90W).
The auxiliary sockets can also be used to
power a cigarette lighter. Accessory cigarette
lighters and ashtrays can be purchased from
your Volvo retailer.
WARNING
Always keep the sockets covered when not
in use.
12-volt socket in the cargo area*

04 Comfort and driving pleasure
Passenger compartment convenience
04
196

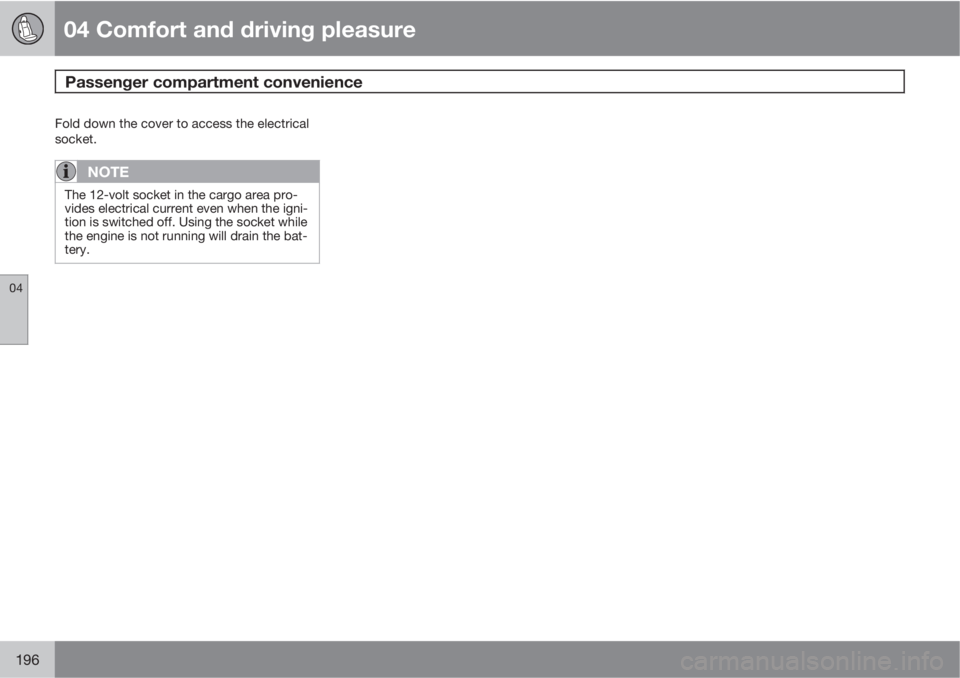

Fold down the cover to access the electrical
socket.
NOTE
The 12-volt socket in the cargo area pro-
vides electrical current even when the igni-
tion is switched off. Using the socket while
the engine is not running will drain the bat-
tery.

04 Comfort and driving pleasure

04
197

198
Introduction........................................................................................... 200
Getting started ..................................................................................... 202
General infotainment functions ............................................................ 207
Radio..................................................................................................... 210
Media player......................................................................................... 219
AUX/USB sockets................................................................................. 223
Bluetooth
Ÿ media ................................................................................. 226
Bluetooth
® hands-free connection ...................................................... 229
Cell phone voice control....................................................................... 237
Infotainment system menus ................................................................. 241

INFOTAINMENT

05 Infotainment
Introduction
05
200* Option/accessory, for more information, see Introduction.
General information
The infotainment system in your vehicle is
available in two versions:
High Performance Multimedia
•7" color TFT display
•Voice control1
•Thumb wheel on the steering wheel key-
pad
•AM/FM/HD radio2
•Sirius satellite radio*
•CD/DVD (mp3 and wma file formats)
•AUX and USB sockets
•Bluetooth hands-free/streaming
•8 speakers
•4x40W amplifier
Premium Sound Multimedia
•7" color TFT display
•Voice control1
•Thumb wheel on the steering wheel key-
pad
•AM/FM/HD radio2
•Sirius satellite radio*
•CD/DVD (mp3 and wma file formats)
•AUX and USB sockets
•Bluetooth hands-free/streaming
•12 speakers
•5x130W amplifier
Dolby Pro Logic
Dolby Surround Pro Logic IIŸ distributes stereo
sound's two channels to the left/right and front/
rear speakers.
Dolby Pro Logic II and the
symbol are
trademarks of Dolby Laboratories Licensing
Corporation. The Dolby Pro Logic II System is
manufactured under license from Dolby
Laboratories Licensing Corporation.
Audyssey MultEQ3
The Audyssey MultEQ system has been used
to optimize sound quality to help ensure a
world-class listening experience.
Using the infotainment systemIf the infotainment system is on when the igni-
tion is switched off, it will come on automati-
cally the next time the ignition is put in mode I
or higher and continue using the same source
(
FM1, etc.) that was in use when the ignition
was switched off (the driver's door must also
be closed on vehicles with the optional keyless
drive).
The infotainment system can be operated with-
out a key in the ignition slot for 15 minutes at
a time by pressing the On/Off button.
1Only available on models equipped with the optional Volvo Navigation System.2U.S. models only3Applies only to models with Premium Sound Multimedia.
