Page 273 of 292
11 Specifications
Engine specifications
11
273
Engine designationB5254T7
OutputA
kW/rps
hp/rpm169/83
227/5000
TorqueA
Nm/rps
ft. lbs./rpm320/25-80
236/1500-4800
No. of cylinders5
Displacement (liters/cubic inches)2.52/153.8
Bore (mm/in.)83/3.27
Stroke (mm/in.)93.2/3.67
Compression ratio9.0:1
Spark plugs
type
gap inches/mm
tightening torque ft. lbs./Nm
Volvo kit no. 30650379
0.027 in./0.7mm
22.5 ft. lbs./30 Nm
AThe engine specifications for output and torque listed in this table are based on the use of premium fuel.
Charge air cooler (Intercooler)
The engine employs a turbo-compressor to
force air into the engine intake manifold and a
charge air cooler to cool the compressed inletair. The resulting increase in air flow raises
pressure in the intake manifold and increases
engine power over that developed by the nor-
mally-aspirated engine. The charge air cooler(which resembles a radiator) is located
between the turbo-compressor and intake
manifold.
Page 274 of 292
11 Specifications
Engine specifications
11
274
Fuel system
The engine is equipped with a multiport fuel
injection system.
Page 275 of 292

11 Specifications
Electrical system
11
* Option/accessory, for more information, see Introduction.275 General information
12-volt system with voltage controlled gener-
ator. Single wire system in which the chassis
and engine block are used as conductors,
grounded on the chassis.
Battery
Voltage12 V
Cold start capacity (CCA)700 AA
Reserve capacity (RC)135 min
Capacity (Ah)80
AModels equipped with the Premium Sound audio system,
the Volvo Navigation System and/or keyless drive.
If the battery must be replaced, replace it with
one with the same cold start capacity and
reserve capacity as the original (see the decal
on the battery).
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.
Bulbs used in the car
BulbOutputType
Low beam headlights (models with halogen headlights)55WH7
High beam headlights (models with halogen headlights)55WH9
High beam headlights (models with Active Bending Lights* only)55WH7
Brake lights, back-up lights, rear fog light21WP21W
Front turn signals (models with halogen only), rear turn signals21WPY21W

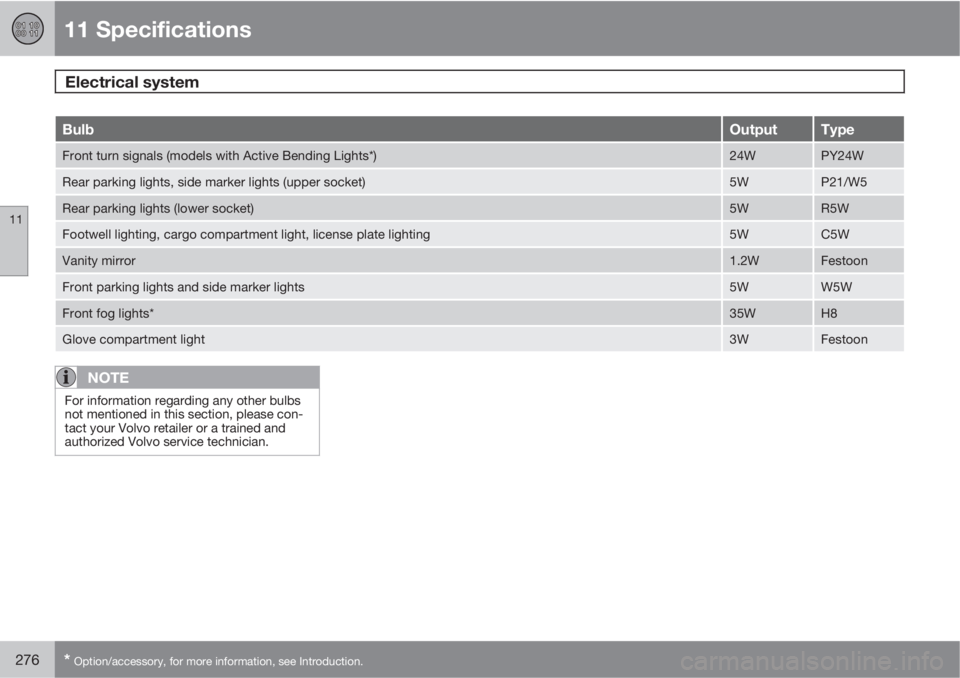

Page 276 of 292
11 Specifications
Electrical system
11
276* Option/accessory, for more information, see Introduction.
BulbOutputType
Front turn signals (models with Active Bending Lights*)24WPY24W
Rear parking lights, side marker lights (upper socket)5WP21/W5
Rear parking lights (lower socket)5WR5W
Footwell lighting, cargo compartment light, license plate lighting5WC5W
Vanity mirror1.2WFestoon
Front parking lights and side marker lights5WW5W
Front fog lights*35WH8
Glove compartment light3WFestoon
NOTE
For information regarding any other bulbs
not mentioned in this section, please con-
tact your Volvo retailer or a trained and
authorized Volvo service technician.
Page 277 of 292

11 Specifications
Three-way catalytic converter
11
277 Three-way catalytic converter –
general information
•Keep your engine properly tuned. Certain
engine malfunctions, particularly involving
the electrical, fuel or distributor ignition
systems, may cause unusually high three-
way catalytic converter temperatures. Do
not continue to operate your vehicle if you
detect engine misfire, noticeable loss of
power or other unusual operating condi-
tions, such as engine overheating or back-
firing. A properly tuned engine will help
avoid malfunctions that could damage the
three-way catalytic converter.
•Do not park your vehicle over combustible
materials, such as grass or leaves, which
can come into contact with the hot exhaust
system and cause such materials to ignite
under certain wind and weather condi-
tions.
•Excessive starter cranking (in excess of
one minute), or an intermittently firing or
flooded engine can cause three-way cata-
lytic converter or exhaust system over-
heating.
•Remember that tampering or unauthorized
modifications to the engine, the Electronic
Control Module, or the vehicle may be ille-
gal and can cause three-way catalytic con-
verter or exhaust system overheating. This
includes: altering fuel injection settings or
components, altering emission systemcomponents or location, or removing com-
ponents, and/the repeated use of leaded
fuel.
NOTE
Unleaded fuel is required for vehicles with
three-way catalytic converters.
Page 278 of 292

11 Specifications
Overview of information and warning symbols
11
278* Option/accessory, for more information, see Introduction.
Introduction
The symbols in the vehicle's various displays
are divided into three main categories:
•Warning symbols
•Indicator symbols
•Information symbols
The following tables list the most common
symbols, their Description and the pages in this
manual that provide more detailed information.
Warning symbol
The red warning symbol lights up to indi-
cate a problem related to safety and/or driva-
bility. A message will also appear in the main
instruments panel's display.
Information symbol
The yellow information symbol lights up
and a text message is displayed to provide the
driver with necessary information about one of
the vehicle's systems.
Symbols in the main instrument panel
Indicator and warning symbols
SymbolDescriptionPage
Warning56
Information56
Malfunction indi-
cator light58
Fault in the ABS
system58
Rear fog light58
Stability system
STC or DSTC*157
SymbolDescriptionPage
Fuel level warning
light58
Trailer turn signal
indicator59
Parking brake
applied59
SRS airbag sys-
tem59
Oil pressure warn-
ing light59
Seat belt reminder59
Page 279 of 292
11 Specifications
Overview of information and warning symbols
11
* Option/accessory, for more information, see Introduction.279
SymbolDescriptionPage
Generator warn-
ing light59
Brake failure
warning light60
High beam indica-
tor54
Left turn signal54
Right turn signal54
Other information symbols
SymbolDescriptionPage
Rain sensor*74
Cruise control*71
Information symbols in the center
console display
SymbolDescriptionPage
G021216
Surround sound
(Premium Sound
only)244
HD radio248
Audio files254
CD folder254
Bluetooth-con-
nected cell phone258
BluetoothTM
hands-free
258
Information symbols in the ceiling
console
SymbolDescriptionPage
Seat belt reminder59
Occupant weight
sensor28
Page 280 of 292
11 Specifications
Volvo programs
11
280
Volvo On Call Roadside Assistance
Your new Volvo comes with a four year ON
CALL roadside assistance. Additional informa-
tion, features, and benefits are described in a
separate information package in your glove
compartment.
If you require assistance, dial:
In the U.S. 1-800-638-6586 (1-800-63-
VOLVO)
In Canada 1-800-263-0475
Technician certification
In addition to Volvo factory training, Volvo sup-
ports certification by the National Institute for
Automotive Service Excellence (A.S.E.). Certi-
fied technicians have demonstrated a high
degree of competence in specific areas.
Besides passing exams, each technician must
also have worked in the field for two or more
years before a certificate is issued. These pro-
fessional technicians are best able to analyze
vehicle problems and perform the necessary
maintenance procedures to keep your Volvo at
peak operating condition.
